Article

Green Synthesis of Silver Nanoparticles using Achillea biebersteinii Flower Extract and Its Anti-Angiogenic Properties in the Rat Aortic Ring Model

1
Research Center for Animal Development Applied Biology, Mashhad Branch, Islamic Azad University, Mashhad, Iran
2
Department of Biology, Mashhad Branch, Islamic Azad University, Mashhad, Iran
3
Institute of Tropical Forestry and Forest Products (INTROP), Universiti Putra Malaysia, Serdang, Selangor 43400 UPM, Malaysia
4
Research Center for Animal Development Applied Biology & Department of Medicine, Mashhad Branch, Islamic Azad University, Mashhad, Iran
5
Faculty of Biological Sciences, Kharazmi University, Tehran 31979-37551, Iran
6
Department of Bioprocess Technology, Faculty of Biotechnology and Biomolecular Sciences, Universiti Putra Malaysia, Serdang, Selangor 43400 UPM, Malaysia
*
Author to whom correspondence should be addressed.
Molecules 2014, 19(4), 4624-4634; https://doi.org/10.3390/molecules19044624
Submission received: 16 February 2014 / Revised: 30 March 2014 / Accepted: 4 April 2014 / Published: 15 April 2014

Abstract

:
Silver nanoparticles display unique physical and biological properties which have attracted intensive research interest because of their important medical applications. In this study silver nanoparticles (Ab.Ag-NPs) were synthesized for biomedical applications using a completely green biosynthetic method using Achillea biebersteinii flowers extract. The structure and properties of Ab.Ag-NPs were investigated using UV-visible spectroscopic techniques, transmission electron microscopy (TEM), zeta potential and energy dispersive X-ray spectrometers (EDS). The UV-visible spectroscopic analysis showed the absorbance peak at 460 nm, which indicates the synthesis of silver nanoparticles. The average particle diameter as determined by TEM was found to be 12 ± 2 nm. The zeta potential analysis indicated that Ab.Ag-NPs have good stability EDX analysis also exhibits presentation of silver element. As angiogenesis is an important phenomenon and as growth factors imbalance in this process causes the acceleration of several diseases including cancer, the anti-angiogenic properties of Ab.Ag-NPs were evaluated using the rat aortic ring model. The results showed that Ab.Ag-NPs (200 μg/mL) lead to a 50% reduction in the length and number of vessel-like structures. The synthesized silver nanoparticles from the Achillea biebersteinii flowers extract, which do not involve any harmful chemicals were well-dispersed and stabilized through this green method and showed potential therapeutic benefits against angiogenesis.

1. Introduction

Currently, improving and protecting our environment using green chemistry have become important issues in many fields of research [1]. In the field of nano-science, the use of various biological units instead of toxic chemicals for the reduction and stabilization of metal nanoparticles, has received extensive attention [2]. Biological entities, such as bacteria [3], fungi [4], yeasts [5], algae [6] or plants [7,8], have been reported as serving as both reducing and stabilizing agents. Among these possible bio- resources, biologically active products from plant resources represent excellent scaffolds for this purpose [7]. Plant extracts, which are rich in bioactive compounds, have recently been used for NPS green synthesis. Many different plant leaves and herbs for the synthesis of nanoparticles have been reported [9]. The mechanism of biosynthesis of nanoparticles in plants may be associated with the phytoremediation concept in plants [7]. The genus Achillea (Asteraceae) comprising ~85 species has some interesting properties and has been known to be ethnopharmacologically used in folk medicine for various purposes such as a diuretic, for abdominal pain, against diarrhea, flatulence, as an emmenagogue and for wound healing [10]. Several biological activity studies have been performed on various Achillea species, including antibacterial, antioxidant, anti-inflammatory and antispasmodic activities [11,12]. Saeidnia et al. reviewed the medicinal properties of various species of Achillea [13], while Si et al. reviewed the structures and biological properties of the known phytochemical constituents of the Achillea species [14].
The most promising approach for generating new fields in biomedical sciences is the pharmaceutical application of NPs [1]. Among metal NPs, nanosilver exhibits outstanding physical, chemical and biological properties [15]. Ag-NPs have potential in treating a variety of diseases, including retinal neovascularization, immunodeficiency syndrome [16], infection [17] and cancer [18]. The growth factors imbalance is involved in the acceleration of several diseases including cancer, ocular, and inflammatory diseases [19]. A promising methodology to hinder the progression of these diseases can be through inhibiting angiogenesis.
The present study describes a green method using flowers of Achillea biebersteinii extracts for the biosynthesis of Ag-NPs without any additive protecting nanoparticles from aggregating, template shaping nanoparticles or accelerants. The current simple biosynthetic method using precursors from flowers of Achillea biebersteinii provides high-yield nanosized materials. The characterization and formation mechanisms of Ag-NPs are discussed; moreover, the effects of synthesized NPs in the capillary like formation of the rat aortic ring model were evaluated by observing the morphology.

2. Results and Discussion

2.1. Green Synthesis of Ag-NPs and Characterization

During the addition of the plant extract to the aqueous AgNO3 solution, the color of the solution reaction slowly changed from yellow-wish to a dark brown color, indicating the formation of Ag-NPs. The appearance of the dark brown color may be due to the excitation of the surface plasmon resonance (SPR) effect and the reduction of AgNO3 [20].The UV-Vis absorption spectrum showed a strong absorption peak centered at 460 nm which indicated the formation of Ag-NPs. (Figure 1). This absorption is close to the absorbance peaks reported by Jha et al. [21] and Arunachalam et al. [22] to synthesize silver nanoparticle using green methods. These nanoparticles were well dispersed without adding different physical and chemical capping agents. The synthesized Ag-NPs from the flowers of Achillea biebersteinii extracts (Ab.Ag-NPs) were observed to be very stable in the solution, even one month after their synthesis. Overall the best synthesized nanoparticles were mixed in a ratio of 1 plant extract to 10 AgNO3 (5 mM) in 180 min.

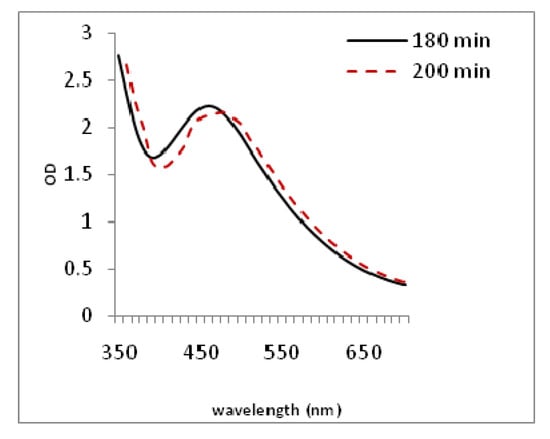

Figure 1. UV-visible absorption spectra of Ab.Ag-NPs in different times.
Figure 1. UV-visible absorption spectra of Ab.Ag-NPs in different times.
Molecules 19 04624 g001

2.2. Morphology and Size Distribution of Nanoparticles

The TEM image Figure 2a and particle size distribution graph Figure 2b show that the Ag-NPs formed were well dispersed with different shapes such as hexagonal, pentagonal and spherical structures with particle sizes ranging from 5 to 35 nm with a mean size of 12.58 nm. The presence of secondary materials can be seen from the capping with dark shades on the surface of nanoparticles, which may be assigned to the bio-compounds present in the Ab extract. The bio-components within the Ab not only result in the efficient reduction of silver salts to nanoparticles, but, likewise as an appropriate capping agent, inhibiting them from aggregation [23]. The different bio-compounds present in Ab extract such as polysaccharides, polyphenols, and proteins can produce nanoparticles with different shapes [24].

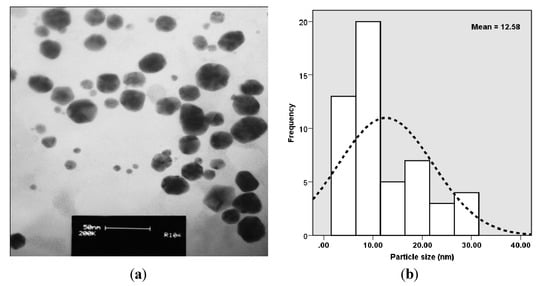

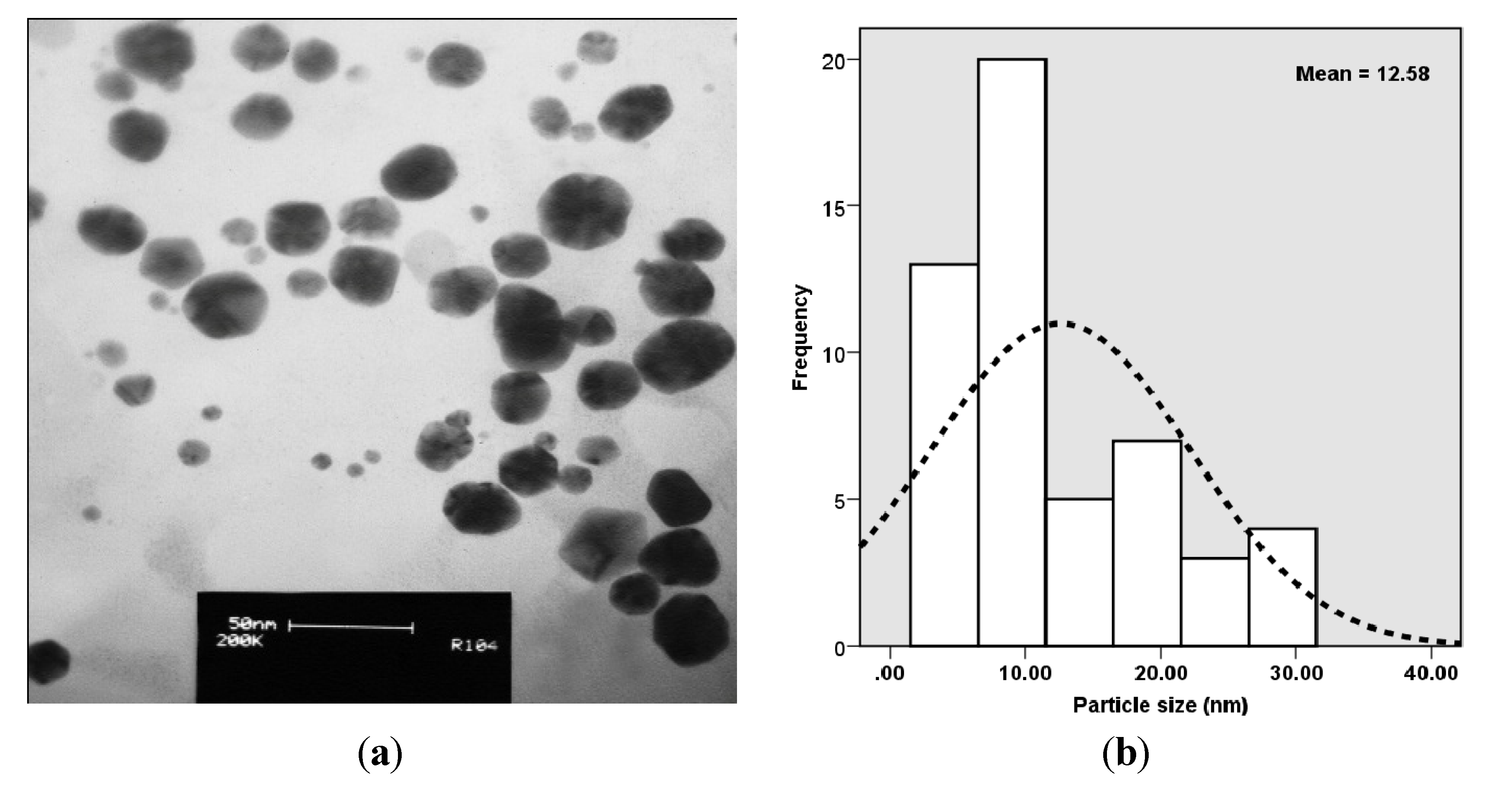

Figure 2. (a) TEM micrograph; and (b) particle size distributions of biosynthesized Ab.Ag-NPs.
Figure 2. (a) TEM micrograph; and (b) particle size distributions of biosynthesized Ab.Ag-NPs.
Molecules 19 04624 g002
The zeta potential test was used to measure the electrophoretic mobility of each nanoparticle sample. Complex zeta potential is a parameter that is used in the study of the surface charges and stability of NPs. These charges greatly influence on the particle distribution and cellular uptake. A high absolute zeta potential value indicates a high electric charge on the surface of the NPs. It describes strong repellent forces among the particles, which prevent aggregation and lead to stabilizing the NPs in the medium. The zeta potential of the nanoparticles formulated was only measured in systems that did not sediment after overnight equilibration. At natural provision (pH = 7.2), the values for the zeta potential were −20 to −40 Mv. This result revaluated the synthesized silver nanoparticle that were stable due to the electrostatic repulsion without adding a different physical or chemical capping agent. This is very important for use for therapeutic propose (Figure 3).

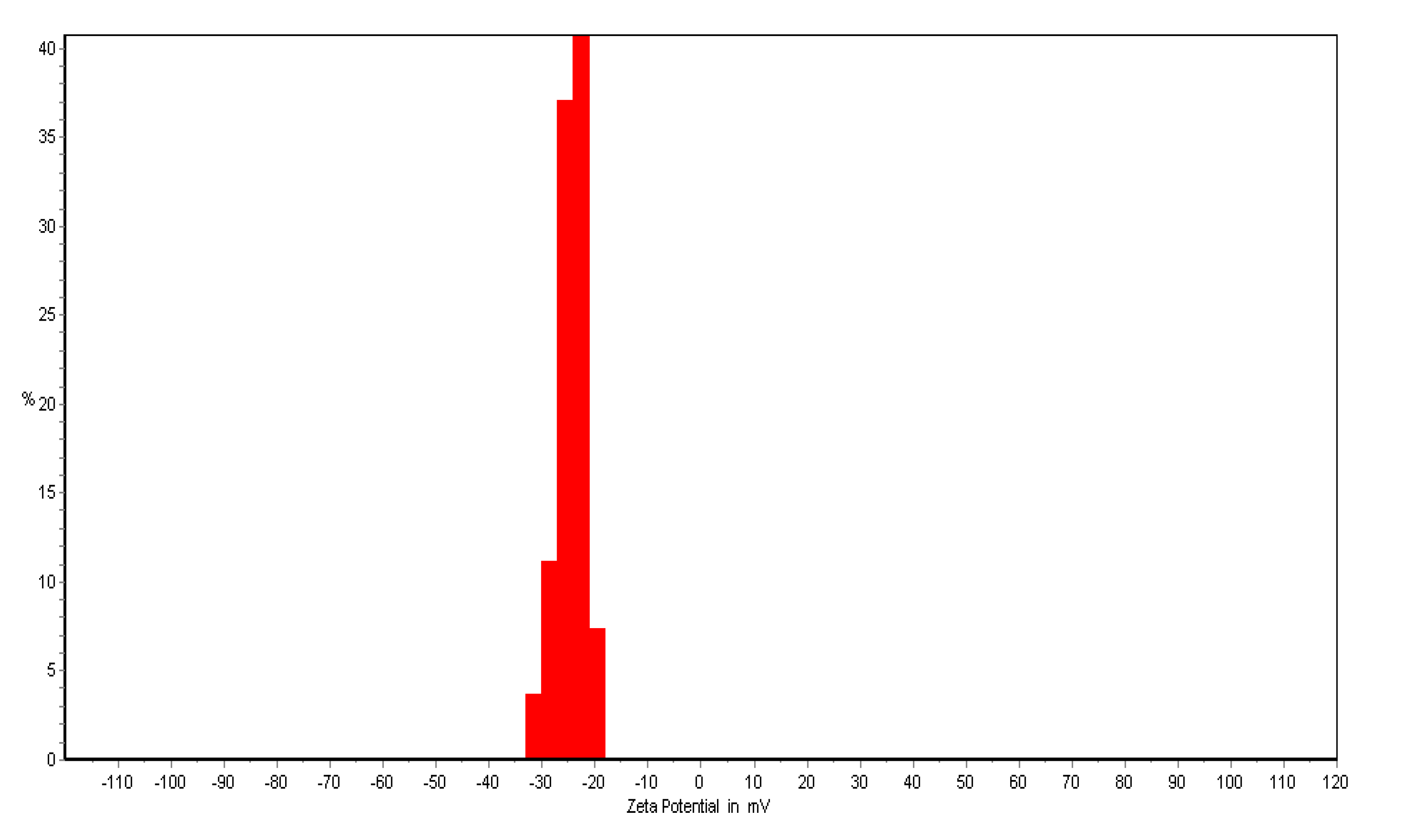

Figure 3. The zeta potential of the biosynthesized Ab.Ag-NPs.
Figure 3. The zeta potential of the biosynthesized Ab.Ag-NPs.
Molecules 19 04624 g003
The EDS spectrum detailed from the Ab.Ag-NPs is shown in Figure 4. The EDS spectrum reveals a strong signal in the silver region and confirms the formation of silver nanoparticles. The Ag-NPs generally show a sharp optical absorption peak approximately at approximately 3 KeV due to the surface plasmon resonance. The other signals below 3 KeV are related to the binding energies of bio-compounds on the surface of the Ag-NPs. Therefore, the EDS spectrum of Ab.Ag-NPs confirms the presence of elemental compounds of the Ab extract and Ag nanoparticles without any impurity peaks. The results indicate that the synthesized the Ab.Ag-NPs are of high purity.

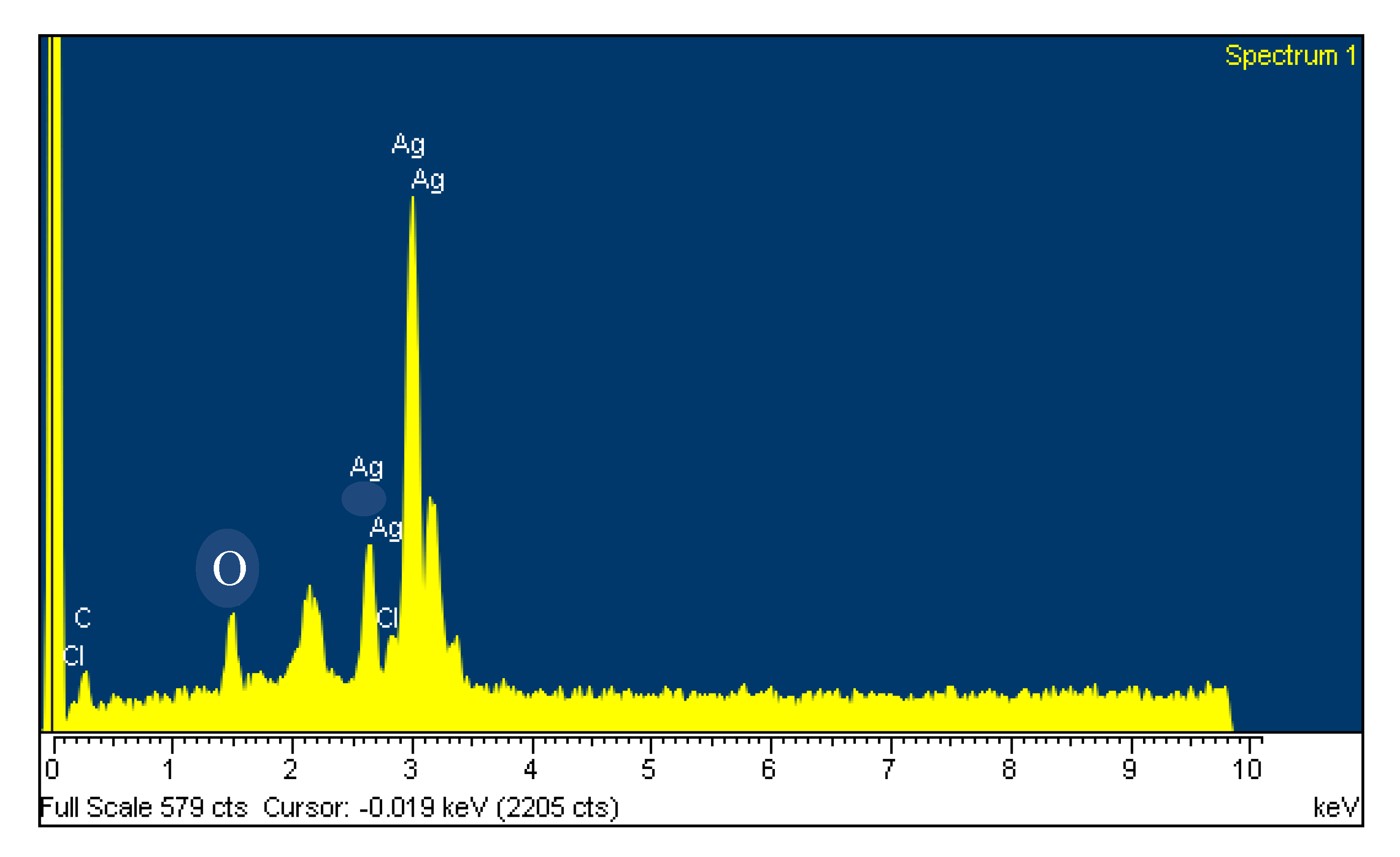

Figure 4. EDS spectrum of bi-synthesized Ab.Ag-NPs.
Figure 4. EDS spectrum of bi-synthesized Ab.Ag-NPs.
Molecules 19 04624 g004

2.3. Effects of Ab.Ag-NPs on Number and Length of Capillary like Structures in Aortic Ring Assay

According to the results, high doses of Ab.Ag-NPs (200 μg/mL) lead to destroy the capillary like and cell necrosis in the first hours of treatment a low dose (below 100 μg/mL) did not show any effects on the length and number of the vessels formed. The Ab.Ag-NPs (200 μg/mL) lead to about a 50 percent decrease in number and length of the vessels (Figure 5a,b).

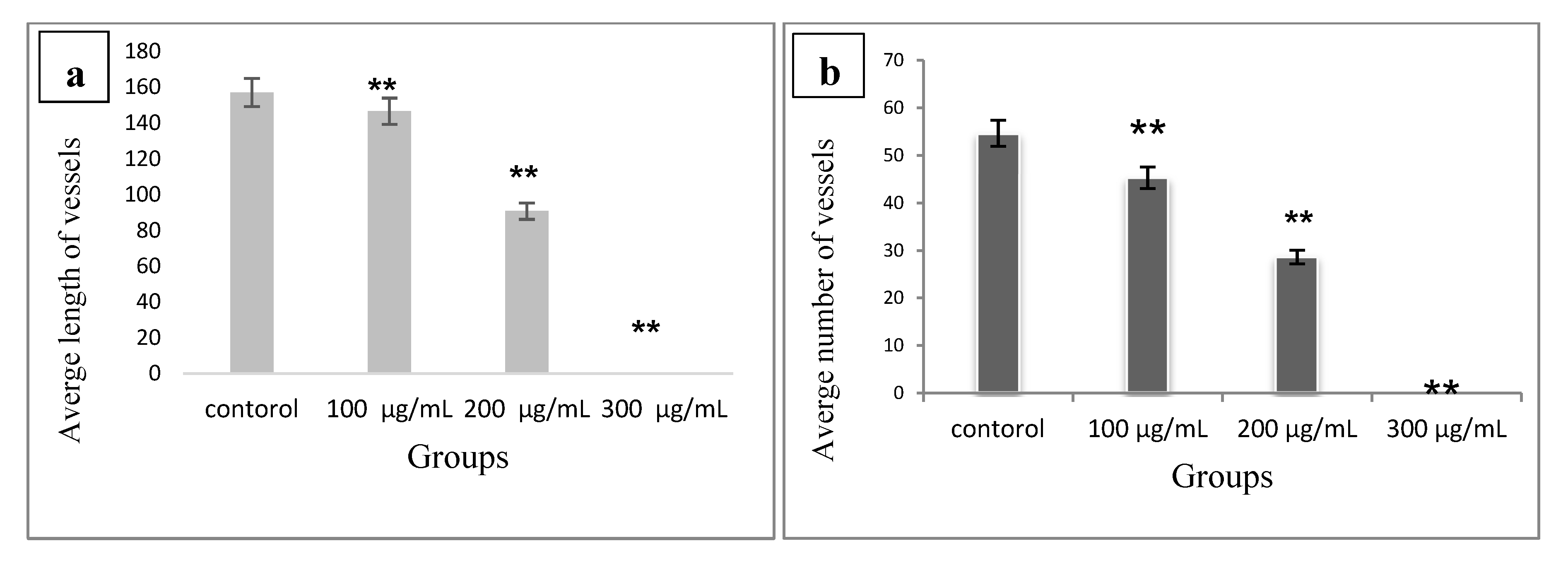

Figure 5. The effect of different concentrations of silver nanoparticles on length (a) and number (b) of small vessels in the aortic ring model (** p < 0.001).
Figure 5. The effect of different concentrations of silver nanoparticles on length (a) and number (b) of small vessels in the aortic ring model (** p < 0.001).
Molecules 19 04624 g005

2.4. Effects of the Ab.Ag-NPs on Vessel’s Morphology

Microscopic observations of treated vessels showed distinct morphological changes indicating an unhealthy organization in 200 μg/mL and higher concentrations, whereas the control appeared normally (Figure 6a,c). After treatment with toxic dosages of nanoparticles, the endothelial cells that make a vessel like structure, appeared to be clustered with a few cellular extensions, and cell-spreading patterns were restricted compared to the control cells, this could be due to disturbances in the cytoskeletal functions as a consequence of nanoparticle treatment. Similar results were observed by other groups. Low doses of Ab.Ag-NPs did not show any effect on the vascular organization (Figure 6b). The evidence showed that angiogenesis is critical for the growth and progression of solid tumors because growth in tumor mass beyond 2 to 3 mm is often caused by an increase in the formation of new blood vessels which is probably essential for the delivery of nutrients and oxygen to the tumor microenvironment [25]. Therefore, anti-angiogenic therapy represents one of the most promising approaches to control tumor growth and invasiveness. Different in vivo and in vitro assays have been used so far in order to recognize the screen angiogenic activators and inhibitors and for the development of the vascular system [26]. Commonly used in vivo models of angiogenesis include the chorioallantoïc membrane of the chick embryo (CAM assay), rabbit cornea, aortic ring and the matrigel implant assay [27]. Nicosia and Ottinetti confirmed that rat aorta rings reproducibly generate microvessel outgrowths in fibrin or collagen gels, and offer a sensitive assay for the investigation of angiogenic agonists and antagonists in a chemically defined environment. Thus, this system bridges the gap between in vitro and in vivo [27]. Angiogenic sprouting in aortic cultures is followed by migration of adventitial macrophages and fibroblasts into the periaortic gel matrix. Once vessel sprouts occur from the explants, they generate networks by elongating, forming anastomotic loops and branching through endothelial migration and proliferation [27]. The angiogenic or anti-angiogenic properties of the agent can be further demonstrated by embedding aortic endothelial cells in collagen gel [28]. The present study demonstrated that silver nanoparticles have cytotoxic effects on the endothelial cells. The Ab.Ag-NPs showed dose-dependent cytotoxicity against the endothelial cells. Another study also showed that Ag-NPs lead to subtle obstructive effects to the microcirculation in the chick embryo chorioallantoic membrane (CAM). These effects occurred without loss of embryo viability and were associated with the partial preservation of the capillary diameters and connectivity [29]. Ag-NPs could inhibit the vascular endothelial growth factor (VEGF)—induced bovine retinal endothelial cells like migration, proliferation and capillary-like tube formation. Moreover, the Ag-NPs effectively inhibited the formation of new blood micro vessels induced by VEGF in the mouse Matrigel plug assay [19,30]. Similar studies have confirmed the inhibitory effect of Ag-NPs on the vascular permeability induced by VEGF, interleukin (IL)-1β, in retinal endothelial cells [30]. These reports were consistent with our finding. The mechanism may be due to induced apoptosis that affects the proteins and enzymes with thiol groups like thioredoxin, SOD, thioredoxin peroxidase and glutathione, which are responsible for neutralizing the oxidative stress of Reactive Oxygen Species (ROS) that are largely generated by mitochondrial energy metabolism [18].
Figure 6. The inhibitory effects of silver nanoparticles on appearances vascular like appendages from the aortic rings. (a) Control; (b) The concentration of 50 μg/mL wasn’t able to inhibit destroy vessel; (c) modular inhibitory effect on 200 μg/mL; (d) Strong inhibitory effect 300 μg/mL.
Figure 6. The inhibitory effects of silver nanoparticles on appearances vascular like appendages from the aortic rings. (a) Control; (b) The concentration of 50 μg/mL wasn’t able to inhibit destroy vessel; (c) modular inhibitory effect on 200 μg/mL; (d) Strong inhibitory effect 300 μg/mL.
Molecules 19 04624 g006

3. Experimental

3.1. Materials

AgNO3 was purchased from Merck (Darmstadt, Germany). Specimens of Achillea biebersteinii were obtained from a local source. All the solutions were prepared with double distilled water. Other chemicals were of analytical grade.

3.2. Extraction Preparation

The identification of Achillea biebersteinii was confirmed by a plant taxonomist from the herbarium division of Ferdowsi University of Mashhad, where a sample was deposited with the voucher specimen number 34,516. The flower parts of freshl Achillea biebersteinii were washed thoroughly three times with double distilled water, and air-dried in the shade at room temperature for 14 days. For the production of the extract, ground, freeze-dried Achillea biebersteinii samples (about 1 g) were boiled with DDW (100 mL) in an Erlenmeyer flask while being continuously stirred for 15 min. The extract was cooled to room temperature, filtered and used for the synthesis of Ag-NPs.

3.3. Synthesis and Characterization of Ag-NPs

3.3.1. The Biosynthesis of Silver Nanoparticles (Ag-NPs)

For the preparation of silver nanoparticles, AgNO3 aqueous solution (5 mM) was mixed with different volume of plant extract under continuous stirring at 40 °C. The color of the solution slowly changed from grayish yellow to dark brown indicating the formation of silver nanoparticles.

3.3.2. Characterization Methods

The prepared Ag-NPs were monitored by UV-vis spectroscopy using a UV-vis spectrophotometer system (Epoch Biotech, Winooski, VT, USA) in the wavelength range from 300–700 nm. Energy Dispersive X-ray spectroscopy (EDS) was performed (XL 30; Philips, Eindhoven, The Netherlands) to study the composition of the product. The morphology and size of the synthesized Ag-NPs were measured using a field emission scanning electron microscope by placing a drop of the nanoparticles solution on the carbon coated copper gird and drying in air before transferring to the microscope. The size of the distribution and the average size of 50 nanoparticles were estimated on the basis of three TEM images with the assistance of Sigma-Scan Pro software (SPSS IBM, Statistics 20, IBM Corporation, Endicott, NY, USA) The zeta-potentials of Ag-NPs in water were evaluated using CAD (Zeta compact, Les Essarts-le-Roi, France). Samples were sonicated for 5 min before measurement to ensure that the particles were well dispersed and that the dispersion was homogeneous.

3.4. Aortic Ring Assay

3.4.1. Type I Collagen Extraction

Type I collagen was extracted from rat-tails. The rat tails were obtained from the Research Center for Animal Development Applied Biology, Islamic Azad University of Mashhad. Type I collagen was first extracted using the modified method by Techatanawat et al. [31]. Briefly, the skin was removed from the rat tail and the tendon taken from the tail was transferred to a sterile bottle with a stir bar and dissolved by adding about 75 mL of distilled water (pH = 4) and stirred for 2 days at 4 °C. Then the resulting viscous solution was centrifuged and stored at 4 °C for at most three months. The total protein concentrations of the samples were determined using the Bradford protein assay.

3.4.2. Preparation of Collagen Matrix and Aortic Ring Culture

Angiogenesis was investigated by culturing the aortic ring in three-dimensional matrix gels. The aortas were removed from 2–8 weeks old rats and immediately moved to a culture dish containing cold PBS. The periaortic fibroadipose tissue was removed. The aorta was sectioned in 1–2 mm-long rings and was embedded in a gel of rat tail collagen. The final collagen matrix was obtained by mixing 8 volumes of collagen (4 mg/mL) with 1 volume of 10× DMEM, and 1 volume of NaHCO3, and kept at 37 °C for 20 min. Then, 50 µL of DMEM containing 30% FBS, and 100 U/mL penicillin-streptomycin was added to each well. The cultures were kept at 37 °C in a humidified environment for a week and examined every second day with an Inverted Microscope (Biomed, Seoul, Korea) at an appropriate magnification.

3.4.3. Anti-Angiogenesis Effects of Ag-NPs

Three days after the aortic ring culture when the first small vessels like protrusions became visible silver nanoparticles were added to the wells with concentrations of 50, 100, 200 and 300 μg/mL, also some wells were considered as well as the control. Over the 24 h the results were photographed using an inverse microscope and digital camera (Canon, Tokyo, Japan). The length and number of the small vessels like protrusions before and 24 h after treatment were obtained by image analysis performed with the ImageJ software package24. Statistical analyses were performed using SPSS software. The results were shown as mean ± SD and p < 0.05 was accepted as the level of significance.

4. Conclusions

Angiogenesis has a central role in myocardial infarction, atherosclerosis, carcinogenesis, limb and cardiac ischemia, and tumor growth. The development of new therapeutic strategies aimed at reducing angiogenesis could therefore have serious clinical implications. In the present study Ag-NPs with an average size of 12 ± 2 nm were synthesized by means of a green method using an aqueous extract containing phytochemicals as the reducing agent and efficient stabilizer. The characteristics of the obtained Ab.Ag-NPs were studied using, UV-visible, EDX, TEM and zeta potential techniques. The biosynthesis of Ag-NPs using green resources is a simple, environmentally friendly, low-cost and non-toxic approach. The Ab.Ag-NPs showed anti-angiogenic properties in the rat aortic ring model. Our findings indicate that Ag-NP may have potential therapeutic benefits as anti-angiogenesis agents. Therefore these green Ag-NPs may potentially provide an attractive and cheap therapeutic alternative for treating various conditions characterized by abnormal angiogenesis.

Acknowledgments

The authors are grateful to the Research Center for Animal Development Applied Biology, Islamic Azad University of Mashhad, Iran for the laboratory facilities and financial support.

Author Contributions

Javad Baharara designed and supervised experiments analysed data and wrote the paper; Farideh Namvar designed and analysed data and wrote the paper; Tayebe Ramezani performed experiments, analysed data and wrote the paper; Nasrin Hosseini performed experiments, analysed data and wrote the paper; Rosfarizan Mohamad designed, analysed data and wrote and edit the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Salata, O. Applications of nanoparticles in biology and medicine. J. Nanobiotechnol. 2004, 6, 1–6. [Google Scholar]
  2. Dias, A.M.G.C.; Hussain, A.; Marcos, A.S.; Roque, A.A. A biotechnological perspective on the application of iron oxide magnetic colloids modified with polysaccharides. Biotechnol. Adv. 2011, 29, 142–155. [Google Scholar] [CrossRef]
  3. Malarkodi, C.; Rajeshkumar, S. Bacterial synthesis of silver nanoparticles by using optimized biomass growth of Bacillus sp. Nanosci. Nanotechnol. 2013, 3, 26–32. [Google Scholar]
  4. Hemath Naveen, K.S.; Kumar, G.; Karthik, L.; Bhaskara Rao, K.V. Extracellular biosynthesis of silver nanoparticles using the filamentous fungus Penicillium sp. Arch. Appl. Sci. Res. 2010, 2, 161–167. [Google Scholar]
  5. Kowshik, M.; Ashtaputre, S.; Kharrazi, S.; Vogel, W.; Urban, J.; Kulkarni, S.K.; Paknikar, K.M. Extracellular synthesis of silver nanoparticles by a silver-tolerant yeast strain MKY3. Nanotechnology 2003, 14, 95–100. [Google Scholar] [CrossRef]
  6. Castro, L.; Blázquez, M.L.; Muñoz, J.A.; González, F.; Ballester, A. Biological synthesis of metallic nanoparticles using algae. IET Nanobiotechnol. 2013, 7, 109–116. [Google Scholar] [CrossRef]
  7. Salam, H.; Rajiv, P.; Kamaraj, M. Plants: Green route for nanoparticle synthesis. Int. Res. J. Biol. Sci. 2012, 1, 85–90. [Google Scholar]
  8. Kiruba Daniel, S.C.G.; Mahalakshmi, N.; Sandhiya, J.; Nehru, K.; Sivakumar, M. Rapid synthesis of Ag nanoparticles using Henna extract for the fabrication of Photoabsorption Enhanced Dye Sensitized Solar Cell (PE-DSSC). Adv. Mater. Res. 2013, 678, 349–360. [Google Scholar] [CrossRef]
  9. Karnani, R.; Chowdhary, A. Biosynthesis of silver nanoparticle by eco-friendly method. Indian J. Nanosci. 2013, 1, 25–31. [Google Scholar]
  10. Bariş, Ö.; Güllüce, M.; Şahι, F. Biological Activities of the Essential Oil and Methanol Extract of Achillea biebersteinii Afan. (Asteraceae). Turk. J. Biol. 2006, 30, 65–73. [Google Scholar]
  11. Rezaie, A.; Ahmadizadeh, C. Study of sedation, pre-anesthetic and anti-anxiety effects of polar, semi-polar and non-polar fractions of yarrow (Achillea millefolium) extract compared with Diazepam in rats. Life Sci. J. 2013, 10, 907–913. [Google Scholar]
  12. Akkol, E.K.; Koca, U.; Pesin, I.; Yilmazer, D. Evaluation of the Wound Healing Potential of Achillea biebersteinii Afan. (Asteraceae) by In Vivo Excision and Incision Models. Evid. Based Complement. Altern. Med. 2011, 2011, 474026. [Google Scholar]
  13. Saeidnia, S.; Gohari, A.; Mokhber-Dezfuli, N.; Kiuchi, F. A review on phytochemistry and medicinal properties of the genus Achillea. Daru 2011, 19, 173–186. [Google Scholar]
  14. Si, X.-T.; Zhang, M.-L.; Shi, Q.-W.; Kiyota, H. Chemical constituents of the plants in the genus Achillea. Chem. Biodivers. 2006, 3, 1163–1180. [Google Scholar] [CrossRef]
  15. Tran, Q.H.; Nguyen, V.Q.; Le, A.-T. Silver nanoparticles: Synthesis, properties, toxicology, applications and perspectives. Adv. Nat. Sci. 2013, 4, 033001. [Google Scholar]
  16. Paper, R.; Ramachandran, L.; Krishnan, C.; Nair, K. Therapeutic Potentials of Silver Nanoparticle Complex of α-Lipoic Acid. Nanomater. Nanotechnol. 2011, 1, 17–24. [Google Scholar]
  17. YokeshBabu, M. Biosynthesis of silver nanoparticles from seaweed associated marine bacterium and its antimicrobial activity against UTI pathogens. Int. J. Curr. Microbiol. Appl. Sci. 2013, 2, 155–168. [Google Scholar]
  18. Mohammadzadeh, R. Hypothesis: Silver nanoparticles as an adjuvant for cancertherapy. Adv. Pharm. Bull. 2012, 2, 133–133. [Google Scholar]
  19. Gurunathan, S.; Lee, K.-J.; Kalishwaralal, K.; Sheikpranbabu, S.; Vaidyanathan, R.; Eom, S.H. Antiangiogenic properties of silver nanoparticles. Biomaterials 2009, 30, 6341–6350. [Google Scholar] [CrossRef]
  20. Azizi, S.; Namvar, F.; Mahdavi, M.; Ahmad, M.; Mohamad, R. Biosynthesis of Silver Nanoparticles Using Brown Marine Macroalga, Sargassum Muticum Aqueous Extract. Materials 2013, 6, 5942–5950. [Google Scholar] [CrossRef]
  21. Jha, A.; Prasad, K. Green fruit of chili (Capsicum annum L.) synthezis nanoparticles. Dig. J. Nanomater. Biostruct. (DJNB) 2011, 6, 1717–1723. [Google Scholar]
  22. Arunachalam, K.D.; Annamalai, S.K.; Hari, S. One-step green synthesis and characterization of leaf extract-mediated biocompatible silver and gold nanoparticles from Memecylon umbellatum. Int. J. Nanomed. 2013, 8, 1307–1315. [Google Scholar] [CrossRef]
  23. Mahdavi, M.; Namvar, F.; Ahmad, M.B.; Mohamad, R. Green Biosynthesis and Characterization of Magnetic Iron Oxide (Fe3O4) Nanoparticles Using Seaweed (Sargassum muticum) Aqueous Extract. Molecules 2013, 18, 5954–5964. [Google Scholar] [CrossRef]
  24. Sharma, S.; Kumar, S.; Bulchandini, B. Green Synthesis of Silver Nanoparticles and Their Antimicrobial Activity against Gram Positive and Gram Negative Bacteria. Int. J. Biotechnol. Bioeng. Res. 2013, 4, 341–346. [Google Scholar]
  25. Nishida, N.; Yano, H.; Nishida, T.; Kamura, T.; Kojiro, M. Angiogenesis in cancer. Vasc. Health Risk Manag. 2006, 2, 213–219. [Google Scholar] [CrossRef]
  26. Auerbach, R.; Lewis, R.; Shinners, B.; Kubai, L.; Akhtar, N. Angiogenesis assays: A critical overview. Clin. Chem. 2003, 49, 32–40. [Google Scholar] [CrossRef]
  27. Bellacen, K.; Lewis, E.C. Aortic ring assay. J. Vis. Exp. 2009, 1564, 1–2. [Google Scholar]
  28. Nicosia, R.F.; Zorzi, P.; Ligresti, G.; Morishita, A.; Aplin, A.C. Paracrine regulation of angiogenesis by different cell types in the aorta ring model. Int. J. Dev. Biol. 2011, 55, 447–453. [Google Scholar] [CrossRef]
  29. Will, S.E.A.; Favaron, P.O.; Pavez, M.A.; Florentino, L.C.; Soares, D.; Oliveira, F.C.; Rici, R.E.G.; Miglino, M.A.; Alcântara, D.; Mamizuka, E.M.; et al. Bactericidal silver nanoparticles present an antiangiogenic effect in the Chorioallantoic Membrane Model (CAM). In Science against MicrobialPathogens: Communicating Current Research and Technological Advances, 1; Méndez-Vilas, A., Ed.; Formatex: Badajoz, Spain, 2011; Volume 1, pp. 219–227. [Google Scholar]
  30. Sheikpranbabu, S.; Kalishwaralal, K.; Venkataraman, D.; Eom, S.H.; Park, J.; Gurunathan, S. Silver nanoparticles inhibit VEGF-and IL-1beta-induced vascular permeability via Src dependent pathway in porcine retinal endothelial cells. J. Nanobiotechnol 2009. [Google Scholar] [CrossRef]
  31. Techatanawat, S. Type I collagen extracted from rat-tail and bovine Achilles tendon for dental application: A comparative study. Asian Biomed. 2011, 5, 787–798. [Google Scholar]
  • Sample Availability: Samples of the Achillea biebersteinii Ag-NPs are available from the authors.
