Synthesis of A New Class of Pyridazin-3-one and 2-Amino-5-arylazopyridine Derivatives and Their Utility in the Synthesis of Fused Azines

Molecules 2014, 19(2), 2655-2673; doi:10.3390/molecules19022655

Article
Discovery of Novel c-Met Inhibitors Bearing a 3-Carboxyl Piperidin-2-one Scaffold
Wei Zhang 1, Jing Ai 2, Dakuo Shi 3, Xia Peng 2, Yinchun Ji 2, Jian Liu 1, Meiyu Geng 2,* and Yingxia Li 1,*
1
School of Pharmacy, Fudan University, Shanghai 201203, China
2
Division of Antitumor Pharmacology, State Key Laboratory of Drug Research, Shanghai Institute of Materia Medica, Chinese Academy of Sciences, Shanghai 201203, China
3
School of Pharmacy, Ocean University of China, Qingdao 266003, China
*
Authors to whom correspondence should be addressed; E-Mails: mygeng@simm.ac.cn (M.G.); liyx417@fudan.edu.cn (Y.L.); Tel./Fax: +86-21-5198-0127 (Y.L.).
Received: 21 January 2014; in revised form: 13 February 2014 / Accepted: 14 February 2014 /
Published: 24 February 2014

Abstract

: A series of compounds containing a novel 3-carboxypiperidin-2-one scaffold based on the lead structure BMS-777607 were designed, synthesized and evaluated for their c-Met kinase inhibition and cytotoxicity against MKN45 cancer cell lines. The results indicated that five compounds exhibited significant inhibitory effect on c-Met with IC50 values of 8.6−81 nM and four compounds showed potent inhibitory activity against MKN45 cell proliferation, with IC50s ranging from 0.57−16 μM.
Keywords:
c-Met; synthesis; kinase inhibitor; 3-carboxypiperidin-2-one

1. Introduction

c-Met kinase is a transmembrane receptor tyrosine kinase (RTK). Upon binding of its endogenous ligand hepatocyte growth factor (HGF, also known as scatter factor, SF), c-Met receptor undergoes dimerization and in turn triggers signal transducers to mediate a variety of cellular responses such as cell growth, invasion, migration and survival [1,2]. The normal c-Met/HGF pathway plays an important role in embryogenesis and wound healing, but aberrant forms of this pathway (for example, as a result of overexpression of c-Met and HGF) have frequently been observed in a variety of human solid tumors and hematologic malignancies. Importantly, both increased levels of c-Met and HGF have been associated with poor clinical outcomes [3,4,5]. Therefore, c-Met has been pursued as an attractive anticancer drug target for the past two decades [6,7]. Several approaches to inhibition of the HGF/c-Met pathway in cancer cells have been reported, such as antagonistic ligands to c-Met, antibodies against HGF or c-Met, and small molecule c-Met inhibitors [8,9,10].

During the development of small molecular c-Met kinase inhibitors, a compound disclosed by Kirin Brewery Company in 2003 [11] could be regarded as a milestone (Figure 1). Structurally, this compound (1) is composed of four moieties: a phenyl group (moiety A), a bridge moiety B, an ortho-fluoro phenol and a 6,7-dimethoxyquinoline. Initiated by this discovery, numerous c-Met kinase inhibitors bearing diverse chemical scaffolds have been reported. Generally, structural optimization based on compound 1 mainly focused on moiety D and B. Replacement of the 6,7-dimethoxy- quinoline moiety by various N-containing heterocycles, such as substituted quinoline [12], thienopyridine [13,14,15], pyrrolopyridine [16], aminopyridine [17], thienopyrimidine [18], furopyrimidine [18], imidazopyridine [19] or imidazopyridazine [19], has been investigated. The bridge moiety B connecting moiety A and C was designed as linear [20,21,22] or cyclic [14,15,23,24,25,26], bearing at least one amide bond with 5-atoms in the main chain [22,24] (i.e., six chemical bonds distance between moiety A and C, Figure 1). However, there are little changes to moiety A and C, except for phenyl ring or substituted phenyl ring modifications to the former.

Molecules 19 02655 g001 1024

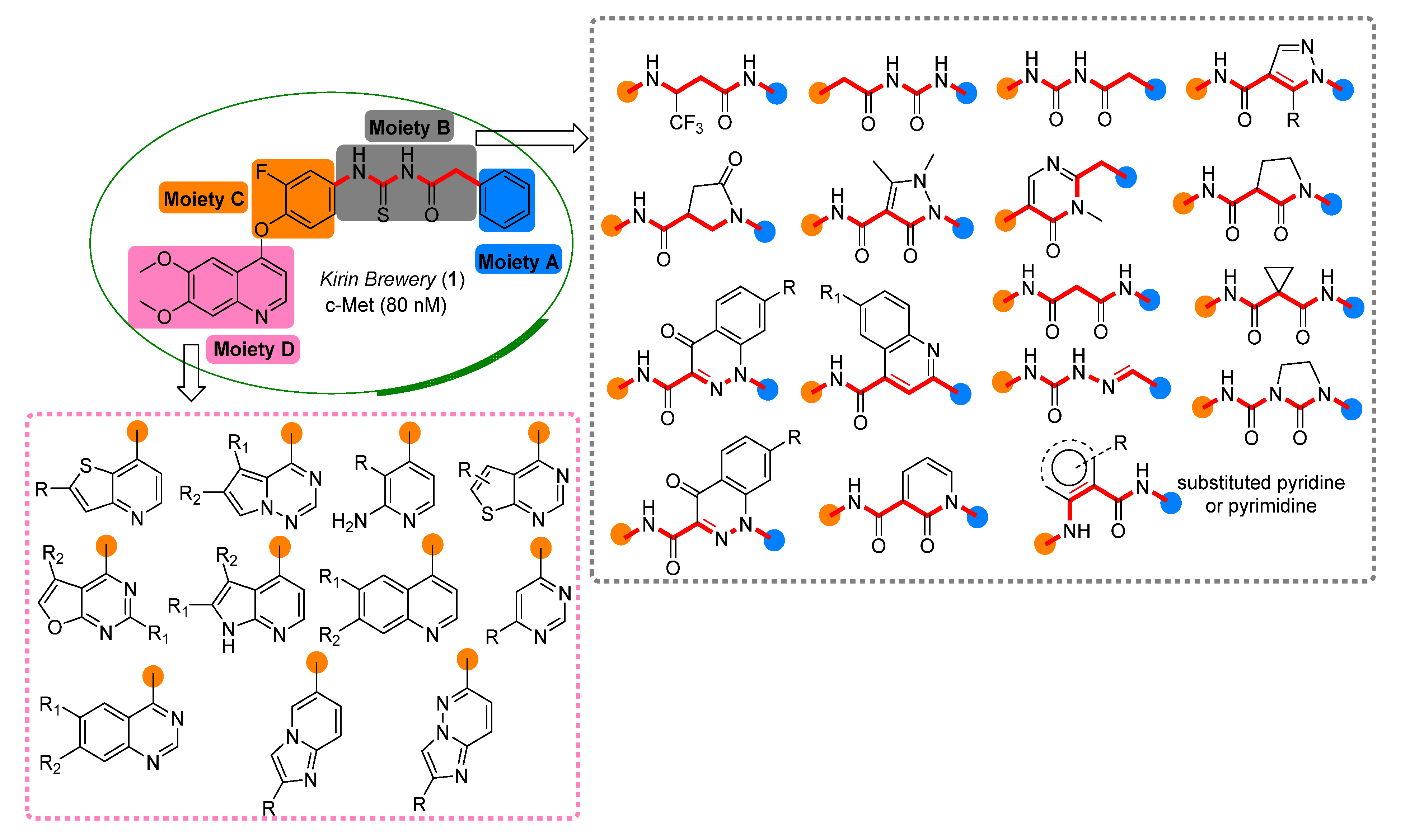

Figure 1. Representative scaffolds used for the structural optimization of c-Met inhibitors.

Click here to enlarge figure

Figure 1. Representative scaffolds used for the structural optimization of c-Met inhibitors.
Molecules 19 02655 g001 1024

A good example for these inhibitors is BMS-777067, which is now in phase 2 trial because of its excellent in vivo efficacy and favorable pharmacokinetic and preclinical safety profiles [17]. Taking BMS-777607 as leading compound, the design and synthesis of new derivatives with novel structures are under study in our laboratory. Preliminary investigation indicated that 3-carboxypiperidin-2-one is a promising scaffold for the design of new c-Met inhibitors. Herein we would like to report our efforts in this respect (Figure 2).

Molecules 19 02655 g002 1024

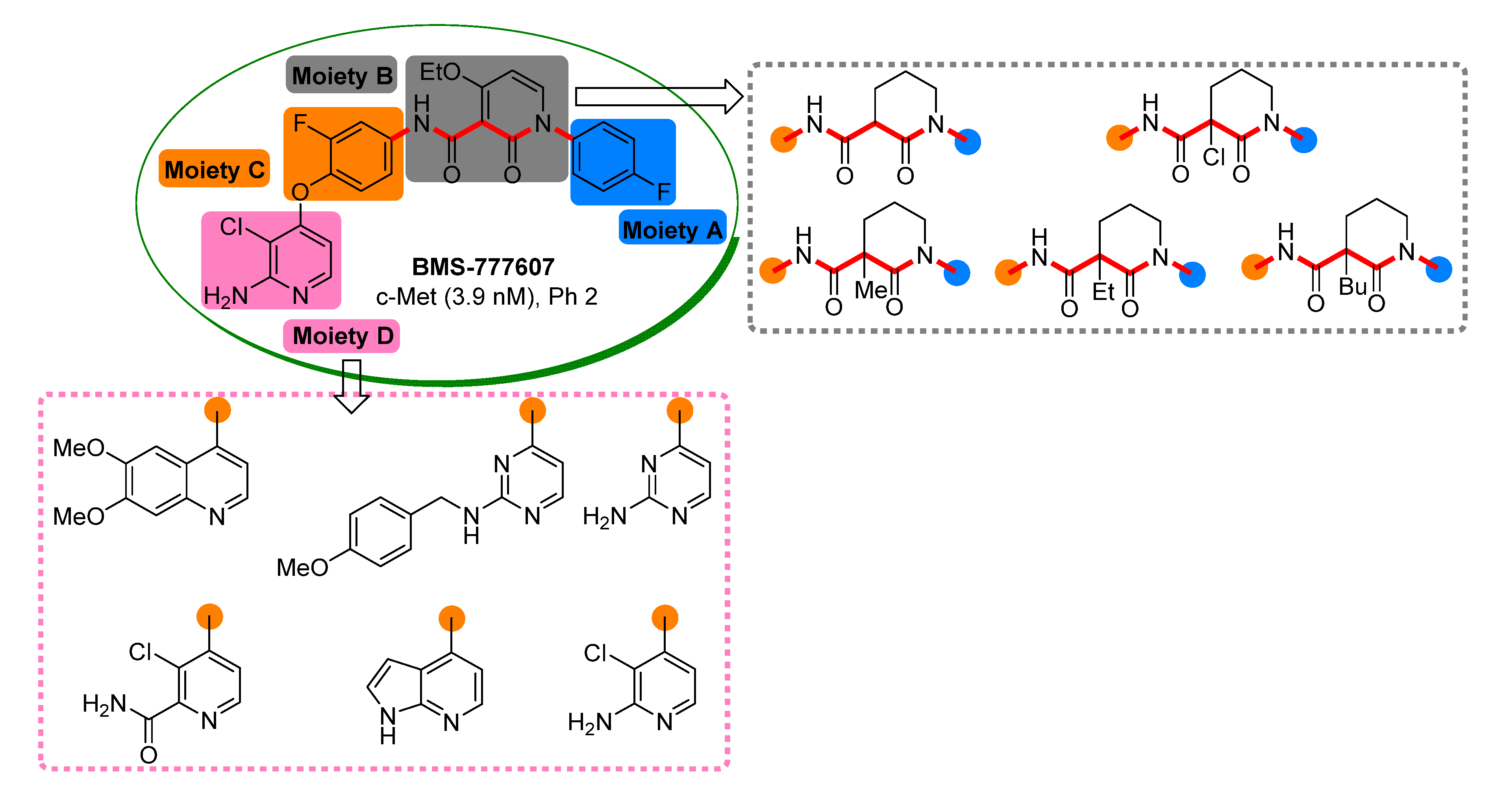

Figure 2. Scaffolds used for the structural optimization based on BMS-777607 in this paper.

Click here to enlarge figure

Figure 2. Scaffolds used for the structural optimization based on BMS-777607 in this paper.
Molecules 19 02655 g002 1024

2. Results and Discussion

2.1. Chemistry

As shown in Scheme 1, saponification of isobutyl ester 2 with lithium hydroxide gave the piperidinone 3-carboxylic acid 3, which could be further brominated giving compound 4 in 92% yield. On the other hand, deprotonation of compound 2 with sodium hydride, followed by treatment with an alkyl halide (MeI, EtBr, or n-BuBr) led to the corresponding α-substituted piperidinones. Saponification of these esters 5ac gave the corresponding carboxylic acids smoothly. In this way, we had five carboxylic acids (compounds 3, 4, 6ac) in hand, which would be used in next coupling step.

Molecules 19 02655 g004 1024

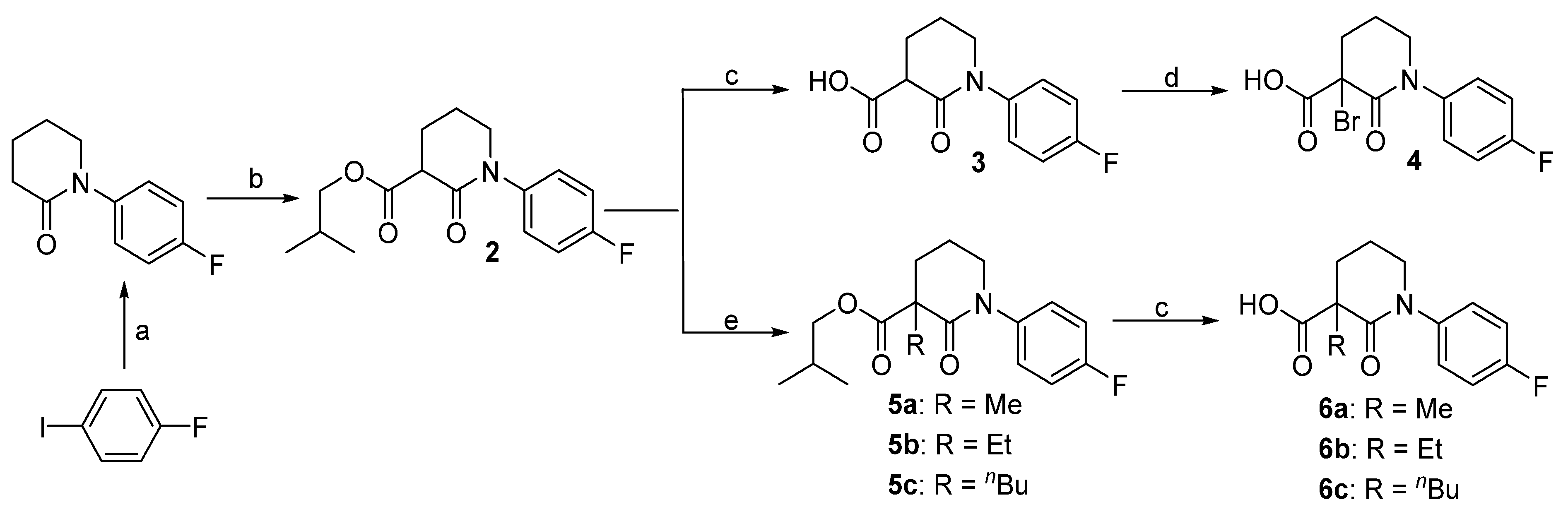

Scheme 1. Synthesis of the piperidinone 3-carboxylic acids 3, 4 and 6ac.

Click here to enlarge figure

Scheme 1. Synthesis of the piperidinone 3-carboxylic acids 3, 4 and 6ac.
Molecules 19 02655 g004 1024

Reagents and conditions: (a) piperidin-2-one, CuI, K3PO4, DMF, 90%; (b) t-BuLi, isobutyl chloroformate, 82%; (c) LiOH, THF/MeOH/H2O, 87% for 3, 88% for 6a, 79% for 6b, 84% for 6c; (d) Br2/Et2O, 92%; (e) NaH/MeI, 87% for 5a; NaH/EtBr, 76% for 5b; NaH/n-BuBr, 83% for 5c.

Deprotonation of 3,4-dichloropyridine (7) with lithium 2,2,6,6-tetramethylpiperidide (TMPLi) followed by treated with trimethylsilyl isothiocyanate and acidic workup, gave 3,4-dichloropicolinamide (8) in 40% yield (Scheme 2). This pyridyl chloride was coupled with 4-amino-2-fluorophenol in the presence of potassium tert-butoxide to afford the aromatic amine 9 in 72% yield. Similarly, coupling of phenol (10) with 4-chloro-7H-pyrrolo[2,3-d]pyrimidine and 4-chloro-6,7-dimethoxyquinoline followed by conversion of the nitryl to an amino group gave amines 11 and 14, respectively. For the preparation of substituted pyrimidine 13, the amino group was introduced to the C-2 position before zinc-mediated reduction. Thus we had four aromatic amines (compounds 9, 11, 13 and 14) in hand, which were subjected to the next step directly.

Molecules 19 02655 g005 1024

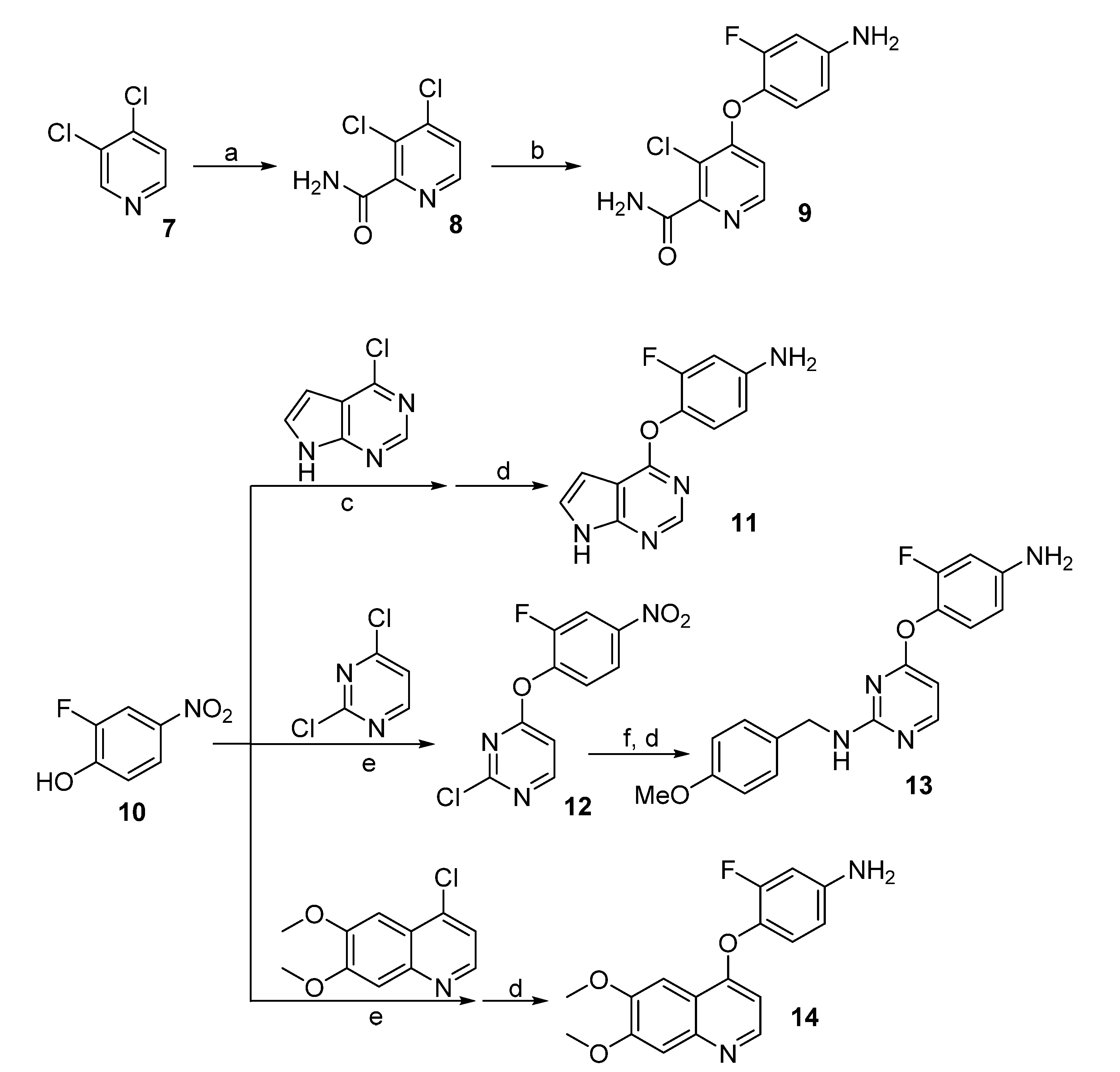

Scheme 2. Synthesis of aromatic amines 9, 11, 13 and 14.

Click here to enlarge figure

Scheme 2. Synthesis of aromatic amines 9, 11, 13 and 14.
Molecules 19 02655 g005 1024

Reagents and conditions: (a) TMPLi, trimethylsilyl isothiocyanate, −78 °C, 40%; (b) t-BuOK, 4-amino-2-fluorophenol, 72%; (c) PhBr, 130 °C, 85%; (d) Zn, NH4Cl, 88% for 11, 69% for 13; 91% for 14; (e) K2CO3, DMF; (f) 4-methoxybenzylamine, K2CO3, 68%.

Coupling of aromatic amines 9, 11, 13 or 14 with the 3-carboxypiperidin-2-one 3 in the presence of 1-ethyl-3-(3-dimethylaminopropyl)-carbodiimide hydrochloride (EDC-HCl) and N,N-dimethyl-4-amino pyridine (DMAP) gave the corresponding amides 15a, 17a, 18a or 20a, respectively (Scheme 3). When bromide 4 was used as the carboxylic acid component, halo-exchanged products 15b, 17b, 18b, 20b were observed (confirmed by NMR and MS). The aminopyridine-containing products 16ab were achieved after Hoffman degradation and the aminopyrimidine derivates 19ab were generated after treatment of 18ab with trifluoroacetic acid (TFA).

Molecules 19 02655 g006 1024

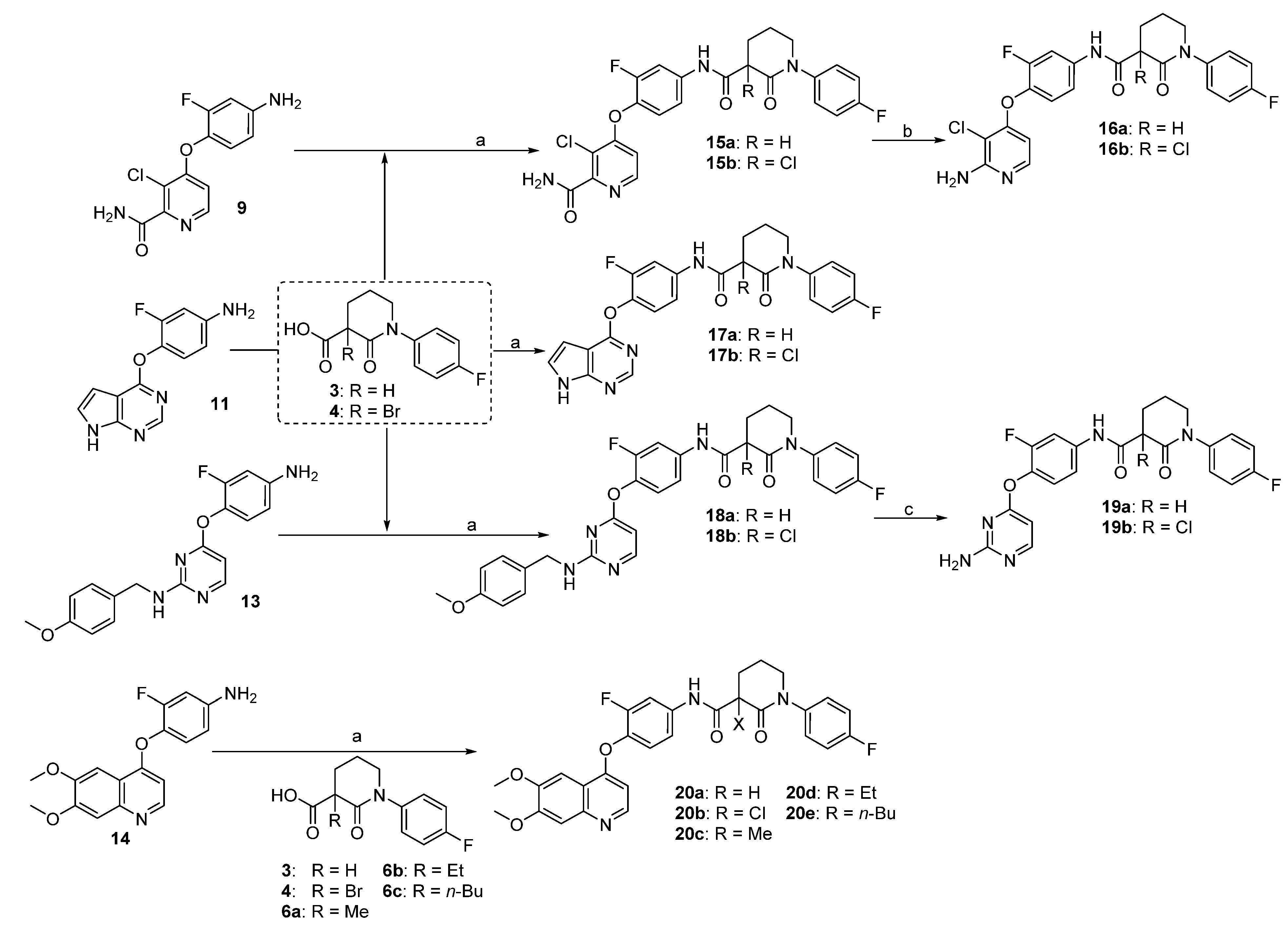

Scheme 3. Synthesis of the newly designed c-Met inhibitors 1520.

Click here to enlarge figure

Scheme 3. Synthesis of the newly designed c-Met inhibitors 1520.
Molecules 19 02655 g006 1024

Reagents and conditions: (a) EDC-HCl, DMAP, 76% for 15a, 68% for 15b, 31% for 17a, 42% for 17b, 69% for 18a, 57% for 18b, 61% for 20a, 54% for 20b, 68% for 20c, 58% for 20d, 64% for 20e; (b) PhI(OAc)2, 72% for 16a, 76% for 16b; (c) TFA, 71% for 19a, 58% for 19b.

2.2. Evaluation of Biological Activity

As illustrated in Table 1, all of the compounds bearing a 3-carboxypiperidin-2-one scaffold exhibit potent c-Met kinase inhibition activity. However, compounds lacking an α-substituent group (15a, 17a, 18a, 19a, 20a) only showed much less potent anti-c-Met kinase activity. When the α-proton was substituted by chlorine, the activity generally increased (cf. 15b vs. 15a, 16b vs. 16a, 20b vs. 20a). When alkyl groups (Me, Et, or n-Bu) were introduced to this position, the inhibitory effects were greatly enhanced (20c, 20d and 20e vs. 20a). Among these three derivatives, the smallest methyl group was the most favorable among the compounds exerting inhibitory activity against c-Met kinase activity and c-Met-driven cell proliferation. Generally, 6,7-dimethoxyquinoline -containing analogues showed more potency than the pyrropyridine, pyrimidine, or aminopyrimidine counterparts (20b vs. 15b, 16b, 17b, 18b, 19b) according to the biological activity results. The most potent analogue 20b exhibited significant potency against c-Met kinase and c-Met-driven MKN45 cell proliferation, with IC50 values of 8.6 nM and 0.57 μM, respectively. Other three analogues 20ce with alkyl substitution in the piperidone moiety are also promising, showing inhibitory activity against c-Met enzymatic activities with the IC50s of 11.2~64.0 nM and inhibiting MKN45 cell proliferation with IC50s of 0.65~16.0 μM, individually.

Table Table 1. SAR of the compounds bearing a 3-carboxypiperidin-2-one scaffold. Molecules 19 02655 i001

Click here to display table

Table 1. SAR of the compounds bearing a 3-carboxypiperidin-2-one scaffold. Molecules 19 02655 i001
CmpdArRc-Met IC50 (nM)MKN45 a IC50 (μM)CompdArRc-Met IC50 (nM)MKN45 a IC50 (μM)
15a Molecules 19 02655 i002H63.9%@10 μMNT b19a Molecules 19 02655 i006H59.1%@10 μMNT
27.5%@1 μM
15b Molecules 19 02655 i002Cl90.2%@10 μM NT19b Molecules 19 02655 i006Cl52.5%@10 μMNT
38.7%@1 μM28.3%@1 μM
16a Molecules 19 02655 i003H427.0 ± 6.1NT20a Molecules 19 02655 i007H38.4%@10 μMNT
16b Molecules 19 02655 i003Cl81.0 ± 7.6NT20b Molecules 19 02655 i007Cl8.6 ± 1.60.57 ± 0.04
17a Molecules 19 02655 i004H70.7%@10 μM NT20c Molecules 19 02655 i007Me11.2 ± 4.10.65 ± 0.13
41.9%@1 μM
17b Molecules 19 02655 i004Cl15.4%@10 μMNT20d Molecules 19 02655 i007Et19.1 ± 4.52.95 ± 0.12
18a Molecules 19 02655 i005H28.4%@10 μMNT20e Molecules 19 02655 i007nBu64.0 ± 10.816.0 ± 0.8
18b Molecules 19 02655 i005Cl10%@10 μMNTBMS-7776073.7 ± 1.30.29 ± 0.02

a: MKN45, human gastric cancer cell line that expresses elevated levels of constitutively active c-Met; b: NT, Not tested.

2.3. Molecular Modeling

To further elucidate the binding mode of compounds, docking analysis was performed. In our study, the co-crystal structure of BMS-777607 with c-Met kinase (PDB ID:3F82) was selected as the docking model. The inhibitor was docked using the GLIDE docking algorithm [27] in the XP (extra precision) mode. A binding model for (R)-20b in the ATP binding site is presented in Figure 3a. The resulting model successfully identifies key hydrogen bond interaction and hydrophobic interactions between the ligands and residues of the protein’s ATP binding pocket. The carbonyl oxygen of the 3-carboxypiperidin-2-one and the nitrogen atom of the quinoline ring in 20b formed hydrogen bonding interactions with Asp1222 and Met1160, respectively. π-π Interactions were formed between the phenyl ring (moiety C) and Phe1223. In addition, hydrophobic interactions were formed between the phenyl ring (moiety A) in 20b and Phe1134, Phe1200. A binding model for (S)-20b in the ATP binding site is presented in Figure 3b. However, this compound failed to dock into the binding pocket, as the orientation of the ligand in the binding model was opposite to that of BMS-777607. Therefore, we postulate that the requisite chirality for these compound may be the R-configuration. We are now seeking an efficient route to access the enantiomers, and the optical pure compounds will be synthesized and evaluated in the due course.

Molecules 19 02655 g003 1024

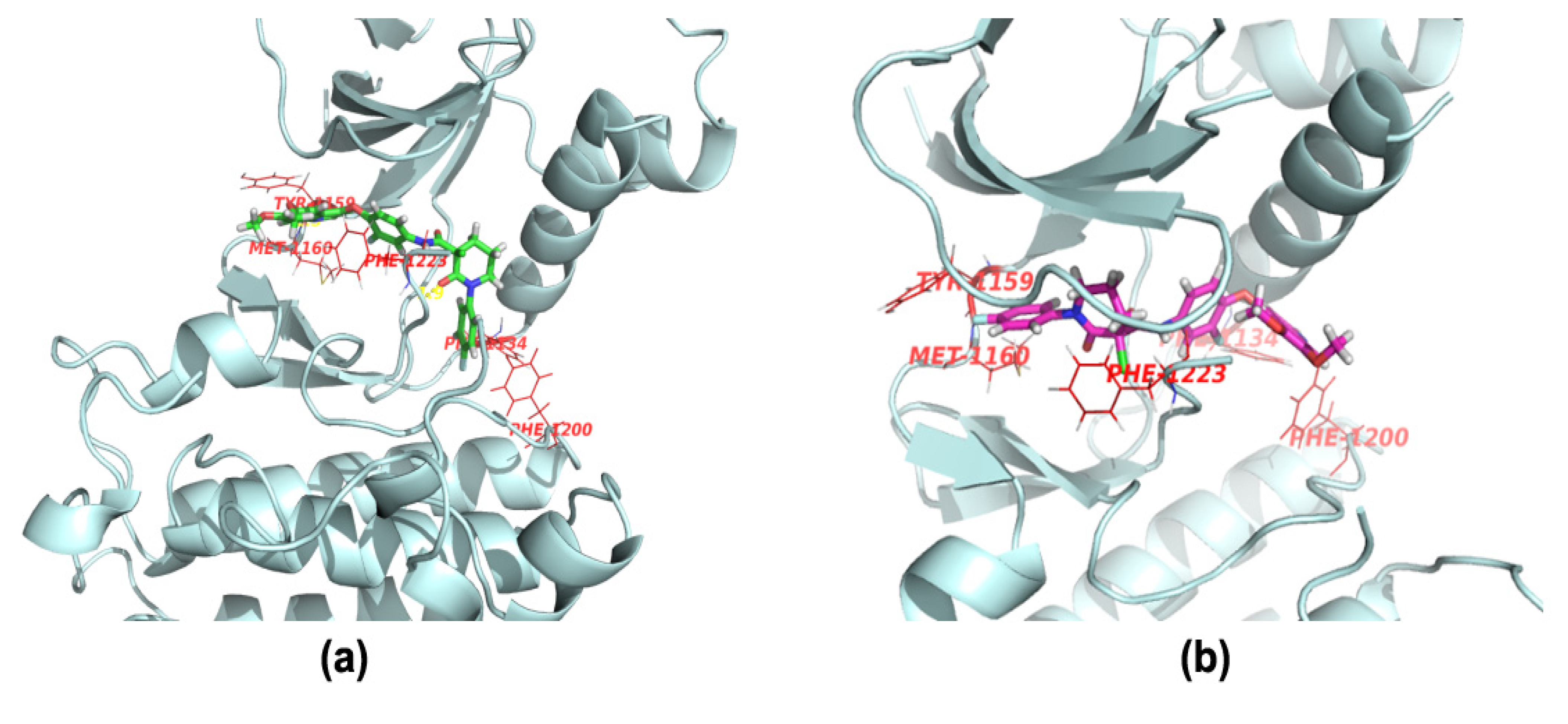

Figure 3. Binding poses of compounds (R)-20b and (S)-20b with c-Met.

Click here to enlarge figure

Figure 3. Binding poses of compounds (R)-20b and (S)-20b with c-Met.
Molecules 19 02655 g003 1024

3. Experimental

3.1. General Information

All chemical reagents were used as supplied unless indicated. Solvents used in organic reactions were distilled under an inert atmosphere. Unless otherwise noted, all reactions were carried out at room temperature and performed under a positive pressure of argon. Flash column chromatography was performed on silica gel (200–300 mesh, Qingdao Haiyang Chemical Co., Ltd, Qingdao, China). Analytical thin layer chromatography (TLC) was performed on glass plates pre-coated with a 0.25 mm thickness of silica gel. 1H-NMR and 13C-NMR spectra were taken on a Jeol JNM-ECP 600 spectrometer (Jeol Ltd., Tokyo, Japan) at room temperature. Chemical shifts of the 1H-NMR spectra are expressed in ppm relative to the solvent residual signal 7.26 in CDCl3 or to tetramethylsilane (δ = 0.00). Chemical shifts of the 13C-NMR spectra are expressed in ppm relative to the solvent signal 77.00 in CDCl3 or to tetramethylsilane (δ = 0.00) unless otherwise noted. Electrospray (ESI) mass spectra were recorded on a Global Q-TOF mass spectrometer (Waters, Wilford, MA, USA).

3.2. Synthesis

Isobutyl 1-(4-fluorophenyl)-2-oxopiperidine-3-carboxylate (2). 1-Fluoro-4-iodobenzene (2.22 g, 10 mmol) and piperidin-2-one (1.2 g, 12 mmol) were added to dry DMF (30 mL), followed by the addition of K3PO4 (6.36 g, 30 mmol) and CuI (190 mg, 0.1 mmol). The mixture was heated to 100 °C for 12 h before filtering through Celite. After washing with ethyl acetate (3 × 10 mL), the combined organic phase was concentrated and the residue was purified by column chromatography to give 1-(4-fluorophenyl)piperidin-2-one (1.73 g, 90%) as a yellow solid. This N-arylpiperidin-2-one (386 mg, 2 mmol) was dissolved in dry THF (20 mL) and cooled to −78 °C. After the addition of tert-BuLi (1.4 mL, 1.6 M in THF, 2.2 mmol) and stirring at this temperature for 4 h, isobutyl chlorofomate (400 μL, 2 mmol) was added. Ten min later, the reaction was quenched by addition of saturated aq. NH4Cl (2 mL). The mixture was diluted with water (20 mL) and extracted with EtOAc (3 × 20 mL). The combined organic layer was washed with brine, dried over Na2SO4, and concentrated in vacuo. The residue was purified by column chromatography to give compound 2 (480 mg, 82%) as a yellow wax. 1H-NMR (600 MHz, CDCl3) δ 7.25–7.20 (m, 2H, ArH), 7.09–7.03 (m, 2H,ArH), 3.99 (dd, 1H, J = 10.6, 6.7 Hz, CH), 3.83 (d, 1 H, J = 6.7 Hz, CHH), 3.70–3.61 (m, 1H, CHH), 3.58 (t, 1 H, J = 6.9 Hz, CH), 2.32–2.24 (m, 1H, CHH), 2.23–2.16 (m, 1H, CHH), 2.12–2.04 (m, 1H, CHH), 2.02–1.87 (m, 2H, CH, CHH), 0.94 (d, 6 H, J = 6.6 Hz, CH3); 13C-NMR (150 MHz, CDCl3) δ 171.0, 166.3, 162.1, 160.4, 138.8, 127.9, 116.2, 100.0, 71.5, 51.6, 49.6, 27.8, 25.3, 21.4, 19.1; HR-MS (ESI) Calcd for C16H21FNO3 [M + H]+ 294.1506, Found 294.1518.

1-(4-Fluorophenyl)-2-oxopiperidine-3-carboxylic acid (3). To a solution of 2 (217 mg, 0.74 mmol) in THF/MeOH/H2O (1/1/1, 3 mL in total) at 0 °C was added LiOH monohydrate (94 mg, 2.2 mmol). The reaction mixture was warmed to room temperature and stirred for 5 h. The solution was acidified to pH 1 with 1 mol/L HCl and extracted with EtOAc (3 × 20 mL). The organic extracts were combined and washed with brine (2 × 5 mL). Evaporation of the solvent gave the corresponding acid 3 (152 mg, 87%) as a white solid. 1H-NMR (600 MHz, CDCl3) δ 7.33–7.28 (m, 1H, ArH), 7.25–7.19 (m, 1H, ArH), 3.69–3.55 (m, 2H, NCH2), 3.43 (dd, 1H, J = 8.2, 6.5 Hz, CH), 2.16–2.10 (m, 1 H, CHH), 2.08–2.02 (m, 1H, CHH), 1.98–1.91 (m, 1H, CHH), 1.91–1.83 (m, 1H, CHH); 13C-NMR (150 MHz, CDCl3) δ 174.3, 170.2, 161.3, 159.6, 138.7, 127.9, 115.6, 51.8, 50.3, 27.5, 21.6; HR-MS (ESI) Calcd for C12H13FNO3 238.0880 [M + H]+, found 238.0910.

3-Bromo-1-(4-fluorophenyl)-2-oxopiperidine-3-carboxylic acid (4). To a solution of acid 3 (220 mg, 0.93 mmol) in Et2O (5 mL) was added liquid Br2 (48 μL, 0.93 mmol) at 0 °C. The reaction mixture was stirred for 2 h before concentrated in vacuo. The residue was purified by column chromatography, giving compound 4 (265 mg, 91%) as white solid. 1H-NMR (600 MHz, acetone-d6) δ 13.03 (s, 1H, OH), 7.44–7.40 (m, 2H, ArH), 7.25–7.20 (m, 2H, ArH), 4.04 (td, 1H, J = 12.1, 4.6 Hz, NCHH), 3.82 (ddt, 1H, J = 13.0, 6.3, 2.4 Hz, NCHH), 2.77–2.69 (m, 1H, CHH), 2.62–2.56 (m, 1H, CHH), 2.53–2.43 (m, 1H, CHH), 2.19–2.12 (m, 1H, CHH); 13C-NMR (150 MHz, acetone-d6) δ 166.4, 162.5, 160.9, 140.6, 140.6, 129.0, 129.0, 116.2, 52.1, 32.3, 20.4.

3.2.1. General Procedure for the Synthesis of Isobutyl 1-(4-Fluorophenyl)-3-alkyl-2-oxopiperidine-3-carboxylates 5ac

To a solution of compound 2 (586 mg, 2 mmol) in dry THF (10 mL) at 0 °C was added NaH (72 mg, 80% suspension in mineral oil, 2.4 mmol) in portions. Thirty min later, alkyl halide (MeI, EtBr, or n-BuBr, 2.6 mmol) was added slowly and the reaction mixture was stirred at this temperature for another 5 h. When TLC showed all the starting material consumed, the reaction mixture was quenched with 0.5 mol/L HCl, diluted with water (20 mL) and extracted with EtOAc (3 × 20 mL). The combined organic layer was washed with brine, dried over Na2SO4 and concentrated. The residue was purified by column chromatography to give the desired compound as pale yellow oil.

Isobutyl 1-(4-fluorophenyl)-3-methyl-2-oxopiperidine-3-carboxylate (5a). 87% yield; 1H-NMR (600 MHz, CDCl3) δ 7.25–7.19 (m, 1 H, ArH), 7.12–7.01 (m, 1H, ArH), 4.06–3.88 (m, 2H, OCH2), 3.78–3.58 (m, 1H, CHH), 2.47–2.31 (m, 1H, CHH), 2.10–1.94 (m, 3H, CH2, CH), 1.94–1.84 (m, 1H, CHH), 1.57 (d, 3H, J = 2.4 Hz, CH3), 0.97 (d, 3H, J = 2.0 HzCH3), 0.96 (d, 3H, J = 2.1 Hz, CH3); 13C-NMR (150 MHz, CDCl3) δ 173.8, 170.1, 161.9, 160.2, 139.3, 127.8, 116.0, 115.9, 71.5, 51.9, 51.3, 33.6, 27.8, 22.9, 20.4, 19.2; HR-MS (ESI) Calcd for C17H23FNO3 308.1662 [M + H]+, found 308.1599.

Isobutyl 3-ethyl-1-(4-fluorophenyl)-2-oxopiperidine-3-carboxylate (5b). 76% yield; 1H-NMR (600 MHz, CDCl3) δ 7.24–7.18 (m, 2H, ArH), 7.08–7.03 (m, 2H, ArH), 4.01–3.90 (m, 2H, OCH2), 3.72–3.65 (m, 1 H, CHH), 3.63–3.56 (m, 1H, CHH), 2.31–2.24 (m, 1H, CHH), 2.16–2.09 (m, 1H, CHH), 2.10–2.04 (m, 1H, CHH), 2.02–1.91 (m, 4H, CH2), 0.98 (t, 3H, J = 7.4 Hz, CH3), 0.96 (d, 6H, J = 2.1 Hz, 2 × CH3); 13C-NMR (150 MHz, CDCl3) δ 173.6, 170.0, 161.8, 160.2, 139.3, 127.8, 116.0, 71.5, 51.9, 51.3, 33.6, 30.1, 27.8, 22.9, 20.4, 19.8; HR-MS (ESI) Calcd for C18H25FNO3 322.1819 [M + H]+, found 322.1830.

Isobutyl 3-butyl-1-(4-fluorophenyl)-2-oxopiperidine-3-carboxylate (5c). 83% yield; 1H-NMR (600 MHz, CDCl3) δ 7.23–7.18 (m, 2H, ArH), 7.08–7.02 (m, 2H, ArH), 4.00–3.89 (m, 2H, OCH2), 3.72–3.66 (m, 1H, CHH), 3.61–3.56 (m, 1H, CHH), 2.32–2.26 (m, 1H, CHH), 2.10–1.86 (m, 6H), 1.46–1.38 (m, 1H, CHH), 1.37–1.29 (m, 2H, CH2), 1.30–1.21 (m, 1H, CHH), 0.96 (d, 6H, J = 2.1 Hz, 2 × CH3), 0.90 (t, 3H, J = 7.2 Hz, CH3); 13C-NMR (150 MHz, CDCl3) δ 173.5, 169.4, 161.8, 160.2, 139.4, 127.8, 115.9, 71.5, 54.9, 51.6, 35.7, 30.1, 27.0, 23.2, 20.7, 19.2, 14.1; HR-MS (ESI) Calcd for C20H29FNO3 350.2132, [M + H]+, found 350.2122.

3.2.2. 1-(4-Fluorophenyl)-3-alkyl-2-oxopiperidine-3-carboxylic Acids 6ac were Prepared by a Procedure Similar to that of Compound 3.

3-Methyl-1-(4-fluorophenyl)-2-oxopiperidine-3-carboxylic acid (6a). White solid; 88% yield; 1H-NMR (600 MHz, DMSO-d6) δ 12.59 (s, 1 H, OH), 7.31–7.25 (m, 2H, ArH), 7.24–7.17 (m, 2H, ArH), 3.65 (dt, 1H, J = 12.1, 6.1 Hz, NCHH), 3.59 (dt, 1H, J = 11.9, 5.8 Hz, NCHH), 2.25–2.18 (m, 1H, CHH), 1.95–1.87 (m, 2H, CH2), 1.87–1.80 (m, 1H, CHH), 1.37 (s, 3H, CH3); 13C-NMR (150 MHz, DMSO-d6) δ 174.9, 169.7, 160.9, 159.3, 139.8, 128.2, 115.6, 51.2, 50.4, 32.8, 22.6, 19.8; HR-MS (ESI) Calcd for C13H15FNO3 252.1036, [M + H]+, found 252.1040.

3-Ethyl-1-(4-fluorophenyl)-2-oxopiperidine-3-carboxylic acid (6b). white solid; 79% yield; 1H-NMR (600 MHz, DMSO-d6) δ 12.79 (s, 1 H, OH), 7.26–7.23 (m, 2H, ArH), 7.16–7.12 (m, 2H, ArH), 3.92 (dt, J = 12.7, 6.5 Hz, 1H, NCHH), 3.74 (dt, J = 12.6, 6.4 Hz, 1H, NCHH), 2.56–2.50 (m, 1H, CHH), 2.20 (q, J = 6.7 Hz, 1H, CHH), 2.05–2.01 (m, 1H, CHH), 2.01–1.91 (m, 2H, CHH), 1.84 (dt, J = 12.3, 7.0 Hz, 1 H, CHH), 0.71 (t, J = 6.6 Hz, 3H, CH3); 13C-NMR (150 MHz, DMSO-d6) δ 174.8, 169.8, 161.2, 159.6, 139.5, 128.4, 115.8, 51.7, 50.9, 33.6, 29.7, 22.6, 18.8; HR-MS (ESI) Calcd for C14H17FNO3 266.1193, [M + H]+, found 266.1201.

3-Butyl-1-(4-fluorophenyl)-2-oxopiperidine-3-carboxylic acid (6c). White solid; 84% yield; 1H-NMR (600 MHz, DMSO-d6) δ 12.66 (s, 1H, OH), 7.25–7.20 (m, 2H, ArH), 7.14 (dd, 2H, J = 8.6, 7.0 Hz, ArH), 3.96–3.87 (m, 1H, CHH), 3.78–3.72 (m, 1H, CHH), 2.49–2.42 (m, 1H, CHH), 2.22 (dt, J = 19.0, 7.5 Hz, 2H, CH2), 2.03–1.91 (m, 3H, CHH, CH2), 1.38–1.21 (m, 4H, CH2CH2), 0.88 (t, 3 H, J = 6.4 Hz, CH3); 13C-NMR (150 MHz, DMSO-d6) δ 174.7, 169.5, 161.6, 160.0, 139.6, 127.9, 115.6, 54.6, 51.3, 35.4, 30.3, 23.2, 20.7, 14.2; HR-MS (ESI) Calcd for C16H21FNO3 294.1506, [M + H]+, found 294.1496.

3,4-Dichloropicolinamide (8). To a solution of 2,2,6,6-tetramethylpiperidine (1.56 g, 11 mmol) in dry ether (20 mL) at 0 °C was added n-BuLi (4.4 mL, 2.5 M in THF, 11 mmol) slowly. The reaction mixture was stirred at this temperature for 30 min before cooled to −78 °C. A solution of 3,4-dichloropyridine (1.48 g, 10 mmol) in dry ether (5 mL) was injected via syringe to the above reaction mixture and stirred for 2 h before trimethylsilyl isothiocyanate (15 mmol) was added. After warmed to room temperature, the reaction was quenched by the addition of HOAc (2 mL) and water (10 mL), and then let to stir overnight. The suspension was filtered and washed with cold water, giving the title compound as a gray solid (686 mg, 40%). 1H-NMR (DMSO-d6, 600 MHz) δ 8.50 (d, 1H, J = 5.2 Hz, ArH), 8.12 (br s, 1H, CONH2), 7.83 (d, 1H, J = 5.2 Hz, ArH), 7.82 (br s, 1H, CONH2).

4-(4-Amino-2-fluorophenoxy)-3-chloropicolinamide (9). To a solution of 4-amino-2-fluorophenol (465 mg, 3.65 mmol) in DMF (10 mL) was added potassium tert-butoxide (440 mg, 3.95 mmol). Thirty min later, 3,4-dichloropicolinamide (8) was added and the solution was heated to 50 °C. When TLC showed all the starting materials consumed, the reaction mixture was diluted with EtOAc (50 mL), washed with saturated NaHCO3, brine, and dried over Na2SO4. After concentration, the residue was purified by column chromatography giving the title compound as a pale yellow solid (580 mg, 79%). 1H-NMR (DMSO-d6, 600 MHz) δ 8.29 (d, 1 H, J = 5.6 Hz, ArH), 7.00 (t, 1H, J = 8.8 Hz, ArH), 6.79 (d, 1H, J = 5.6 Hz, ArH), 6.63–6.55 (m, 2H, ArH); 13C-NMR (DMSO-d6, 150 MHz) δ 166.6, 160.8, 154.1, 153.9, 149.0, 148.7, 128.5, 123.7, 115.9, 110.1, 110.0, 101.3.

4-((7H-Pyrrolo[2,3-d]pyrimidin-4-yl)oxy)-3-fluoroaniline (11). The solution of 4-chloro-7H-pyrrolo-[2,3-d]pyrimidine (1.0 g, 6.5 mmol) and 2-fluoro-4-nitrophenol (1.5 g, 9.5 mmol) in bromobenzene (5 mL) was heated at 130 °C for 4 h in a sealed tube. After that, the reaction mixture was cooled to room temperature, diluted with Et2O (5 mL) and filtered. Recrystallization in MeOH gave 4-(2-fluoro-4-nitrophenoxy)-7H-pyrrolo[2,3-d]pyrimidine as a yellow solid (1.6 g, 85%), which was used for the next step directly. To a solution of this nitro compound in THF (5 mL) and MeOH (5 mL) was added zinc powder (130 mg, 2 mmol) and NH4Cl (270 mg, 5 mmol). The reaction mixture was stirred at room temperature for 5 h before filtered through a Celite pad. The filtrate was diluted with EtOAc, washed with water, dried over Na2SO4 and concentrated. The residue was purified by column chromatography giving compound 11 (115 mg, 69%) as a brown solid. 1H-NMR (600 MHz, DMSO-d6) δ 12.19 (s, 1H, NH), 8.28 (s, 1H, CH), 7.44 (t, 1H, J = 3.1 Hz, ArH), 7.00 (t, 1H, J = 8.9 Hz, ArH), 6.48 (dd, 1H, J = 13.0, 2.6 Hz, ArH), 6.45 (dd, 1H, J = 3.4, 1.5 Hz, CH), 6.42–6.39 (m, 1H, CH), 5.35 (s, 2H, NH2).

2-Chloro-4-(2-fluoro-4-nitrophenoxy)pyrimidine (12). 2-Fluoro-4-nitrophenol (314 mg, 2 mmol), K2CO3 (304 mg, 2.2 mmoo) and 2,4-dichloropyrimidine (300 mg, 2 mmol) were dissolved in DMF (20 mL) and heated at 100 °C for 2 h. the reaction mixture was concentrated, diluted with EtOAc (100 mL), washed with water, brine, and concentrated in vacuo. The residue was purified by column chromatography giving compound 12 (324 mg, 65%) as a white solid. 1H-NMR (600 MHz, DMSO-d6) δ 8.78 (d, J = 5.7 Hz, 1H, ArH), 8.44 (dd, 1H J = 10.2, 2.7 Hz, ArH), 8.25 (ddd, 1H, J = 9.0, 2.7, 1.3 Hz, ArH), 7.82 (dd, 1H, J = 9.0, 7.7 Hz, ArH), 7.49 (d, 1H, J = 5.7 Hz, ArH).

4-(4-Amino-2-fluorophenoxy)-N-(4-methoxybenzyl)pyrimidin-2-amine (13). To the solution of compound 12 (239 mg 1mmol) and 4-methoxybenzylamine (192 mg, 1.4 mmol) in DMF (8 mL) was added K2CO3 (152 mg, 1.1 mmol). The reaction mixture was heated at 100 °C for 1 h before concentrated in vacuo. After diluted with EtOAc, the solution was washed with water and brine, and then concentrated. The residue was purified by column chromatography giving a yellow solid (231 mg, 68%), which was treated by zinc powder and NH4Cl as described for the preparation of compound 11. After workup and purification, compound 13 was obtained as a brown solid (115 mg, 69%). 1H-NMR (600 MHz, CDCl3) δ 8.06 (br s, 1H, ArH), 7.12 (br s, 2H, ArH), 6.92 (t, 1H, J = 8.6 Hz, ArH), 6.80 (d, 2H, J = 8.2 Hz, ArH), 6.47 (dd, 1H, J = 11.8, 2.7 Hz, ArH), 6.45–6.39 (m, 1H, ArH), 6.15 (d, 1H, J = 5.8 Hz, ArH), 4.36 (br s, 2H, NH2), 3.92 (br s, 2H, CH2), 3.78 (s, 3H, CH3).

4-((6,7-Dimethoxyquinolin-4-yl)oxy)-3-fluoroaniline (14). The procedure used was similar to that used for the synthesis of compound 11. Compound 14 was obtained as a brown solid in 76% yield. 1H-NMR (600 MHz, CDCl3) δ 8.47 (d, 1H, J = 5.1 Hz, ArH), 7.58 (s, 1H, ArH), 7.40 (s, 1H, ArH), 7.02 (t, 1H, J = 8.6 Hz, ArH), 6.55 (dd, 1H, J = 12.0, 2.7 Hz, ArH), 6.49 (dd, 1H, J = 8.9, 2.6 Hz, ArH), 6.40 (d, 1H, J = 5.0 Hz, ArH), 4.05 (s, 3H, OCH3), 4.03 (s, 3H, OCH3), 3.84 (br s, 2H, NH2).

3.2.3. General Procedure for the Preparation of 15ab, 17ab, 18ab and 20ab

EDC-HCl (1.2 g, 6.25 mmol) was added to a suspension of the carboxylic acid (2.5 mol of 3, 4, or 6ac) and the amine (2.5 mmol of 9, 11, 13 or 14) in THF (25 mL) at 0 °C followed by DMAP (30 mg, 0.25 mmol). The reaction mixture was warmed to room temperature and stirred overnight. After diluted with EtOAc (150 mL), the whole mixture was washed with 1 M HCl (3 × 10 mL), 5% NaHCO3 (3 × 10 mL), and brine (3 × 10 mL), dried over Na2SO4, and concentrated in vacuo. The residue was purified by column chromatography to give corresponding amide.

3-Chloro-4-(2-fluoro-4-(1-(4-fluorophenyl)-2-oxopiperidine-3-carboxamido)phenoxy)picolinamide (15a, from 9 and 3): 76% yield; 1H-NMR (600 MHz, DMSO-d6) δ 10.56 (s, 1H, NH), 8.33 (d, 1H, J = 5.5 Hz, ArH), 8.07 (s, 1H, NH), 7.91 (dd, 1H, J = 12.9, 2.4 Hz, ArH), 7.77 (s, 1H, NH), 7.44 (dd, 1H, J = 8.9, 2.4 Hz, ArH), 7.41 (t, 1H, J = 8.8 Hz, ArH), 7.36–7.32 (m, 2H, ArH), 7.26–7.20 (m, 2H, ArH), 6.84 (dd, 1H, J = 5.5, 1.1 Hz, ArH), 3.76–3.68 (m, 1H, CH), 3.65–3.57 (m, 2H, CH2), 2.21–2.13 (m, 2H, CH2), 2.12–2.04 (m, 1H, CHH), 1.96–1.87 (m, 1H, CHH); 13C-NMR (150 MHz, DMSO-d6) δ 169.3, 166.5, 160.9, 160.0, 159.3, 154.2, 153.8, 152.2, 148.7, 139.4, 138.5, 138.4, 134.8, 134.7, 128.3, 128.2, 123.7, 116.3, 115.9, 115.6, 115.4, 110.6, 107.9, 107.8, 54.9, 51.2, 50.5, 48.6, 24.8, 21.2; MS (ESI pos ion) m/z: calcd for C24H19ClF2N4O4 500.1, found 501.1 [M + H]+; HR-MS (ESI) Calcd for C24H20ClF2N4O4 501.1141 [M + H]+, found 501.1160.

3-Chloro-4-(4-(3-chloro-1-(4-fluorophenyl)-2-oxopiperidine-3-carboxamido)-2-fluorophenoxy)-picolinamide (15b, from 9 and 4) 68% yield; 1H-NMR (600 MHz, CDCl3) δ 10.11 (s, 1H, NH), 8.24 (d, 1H, J = 5.5 Hz, ArH), 7.80 (dd, 1H, J = 11.9, 2.5 Hz, ArH), 7.54 (d, 1H, J = 3.9 Hz, ArH), 7.33–7.22 (m, 3H, ArH), 7.18–7.11 (m, 3H, NH), 6.68 (dd, 1H, J = 5.5, 1.1 Hz, ArH), 6.15 (d, 1H, J = 3.4 Hz, ArH), 3.85–3.78 (m, 1H, CHH), 3.73–3.68 (m, 1H, CHH), 2.96–2.87 (m, 1H, CHH), 2.65–2.56 (m, 1H, CHH), 2.45–2.34 (m, 1H, CHH), 2.17–2.07 (m, 1H, CHH); 13C-NMR (150 MHz, CDCl3) δ 166.8, 166.0, 164.9, 162.6, 161.8, 160.9, 154.7, 153.0, 148.3, 147.0, 137.9, 136.8, 136.8, 136.8, 127.9, 127.8, 123.4, 121.2, 116.7, 116.6, 116.5, 111.7, 109.8, 109.6, 64.4, 52.6, 33.8, 19.4; MS (ESI pos ion) m/z: calcd for C24H18Cl2F2N4O4 534.1 found 535.1 [M + H]+; HR-MS (ESI) Calcd for C24H19Cl2F2N4O4 535.0752 [M + H]+, found 535.0764.

N-(4-((7H-pyrrolo[2,3-d]pyrimidin-4-yl)oxy)-3-fluorophenyl)-1-(4-fluorophenyl)-2-oxopiperidine-3-carboxamide (17a, from 11 and 3): 31% yield, 1H-NMR (600 MHz, CDCl3) δ 11.02 (s, 1H, NH), 10.19 (s, 1H, NH), 8.87 (s, 1H, ArH), 8.54 (s, 1H, ArH), 8.13–7.93 (m, 1H, ArH), 7.81 (d, 1H, J = 11.6 Hz, ArH), 7.42 (s, 1H, ArH), 7.31–7.20 (m, 2H, ArH), 7.16–7.03 (m, 2H, ArH), 6.92 (s, 1H, ArH), 3.74–3.59 (m, 2H, NCH2), 3.59–3.47 (m, 1H, CH), 2.63–2.51 (m, 1H, CHH), 2.26–2.16 (m, 1 H, CHH), 2.15–2.07 (m, 1 H, CHH), 2.08–1.98 (m, 1 H, CHH); 13C-NMR (150 MHz, CDCl3) δ 169.5, 168.3, 162.5, 160.9, 156.2, 155.9, 154.6, 152.4, 151.1, 139.8, 138.5, 134.5, 134.2, 128.2, 128.1, 126.2, 123.0, 116.9, 116.8, 116.7, 116.6, 115.8, 115.6, 109.4, 109.2, 100.3, 53.1, 47.8, 47.7, 29.7, 22.8, 21.6; MS (ESI pos ion) m/z: calcd for C24H19F2N5O3 463.1, found 464.2 [M + H]+; HR-MS (ESI) Calcd for C24H20F2N5O3 464.1534 [M + H]+, found 464.1547.

N-(4-((7H-pyrrolo[2,3-d]pyrimidin-4-yl)oxy)-3-fluorophenyl)-3-chloro-1-(4-fluorophenyl)-2-oxo-piperidine-3-carboxamide (17b, from 11 and 4): 42% yield; 1H-NMR (600 MHz, CDCl3) δ 8.25 (s, 1H, ArH), 7.89 (dd, J = 12.5, 2.5 Hz, 1H, ArH), 7.50 (d, J = 3.6 Hz, 1H, ArH), 7.48 (dd, J = 2.5, 1.3 Hz, 1H, ArH), 7.46–7.42 (m, 3H, ArH), 7.38 (t, J = 8.7 Hz, 1H, ArH), 7.25–7.19 (m, 2H, ArH), 6.64 (d, J = 3.6 Hz, 1H, ArH), 3.98–3.88 (m, 1H. CHH), 3.84–3.78 (m, 1H. CHH), 2.96 (ddd, J = 14.8, 11.6, 3.2 Hz, 1H. CHH), 2.59–2.52 (m, 1H. CHH), 2.40–2.31 (m, 1H. CHH), 2.21–2.11 (m, 1H. CHH); 13C-NMR (150 MHz, CDCl3) δ 169.7, 168.5, 162.7, 160.9, 156.3, 155.9, 154.7, 152.4, 151.3, 139.8, 138.6, 134.7, 134.5, 128.4, 128.3, 126.4, 123.6, 117.0, 116.8, 116.7, 116.6, 115.9, 115.7, 109.6, 109.4, 100.6, 64.5, 53.5, 47.9, 47.7, 29.9, 22.8, 21.8; MS (ESI pos ion) m/z: calcd for C24H18ClF2N5O3 497.1, found 498.0 [M + H]+; HR-MS (ESI) Calcd for C24H19ClF2N5O3 498.1145 [M + H]+, found 498.1155.

N-(3-fluoro-4-((2-((4-methoxybenzyl)amino)pyrimidin-4-yl)oxy)phenyl)-1-(4-fluorophenyl)-2-oxo-piperidine-3-carboxamide (18a, from 13 and 3): 69% yield, 1H-NMR (600 MHz, CDCl3) δ 10.19 (s, 1H, NH), 8.06 (s, 1H, ArH), 7.75 (d, 1H, J = 12.2 Hz, ArH), 7.24–7.18 (m, 3H, ArH), 7.11 (t, 2H, J = 8.3 Hz, ArH), 7.06 (t, 1H, J = 8.4 Hz, ArH), 7.00 (d, 1H, J = 8.6 Hz, ArH), 6.78 (s, 2H, ArH), 6.23 (s, 1H, ArH), 4.24 (s, 2H, CH2), 3.76 (s, 3H, OCH3), 3.71–3.62 (m, 2H, NCH2), 3.62–3.57 (m, 1H, CH), 2.58–2.48 (m, 1H, CHH), 2.25–2.14 (m, 1H, CHH), 2.13–2.05 (m, 1H, CHH), 2.05–1.97 (m, 1H, CHH); 13C-NMR (150 MHz, CDCl3) δ 169.3, 166.0, 162.4, 160.8, 159.0, 156.7, 154.8, 138.4, 129.3, 128.2, 128.1, 123.7, 116.6, 116.5, 115.3, 114.0, 55.4, 52.7, 47.7, 22.9, 21.7; MS (ESI pos ion) m/z: calcd for C30H27F2N5O4 559.2, found 560.2 [M + H]+; HR-MS (ESI) Calcd for C30H28F2N5O4 560.2109 [M + H]+, found 560.2125.

3-Chloro-N-(3-fluoro-4-((2-((4-methoxybenzyl)amino)pyrimidin-4-yl)oxy)phenyl)-1-(4-fluorophenyl)-2-oxopiperidine-3-carboxamide (18b, from 13 and 4):57% yield; 1H-NMR (600 MHz, CDCl3) δ 9.96 (s, 1H, NH), 8.12 (s, 1H, ArH), 7.69 (dd, J = 11.8, 2.5 Hz, 1H, ArH), 7.25–7.22 (m, 2H, ArH), 7.19 (dd, 1H, J = 8.9, 2.4 Hz, ArH), 7.15–7.08 (m, 4H, ArH), 6.80 (d, 2H, J = 8.0 Hz, ArH), 6.18 (d, 1H, J = 5.7 Hz, ArH), 4.32 (s, 2H, CH2), 3.81–3.75 (m, 1H, CHH), 3.77 (s, 3H, OCH3), 3.69 (dt, 1H, J = 12.4, 4.9 Hz, CHH), 2.90 (ddd, 1H, J = 14.6, 11.3, 3.0 Hz, CHH), 2.63–2.54 (m, 1H, CHH), 2.41–2.31 (m, 1H, CHH), 2.15–2.06 (m, 1H, CHH); 13C-NMR (150 MHz, CDCl3) δ 166.9, 164.6, 162.6, 162.1, 160.9, 159.5, 158.9, 157.7, 155.3, 153.70, 138.0, 136.4, 136.3, 135.8, 135.8, 130.9, 129.1, 127.9, 127.8, 124.2, 116.7, 116.5, 115.7, 113.9, 64.4, 55.4, 55.3, 52.7, 45.0, 33.9, 19.5; MS (ESI pos ion) m/z: calcd for C30H26ClF2N5O4 593.2, found 594.2 [M + H]+; HR-MS (ESI) Calcd for C30H27ClF2N5O4 594.1720 [M + H]+, found 594.1733.

N-(4-((6,7-dimethoxyquinolin-4-yl)oxy)-3-fluorophenyl)-1-(4-fluorophenyl)-2-oxopiperidine-3-carbox-amide (20a, from 14 and 3): 61% yield; 1H-NMR (600 MHz, CDCl3) δ 10.30 (s, 1H, NH), 8.51 (s, 1 H, ArH), 7.84 (dd, 1H, J = 12.1, 2.5 Hz, ArH), 7.69 (s, 1H, ArH), 7.59 (s, 1H, ArH), 7.29–7.26 (m, 1H, ArH), 7.25–7.21 (m, 2H, ArH), 7.18 (t, 1H, J = 8.6 Hz, ArH), 7.12 (t, 2H, J = 8.5 Hz, ArH), 6.49 (d, 1H, J = 5.5 Hz, ArH), 4.08 (s, 3H, OCH3), 4.06 (s, 3H, OCH3), 3.75–3.60 (m, 2H, CHH), 3.58–3.49 (m, 1H, CH), 2.60–2.47 (m, 1H, CHH), 2.29–2.19 (m, 1H, CHH), 2.14–1.97 (m, 2H, CH2); 13C-NMR (150 MHz, CDCl3) δ 169.3, 166.4, 154.6, 150.6, 145.7, 138.4, 128.1, 123.5, 116.6, 116.5, 116.2, 99.7, 56.7, 56.4, 52.7, 47.8, 29.8, 23.0, 22.8, 21.7; MS (ESI pos ion) m/z: calcd for C29H25F2N3O5 533.2, found 534.2 [M + H]+; HR-MS (ESI) Calcd for C29H26F2N3O5 534.1841 [M + H]+, found 534.1850.

3-Chloro-N-(4-((6,7-dimethoxyquinolin-4-yl)oxy)-3-fluorophenyl)-1-(4-fluorophenyl)-2-oxopiperidine-3-carboxamide (20b, from 14 and 4): 54% yield; 1H-NMR (600 MHz, CDCl3) δ 10.05 (s, 1H, NH), 8.48 (d, 1H, J = 5.4 Hz, ArH), 7.79 (dd, 1H, J = 12.0, 2.5 Hz, ArH), 7.57 (s, 1H, ArH), 7.44 (s, 1H, ArH), 7.29–7.23 (m, 4H, ArH), 7.20 (t, 1H, J = 8.6 Hz, ArH), 7.13 (t, 2H, J = 8.4 Hz, ArH), 6.39 (d, 1H, J = 5.3 Hz, ArH), 4.05 (s, 3H, OCH3), 4.04 (s, 3H, OCH3), 3.80 (ddd, 1H, J = 14.5, 10.3, 4.7 Hz, CHH), 3.74–3.66 (m, 1H, CHH), 2.97–2.83 (m, 1H, CHH), 2.67–2.56 (m, 1H, CHH), 2.45–2.34 (m, 1H, CHH), 2.15–2.07 (m, 1H, CHH); 13C-NMR (150 MHz, CDCl3) δ 166.9, 164.8, 162.6, 161.0, 160.2, 155.3, 153.6, 153.1, 149.8, 148.6, 146.7, 137.9, 137.7, 137.6, 136.3, 136.2, 127.9, 127.8, 123.8, 116.6, 116.5, 116.4, 115.6, 113.0, 109.8, 109.7, 109.6, 109.6, 107.8, 107.74, 99.5, 99.5, 64.3, 56.3, 56.2, 52.7, 33.8, 29.8, 19.5; MS (ESI pos ion) m/z: calcd for C29H24ClF2N3O5 567.1, found 568.1 [M + H]+; HR-MS (ESI) Calcd for C29H25ClF2N3O5 568.1451 [M + H]+, found 568.1461.

N-(4-((6,7-dimethoxyquinolin-4-yl)oxy)-3-fluorophenyl)-1-(4-fluorophenyl)-3-methyl-2-oxopiperidine-3-carboxamide (20c, from 14 and 6a): 68% yield; 1H-NMR (600 MHz, CDCl3) δ 10.01 (s, 1H, NH), 8.47 (d, 1H, J = 5.3 Hz, ArH), 7.82 (dd, 1H, J = 12.2, 2.5 Hz, ArH), 7.58 (s, 1H, ArH), 7.42 (s, 1H, ArH), 7.25–7.20 (m, 3H, ArH), 7.19 (t, 1H, J = 8.5 Hz, ArH), 7.15–7.11 (m, 2H, ArH), 6.38 (d, 1H, J = 5.1 Hz, ArH), 4.06 (s, 3H, OCH3), 4.04 (s, 3H, OCH3), 3.71–3.62 (m, 2H, NCH2), 2.83–2.76 (m, 1H, CHH), 2.07–1.97 (m, 2H, CH2), 1.87–1.81 (m, 1H, CHH), 1.71 (s, 3H, CH3); 13C-NMR (150 MHz, CDCl3) δ 173.7, 170.1, 162.4, 160.8, 160.2, 153.7, 153.0, 149.7, 148.9, 146.9, 138.7, 137.1, 128.2, 123.8, 116.6, 116.5, 116.0, 116.0, 115.6, 109.2, 107.9, 102.3, 99.5, 56.3, 56.2, 53.1, 50.5, 30.9, 27.7, 20.7, 14.3; MS (ESI pos ion) m/z: calcd for C30H27F2N3O5 547.2, found 548.2 [M + H]+; HR-MS (ESI) Calcd for C30H28F2N3O5 548.1997 [M + H]+, found 548.2012.

N-(4-((6,7-dimethoxyquinolin-4-yl)oxy)-3-fluorophenyl)-3-ethyl-1-(4-fluorophenyl)-2-oxopiperidine-3-carboxamide (20d, from 14 and 6b): 58% yield; 1H-NMR (600 MHz, CDCl3) δ 9.99 (s, 1H, NH), 8.47 (d, 1H, J = 5.4 Hz, ArH), 7.82 (dd, 1H, J = 12.1, 2.4 Hz, ArH), 7.58 (s, 1H, ArH), 7.44 (s, 1H, ArH), 7.24–7.16 (m, 4H, ArH), 7.15–7.11 (m, 2H, ArH), 6.39 (d, 1H, J = 5.2 Hz, ArH), 4.06 (s, 3H, OCH3), 4.05 (s, 3H, OCH3), 3.71–3.59 (m, 2H, NCH2), 2.81 (1H, ddd, J = 13.9, 6.4, 2.7 Hz, CHH), 2.22–2.14 (m, 1H, CHH), 2.12–1.93 (m, 4H, CH2CH3), 1.82–1.76 (m, 1H, CHH), 1.02 (t, 3H, J = 7.4 Hz, CH2CH3); 13C-NMR(150 MHz, CDCl3) δ 173.3, 169.0, 165.8, 162.5, 160.4, 155.3, 153.7, 153.1, 149.7, 148.7, 146.8, 138.8, 137.1, 137.1, 137.0, 136.9, 128.3, 115.7, 107.8, 102.3, 99.6, 56.3, 55.2, 53.1, 33.8, 27.0, 20.8; MS (ESI pos ion) m/z: calcd for C31H29F2N3O5 561.2, found 562.2 [M + H]+; HR-MS (ESI) Calcd for C31H30F2N3O5 562.2154 [M + H]+, found 562.2160.

N-(4-((6,7-dimethoxyquinolin-4-yl)oxy)-3-fluorophenyl)-3-butyl-1-(4-fluorophenyl)-2-oxopiperidine-3-carboxamide (20e, from 14 and 6c): 64% yield; 1H-NMR (600 MHz, CDCl3) δ 9.98 (s, 1H, NH), 8.47 (d, 1H, J = 5.4 Hz, ArH), 7.82 (dd, 1H, J = 12.5, 2.6 Hz, ArH), 7.58 (s, 1H, ArH), 7.42 (s, 1H, ArH), 7.25–7.16 (m, 4H, ArH), 7.16–7.11 (m, 2H, ArH), 6.39 (d, 1H, J = 5.1 Hz, ArH), 4.06 (s, 3H, OCH3), 4.05 (s, 3H, OCH3), 3.71–3.59 (m, 2H, NCH2), 2.82 (ddd, 1H, J = 14.0, 6.1, 2.7 Hz, CHH), 2.13–1.92 (m, 4H, 2 × CH2), 1.84–1.77 (m, 1H, CHH), 1.42–1.28 (m, 4H, 2 × CH2), 0.95–0.89 (m, 3H, CH2CH3); 13C-NMR (150 MHz, CDCl3) δ 173.3, 169.1, 160.3, 153.0, 149.7, 148.9, 147.0, 138.8, 137.1, 128.3, 128.2, 123.8, 116.7, 116.5, 116.0, 115.7, 109.4, 108.0, 102.3, 99.6, 56.3, 56.3, 54.9, 53.1, 40.5, 27.5, 27.0, 23.0, 20.9, 14.1; MS (ESI pos ion) m/z: calcd for C33H33F2N3O5 589.2, found 590.2 [M + H]+; HR-MS (ESI) Calcd for C33H34F2N3O5 590.2467 [M + H]+, found 590.2478.

3.2.4. Preparation of 16a and 16b

To amide 15a or 15b (0.2 mmol) in ethyl acetate (2 mL), acetonitrile (2 mL), and water (1 mL) at 0 °C was added iodobenzene diacetate (82 mg, 0.26 mmol). After stirring at room temperature for 2 h, saturated NaHCO3 (3 mL) was added, followed by 30 mL of ethyl acetate. The mixture was filtered, and the filtrate was washed with brine (3 × 5 mL), dried over Na2SO4 and concentrated in vacuo. The residue was purified by flash chromatography on silica gel to give compounds 16ab.

N-(4-((2-amino-3-chloropyridin-4-yl)oxy)-3-fluorophenyl)-1-(4-fluorophenyl)-2-oxopiperidine-3-carboxamide (16a). white solid; yield 72%; 1H-NMR (600 MHz, CDCl3) δ 10.00 (s, 1H, NH), 7.71 (dd, 1H, J = 12.6, 2.5 Hz, ArH), 7.24–7.18 (m, 3H, ArH), 7.17–7.10 (m, 3H, ArH), 7.02 (dt, 1H, J = 9.0, 1.8 Hz, ArH), 6.62 (t, 1H, J = 8.9 Hz, ArH), 5.01 (s, 2H, NH2), 3.65 (dq, 2H, J = 7.2, 4.3, 3.4 Hz, NCH2), 3.54 (t, J = 6.3 Hz, 1H, CH), 2.59–2.49 (m, 1H, CHH), 2.21–2.15 (m, 1H, CHH), 2.10–2.05 (m, 1H, CHH), 2.04–1.98 (m, 1H, CHH); 13C-NMR (150 MHz, CDCl3) 169.4, 165.7, 162.5, 160.9, 155.6, 154.7, 151.1, 146.5, 139.9, 138.5, 134.5, 134.4, 128.2, 128.2, 123.3, 116.9, 116.8, 116.7, 116.6, 116.6, 115.3, 115.2, 109.4, 109.2, 108.9, 52.8, 47.6, 47.5, 29.8, 22.9, 21.8; MS (ESI pos ion) m/z: calcd for C23H19ClF2N4O3 472.1, found 473.1 [M + H]+; HR-MS (ESI) Calcd for C23H20ClF2N4O3 473.1192 [M + H]+, found 473.1214.

N-(4-((2-amino-3-chloropyridin-4-yl)oxy)-3-fluorophenyl)-3-chloro-1-(4-fluorophenyl)-2-oxo-piperidine-3-carboxamide (16b). white solid; yield 76%; 1H-NMR (600 MHz, CDCl3) δ 10.02 (s, 1H, NH), 7.77 (d, 1H, J = 5.8 Hz, ArH), 7.74 (dd, 1H, J = 12.0, 2.5 Hz, ArH), 7.26–7.23 (m, 2H, ArH), 7.23–7.20 (m, 1H, ArH), 7.16–7.11 (m, 3H, ArH), 5.99 (dd, 1H, J = 5.8, 1.0 Hz, ArH), 5.04 (br s, 2H, NH2), 3.84–3.74 (m, 1H, CHH), 3.74–3.66 (m, 1H, CHH), 2.94–2.82 (m, 1H, CHH), 2.63–2.57 (m, 1H, CHH), 2.43–2.34 (m, 1H, CHH), 2.14–2.09 (m, 1H, CHH); 13C-NMR (150 MHz, CDCl3) δ 166.9, 164.8, 162.6, 161.0, 160.5, 156.6, 155.0, 153.3, 148.6, 147.8, 146.7, 137.9, 136.2, 127.8, 123.4, 116.7, 116.6, 116.2, 109.6, 109.4, 102.6, 102.1, 91.8, 64.2, 52.7, 33.8, 19.5; MS (ESI pos ion) m/z: calcd for C23H18Cl2F2N4O3 506.1, found 507.1 [M + H]+; HR-MS (ESI) Calcd for C23H19Cl2F2N4O3 507.0802 [M + H]+, found 507.0816.

3.2.5. Preparation of 19a and 19b

Compound 18a or 18b (40 mg, 0.07 mmol) was dissolved in TFA and heated to reflux for 6 h. The solvent was removed and the residue was purified by column chromatography, giving the title compound 19a or 19b as a pale yellow solid.

N-(4-((2-aminopyrimidin-4-yl)oxy)-3-fluorophenyl)-1-(4-fluorophenyl)-2-oxopiperidine-3-carbox-amide (19a). 71% yield; 1H-NMR (600 MHz, CDCl3) δ 10.20 (s, 1 H, NH), 7.95 (s, 1H, ArH), 7.75 (d, 1H, J = 11.8 Hz, ArH), 7.21 (dd, 2H, J = 8.7, 4.8 Hz, ArH), 7.18 (d, 1H, J = 8.6 Hz, ArH), 7.13 (t, 2H, J = 8.2 Hz, ArH), 7.07 (t, 1H, J = 8.4 Hz, ArH), 6.49 (s, 1H, ArH), 5.77 (s, 1H, NH), 3.67 (q, 2H, J = 6.0 Hz, NCH2), 3.57 (s, 1H, CH), 2.57–2.46 (m, 1H, CHH), 2.25–2.16 (m, 1H, CHH), 2.13–1.95 (m, 2H, CH2); 13C-NMR (150 MHz, CDCl3) δ 166.3, 162.5, 160.9, 154.4, 152.8, 138.4, 137.8, 134.1, 128.2, 128.1, 123.1, 116.7, 116.5, 115.6, 108.9, 108.7, 52.7, 47.7, 29.8, 23.0, 21.7; MS (ESI pos ion) m/z: calcd for C22H19F2N5O3 439.1, found 440.1 [M + H]+; HR-MS (ESI) Calcd for C22H20F2N5O3 440.1534 [M + H]+, found 440.1528.

N-(4-((2-aminopyrimidin-4-yl)oxy)-3-fluorophenyl)-3-chloro-1-(4-fluorophenyl)-2-oxopiperidine-3-carboxamide (19b). 87% yield; 1H-NMR (600 MHz, CDCl3) δ 10.04 (s, 1H, NH), 7.96 (d, 1H, J = 6.7 Hz, ArH), 7.72 (dd, 1H, J = 11.8, 2.5 Hz, ArH), 7.25–7.18 (m, 3H, ArH), 7.16–7.06 (m, 3H, ArH), 6.47 (d, 1H, J = 6.7 Hz, ArH), 3.79 (ddd, 1H, J = 12.4, 10.1, 4.7 Hz, CHH), 3.69 (dt, 1H, J = 11.3, 4.5 Hz, CHH), 2.88 (ddd, 1H, J = 14.9, 11.6, 3.1 Hz, CHH), 2.63–2.49 (m, 1H, CHH), 2.44–2.31 (m, 1H, CHH), 2.15–2.05 (m, 1H, CHH); 13C-NMR (150 MHz, CDCl3) δ 171.2, 166.8, 164.9, 162.6, 161.0, 154.5, 152.8, 137.9, 137.9, 137.2, 137.1, 134.8, 134.7, 127.9, 127.9, 127.8, 123.3, 116.7, 116.6, 116.0, 109.3, 109.2, 109.1, 109.1, 100.0, 99.0, 64.4, 52.7, 33.8, 19.4; MS (ESI pos ion) m/z: calcd for C22H18ClF2N5O3 473.1, found 474.0 [M + H]+; HR-MS (ESI) Calcd for C22H19ClF2N5O3 474.1145 [M + H]+, found 474.1151.

3.3. Biology

3.3.1. c-Met Kinase Assay

The effects of indicated compound on the activities of c-Met kinases were determined using enzyme-linked immunosorbent assays (ELISAs) with purified recombinant proteins. Briefly, 20 μg/mL poly (Glu,Tyr)4:1 (Sigma, St. Louis, MO, USA) was pre-coated in 96-well plates as a substrate. A 50-μL aliquot of 10 μmol/L ATP solution diluted in kinase reaction buffer (50 mmol/L HEPES [pH 7.4], 50 mmol/L MgCl2, 0.5 mmol/L MnCl2, 0.2 mmol/L Na3VO4, and 1 mmol/L DTT) was added to each well; 1 μL of various concentrations of indicated compound diluted in 1% DMSO (v/v) (Sigma) were then added to each reaction well. DMSO (1%, v/v) was used as the negative control. The kinase reaction was initiated by the addition of purified c-Met tyrosine kinase proteins diluted in 49 μL of kinase reaction buffer. After incubation for 60 min at 37 °C, the plate was washed three times with phosphate-buffered saline (PBS) containing 0.1% Tween 20 (T-PBS). Anti-phosphotyrosine (PY99) antibody (100 μL; 1:500, diluted in 5 mg/mL BSA T-PBS) was then added. After a 30-min incubation at 37 °C, the plate was washed three times, and 100 μL horseradish peroxidase-conjugated goat anti-mouse IgG (1:2000, diluted in 5 mg/mL BSA T-PBS) was added. The plate was then incubated at 37 °C for 30 min and washed 3 times. A 100-μL aliquot of a solution containing 0.03% H2O2 and 2 mg/ml o-phenylenediamine in 0.1 mol/L citrate buffer (pH 5.5) was added. The reaction was terminated by the addition of 50 μL of 2 mol/L H2SO4 as the color changed, and the plate was analyzed using a multi-well spectrophotometer (SpectraMAX 190, Molecular Devices, Sunnyvale, CA, USA) at 490 nm. The inhibition rate (%) was calculated using the following equation: [1 − (A490/A490 control)] × 100%. The IC50 values were calculated from the inhibition curves in two separate experiments.

3.3.2. Cell Proliferation Assay

Cells were seeded in 96-well tissue culture plates. On the next day, the cells were exposed to various concentrations of compounds and further cultured for 72 h. Cell proliferation was then determined using sulforhodamine B (SRB, Sigma, St. Louis, MO, USA). The IC50 values were calculated by concentration-response curve fitting using the four-parameter method.

4. Conclusions

In summary, a series of compounds based upon the 3-carboxylpiperidin-2-one scaffold were designed, synthesized and evaluated for their c-Met kinase inhibition and cytotoxicity against MKN45 cancer cell lines. Five compounds (16b, 20be) exhibited moderate to excellent activity against c-Met kinase, with IC50 values ranging from 8.6–81 nM. Moreover, four compounds (20be) showed potent inhibitory activity against MKN45 cell proliferation, with IC50s ranging from 0.57–16 μM. Further structure-activity relationship studies are under way in our laboratory and will be reported in due course.

Acknowledgments

This work was supported by the funds from National Program on Key Basic Research Project of China (2012CB910704), the National Natural Science Foundation (91229205, 81102461), and National S&T Major Projects (2012ZX09301001-007).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gherardi, E.; Birchmeier, W.; Birchmeier, C.; Vande Woude, G. Targeting MET in cancer: Rationale and progress. Nat. Rev. Cancer 2012, 12, 89–103. [Google Scholar] [CrossRef]
  2. Benvenuti, S.; Comoglio, P.M. The MET receptor tyrosine kinase in invasion and metastasis. J. Cell. Physiol. 2007, 213, 316–325. [Google Scholar] [CrossRef]
  3. Cappuzzo, F.; Marchetti, A.; Skokan, M.; Rossi, E.; Gajapathy, S.; Felicioni, L.; del Grammastro, M.; Sciarrotta, M.G.; Buttitta, F.; Incarbone, M.; et al. Increased MET gene copy number negatively affects survival of surgically resected non-small-cell lung cancer patients. J. Clin. Oncol. 2009, 27, 1667–1674. [Google Scholar] [CrossRef]
  4. Okuda, K.; Sasaki, H.; Yukiue, H.; Yano, M.; Fujii, Y. Met gene copy number predicts the prognosis for completely resected non-small cell lung cancer. Cancer Sci. 2008, 99, 2280–2285. [Google Scholar] [CrossRef]
  5. Toiyama, Y.; Miki, C.; Inoue, Y.; Okugawa, Y.; Tanaka, K.; Kusunoki, M. Serum hepatocyte growth factor as a prognostic marker for stage II or III colorectal cancer patients. Int. J. Cancer 2009, 125, 1657–1662. [Google Scholar] [CrossRef]
  6. Corso, S.; Comoglio, P.M.; Giordano, S. Cancer therapy: Can the challenge be MET? Trends Mol. Med. 2005, 11, 284–292. [Google Scholar] [CrossRef]
  7. Birchmeier, C.; Birchmeier, W.; Gherardi, E.; Vande Woude, G.F. Met, metastasis, motility and more. Nat. Rev. Mol. Cell Biol. 2003, 4, 915–925. [Google Scholar] [CrossRef]
  8. Christensen, J.; Burrows, J.; Salgia, R. c-Met as a target for human cancer and characterization of inhibitors for therapeutic intervention. Cancer Lett. 2005, 225, 1–26. [Google Scholar]
  9. Abidoye, O.; Murukurthy, N.; Salgia, R. Review of clinic trials: Agents targeting c-Met. Rev. Recent Clin. Trials 2007, 2, 143–147. [Google Scholar]
  10. Eder, J.P.; Vande Woude, G.F.; Boerner, S.A.; LoRusso, P.M. Novel therapeutic inhibitors of the c-Met signaling pathway in cancer. Clin. Cancer Res. 2009, 15, 2207–2214. [Google Scholar]
  11. Fujiwara, Y.; Senga, T.; Nishitoba, T.; Osawa, T.; Miwa, A.; Nakamura, K. Quinoline Derivative and Quinazoline Derivative Inhibiting Self-phosphorylation of Hepatocytus Proliferator Receptor, and Medicinal Composition Containing the Same. WO03000660 A1. 3 January 2003. [Google Scholar]
  12. Mannoin, M.; Raeppel, S.; Claridge, S.; Zhou, N.; Savedra, O.; Isakovic, L.; Zhan, L.; Gaudette, F.; Raeppel, F.; Déziel, R.; et al. N-(4-(6,7-Disubstituted-quinolin-4-yloxy)-3-fluorophenyl)-2-oxo-3-phenylimidazolidine-1-carboxamides: A novel series of dual c-Met/VEGFR2 receptor tyrosine kinase inhibitors. Bioorg. Med. Chem. Lett. 2009, 19, 6552–6556. [Google Scholar] [CrossRef]
  13. Claridge, S.; Raeppel, F.; Granger, M.-C.; Bernstein, N.; Saavedra, O.; Zhan, L.; Llewellyn, D.; Wahhab, A.; Deziel, R.; Rahil, J.; et al. Discovery of a novel and potent series of thieno[3,2-b]pyridine-based inhibitors of c-Met and VEGFR2 tyrosine kinases. Bioorg. Med. Chem. Lett. 2008, 18, 2793–2798. [Google Scholar] [CrossRef]
  14. Raeppel, S.; Claridge, S.; Saavedra, O.; Gaudette, F.; Zhan, L.; Mannion, M.; Zhou, N.; Raeppel, F.; Granger, M.-C.; Isakovic, L.; et al. N-(3-Fluoro-4-(2-arylthieno[3,2-b]pyridin-7-yloxy)phenyl)-2-oxo-3-phenylimidazolidine-1-carboxamides: A novel series of dual c-Met/VEGFR2 receptor tyrosine kinase inhibitors. Bioorg. Med. Chem. Lett. 2009, 19, 1323–1328. [Google Scholar] [CrossRef]
  15. Raeppel, S.; Gaudette, F.; Mannion, M.; Claridge, S.; Saavedra, O.; Isakovic, L.; Déziel, R.; Beaulieu, N.; Beaulieu, C.; Dupont, I.; et al. Identification of a novel series of potent RON receptor tyrosine kinase inhibitors. Bioorg. Med. Chem. Lett. 2010, 20, 2745–2749. [Google Scholar] [CrossRef]
  16. Kim, K.S.; Zhang, L.; Schmidt, R.; Cai, Z.-W.; Wei, D.; Williams, D.K.; Lombardo, L.J.; Trainor, G.L.; Xie, D.; Zhang, Y.; et al. Discovery of pyrrolopyridine−pyridone based inhibitors of Met kinase: Synthesis, X-ray crystallographic analysis, and biological activities. J. Med. Chem. 2008, 51, 5330–5341. [Google Scholar] [CrossRef]
  17. Schroeder, G.M.; An, Y.; Cai, Z.W.; Chen, X.T.; Clark, C.; Cornelius, L.A.; Dai, J.; Gullo-Brown, J.; Gupta, A.; Henley, B.; et al. Discovery of N-(4-(2-amino-3-chloropyridin-4-yloxy)-3-fluorophenyl)-4-ethoxy-1-(4-fluorophenyl)-2-oxo-1,2-dihydropyridine-3-carboxamide (BMS-777607), a selective and orally efficacious inhibitor of the Met kinase superfamily. J. Med. Chem. 2009, 52, 1251–1254. [Google Scholar]
  18. Zhao, A.; Gao, X.; Wang, Y.; Ai, J.; Wang, Y.; Chen, Y.; Geng, M.; Zhang, A. Discovery of novel c-Met kinase inhibitors bearing a thieno[2,3-d]pyrimidine or furo[2,3-d]pyrimidine scaffold. Bioorg. Med. Chem. 2011, 19, 3906–3918. [Google Scholar] [CrossRef]
  19. Matsumoto, S.; Miyamoto, N.; Hirayama, T.; Oki, H.; Okada, K.; Tawada, M.; Iwata, H.; Nakamura, K.; Ymasaki, S.; Miki, H.; et al. Structure-based design, synthesis, and evaluation of imidazo[1,2-b]pyridazine and imidazo[1,2-a]pyridine derivatives as novel dual c-Met and VEGFR2 kinase inhibitors. Bioorg. Med. Chem. 2013, 21, 7686–7698. [Google Scholar] [CrossRef]
  20. Schroeder, G.M.; Chen, X.-T.; Williams, D.K.; Nirschl, D.S.; Cai, Z.-W.; Wei, D.; Tokarski, J.S.; An, Y.; Sack, J.; Chen, Z.; et al. Identification of pyrrolo[2,1-f][1,2,4]triazine-based inhibitors of Met kinase. Bioorg. Med. Chem. Lett. 2008, 18, 1945–1951. [Google Scholar] [CrossRef]
  21. Gaudette, F.; Raeppel, S.; Nguyen, H.; Beaulieu, N.; Beaulieu, C.; Dupont, I.; Macleod, A.R.; Besterman, J.M.; Vaisburg, A. Identification of potent and selective VEGFR receptor tyrosine kinase inhibitors having new amide isostere headgroups. Bioorg. Med. Chem. Lett. 2010, 20, 848–852. [Google Scholar] [CrossRef]
  22. Qi, B.; Mi, B.; Zhai, X.; Xu, Z.; Zhang, X.; Tian, Z.; Gong, P. Discovery and optimization of novel 4-phenoxy-6,7-disubstituted quinolones possessing semicarbazones as c-Met kinase inhibitors. Bioorg. Med. Chem. 2013, 21, 5246–5260. [Google Scholar] [CrossRef]
  23. Williams, D.K.; Chen, X.-T.; Tarby, C.; Kaltenbach, R.; Cai, Z.-W.; Tokarski, J.S.; An, Y.; Sack, J.S.; Wautlet, B.; Gullo-Brown, J.; et al. Design, synthesis and structure-activity relationships of novel biarylamine-based Met kinase inhibitors. Bioorg. Med. Chem. Lett. 2010, 20, 2998–3002. [Google Scholar] [CrossRef]
  24. Li, S.; Zhao, Y.; Wang, K.; Gao, Y.; Han, J.; Cui, B.; Gong, P. Discovery of novel 4-(2-fluorophenoxy)quinoline derivatives bearing 4-oxo-1,4-dihydrocinnoline-3-carboxamide moiety as c-Met kinase inhibitors. Bioorg. Med. Chem. 2013, 21, 2843–2855. [Google Scholar] [CrossRef]
  25. Norman, M.H.; Liu, L.; Lee, M.; Xi, N.; Fellows, I.; D’Angelo, N.D.; Dominguez, C.; Rex, K.; Bellon, S.F.; Kim, T.-S.; et al. Structure-based design of novel class II c-Met inhibitors: 1. Identification of pyrazolone-based derivatives. J. Med. Chem. 2012, 55, 1858–1867. [Google Scholar] [CrossRef]
  26. D’Angelo, N.D.; Bellon, S.F.; Booker, S.K.; Cheng, Y.; Coxon, A.; Dominguez, C.; Fellows, I.; Hoffman, D.; Hungate, R.; Kaplan-Lefko, P.; et al. Design, synthesis, and biological evaluation of potent c-Met inhibitors. J. Med. Chem. 2008, 51, 5766–5779. [Google Scholar] [CrossRef]
  27. Friesner, R.A.; Murphy, R.B.; Repasky, M.P.; Frye, L.L.; Greenwood, J.R.; Halgren, T.A.; Sanschagrin, P.C.; Mainz, D.T. Extra precision glide:  Docking and scoring incorporating a model of hydrophobic enclosure for protein−ligand complexes. J. Med. Chem. 2006, 49, 6177–6196. [Google Scholar]
  • Sample Availability: Samples of the compounds 1520 are available from the authors.
