Molecules 2014, 19(1), 159-176; doi:10.3390/molecules19010159
Published: 24 December 2013
Abstract: CUL4A encodes a core component of a cullin-based E3 ubiquitin ligase complex that regulates many critical processes such as cell cycle progression, DNA replication, DNA repair and chromatin remodeling by targeting a variety of proteins for ubiquitination and degradation. In the research described in this report we aimed to clarify whether CUL4A participates in multiple drug resistance (MDR) in breast cancer cells. We first transfected vectors carrying CUL4A and specific shCUL4A into breast cancer cells and corresponding Adr cells respectively. Using reverse transcription polymerase chain reactions and western blots, we found that overexpression of CUL4A in MCF7 and MDA-MB-468 cells up-regulated MDR1/P-gp expression on both the transcription and protein levels, which conferred multidrug resistance to P-gp substrate drugs, as determined by 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) assays. On the other hand, silencing CUL4A in MCF7/Adr and MDA-MB-468/Adr cells led to the opposite effect. Moreover, ERK1/2 in CUL4A-overexpressing cells was highly activated and after treatment with PD98059, an ERK1/2-specific inhibitor, CUL4A-induced expression of MDR1/P-gp was decreased significantly. Lastly, immunohistochemistry in breast cancer tissues showed that P-gp expression had a positive correlation with the expression of CUL4A and ERK1/2. Thus, these results implied that CUL4A and ERK1/2 participated in multi-drug resistance in breast cancer through regulation of MDR1/P-gp expression.
Breast cancer is the most frequently diagnosed cancer in woman and one of the leading causes of cancer death worldwide [1,2]. Multiple drug resistance (MDR) plays a major role in the failure of breast cancer therapy [3,4,5]. The development of MDR, in which tumor cells become resistant to a wide spectrum of anti-cancer agents with different structures or different target sites, severely limits the success of chemotherapy in breast cancer [3,4,6,7]. The mechanisms of MDR acquisition in the course of chemotherapy are numerous and complex. The human multidrug resistance 1 gene (MDR1) encodes the membrane-located efflux pump P-glycoprotein (P-gp). Overexpression of MDR1/P-gp results in an active efflux of anticancer agents from cells, thus lowering intracellular drug concentrations and inducing cancer cells to resist to chemotherapeutic drugs, especially P-gp substrate anti-cancer drugs, such as doxorubicin and paclitaxel [8,9,10,11]. Several strategies have been developed to restore chemotherapeutic sensitivity in MDR cells with limited success [7,12].
CUL4A, a newly found oncogene, is amplified in breast cancers . It encodes a core component of a cullin-based E3 ubiquitin ligase complex. This complex regulates many critical processes such as cell cycle progression, DNA replication, DNA repair and chromatin remodeling by targeting a variety of proteins for ubiquitination and degradation [14,15,16,17]. In breast cancers, over-expression of CUL4A strongly correlates with poor prognosis . Recent research showed that CUL4A has a relationship with MDR in prostate cancer too , but the relationship between CUL4A and MDR and related mechanisms in breast cancer are still unclear.
The mitogen-activated protein kinase (MAPK) pathway is an attractive target for therapeutic intervention in cancer due to its integral role in the regulation of cancer cell proliferation, invasiveness, and survival [20,21]. Extracellular signal-regulated kinase (ERK) is a member of the MAPK family. ERK1 and ERK2 are isoforms of the “classical” MAPK . The activity of ERK1/2 has been implicated in the regulation of embryonic morphogenesis, cell proliferation, tumor transformation, and apoptosis [23,24]. It has been recently found that CUL4A accommodate ERK1/2 expression by adjusting H3K4 methylation level on its promoter region in PC3 cell line . Moreover, it also had been reported that P-gp expression in the MDR1-transduced human breast cancer cell lines MCF-7/Adr and MDA-MB-231/Adr is positively regulated by the ERK1/2 pathway and blockage of this pathway can suppress cell surface P-gp expression . In addition, there are several lines of evidence that modulation of ERK1/2 activation may reverse MDR in prostatic, gastric and hematopoietic cancers [26,27,28]. Therefore, we presume that CUL4A may regulate MDR in breast cancer through modulation of ERK1/2.
Our main purpose in the current research was to explore whether CUL4A participated in the regulation of MDR and whether MDR1/P-gp expression could be mediated by CUL4A via the ERK1/2 pathway. Our results suggest that overexpression of CUL4A in breast cancer is responsible for the required resistant to P-gp substrate drugs through regulation of MDR1/P-gp expression.
2. Results and Discussion
2.1. Vectors Stably Expressing CUL4A and CUL4A shRNA Caused Specific and Effective Up- or Down-Expression of CUL4A, Respectively

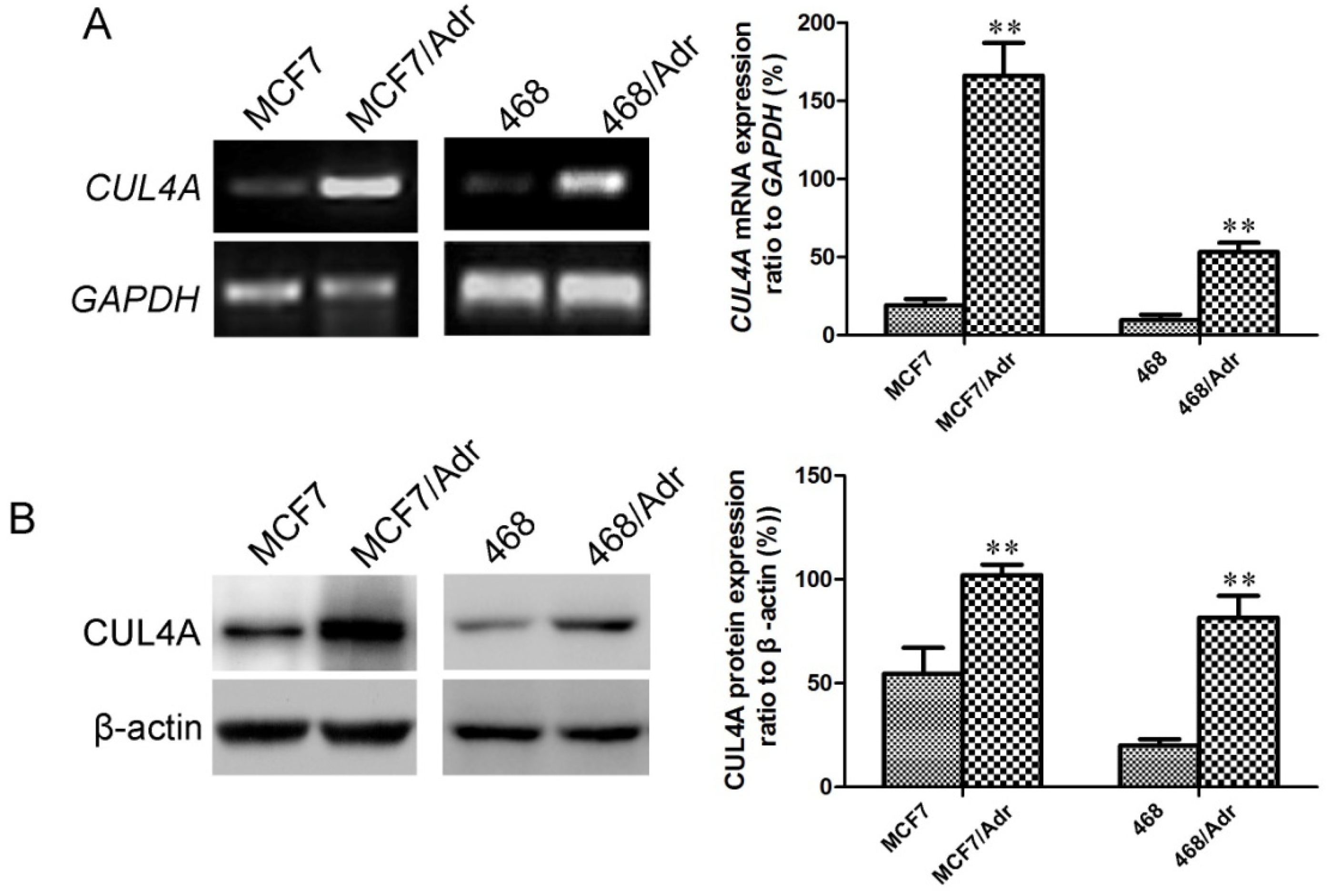

As shown in Figure 1, after induction with adriamycin, mRNA (Figure 1A) and protein (Figure 1B) levels of CUL4A in MCF7/Adr and MDA-MB-468/Adr cells were much higher than those in MCF7 and MDA-MB-468 cells.
To establish cell lines with ectopic or silencing CUL4A expression, MCF7 and MDA-MB-468 and their Adr cells were stably transfected with retroviruses expressing pBabe-CUL4A and pSuper-shCUL4A respectively. The transfection efficiencies of individual stable transfectant were first evaluated using RT-PCR. Relative CUL4A mRNA levels in each transfectant were normalized against mRNA levels of an internal control gene, GAPDH, carried out in different runs.
As shown in Figure 2, we demonstrated a significant promotion or reduction of CUL4A transcription when compared with empty vector controls (Figure 2A). In addition, Western blot (Figure 2B) and immunofluorescence microscopy (Figure 2C) analyses showed the responsive changes in corresponding stable transfectants. The results above showed that the expression of CUL4A was up- or down-regulated effectively and stable cell lines with ectopic and silencing CUL4A expression were established by CUL4A and CUL4A specific shRNA vectors respectively.
2.2. Regulation of MDR1 mRNA and Protein Levels by CUL4A in Breast Cancer Cells

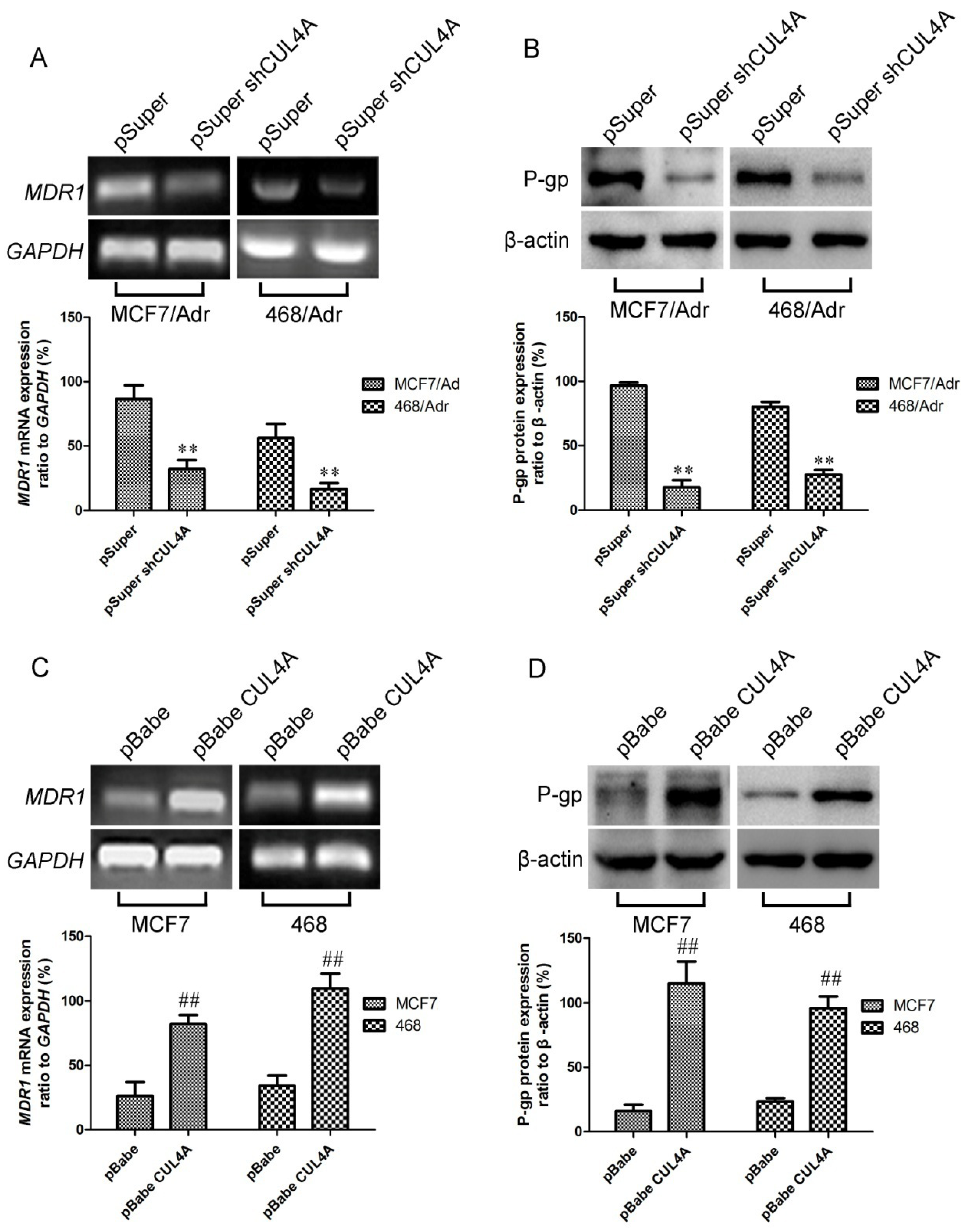

To confirm the participation of CUL4A in regulation of MDR1 expression, we used the above MCF7/Adr and MDA-MB-468/Adr-derived cell lines in which overexpression of CUL4A was reduced by stable transfection of CUL4A-RNAi vector (pSuper-shCUL4A). RT-PCR revealed distinct changes in MDR1 level between CUL4A silencing transfectants and their empty vector controls (Figure 3A). Western blot analysis showed the corresponding reductions in protein levels (Figure 3B). To further investigate whether CUL4A affects MDR1 gene expression, total RNA was obtained from ectopic CUL4A expressing cells, MDR1 and GAPDH mRNA levels were measured by RT-PCR. As seen in Figure 3C, endogenous MDR1 level was remarkably higher in CUL4A transfectants than their empty vector control transfectants (p < 0.05). To assess whether the CUL4A induced increase in MDR1 mRNA levels were associated with a corresponding elevation in protein levels, lysates from the above cell lines were prepared and western blot was carried out. Results of multiple western blot analyses showed that P-gp levels were significantly higher in ectopic CUL4A expressing cells than in their empty vector control transfectants (Figure 3D).
2.3. Knockdown of CUL4A in MCF7/Adr Cells Resulted in Reduced Resistance to P-gp Substrate Drugs, Whereas Elevated Expression of CUL4A in MCF7 Cells Led to the Opposite Effects
CUL4A has been showed to be overexpressed in human MDR carcinoma cell lines, and the above results also demonstrated that CUL4A participated in regulation of MDR1 gene expression. Therefore, we hypothesized that CUL4A would affect the sensitivity to P-gp substrate drugs. To test this hypothesis, we used CUL4A overexpressing and CUL4A silencing cells previously derived from the MCF7 and MCF7/Adr line respectively. As reported in Table 1, CUL4A overexpression had varying effects on drug sensitivity depending on the drug used. Interestingly, the CUL4A overexpression transfectant showed decreased sensitivity to P-gp substrate drugs, Taxel, vincristine (VCR) and adriamycin (ADR) (p < 0.05), while knockdown of CUL4A in MCF7/Adr cells led to the opposite effects (p < 0.05) when compared with their empty vector controls. The results also showed that the P-gp inhibitor LY335979 reversed CUL4A mediated decreased sensitivity to P-gp substrate drugs. The resistance to P-gp non-substrate drugs bleomycin (BLM) and camptothecin (Cam) remained unchanged (p > 0.05) after alteration of CUL4A expression.
|Table 1. IC50 of VCR, Taxel, ADR, Cam and BLM in CUL4A, shCUL4A transfectants and their empty vector controls.|
|Drugs||MCF7 pBabe||MCF7 pBabe-CUL4A||MCF7 pBabe CUL4A+ LY335979||MCF7/Adr pSuper||MCF7/Adr pSuper-shCUL4A|
|VCR||0.4143 ± 0.0427||5.9716 ± 0.5329 *||0.6961 ± 0.0714||7.6733 ± 1.0576||1.3982 ± 0.3155 #|
|Taxel||0.0197 ± 0.0026||0.8659 ± 0.0691 *||0.0263 ± 0.0047||0.9147 ± 0.1468||0.1685 ± 0.0138 #|
|ADR||0.5579 ± 0.0674||17.9716 ± 1.3158 *||1.2682 ± 0.4793||9.7558 ± 0.7871||2.4982 ± 0.4133 #|
|Cam||0.0107 ± 0.0024||0.0129 ± 0.0037||0.0118 ± 0.0021||0.0112 ± 0.0019||0.0103 ± 0.0025|
|BLM||0.5792 ± 0.0717||0.6511 ± 0.0325||0.6392 ± 0.0592||0.5935 ± 0.0815||0.5563 ± 0.0648|
ADR, adriamycin; BLM, bleomycin; Cam, camptothecin; Taxel, paclitaxel; VCR, vincristine. IC50 values are expressed in μM and were evaluated as reported in Materials and Methods. Standard deviations for all of the experiments carried out in triplicate were less than 5%. * p < 0.05 vs. pBabe cells; # p < 0.05 vs. pSuper cells.
2.4. CUL4A Activated ERK1/2 Signaling Pathway via Transcriptional Regulation and ERK1/2 is a Mediator for CUL4A Induced P-gp Expression

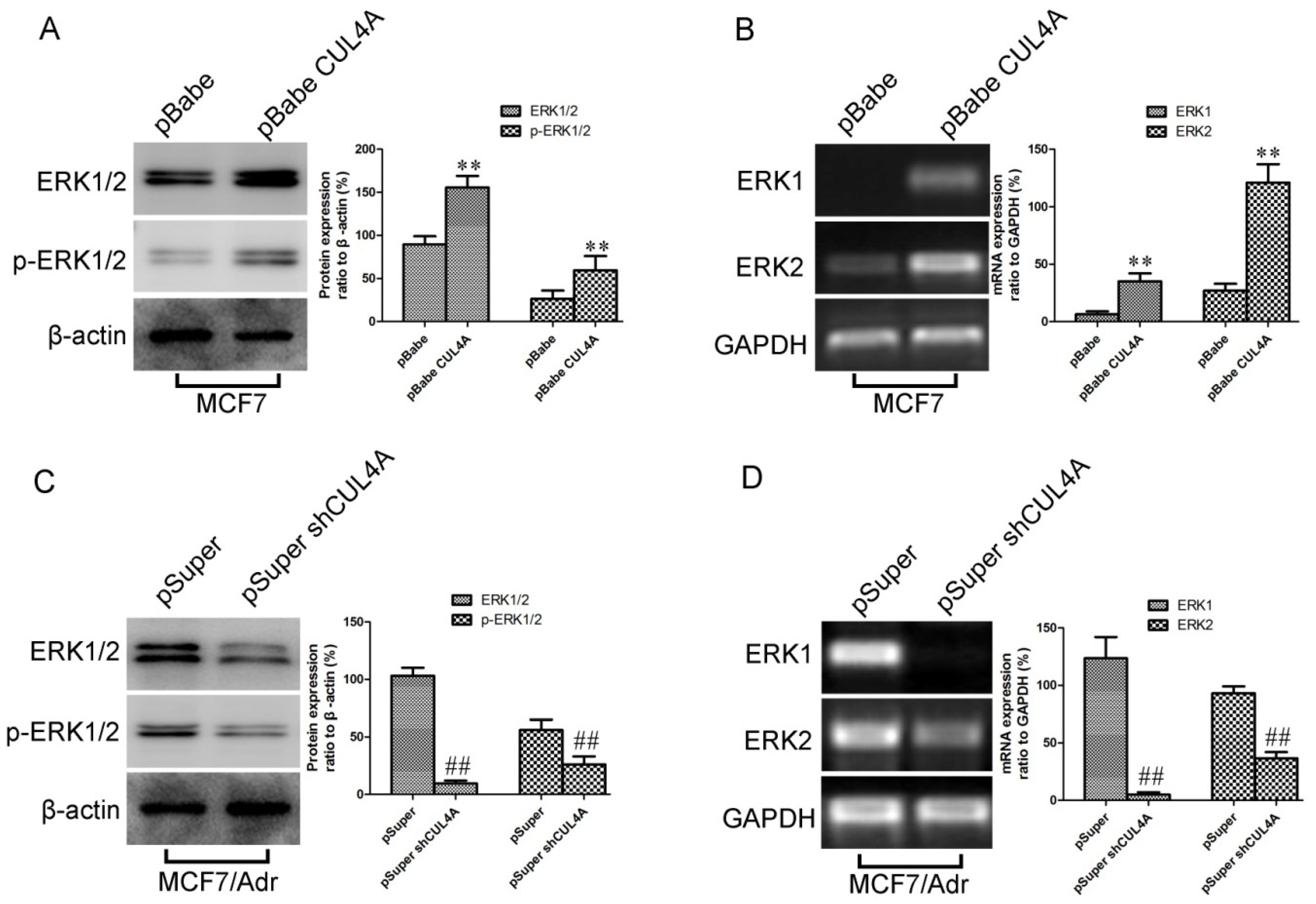

Previous studies have established that P-gp works in conjunction with the ERK1/2 pathway . This evidence promoted us to investigate whether CUL4A regulates P-gp expression via the ERK signaling pathway. Phosphorylated ERK1/2 and total ERK1/2 in the MCF7 and MDA-MB-468 derived transfectants were compared to their control cells by western blot. As showed in Figure 4A and Figure S1A, the phosphorylated ERK1/2 and total levels of ERK 1/2 proteins strongly increased in cells with overexpression of CUL4A, while knockdown of CUL4A by shRNA in MCF7/Adr and MDA-MB-468/Adr cells strongly decreased the levels of both phosphorylated ERK1/2 and total ERK 1/2 proteins (Figure 4C, Figure S1C). We further found that the transcriptional levels of both ERK1 and ERK2 changed according to CUL4A level (Figure 4B,D and Figure S1B,D), indicating that CUL4A activates ERK1/2 signaling pathway via transcriptional regulation.
Previous study showed that CUL4A regulates histone methylation at H3K4 . Thus, we proposed that CUL4A may transcriptionally activate ERK1/2 through enrichment of H3K4 trimethylation (H3K4me3) at ERK1 and ERK2 promoter. We showed that MCF7-CUL4A cells had higher level of H3K4me3 compared with MCF7 cells (data not show). ChIP-qPCR assays indicated that occupation of H3K4me3 on ERK1 and ERK2 promoters was significantly higher in MCF7-CUL4A cells compared with MCF7 cells (Figure 5B,C). Reciprocally, occupation of H3K4me3 on ERK1 and ERK2 promoter was significantly lower in MCF7/Adr-shCUL4A cells compared with MCF7/Adr cells (Figure 5D,E).

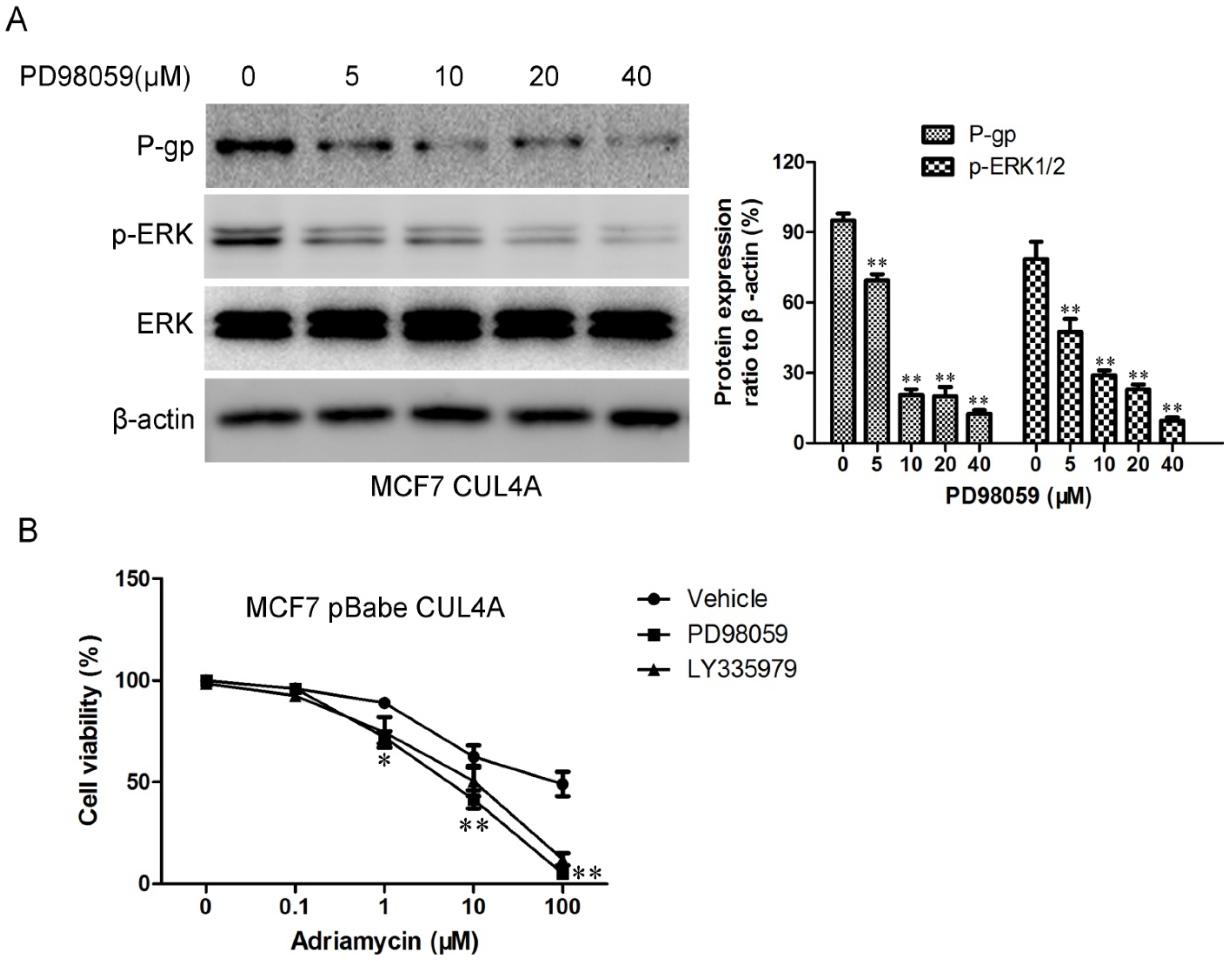

We then tested the effects of ERK1/2 inhibitor on MDR1 expression. As seen in Figure 6A, PD98059, an inhibitor of MAPK/extracellular signal regulated kinase, led to significant dose-dependent (5–40 μM) decreases in P-gp and p-ERK1/2 levels in the CUL4A overexpression cells. Next we monitored CUL4A-mediated sensitivity to P-gp substrate drugs after ERK1/2 inhibitor PD98059 and P-gp inhibitor LY335979 treatment in MCF7-CUL4A cells. As expected, CUL4A-mediated decreases in sensitivity to P-gp substrate drugs were attenuated by ERK1/2 inhibitor PD98059 and P-gp inhibitor LY335979 (Figure 6B). Therefore, ERK1/2 activation might be one possible mechanism for the higher P-gp expression levels in MCF7-CUL4A cells.
2.5. Expression and Relationship of P-gp, CUL4A and ERK1/2 in Breast Cancer Patient Samples

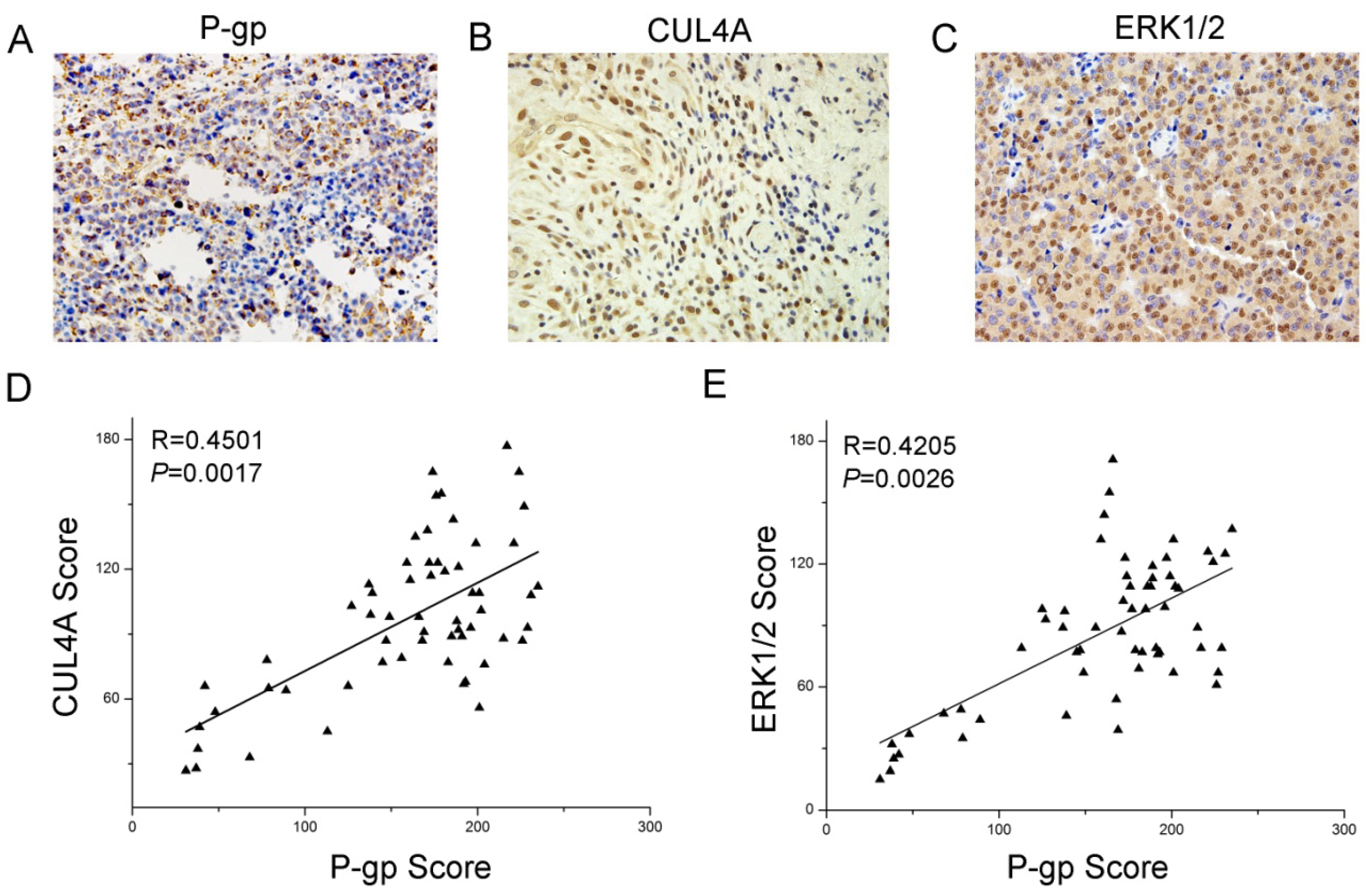

To clarify the relationship among P-gp, CUL4A and ERK1/2 in breast cancer, immunohistochemistry was performed on 59 breast cancer tissue samples following the manufacturer’s instructions. P-gp expression had a positive ratio of 62.7% (37/59), CUL4A of 40.6% (24/59) and ERK1/2 of 54.2% (32/59), which had significant differences comparing with the normal breast tissues adjacent to the cancer tissues. P-gp protein was expressed in cytoplasm and cell membrane, while CUL4A was in the cell nucleus (Figure 7A–C). The P-gp expression showed a positive correlation with the expression of CUL4A (Figure 7D) and ERK1/2 (Figure 7E). These results implied that CUL4A and ERK1/2 participated in multi-drug resistance in breast cancer, and that it might participate through regulation of P-gp expression.
Breast cancer, one of the most frequent malignancies in women worldwide, is a complex and intrinsically heterogeneous disease, which develops through the accumulation of a wide spectrum of genomic aberrations eventually leading to oncogenic properties such as immortalization, stromal invasion, and metastasis [1,2,31]. MDR has been considered a serious problem in the treatment of many cancers including breast cancer . MDR is mediated by complex mechanisms and one of the major mechanisms is the expression of the MDR1 encoded P-gp, which has been confirmed to be responsible for the resistance to several unrelated cancer chemotherapeutic drugs. Overexpression of the efflux pump MDR1/P-gp results in the decreased accumulation and toxicity of many anticancer drugs, such as doxorubicin, paclitaxel, and etoposide, leading to chemotherapeutic failure [11,32]. Although chemotherapy has improved the survival rate of breast cancer patients for decades, more than 80% patients who received chemo-drugs will eventually develop MDR after periods of treatment, leading to treatment failure. Therefore, new strategies to benefit MDR breast cancer patients are urgently required [33,34]. Although several inhibitors/modulators of MDR1/P-gp have been developed, cytotoxic effects and adverse pharmacokinetics have prohibited their use . Currently available inhibitors also lack the potency to reverse the MDR phenotype completely at clinically attainable concentrations. Fortunately, molecular target therapy has shown promise in preclinical studies, based on numerous signaling pathways that play roles in the regulation of MDR1/P-gp expression [7,35].
CUL4A plays important roles in cell growth, proliferation, differentiation, longevity, metabolism, and tumor development [36,37]. In the present study we showed that there was a close correlation between MDR1 and CUL4A. P-gp protein levels were elevated in CUL4A overexpressing human breast cancer cells. Remarkably enhanced CUL4A levels were observed in adriamycin resistance breast cancer cells, which have canonically overexpressed P-gp proteins. Moreover, CUL4A knockdown showed potent inhibitory effects on MDR1 gene transcription and protein expression in adriamycin resistance breast cancer cells. Thus, CUL4A may act as a crucial factor for MDR1 gene transcription in Adr resistant breast cancer cells.
ERK1/2 is a member of the MAPK family. The activity of ERK1/2 has been implicated in the regulation of embryonic morphogenesis, cell proliferation, malignangt transformation, and apoptosis . It has been recently found that P-gp expression in the MDR1-transduced human breast cancer cell line MCF-7/MDR and MDA-MB-231/MDR is positively regulated by the ERK pathway and blockade of the MEK-ERK pathway can suppress cell surface P-gp expression by promoting its degradation . ERK1 or ERK2 might be a potential drug target for circumventing MDR hepatocellular carcinoma cells . In addition, there are several lines of evidence that modulation of ERK1/2 activation may reverse MDR in prostatic, gastric and hematopoietic cancers [26,27,28].
It has been reported that CUL4A is essential for ubiquitination of several well-defined tumor suppressors, including p21, p27, DDB2, and p53 [39,40,41,42]. The present study suggests that CUL4A activates ERK1/2 pathway. Overexpression of CUL4A dramatically increased ERK1/2 protein levels while knockdown of CUL4A remarkably decreased ERK1/2 activity. Surprisingly our results also suggested that the regulation of ERK1/2 by CUL4A is through transcription regulation rather than ubiquitination. Some studies have showed that CUL4A regulates histone methylation. We further showed that CUL4A upregulates ERK1/2 expression through enrichment of trimethylated H3K4 on ERK1 and ERK2 promoters. Importantly, CUL4A-induced malignant phenotype can be partially reversed by ERK1/2 inhibitor PD98059, which further suggests that CUL4A exerts the oncogenic effect in breast cancer through upregulation of ERK1/2. We also found that the ERK1/2 inhibitor PD98059 led to significant dose-dependent inhibition of P-gp expression in the CUL4A overexpression cells. Next we monitored CUL4A-mediated sensitivity to P-gp substrate drugs after ERK1/2 inhibitor PD98059 treatment in MCF7-CUL4A cells. As expected, CUL4A-mediated decreased sensitivity to P-gp substrate drugs were attenuated by ERK1/2 inhibitor PD98059. Therefore, ERK1/2 activation might be one possible mechanism for the CUL4A induced P-gp expression levels in MCF7-CUL4A cells.
To our knowledge, this is the first study to show that CUL4A plays a functional role in breast cancer multidrug resistant. CUL4A was overexpressed in the multidrug resistant breast cancer cell, and silencing CUL4A caused the reverse of multidrug resistance. CUL4A appeared to mediate multidrug resistance by regulating the ERK1/2 pathway, thereby leading to the observed effect on MDR1 transcription in breast cancer cells. With the limitations of the in vitro model system, our findings only indicated the involvement of CUL4A in the ERK1/2 pathway regulating multidrug resistance in breast cancer. However, whether relapsed breast cancer patients are subject to an increase of CUL4A and MDR1/P-gp expression after chemotherapy remains unknown. Further investigation in vivo and of patient specimens is required to confirm the regulation, and to verify whether overexpression of CUL4A in breast cancer cells may be used as a potential biomarker for predicting sensitivity to chemotherapy. Our research shed light on identifying CUL4A as a new molecular target for reversing multidrug resistance in breast cancer.
3. Experimental Section
3.1. Cell Culture and Establishment of MCF7/Adr and MDA-MB-468/Adr Cells
Human mammary carcinoma cell line MCF7 and MDA-MB-468 were obtained from the American Type Culture Collection (ATCC, Manassas, VA, USA). Their MDR counterparts, MCF7/Adr and MDA-MB-468/Adr cells were generated by sequential exposure to increasing concentrations of Adriamycin (Sigma, St. Louis, MO, USA). Cells were cultured in RPMI 1640 (Gibco, Grand Island, NY, USA) containing 10% fetal bovine serum (FBS), 100 units/mL penicillin, and 100 μg/mL streptomycin at 37 °C in a humidified atmosphere containing 5% CO2. For consistent MDR-1 gene expression, MCF7/Adr and MDA-MB-468/Adr cells were maintained in the presence of adriamycin (Sigma, USA).
3.2. Establishment of CUL4A Stable Expression and CUL4A Knockdown Cell Lines
pBabe.puro retroviral construct containing human CUL4A cDNA and pSuper.retro.puro with shRNA against human CUL4A were prepared as described previously . The generation of retrovirus supernatants and transfection of breast cancer cells were conducted as described previously . Infected cells were selected by adding 2 μg/mL puromycin to the culture medium for 48 hrs and then maintained in complete medium with 0.5 μg/mL puromycin. Empty retroviral vector infected stable cell lines were also produced by the above protocols. The expression of CUL4A was confirmed by RT-PCR and Western blot analyses.
3.3. Reverse Transcription and Quantitative Real-Time Polymerase Chain Reaction
Total RNA of transfected cells and their control cells was extracted using Tripure isolation reagent (Sangon, Shanghai, China) according to the manufacturer’s instructions. The quality and yield of the RNA samples were determined by ultraviolet spectrophotometer. Total RNAs (1 μg) were reverse transcribed to cDNA (20 μL) using PrimeScriptTM RT Kit (TaKaRa, Dalian, China) according to the manufacturer’s instructions. PCR reaction was conducted with 2 μL cDNA sample, 0.4 μL forward primer (10 μmol/L), 0.4 μL reverse primer (10 μmol/L), 11.2 μL RNase-free water, and 6 μL 2× EsayTaq PCR SuperMix (TransGen Biotech, Beijing, China). The primers were used as follows: CUL4A (forward, 5'-cagcggctctgattacagacctcg-3'; reverse, 5'-gtcttcacaggcctgacgcagt-3'); MDR1 (forward, 5'-cccatcattgcaatagcagg-3'; reverse, 5'-gttcaaacttctgctcctga-3'); ERK1 (forward, 5'-agtcagactccaaagcccttgacc-3'; reverse, 5'-aaggtgccatggaacaggctgt-3'); ERK2 (forward, 5'-aaggtgccatggaacaggctgt-3'; reverse, 5'-tcctctgagcccttgtcctgac-3'); GAPDH (forward, 5'-acccagaagactgtggatgg-3'; reverse, 5'-acgcctgcttcaccaccttc-3'). PCR reaction was performed using the following cycle parameters: 95 °C for 5 min, (94 °C for 30 s, 56 °C for 30 s, 72 °C for 45 s) for 30 cycles, 72 °C for 7 min. RT-PCR products were separated on 2% agarose gels. After stained with ethidium bromide, gel images were photographed with a ChemiImager TM 4400. RT-PCR was performed at least three times for each sample.
3.4. Western Blot
Cells were harvested and lysed in lysis buffer (0.5% Nonidet P-40, 10 mM Tris, pH 7.4, 150 mM NaCl, 1 mM EDTA, 1 mM Na3VO4) containing protease inhibitors (1 mM phenylmethylsulfonyl fluoride [PMSF]). Cell lysates (50 μg/well) were then subjected to standard sodium dodecyl sulphate polyacrylamide gel electrophoresis (SDS-PAGE). For Western blotting analysis, proteins were transferred to polyvinylidene fluoride (PVDF) membranes, and then blocked in 5% non-fat milk in 10 mM Tris, pH 7.5, 100 mMNaCl, 0.1% (w/v) Tween 20 for 1 h. The membranes were first incubated with antibodies against β-actin (Sigma), CUL4A (Santa Cruz, Paso Robles, CA, USA), P-gp (Chemicon, Billerica, MA, USA), phosphor specific and total ERK1/2 (Cell Signaling), respectively, overnight at 4 °C, followed by 1 h incubation with the appropriate secondary antibody. For quantification of protein expression levels, AlexaFluor-700/800 nm secondary conjugates were used and PVDF membranes were analyzed using the Odyssey Infra-Red Imaging System and software (Li-Cor BioSciences, Lincoln, NE, USA) according to the manufacturer’s instructions.
3.5. Confocal Immunofluorescence Microscopy
Cells were plated on culture slides (Costar, Manassas, VA, USA). After 24 hrs, the cells were rinsed with phosphate buffered saline (PBS) and fixed with 4% paraformaldehyde in PBS, and cell membrane was permeabilized using 0.5% Triton X-100. These cells were then blocked for 30 min in 5% BSA in PBS and then incubated with primary antibody of CUL4A in 5% BSA overnight at 4 °C. After three washes in PBS, the slides were incubated for 1 h in the dark with FITC-conjugated secondary goat anti-mouse (Invitrogen, Grand Island, NY, USA). After three further washes, the slides were stained with DAPI for 5 min to visualize the nuclei, and examined using a Carl Zeiss confocal imaging system (LSM 780) (Carl Zeiss, Jena, Germany).
3.6. Drug Sensitivity Assay
To assess their multidrug chemosensitivity, transfected cells and their corresponding control cells were plated in 96-well plates at a density of 5 × 103 cells/well and further incubated for 24 h. The medium was then removed and replaced with fresh medium containing paclitaxel (Sigma), vincristine (Sigma), adriamycin (Sigma), bleomycin (Sigma), and camptothecin (Sigma) respectively, with varying concentrations for another 48 h. After that, cells were stained with 20 μL sterile MTT dye (3-[4,5-dimethylthiazol-2-yl]-2,5-diphenyltetrazolium bromide, 5 mg/mL; Sigma) at 37 °C for 4 h followed by removing the culture medium and mixing with 150 μL of dimethylsulfoxide (DMSO) thoroughly for 10 min. Spectrometric absorbance at 490 nm was measured with a microplate reader. Each group contained three wells and was repeated three times. The IC50 value was determined by the dose of drug that caused 50% cell viability.
3.7. Chromatin Immunoprecipitation (ChIP)-qPCR
Chromatin Immunoprecipitation kit (Cat. 17-371) was purchased from Millipore Corporation (Billerica, MA, USA) and ChIP experiments were carried out essentially as described  with modifications. Cells were crosslinked with 1% formaldehyde for 10 min at room temperature. Crosslinking was stopped by the addition of glycine to a final concentration of 0.125 M. Fixed cells were lysed in lysis buffer (1% SDS, 10 mM EDTA, 50 mM Tris-HCl, pH 8.0) and sonicated. An aliquot of 60 mg was reserved as input. For immunoprecipitation, 600 mg of protein were diluted in dilution buffer (1%Triton X-100, 2 mM EDTA, 150 mM NaCl and 20 mM Tris-HCl, pH 8.0, containing protease inhibitors), and precleared with 60 mL of A/G plus-agarose. The antibodies used for the immunoprecipitation was against Histone H3 (tri methyl 4k). Immune complexes were precipitated with A/G plus-agarose and washed sequentially with low-salt immune complex wash buffer (0.1% SDS, 1% Triton X-100, 2 mM EDTA, 20 mM Tris-HCl, pH 8.1, 150 mM NaCl), high-salt immune complex wash buffer (0.1% SDS 1% Triton X-100, 2 mM EDTA, 20 mM Tris-HCl, pH8.1, 500 mM NaCl), LiCl immune complex wash buffer (0.25 M LiCl, 1% NP-40, 1% deoxycholate-Na, 1 mM EDTA, 10 mM Tris-HCl, pH8.1), and TE buffer, and then eluted in elution buffer (1% SDS, 0.1 M NaHCO3). All samples, including inputs, were decrosslinked, treated with proteinase K, and DNA was extracted with phenol–chloroform and resuspended in TE buffer. Real-time PCR and data collection were performed with an ABI PRISM 7900HT sequence detection system. The primers used for detection of promoters after ChIP as follows: ERK1 (forward, 5'-gccgaacctcccggtgacct-3'; reverse, 5'-gggcctggagctgtcacgtg-3'); ERK2 (forward, 5'-gtcaccagcaccaccaacctgt-3'; reverse, 5'-gtgactccttctcctggtgacca-3'); GAPDH (forward, 5'-agtcagactccaaagcccttgacc-3'; reverse, 5'-aaggtgccatggaacaggctgt-3').
Breast cancer tissues were obtained from 59 patients at Qilu Hospital (Jinan, China). All experiments were approved by the Ethics Committee of Qilu Hospital and informed consent was obtained from all patients prior to specimen collection. Surgically excised tumor specimens were fixed with 10% neutral formalin, embedded in paraffin, and 4-μm thick sections were prepared. Immunostaining was performed using the avidin-biotin-peroxidase complex method (UltrasensitiveTM, Fuzhou, China). The sections were deparaffinized in xylene, rehydrated with graded alcohol, and then boiled in 0.01 M citrate buffer (pH 6.0) for 2 min with an autoclave. Hydrogen peroxide (0.3%) was applied to block endogenous peroxide activity, and the sections were incubated with normal goat serum to reduce nonspecific binding. Tissue sections were incubated with CUL4A rabbit polyclonal antibody (1:100 dilution), P-gp mouse monoclonal antibody (1:150 dilution), ERK1/2 monoclonal antibody (1:100 dilution). Mouse immunoglobulin (at the same concentration of the antigen specific antibody) was used as a negative control. Staining for both antibodies was performed at room temperature for 2 h. Biotinylated goat antimouse serum IgG was used as a secondary antibody. After washing, the sections were incubated with streptavidin-biotin conjugated with horseradish peroxidase, and the peroxidase reaction was developed with 3, 30-diaminobenzidine tetrahydrochloride. Two independent, blinded investigators examined all tumor slides randomly. Five views were examined per slide, and 100 cells were observed per view at 400× magnification. Scores for CUL4A, P-gp and ERK1/2 staining were calculated based on staining intensity (0, below the level of detection; 1, weak; 2, moderate; and 3, strong) and the percentage of cells staining at each intensity level (0%–100%). The final score was calculated by multiplying the intensity score by the percentage, producing a scoring range of 0 to 300.
3.9. Statistical Analysis
Statistical analysis was performed using SPSS 16.0 and GraphPad Prism 5 (GraphPad Software, Inc., San Diego, CA, USA). All data were presented as mean ± SEM, and the Student’s t-test was used to determine statistical significance. Comparisons between two groups were performed using the paired t-test. p < 0.05 was considered statistically significant.
In summary, our work confirms that CUL4A regulates the expression of MDR1 via an ERK1/2 dependent signaling pathway in breast cancer cells, which is consistent with their alterations in cellular multidrug resistance in vitro.
Supplementary materials can be accessed at: http://www.mdpi.com/1420-3049/19/1/159/s1.
This work was supported by National Natural Science Foundation of China No. 81172528, 31271461, Doctoral Fund of Ministry of Education of China No. 20110131110035, Natural Science Foundation of Shandong Province No. ZR2011HM034 and the Taishan Scholar Program of Shandong Province.
Conflicts of Interest
The authors declare no conflict of interest.
- Forouzanfar, M.H.; Foreman, K.J.; Delossantos, A.M.; Lozano, R.; Lopez, A.D.; Murray, C.J.; Naghavi, M. Breast and cervical cancer in 187 countries between 1980 and 2010: A systematic analysis. Lancet 2011, 378, 1461–1484, doi:10.1016/S0140-6736(11)61351-2.
- Siegel, R.; Naishadham, D.; Jemal, A. Cancer statistics, 2012. CA Cancer J. Clin. 2012, 62, 10–29, doi:10.3322/caac.20138.
- Kuo, M.T. Roles of multidrug resistance genes in breast cancer chemoresistance. Adv. Exp. Med. Biol. 2007, 608, 23–30, doi:10.1007/978-0-387-74039-3_2.
- Taheri, M.; Mahjoubi, F.; Omranipour, R. Effect of MDR1 polymorphism on multidrug resistance expression in breast cancer patients. Genet. Mol. Res. 2010, 9, 34–40, doi:10.4238/vol9-1gmr669.
- Wind, N.S.; Holen, I. Multidrug resistance in breast cancer: From in vitro models to clinical studies. Int. J. Breast Cancer. 2011, 2011, doi:10.4061/2011/967419.
- Patwardhan, G.; Gupta, V.; Huang, J.; Gu, X.; Liu, Y.Y. Direct assessment of P-glycoprotein efflux to determine tumor response to chemotherapy. Biochem. Pharmacol. 2010, 80, 72–79, doi:10.1016/j.bcp.2010.03.010.
- Donmez, Y.; Gunduz, U. Reversal of multidrug resistance by small interfering RNA (siRNA) in doxorubicin-resistant MCF-7 breast cancer cells. Biomed. Pharmacother. 2011, 65, 85–89, doi:10.1016/j.biopha.2010.12.007.
- Haber, M.; Bordow, S.B.; Haber, P.S.; Marshall, G.M.; Stewart, B.W.; Norris, M.D. The prognostic value of MDR1 gene expression in primary untreated neuroblastoma. Eur. J. Cancer 1997, 33, 2031–2036, doi:10.1016/S0959-8049(97)00229-3.
- Norris, M.D.; Bordow, S.B.; Haber, P.S.; Marshall, G.M.; Kavallaris, M.; Madafiglio, J.; Cohn, S.L.; Salwen, H.; Schmidt, M.L.; Hipfner, D.R.; et al. Evidence that the MYCN oncogene regulates MRP gene expression in neuroblastoma. Eur. J. Cancer 1997, 33, 1911–1916, doi:10.1016/S0959-8049(97)00284-0.
- Keppler, D. Multidrug resistance proteins (MRPs, ABCCs): Importance for pathophysiology and drug therapy. Handb. Exp. Pharmacol. 2011, 201, 299–323, doi:10.1007/978-3-642-14541-4_8.
- Kimura, Y.; Morita, S.Y.; Matsuo, M.; Ueda, K. Mechanism of multidrug recognition by MDR1/ABCB1. Cancer Sci. 2007, 98, 1303–1310, doi:10.1111/j.1349-7006.2007.00538.x.
- Ludwig, J.A.; Szakacs, G.; Martin, S.E.; Chu, B.F.; Cardarelli, C.; Sauna, Z.E.; Caplen, N.J.; Fales, H.M.; Ambudkar, S.V.; Weinstein, J.N.; et al. Selective toxicity of NSC73306 in MDR1-positive cells as a new strategy to circumvent multidrug resistance in cancer. Cancer Res. 2006, 66, 4808–4815, doi:10.1158/0008-5472.CAN-05-3322.
- Chen, L.C.; Manjeshwar, S.; Lu, Y.; Moore, D.; Ljung, B.M.; Kuo, W.L.; Dairkee, S.H.; Wernick, M.; Collins, C.; Smith, H.S. The human homologue for the Caenorhabditis elegans cul-4 gene is amplified and overexpressed in primary breast cancers. Cancer Res. 1998, 58, 3677–3683.
- Shiyanov, P.; Nag, A.; Raychaudhuri, P. Cullin 4A associates with the UV-damaged DNA-binding protein DDB. J. Biol. Chem. 1999, 274, 35309–35312, doi:10.1074/jbc.274.50.35309.
- Gupta, A.; Yang, L.X.; Chen, L. Study of the G2/M cell cycle checkpoint in irradiated mammary epithelial cells overexpressing Cul-4A gene. Int. J. Radiat. Oncol. Biol. Phys. 2002, 52, 822–830, doi:10.1016/S0360-3016(01)02739-0.
- Li, B.; Yang, F.C.; Clapp, D.W.; Chun, K.T. Enforced expression of CUL-4A interferes with granulocytic differentiation and exit from the cell cycle. Blood 2003, 101, 1769–1776, doi:10.1182/blood-2002-05-1517.
- Sugasawa, K. DNA repair pathways involving Cul4A ubiquitin ligases. Tanpakushitsu Kakusan Koso. 2006, 51, 1339–1344.
- Schindl, M.; Gnant, M.; Schoppmann, S.F.; Horvat, R.; Birner, P. Overexpression of the human homologue for Caenorhabditis elegans cul-4 gene is associated with poor outcome in node-negative breast cancer. Anticancer Res. 2007, 27, 949–952.
- Ren, S.; Xu, C.; Cui, Z.; Yu, Y.; Xu, W.; Wang, F.; Lu, J.; Wei, M.; Lu, X.; Gao, X.; et al. Oncogenic CUL4A determines the response to thalidomide treatment in prostate cancer. J. Mol. Med. (Berl) 2012, 90, 1121–1132, doi:10.1007/s00109-012-0885-0.
- Panka, D.J.; Atkins, M.B.; Mier, J.W. Targeting the mitogen-activated protein kinase pathway in the treatment of malignant melanoma. Clin. Cancer Res. 2006, 12, 2371S–2375S.
- Johnson, G.L.; Lapadat, R. Mitogen-activated protein kinase pathways mediated by ERK, JNK, and p38 protein kinases. Science 2002, 298, 1911–1912, doi:10.1126/science.1072682.
- Yang, S.H.; Sharrocks, A.D.; Whitmarsh, A.J. MAP kinase signalling cascades and transcriptional regulation. Gene 2013, 513, 1–13, doi:10.1016/j.gene.2012.10.033.
- Kohno, M.; Tanimura, S.; Ozaki, K. Targeting the extracellular signal-regulated kinase pathway in cancer therapy. Biol. Pharm. Bull. 2011, 34, 1781–1784, doi:10.1248/bpb.34.1781.
- Wei, F.; Yan, J.; Tang, D. Extracellular signal-regulated kinases modulate DNA damage response—A contributing factor to using MEK inhibitors in cancer therapy. Curr. Med. Chem. 2011, 18, 5476–5482, doi:10.2174/092986711798194388.
- Katayama, K.; Yoshioka, S.; Tsukahara, S.; Mitsuhashi, J.; Sugimoto, Y. Inhibition of the mitogen-activated protein kinase pathway results in the down-regulation of P-glycoprotein. Mol. Cancer Ther. 2007, 6, 2092–2102, doi:10.1158/1535-7163.MCT-07-0148.
- Kisucka, J.; Barancik, M.; Bohacova, V.; Breier, A. Reversal effect of specific inhibitors of extracellular-signal regulated protein kinase pathway on P-glycoprotein mediated vincristine resistance of L1210 cells. Gen. Physiol. Biophys. 2001, 20, 439–444.
- Lin, J.C.; Chang, S.Y.; Hsieh, D.S.; Lee, C.F.; Yu, D.S. Modulation of mitogen-activated protein kinase cascades by differentiation-1 protein: Acquired drug resistance of hormone independent prostate cancer cells. J. Urol. 2005, 174, 2022–2026, doi:10.1097/01.ju.0000176476.14572.39.
- Li, Y.; Li, S.; Han, Y.; Liu, J.; Zhang, J.; Li, F.; Wang, Y.; Liu, X.; Yao, L. Calebin-A induces apoptosis and modulates MAPK family activity in drug resistant human gastric cancer cells. Eur. J. Pharmacol. 2008, 591, 252–258.
- McCubrey, J.A.; Steelman, L.S.; Chappell, W.H.; Abrams, S.L.; Wong, E.W.; Chang, F.; Lehmann, B.; Terrian, D.M.; Milella, M.; Tafuri, A.; et al. Roles of the Raf/MEK/ERK pathway in cell growth, malignant transformation and drug resistance. Biochim. Biophys. Acta 2007, 1773, 1263–1284.
- Higa, L.A.; Wu, M.; Ye, T.; Kobayashi, R.; Sun, H.; Zhang, H. CUL4-DDB1 ubiquitin ligase interacts with multiple WD40-repeat proteins and regulates histone methylation. Nat. Cell. Biol. 2006, 8, 1277–1283, doi:10.1038/ncb1490.
- Di Cosimo, S.; Baselga, J. Management of breast cancer with targeted agents: Importance of heterogeneity [corrected]. Nat. Rev. Clin. Oncol. 2010, 7, 139–147, doi:10.1038/nrclinonc.2009.234.
- Li, Q.Q.; Wang, W.J.; Xu, J.D.; Cao, X.X.; Chen, Q.; Yang, J.M.; Xu, Z.D. Involvement of CD147 in regulation of multidrug resistance to P-gp substrate drugs and in vitro invasion in breast cancer cells. Cancer Sci. 2007, 98, 1064–1069, doi:10.1111/j.1349-7006.2007.00487.x.
- Xu, J.W.; Li, Q.Q.; Tao, L.L.; Cheng, Y.Y.; Yu, J.; Chen, Q.; Liu, X.P.; Xu, Z.D. Involvement of EGFR in the promotion of malignant properties in multidrug resistant breast cancer cells. Int. J. Oncol. 2011, 39, 1501–1509.
- Amiri-Kordestani, L.; Basseville, A.; Kurdziel, K.; Fojo, A.T.; Bates, S.E. Targeting MDR in breast and lung cancer: Discriminating its potential importance from the failure of drug resistance reversal studies. Drug Resist. Updat. 2012, 15, 50–61, doi:10.1016/j.drup.2012.02.002.
- Borowski, E.; Bontemps-Gracz, M.M.; Piwkowska, A. Strategies for overcoming ABC-transporters-mediated multidrug resistance (MDR) of tumor cells. Acta Biochim. Pol. 2005, 52, 609–627.
- Hung, M.S.; Mao, J.H.; Xu, Z.; Yang, C.T.; Yu, J.S.; Harvard, C.; Lin, Y.C.; Bravo, D.T.; Jablons, D.M.; You, L. Cul4A is an oncogene in malignant pleural mesothelioma. J. Cell. Mol. Med. 2011, 15, 350–358, doi:10.1111/j.1582-4934.2009.00971.x.
- Lee, J.; Zhou, P. Pathogenic role of the CRL4 ubiquitin ligase in human disease. Front. Oncol. 2012, 2, doi:10.3389/fonc.2012.00021.
- Yan, F.; Wang, X.M.; Pan, C.; Ma, Q.M. Down-regulation of extracellular signal-regulated kinase 1/2 activity in P-glycoprotein-mediated multidrug resistant hepatocellular carcinoma cells. World J. Gastroenterol. 2009, 15, 1443–1451, doi:10.3748/wjg.15.1443.
- Nag, A.; Bagchi, S.; Raychaudhuri, P. Cul4A physically associates with MDM2 and participates in the proteolysis of p53. Cancer Res. 2004, 64, 8152–8155, doi:10.1158/0008-5472.CAN-04-2598.
- Bondar, T.; Kalinina, A.; Khair, L.; Kopanja, D.; Nag, A.; Bagchi, S.; Raychaudhuri, P. Cul4A and DDB1 associate with Skp2 to target p27Kip1 for proteolysis involving the COP9 signalosome. Mol. Cell. Biol. 2006, 26, 2531–2539.
- Nishitani, H.; Shiomi, Y.; Iida, H.; Michishita, M.; Takami, T.; Tsurimoto, T. CDK inhibitor p21 is degraded by a proliferating cell nuclear antigen-coupled Cul4-DDB1Cdt2 pathway during S phase and after UV irradiation. J. Biol. Chem. 2008, 283, 29045–29052, doi:10.1074/jbc.M806045200.
- El-Mahdy, M.A.; Zhu, Q.; Wang, Q.E.; Wani, G.; Praetorius-Ibba, M.; Wani, A.A. Cullin 4A-mediated proteolysis of DDB2 protein at DNA damage sites regulates in vivo lesion recognition by XPC. J. Biol. Chem. 2006, 281, 13404–13411.
- Ang, Y.S.; Tsai, S.Y.; Lee, D.F.; Monk, J.; Su, J.; Ratnakumar, K.; Ding, J.; Ge, Y.; Darr, H.; Chang, B.; et al. Wdr5 mediates self-renewal and reprogramming via the embryonic stem cell core transcriptional network. Cell 2011, 145, 183–197, doi:10.1016/j.cell.2011.03.003.
- Sample Availability: Not available.
© 2013 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution license (http://creativecommons.org/licenses/by/3.0/).
