Article

Characterization of Total Phenolic Constituents from the Stems of Spatholobus suberectus Using LC-DAD-MSn and Their Inhibitory Effect on Human Neutrophil Elastase Activity

School of Pharmacy, Shanghai University of Traditional Chinese Medicine, Shanghai 201203, China
*
Authors to whom correspondence should be addressed.
Molecules 2013, 18(7), 7549-7556; https://doi.org/10.3390/molecules18077549
Submission received: 3 June 2013 / Revised: 25 June 2013 / Accepted: 26 June 2013 / Published: 27 June 2013
(This article belongs to the Section Natural Products Chemistry)

Abstract

:
Spatholobus suberectus Dunn, belonging to the legume family (Fabaceae), has been used as a Traditional Chinese Medicine for the treatment of anemia, menoxenia and rheumatism. A limited number of studies report that various types of flavonoids are the main characteristic constituents of this herb. We have now found that S. suberectus contains about 2% phenolic components and characterized the major phenolic components as homogeneous B-type procyanidin conjugates using a liquid chromatography with diode-array detection-ESI mass spectrometry (LC-DAD/ESI-MS) method. This is the first report on occurrence of most B-type procyanidins in this herb. Moreover, the total phenolics extract was assayed for inhibitory activity on human neutrophil elastase and its IC50 was found to be 1.33 μg/mL.

1. Introduction

Spatholobus suberectus Dunn, belonging to the legume family (Fabaceae), is called “ji xue teng” in China because it produces a chicken blood-like juice when its bark is broken [1]. The stem of S. suberectus has been used as a Traditional Chinese Medicine for the treatment of anemia, menoxenia and rheumatism [2,3]. A limited number of studies have been conducted that report various types of flavonoids are the principal characteristic components in this herb [4], including flavone, isoflavones, flavanones, flavanonols, and chalcone [3,5,6]. Other chemical investigations have led to isolation of several phenolic glycosides, quinones [1], steroids, some fatty acids and two procyanidins [7]. An isoflavone i.e., formononetin, is used now in the Chinese Pharmacopoeia as a qualitative marker compound for identification of S. suberectus, but it is hard to provide a comprehensive reference in order to systematically evaluate the quality of S. suberectus by only marking an isoflavone. One study also provided a reference using six index flavonoids in order to systematically evaluate the quality of S. suberectus by a HPLC method [8]. Here, we report the identification of some major B-type procyanidin components by HPLC-DAD-MSn. This is the first report on occurrence of most B-type procyanidins in this herb.
Moreover, the total phenolics extract was assayed for inhibitory activity on human neutrophil elastase (HNE) (EC 3.4.21.37). HNE, a member of the chymotrypsin family of serine proteases, is primarily stored in the azurophil granules of neutrophil granulocytes. HNE can degrade a wide variety of biomacromolecules that exhibit important biological functions, especially in the degradation of a wide range of extracellular matrix proteins, including fibronectin, laminin, proteoglycans, collagens, and elastin [9]. There is little argument that tissues exposed to uninhibited HNE will suffer damage. It will play a destructive role as a deficiency of the endogenous inhibitor of HNE [10]. Insufficient levels of protease inhibitors have been suggested as a contributing factor in a number of diseases including acute lung injury, cystic fibrosis, ischemic reperfusion injury, rheumatoid arthritis, atherosclerosis, psoriasis, and malignant tumors [11]. Sivelestat, which is currently used as a synthetic elastase inhibitor, is applied for the treatment of acute lung injury and acute respiratory distress syndrome (ARDS). However, sivelestat did not improve mortality outcome in the treatment [12]. A number of reports about natural HNE inhibitors have also been published [13,14,15,16]. During our HNE inhibition screening program, the total phenolics extract showed remarkable inhibitory effects and its IC50 was found to be 1.33 μg/mL.

2. Results and Discussion

2.1. Identification of Phenolic Constituents

The five batches of stems of S. suberectus were collected from different herbal medicine markets in China. The analysis of all raw materials showed similar DAD or TIC profiles. The total ion current chromatogram obtained from the LC/MS analysis and HPLC-DAD profile at 280 nm are shown in Figure 1. A total of eighteen major peaks were detected in the HPLC chromatogram. Identification of these peaks is based on retention times, UV absorption maxima, and mass spectra or comparisons with authentic compounds. All results were summarized in Table 1. Peaks 318 exhibit absorbance maxima at two wavelengths (232 and 279 nm), suggesting they belong to the same class of phenolic compounds. One phenolic acid and two flavan-3-ols were unambiguously identified as gallic acid (peak 1) and catechin (peak 7) and epicatechin (peak 12) by comparison with the authentic standards (Figure 2). Two procyanidin dimers B1 (peak 3) and B2 (peak 10) and a procyanidin trimer C1 (peak 13) were also assigned by comparing them to the reference compounds isolated from Cinnamomum cassia in our lab (Figure 2). Peaks 5 and 9 both gave protonated species with m/z 579 in positive ion mode and deprotonated molecules at m/z 577 in negative ion mode, suggesting they were also B-type procyanidin dimers of (epi)catechin linked via C4-C6 or C4-C8 [17]. MS2 experiments were further employed to identify these procyanidins. In the MS2 spectra of these deprotonated procyanidins (m/z 577), important intense negative ions at m/z 425 (loss of 152 amu) are typically observed, which indicates a characteristic fragmentation pathway of a retro Diels-Alder reaction [18].
Table 1. Phenolic constituents identified or identified tentatively in Spatholobus suberectus.
Table 1. Phenolic constituents identified or identified tentatively in Spatholobus suberectus.
No.tR (min)UV (nm)Ion (+)Ion (-)MS2(-)Compounds
13.68214, 273 gallic acid
27.20218,259,293579 unknown
39.49232, 279579577425, 407, 289procyandin B1
410.29232, 278595593425, 407, 305, 289 prodelphinidin dimer
510.90232, 278579577425, 407, 289procyandin B-type dimer
611.49233, 279867865739, 695, 577, 425, 287procyandin B-type trimer
711.97229, 279 289245, 205catechin
812.47228, 279563, 867561, 865435, 289, 739, 695, 577, 425, 287propelargonidin dimer and procyandin trimer
913.22232, 278579577425, 407, 289procyandin B-type dimer
1013.69232, 278579577425, 407, 289procyandin B2
1114.44230, 279867, 889865739, 695, 577, 425, 287procyandin B-type trimer
1215.12232, 278291289245, 205epicatechin
1316.32232, 279889, 867865739, 695, 577, 425, 287procyanidin C1
1416.68232, 278563, 585561543, 435, 289propelargonidin dimer
1518.14232, 278851, 873849, 1137697, 577, 559, 407, 289, 967, 847, 695, 577propelargonidin trimer and tetramer
1618.63232, 278851, 873, 1139849, 1137697, 577, 559, 407, 289, 967, 847, 695, 577propelargonidin trimer and tetramer
1720.02233, 279867, 1155865, 1153739, 695, 577, 425, 287 983, 865, 695, 577procyanidin trimer and tetramer
1820.44232, 278835, 1155833, 1153561, 543, 983, 865, 695, 577propelargonidin trimer and procyanidin tetramer

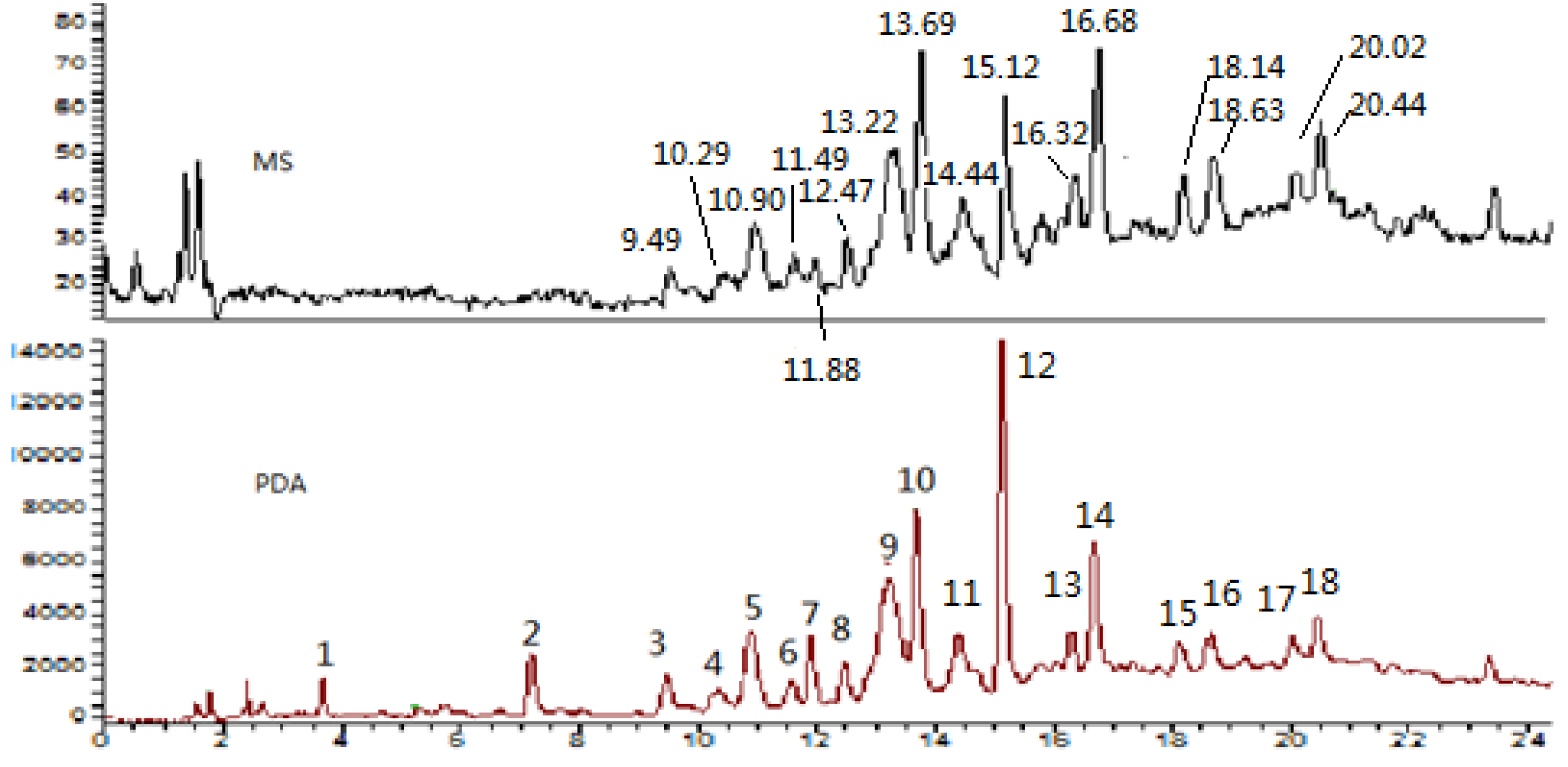

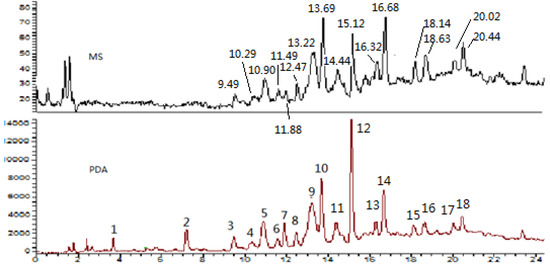

Figure 1. HPLC-DAD-ESI-MS profile of the ethyl acetate fraction of S. suberectus MS: (+) ESI; PDA: (280 nm).
Figure 1. HPLC-DAD-ESI-MS profile of the ethyl acetate fraction of S. suberectus MS: (+) ESI; PDA: (280 nm).
Molecules 18 07549 g001

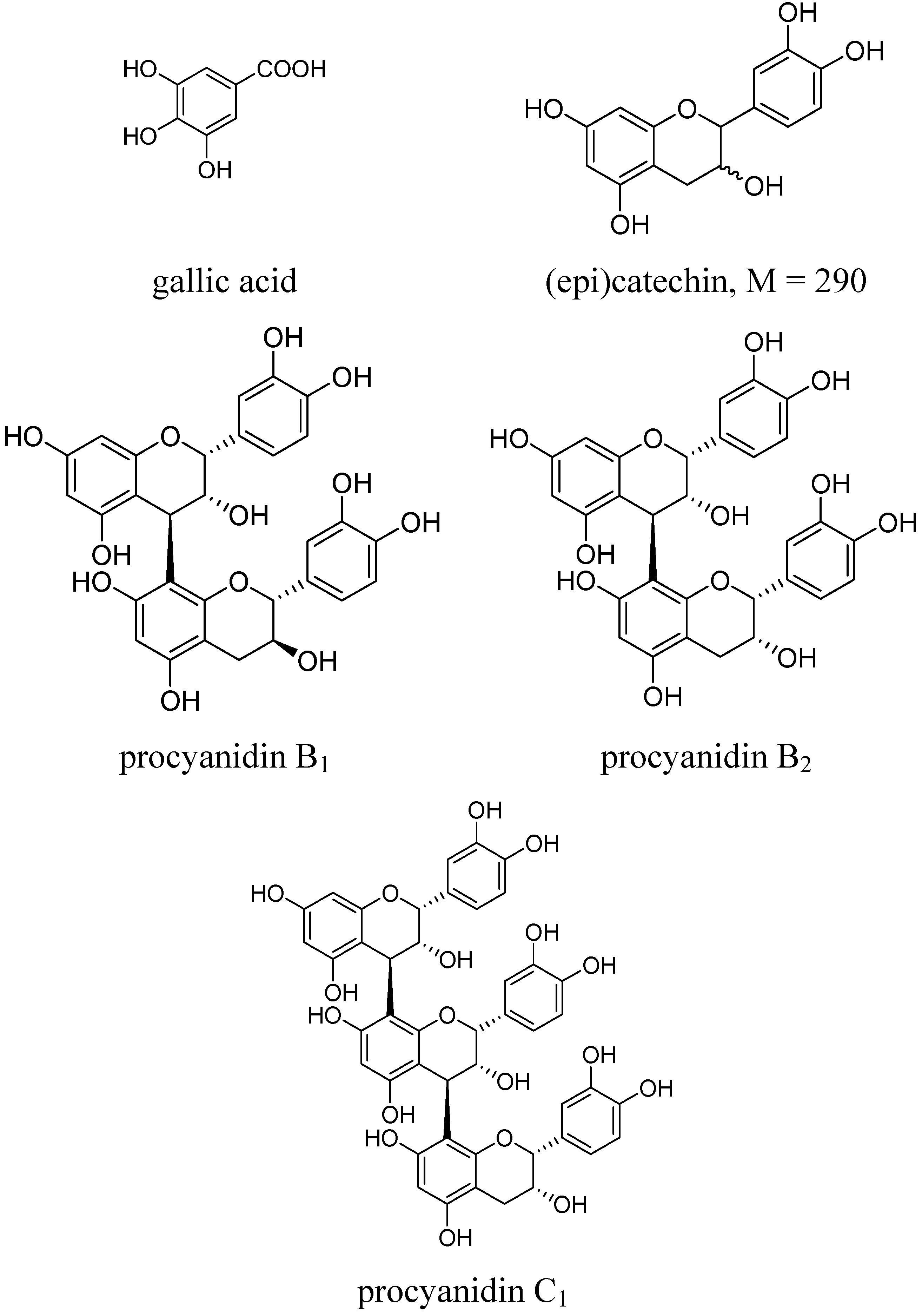

Figure 2. Chemical structures of the identified compounds in extract of Spatholobus suberectus.
Figure 2. Chemical structures of the identified compounds in extract of Spatholobus suberectus.
Molecules 18 07549 g002
The mass spectrum of the compound eluting at tR 16.68 min (Peak 14) exhibited a positive peak at m/z 563 (M+H)+ and a negative peak at m/z at 561, which implied it was a propelargonidin B-type dimer composed of one (epi)catechin and one (epi)afzelechin unit (Figure 3).

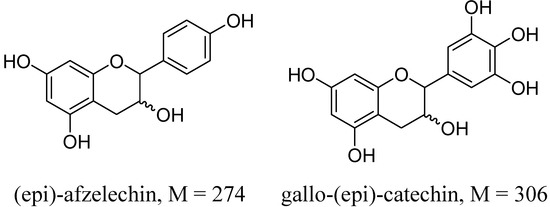

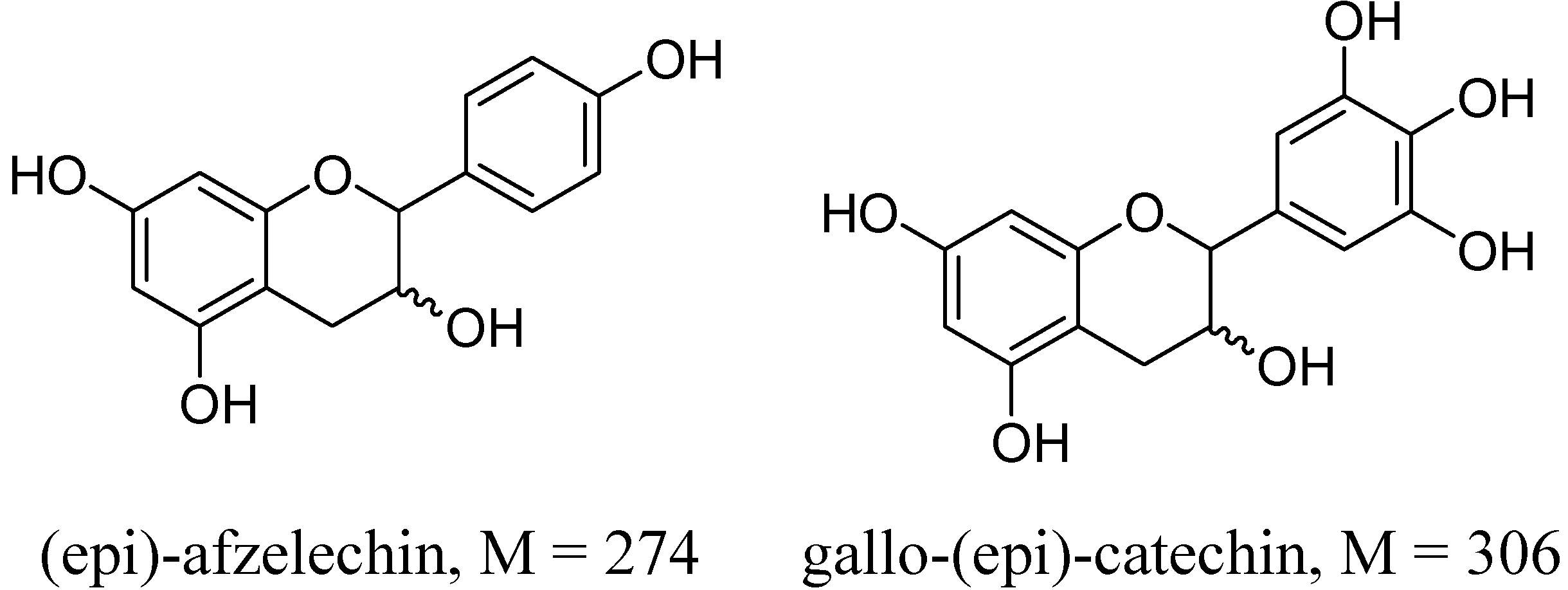

Figure 3. Chemical structures of compounds mentioned in paper.
Figure 3. Chemical structures of compounds mentioned in paper.
Molecules 18 07549 g003
Loss of 272 amu in its MS2 originated from (epi)afzelechin. Peak 4 eluting at tR 10.29 min with molecular weight 594 was assigned to be a prodelphinidin dimer of (epi)catechin and (epi)gallocatechin (305 amu) (Figure 3). ESI-MS of peaks 6 and 11 revealed [M+H]+ at m/z 867 and [M−H] at m/z at 865 and main fragmentation peaks at m/z 577 and 287 amu, suggestion they were procyanidin B-type trimers of three (epi)catechins. A peak (peak 8) with molecular weights at 562 and 866 was attributed to a mixture containing a propelargonidin B-type dimer of one (epi)catechin with one (epi)afzelechin and a procyanidin B-type trimer of three (epi)catechins. Both peaks 15 and 16 were also a mixture of propelargonidin trimer [two (epi)catechins and an afzelechin] and tetramer [three (epi)catechins and an afzelechin] based on the molecular ions at 850 and 1,138. Peak 17 was concluded to be a mixture of procyanidin trimer [three (epi)catechins] and procyanidin tetramer [four (epi)catechins] based on the molecular weights at 866 and 1,154 with characteristic MS2 fragments [19]. Peak 18 was concluded to be a mixture of propelargonidin trimer [one (epi)catechin and two afzelechins] and a procyanidin tetramer [four (epi)catechins] based on the molecular weights of 834 and 1,154. Peak 2 could not be identified. It exhibited a positive peak at m/z 279 (M+H)+ and presented absorbance maxima at three wavelengths 221, 259 and 293 nm, which differ from those of procyanidins.

2.2. Total Phenolic Contents

Phenolic contents in the raw materials were investigated by a colorimetric method [20]. According to the test results, the five batches of raw materials contained between 1.81%–2.60% total phenolics.

2.3. Inhibition of HNE

The HNE inhibitory activities of five different concentrations (0.5, 1.5, 5, 10 and 50 μg/mL) of the test samples are listed in Table 2. The results showed the inhibitory effect of the phenolic extract of S. suberectus (containing 81.4% phenolic contents) on HNE increased along with concentration. As a result, total phenolics dose-dependently inhibited HNE activity at the level of IC50 1.33 μg/mL.
Table 2. Inhibition of total phenolics on HNE activity.
Table 2. Inhibition of total phenolics on HNE activity.
SampleBlank0.5 µg/mL1.5 µg/mL5 µg/mL15 µg/mL50 µg/mL
Phenolics0 ± 1.67%40.97 ± 1.06%53.26 ± 0.61%60.09 ± 1.37%63.73 ± 1.67%66.46 ± 0.76%
Values are presented as mean ± SD.

3. Experimental

3.1. Plant Materials

Five batches of the stems of S. suberectus were collected in China from the different herbal medicine markets in 2012. Raw materials were authenticated by Prof. Zhili Zhao (the School of Pharmacy, Shanghai University of Traditional Chinese Medicine). Voucher specimens have been deposited in the Natural Products Chemistry Laboratory of the School of Pharmacy, Shanghai University of Traditional Chinese Medicine, China.

3.2. Preparation of Total Phenolics

Each dried sample (100 g) was ground and stored in a freezer. Powdered samples (10 g) were sonicated three times in a mixture of ethanol/water (50:50, v/v, 3 × 200 mL) for 30 minutes each time. The combined 50% EtOH extract was reduced in volume to 200 mL under vacuum and then extracted with CH2Cl2 (3 × 200 mL). The CH2Cl2 layer was discarded and the water layer was extracted with EtOAc (3 × 200 mL). The EtOAc layer was collected and evaporated to dryness. Finally, the samples were dissolved in methanol and water (50:50, V/V) and diluted to about 1 mg/mL. The samples were filtered and analyzed by HPLC-DAD-MSn.

3.3. LC-MS Apparatus

HPLC analysis was carried out on a Shimadzu LC-20ADXR HPLC system (Shimadzu, Kyoto, Japan) equipped with a SPD-M20A PDA detector. A 5 μm, C18, 150 mm×4.6 mm Syncronis column (Thermo Fisher Scientific Inc., Waltham, MA, USA) was used to separate the phenolic constituents. The chromatographic conditions were as follows: flow rate of 1.0 mL/min; solvent A, CH3CN; solvent B, 0.2% acetic acid; 0 min, 6:94 (A:B, v:v); 10 min, 13:87; 20 min, 23:77; 25 min, 45:55; 30 min, 80:20. MS analysis was performed on a Thermo LCQ Fleet mass ion-trap spectrometer (Thermo Fisher Scientific Inc.). Full-scan mass spectra were acquired in electro spray ionization (ESI) mode with collision energy of 35 eV, over the mass range m/z 150–2,000. The sheath gas and the auxiliary gas flow rate were 40 and 10 (arbitrary units) separately and the sweep gas flow rate was set at 0.03. The spray voltage was set at 4.5 kV and the capillary voltage was −37. The capillary temperature was set at 320 °C.

3.4. Phenolic Content Assay

Phenolic contents in raw materials were assayed by a colorimetric method [20]. In this procedure, to prepare standard solutions, 1, 2, 3, 4, and 5 mL aliquots of 0.05 mg/mL of gallic acid solution were taken from and transferred into five 25 mL of volumetric flasks, then mixed separately with 1 mL of molybdic acid and 11, 10, 9, 8, and 7 mL of water. After that, the five volumetric flasks were made up to volume with 20% Na2CO3 solution. The blank and standard solutions were prepared using the same method, but 1 mL of water or 1 mL of extract solution (0.2 mg/mL) were separately used instead of gallic acid. The sample solution, blank and standard solutions were kept at room temperature for 30 min and the absorbance read at 760 nm. The mean of two readings was used as the result.

3.5. Inhibition of HNE

The HNE inhibitory activity of the test sample was evaluated using a previously described procedure [16] with sivelestat as positive control. Briefly, substrate solution (200 μL, 1.4 mM MeO-Suc-Ala-Ala-Pro-Val-pNA in Tris-HCl buffer, 10 mM, pH 7.5) was mixed with different concentration ranges of test solution (stock solutions of samples were dissolved in dimethyl sulfoxide and diluted with Tris-HCl buffer to give the final sample concentrations), enzyme solution (1 μL, 0.01 U HNE) was added and the mixture was incubated for 1 h at 37 °C in the dark. Then the reaction was quenched by adding soybean trypsin inhibitor (200 μL) at the concentration of 0.2 mg/mL, and the absorbance was immediately measured at 405 nm using a plate reader. 10 mM pH 7.5 Tris-HCl buffer was used as a zero alignment of the test samples. HNE inhibitory activity was calculated using the following equation:
HNE inhibitory activity = [Acontrol − (Asample − Azero)]/Acontrol × 100%
where:
  • Acontrol: the absorbance of the group with only HNE and the substrate.
  • Asample: the absorbance of the group with test samples, substrate and HNE.
  • Azero: the absorbance of the group with test samples, Tris-HCl buffer and HNE.
The relative activities of test samples were expressed as IC50 values.

4. Conclusions

In our study, over ten phenolic components from S. suberectus were characterized by comparison with reference compounds or tentatively identified using a liquid chromatograph with diode-array detection-ESI mass spectrometry (LC-DAD/ESI-MS) method. These major procyanidins could be identified as homogeneous B-type ones according to their structural features, and are composed of flavan-3-ol units linked through C-C bonds. No A-type procyanidin which coexist with C-O-C linkages were detected. This is the first report on the occurrence of most B-type procyanidins in this herb, although they are widely and generally abundant. In addition, the total phenolics extract showed effective inhibitory activity on human neutrophil elastase and its IC50 was found to be 1.33 μg/mL.

Acknowledgments

This research program was supported by the “Xinglin” Scholars and Outstanding Team Training Plan of SHUTCM and Shanghai Municipal Education Commission (No 2010JW13).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhang, S.W.; Xuan, L.J. New Phenolic constituents from the stems of Spatholobus suberectus. Helv. Chim. Acta 2006, 89, 1241–1245. [Google Scholar] [CrossRef]
  2. Chinese Pharmacopoeia; China medical science press: Beijing, China, 2010; Volume I, p. 180.
  3. Lee, M.H.; Lin, Y.P.; Hsu, F.L.; Zhan, G.R.; Yen, K.Y. Bioactive constituents of Spatholobus suberectus in regulating tyrosinase-related proteins and mRNA in HEMn cells. Phytochemistry 2006, 67, 1262–1270. [Google Scholar] [CrossRef]
  4. Fu, Y.; Cheng, Y.; Chen, J.P.; Wang, D.M. Advances in studies on chemical constituents in Spatholobi Caulis and their pharmacological activities. Chin. Trad. Herb. Drugs 2011, 42, 1229–1234. [Google Scholar]
  5. Shim, S.H. 20S Proteasome inhibitory activity of flavonoids isolated from Spatholobus suberectus. Phytother. Res. 2011, 25, 615–618. [Google Scholar] [CrossRef]
  6. Yoon, J.S.; Sung, S.H.; Park, J.H.; Kim, Y.C. Flavonoids from Spatholobus suberectus. Arch. Pharm. Res. 2004, 27, 589–592. [Google Scholar] [CrossRef]
  7. Han, A.R.; Park, H.J.; Chen, D.F.; Jang, D.S.; Kim, H.J.; Lee, S.K.; Seo, E.K. Topoisomerase-II-Inhibitory principles from the stems of Spatholobus suberectus. Chem. Biodivers. 2007, 7, 1487–1491. [Google Scholar]
  8. Yang, T.C.; Lin, Z.K.; Ding, P.; Xu, H.H. Studies on systematical quality evaluation of Spatholobus suberectus. Chin. Pharm. J. 2009, 44, 1765–1768. [Google Scholar]
  9. Ryoo, I.J.; Yun, B.S.; Lee, I.K.; Kim, Y.H.; Lee, I.S.; Ahn, J.S.; Bae, K.H.; Yoo, I.D. Hydroxyhibiscone A, a novel human neutrophil elastase inhibitor from Hibiscus syriacus. J. Microbiol. Biotechnol. 2010, 20, 1189–1191. [Google Scholar] [CrossRef]
  10. Shapiro, S.D. Neutrophil Elastase: Path clearer, pathogen killer, or just pathologic? Am. J. Respir. Cell Mol. Biol. 2002, 26, 266–268. [Google Scholar] [CrossRef]
  11. Alasbahi, R.; Melzig, M. The in vitro inhibition of human neutrophil elastase activity by some Yemeni medicinal plants. Sci. Pharm. 2008, 76, 471–483. [Google Scholar] [CrossRef]
  12. Iwata, K.; Doi, A.; Ohji, G.; Oka, H.; Oba, Y.; Takimoto, K.; Igarashi, W.; Gremilloin, D.H.; Shimada, T. Effect of Neutrophil Elastase Inhibitor (Sivelestat Sodium) in the treatment of acute lung injury (ALI) and acute respiratory distress syndrome (ARDS): A systematic review and meta-analysis. Intern. Med. 2010, 49, 2423–2432. [Google Scholar] [CrossRef]
  13. Lee, K.K.; Kim, J.H.; Cho, J.J.; Choi, J.D. Inhibitory effects of 150 plant extracts on elastase activity and their anti-inflammatory effects. Int. J. Cosmet. Sci. 1999, 21, 71–82. [Google Scholar]
  14. Hwang, T.L.; Leu, Y.L.; Kao, S.H.; Tang, M.C.; Chang, H.L. Viscolin, a new chalcone from Viscum coloratum, inhibits human neutrophil superoxide anion and elastase release via a cAMP/dependent pathway. Free Radic. Biol. Med. 2006, 41, 1433–1441. [Google Scholar] [CrossRef]
  15. Chang, H.L.; Chang, F.R.; Chen, J.S.; Wang, H.P.; Wu, C.C.; Hwang, T.L. Inhibitory effects of 16-hydroxycleroda-3,13(14)E-dien-15-oic acid on superoxide anion and elastase release in human neutrophils through multiple mechanisms. Eur. J. Pharmacol. 2008, 586, 332–339. [Google Scholar] [CrossRef]
  16. Melzig, M.F.; Loser, B.; Ciesielski, S. Inhibiton of neutrophil elastase activity by phenolic compounds from plants. Pharmazie 2001, 56, 967–970. [Google Scholar]
  17. Gu, L.W.; Kelm, M.A.; Hammerstone, J.F.; Beecher, G.; Holden, J.; Haytowitz, D.; Prior, R.L. Screening of foods containing proanthocyanidins and their characterization using LC-MS/MS and thiolytic degradation. J. Agric. Food Chem. 2003, 25, 7513–7521. [Google Scholar]
  18. Kajdzanoska, M.; Gjamovski, V.; Stefova, M. HPLC-DAD-ESI-MSn identification of phenolic compounds in cultivated strawberries from Macedonia. Maced. J. Chem. Chem. Eng. 2010, 29, 181–194. [Google Scholar]
  19. Hellstrom, J.; Sinkkonen, M.; Karonen, M.; Mattila, P. Isolation and structure elucidation of procyanidin oligomers from Saskatoon Berries (Amelanchier alnifolia). J. Agric. Food Chem. 2007, 55, 157–164. [Google Scholar] [CrossRef]
  20. Chinese Pharmacopoeia; China medical science press: Beijing, China; Volume I, p. Appendix XB.
  • Sample Availability: Samples of the compounds including gallic acid, catechin, epicatechin, procyanidin B1, B2 and C1 are available from the authors.
