Article

The Interactions of Oxygen with Small Gold Clusters on Nitrogen-Doped Graphene

1
College of Environmental and Energy Engineering, Beijing University of Technology, Beijing 100124, China
2
College of Engineering, Peking University, Beijing 100871, China
*
Author to whom correspondence should be addressed.
Molecules 2013, 18(3), 3279-3291; https://doi.org/10.3390/molecules18033279
Submission received: 21 December 2012 / Revised: 1 March 2013 / Accepted: 5 March 2013 / Published: 13 March 2013
(This article belongs to the Special Issue Computational Chemistry)

Abstract

:
By means of density functional theory, the adsorption properties of O2 molecule on both isolated and N-graphene supported gold clusters have been studied. The N-graphene is modeled by a C65NH22 cluster of finite size. The results indicate that the catalytic activity and the O2 adsorption energies of odd-numbered Au clusters are larger than those of adjacent even-numbered ones. The O2 molecule is in favor of bonding to the bridge sites of odd-numbered Au clusters, whereas for odd-numbered ones, the end-on adsorption mode is favored. The perpendicular adsorption orientation on N-graphene is preferred than the parallel one for Au2, Au3 and Au4 clusters, while for Au5, Au6 and Au7, the parallel ones are favored. When O2 is adsorbed on N-graphene supported Au clusters, the adsorption energies are largely increased compared with those on gas-phase ones. The increased adsorption energies would significantly facilitate the electron transfer from Au d-orbital to π* orbital of O2, which would further weakening the O–O bond and therefore enhancing the catalytic activity. The carbon atoms on N-graphene could anchor the clusters, which could make them more difficult to structural distortion, therefore enhance their stability.

1. Introduction

As a new kind of catalyst to catalyze CO oxidation reactions at low temperatures, nanosized gold clusters have recently attracted considerable interest from both the industrial and academic communities due to their unique physical and chemical properties [1,2,3,4,5,6]. It is well known that gold in its bulk form has little or no catalytic activity. However, small gold clusters exhibit drastically different fundamental properties, which may be exploited in a variety of applications such as catalysis, chemical- and bio-detectors, advanced drug delivery systems, enhanced computing systems and optoelectronics [7]. As one of the key factors to understand the catalytic mechanisms, the adsorption behavior of atomic and molecular oxygen on gold clusters has been studied. It was found that the adsorption behavior of oxygen molecules on a gold cluster strongly depends on the charge status and cluster size [8,9,10]. Furthermore, an even-odd oscillation behavior of the oxygen adsorption was found in anionic Au clusters. For neutral Au clusters, the systematic studies were deficient, and there is no consistent view on the adsorption behavior of O2. For instance, some studies confirmed there is no adsorption for molecular oxygen on neutral Au clusters [11], but many theoretical studies suggested that the adsorption should happen [12,13,14,15,16].
Very recently the stability or the catalytic properties of Au nanoclusters supported on graphene has attracted much attention. Graphene is a single atomic layer of hexagonal sp2-bonded graphite with unique zero-gap electronic structure and massless Dirac fermion behavior [17,18,19,20]. The unusual electronic and structural properties make graphene a good candidate material for the generation of faster and smaller electronic devices. Its current applications in these fields may be extended to the field of heterogeneous catalysis, as support for metal nanoparticles. An enhanced reactivity for methanol oxidation has been recently reported for small platinum clusters and palladium nanoparticles supported on graphene oxide sheets [21,22,23]. Chen et al.’s calculation indicates that the catalytic properties for CO oxidation are improved based on Au16 cluster supported on graphene [24]. However, a systematic theoretical study about the interactions of oxygen molecule with Au clusters supported on graphene is lacking.
We report here a density functional theory (DFT)-based investigation of the interactions of oxygen molecule with small Au clusters on a nitrogen-doped graphene surface. We firstly calculated all the possible adsorption conformations of O2 on isolated Aun clusters (n = 2–10), and then the interactions of O2 on Aun (n = 2–7) clusters supported on N-doped graphene (N-graphene) were fully studied. The results obtained indicate that N-graphene is able to stabilize small Au clusters, and enhance their catalytic activity simultaneity.

2. Methodology

All the calculations have been performed with the Amsterdam Density Functional (ADF, version 2009.01) program package [25,26,27], which is based on the DFT of electronic structure. The Perdew–Wang parameterized (PW91) form of the generalized gradient approximation (GGA) for the exchange-correlation functional is adopted in the calculations. The gold atoms were calculated with a triple-ζ polarized (TZP) slater-type basis set, and other atoms with double-ζ polarized (DZP) set. The inner core orbitals, 1s for C, N and O, (1s–4f) for Au were kept frozen. Gold being a heavy atom, relativistic effects become important. So the scalar relativistic effects were taken into account in the present work. The N-containing graphene (C65NH22) was built which contains pyridine species. Carbon atoms on the edge of the graphene are terminated by hydrogen atoms. For all stationary states, spin multiplicity was allowed to relax: possible geometries with varying spin states were carefully checked and the ground state is determined as the one with the lowest electronic energy. What’s more, the atom charges were obtained by Multipole Derived Charge analysis (MDC-q) [28], which gives charges that reproduce by construction both the atomic and molecular multipoles.
The choice of the initial geometry is important to obtain the lowest energy structures. In the current study, we obtained the most stable structures by the following approaches: first, considering previous studies on the configurations of pure Au clusters [29,30,31], we restudied the structural properties of the neutral Aun (n = 2–10) clusters before investigating the interaction of Au clusters with O2. On the basis of the optimized equilibrium geometries of pure Au clusters, we obtained the initial structures of AunO2 clusters by bonding O2 molecule directly on each possible nonequivalent site of the Aun clusters. For Aun clusters supported on N-doped graphene (C65NH22), we firstly relaxed the planar Au clusters for two different orientations (both parallel and perpendicular) relative to the surface, and then made O2 adsorbed on the complexes as explained above. All these initial structures are fully optimized by relaxing the atomic positions until the force acting on each atom is negligible and by minimizing the total energy.
An important reference point for this calculation is the adsorption energy for O2 adsorbed on isolated Aun clusters, as well as on N-graphene (C65NH22) supported ones. In this paper, we used the following definitions for adsorption energy. When O2 is adsorbed on isolated Aun clusters, the adsorption energy is calculated as:
E1 = E(system) – E(Aun clusters) – E(O2)
When O2 is adsorbed on N-graphene supported Aun clusters, the adsorption energy is calculated as:
E2 = E(system) – E(Aun/C65NH22) – E(O2)
Similarly, when Aun clusters are adsorbed on N-graphene, the adsorption energy is:
E3 = E(system) – E(C65NH22) – E(Aun clusters)

3. Results and Discussion

3.1. The Structural and Electronic Properties of Gold Clusters

In order to obtain the initial geometries of AunO2 clusters, we first optimized isolated Aun clusters and single O2 molecules. The lowest energy geometries and the electronic properties of Aun (n = 2–10) clusters shown in Figure 1 are in good agreement with previous works [31,32,33,34,35]. The spin multiplicity, average Au–Au bond length, binding energy per atom, and the energy gap between the highest occupied molecular orbital (HOMO) and lowest unoccupied molecular orbital (LUMO) are listed in Table 1. The average Au–Au bond length and binding energy per atom increase monotonically as a function of the size of the cluster. The values of HOMO–LUMO energy gap clearly indicate an even-odd oscillation behavior in Aun clusters, that is, the even-numbered clusters have higher HOMO–LUMO gap than the odd-numbered neighbors.

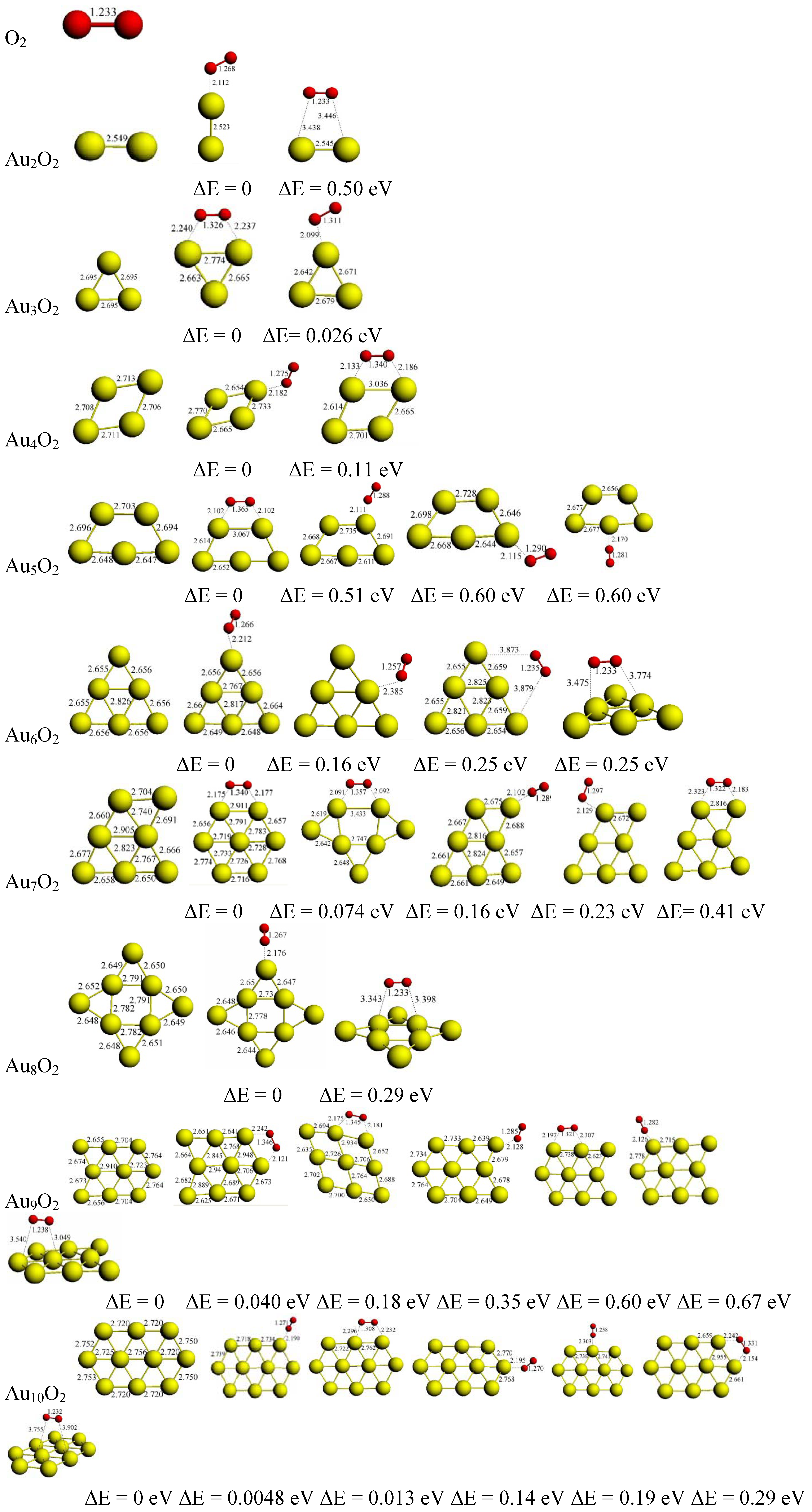

Figure 1. Optimized geometries for pure Aun (n = 2–10) clusters, single O2 molecule and AunO2 (n = 2–10) complexes (distances are in angstrom).
Figure 1. Optimized geometries for pure Aun (n = 2–10) clusters, single O2 molecule and AunO2 (n = 2–10) complexes (distances are in angstrom).
Molecules 18 03279 g001
Table 1. Calculated structural parameters of Aun (n = 2–10) clusters. The values in the parentheses are taken from other works.
Table 1. Calculated structural parameters of Aun (n = 2–10) clusters. The values in the parentheses are taken from other works.
Aun clusterSpin multiplicityAverage bond length (Å)Binding energy per atom (eV)HOMO–LUMO energy gap (eV)
Au212.549 (2.53, 2.47) a,b1.122.01 (1.96) d
Au322.695 (2.60) c1.131.83 (2.70) e
Au412.710 (2.68) a1.480.97 (0.927) a
Au522.678 (2.63) c1.620.96 (1.142) a
Au612.712 (2.68) a1.852.10 (2.05) d
Au722.722 (2.70) c1.811.00 (1.077) a
Au812.695 (2.67) a1.931.46 (1.420) a
Au922.739 (2.72) c1.910.71 (0.97) c
Au1012.742 (2.71) a1.991.31 (1.172) a
a Ref. [31]. b Ref. [36]. c Ref. [37]. d Ref. [32]. e Ref. [38].

3.2. The Geometries, Energetics, and the Electronic Properties of AunO2 Complexes

3.2.1. Structural Evolution

The lowest energy geometries of AunO2 (n = 2–10) clusters and some isomers that have higher energy are displayed in Figure 1. Compared with isolated Aun clusters and single O2 molecule, most of the Aun geometries in their lowest energy AunO2 clusters and isomers are slightly distorted, but still maintain a planar structure. This situation is believed to reflect the strong scalar relativistic effect in small Au clusters mentioned in previous studies [34]. But for Au7O2 and Au9O2, the situation is quite different and interesting. From Figure 1, it can be seen that the structures of Au7 and Au9 clusters are greatly changed after O2 is adsorbed on their bridge sites. In all geometries of Au7O2 complex, two evolutionary structures are obtained for Au7 clusters. The lowest energy structure is a planar hexagon with D6h symmetry. The other geometry could be generated by a structural rearrangement from the former. Another structural evolution is observed in Au9O2 complex. A “bi-edge-capped-hexagon” Au9 structure is generated with D2h symmetry after O2 is adsorbed on the bridge sites. This structure can also coexist with the most stable geometry due to its lower electronic energy. The structural evolution of these two clusters is attractive because studies suggest that this phenomenon could only occur in the temperature range of 400 to 500 K [39]. It is reported that there exists a direct correlation between stability and geometrical structures of the clusters, and relatively higher symmetry clusters are more stable [40]. This is may be one of the reasons for structural evolution after O2 adsorption.

3.2.2. O2 Adsorption Energies

Adsorption energy is an important index to examine the adsorption strength and the interactions between adsorbent and adsorbate. This has been investigated in some previous works for H2, NO, CO and H2O adsorption onto small Au clusters [41,42,43]. It can be seen from Figure 2 that for both end-on and bridge adsorption modes, the adsorption energies of O2 on odd-numbered Aun clusters are larger than those on adjacent even-numbered ones. Furthermore, for odd-numbered Aun clusters, the adsorption energies of bridge mode are also larger than those of end-on mode. On the contrary, the adsorption energies of end-on mode are larger than those of bridge mode for even-numbered ones, as shown in Figure 2. That is, the odd-numbered Aun clusters are favoring bridge adsorption of O2 whereas even-numbered ones are favoring end-on adsorption mode. It should be noticed that for Au2, Au6 and Au8 clusters, the O2 molecule could not adsorb on their bridge sites due to the adsorption energy is close to zero. Similarly, the O2 molecule could also not adsorb on the surfaces of the planar Au6, Au8 and Au10 clusters. The odd-even oscillation of adsorption energies for AunO2 clusters is clear evidence based on the analysis above.

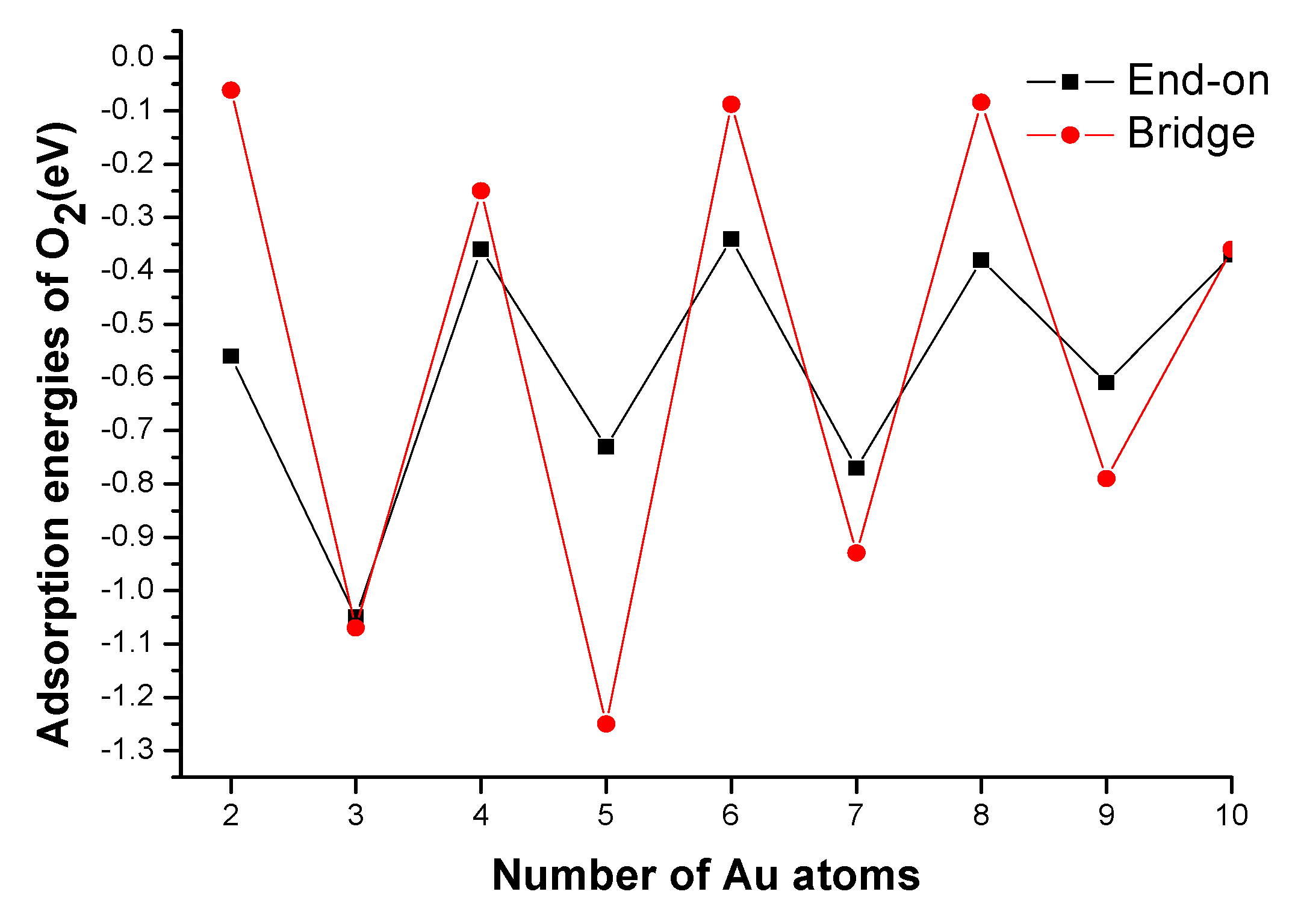

Figure 2. Variation of adsorption energy of molecular oxygen with cluster size.
Figure 2. Variation of adsorption energy of molecular oxygen with cluster size.
Molecules 18 03279 g002

3.2.3. Activation of O2 Molecules

The catalytic mechanism of oxygen reduction is to facilitate the dissociation of the O–O bond. Therefore, the catalyst’s ability to weaken the strong O–O bond and the degree of this weakening are crucial for its catalytic activity towards oxygen reduction. From Figure 3, it can be seen that all the studied Aun clusters have catalytic activity of varying degrees towards O2. The best catalytic activity is observed in Au5 cluster, which causes an ~11% O–O bond elongation. On the contrary, the Au2 cluster has the worst catalytic activity due to its largest HOMO–LUMO energy gap of 2.01 eV (see Table 1). Similar to the variation trends of adsorption energies, for both end-on and bridge adsorption modes, the catalytic activity of odd-numbered Aun clusters are larger than that of adjacent even-numbered ones. For odd-numbered Aun clusters, the bridge adsorption makes a larger degree of O–O bond elongation than that of end-on mode. On the contrary, a larger degree of O–O bond elongation of end-on mode is observed in the adjacent even-numbered Aun clusters.

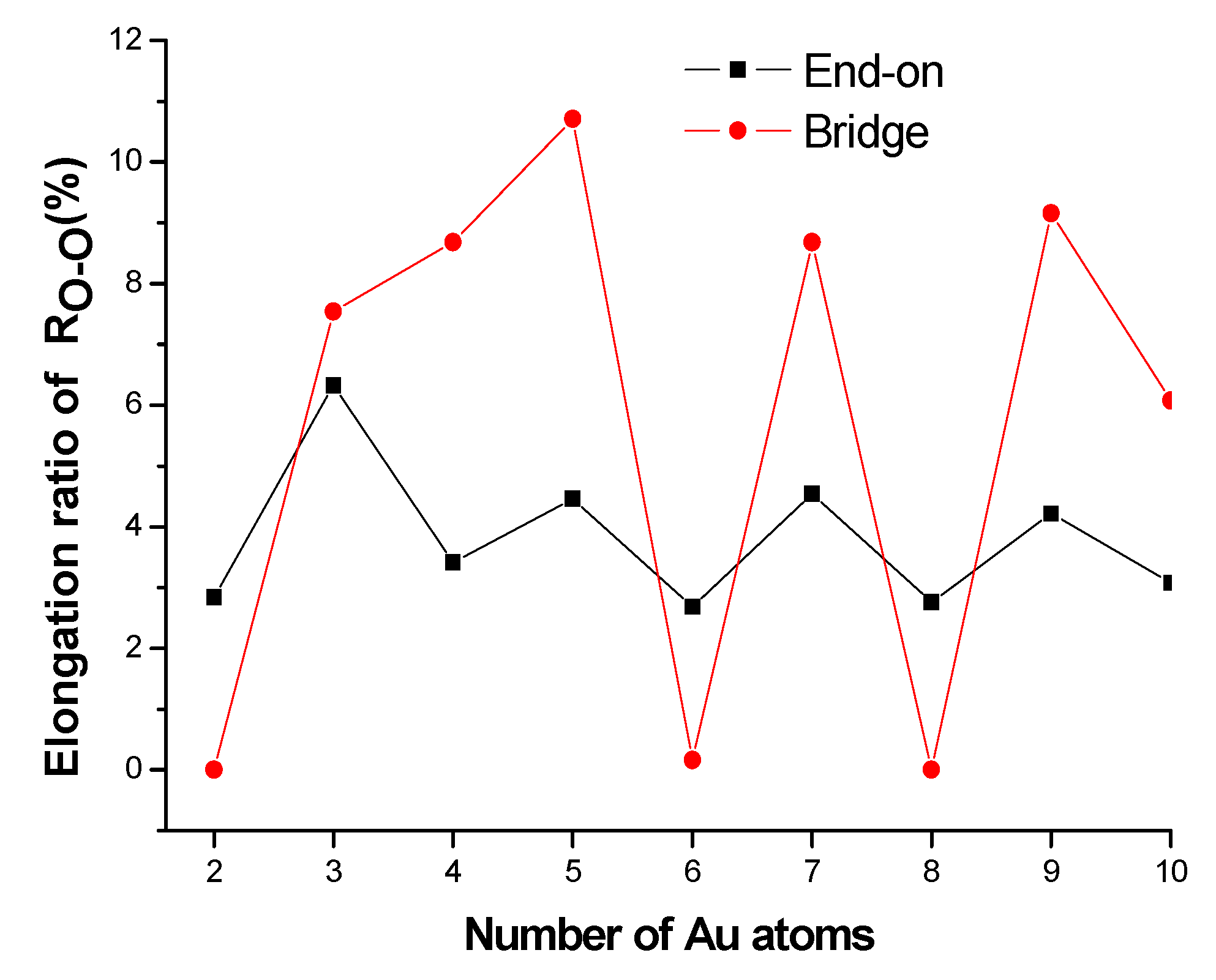

Figure 3. Variation of elongation ratio of RO–O with cluster size.
Figure 3. Variation of elongation ratio of RO–O with cluster size.
Molecules 18 03279 g003

3.3. The Geometries, Energetics, and the Electronic Properties of AunO2/N-Graphene

3.3.1. Pure Aun Clusters on N-Graphene

In order to analyze the interactions of oxygen with Aun clusters on N-graphene, the adsorption properties of pure Aun (n = 2–7) clusters supported on N-graphene were firstly considered. Both the perpendicular (┴) and the parallel (‖) orientations of the molecular axis are studied and the results are shown in Table 2. The adsorption energies (E3) obtained with Equation (3) indicate that the perpendicular orientation is preferred than the parallel one for Au2, Au3 and Au4 clusters. However, for Au5, Au6 and Au7 clusters, the most stable orientation is parallel due to their larger adsorption energies. The largest adsorption energy for the studied system is observed in Au7 cluster, which value is –1.15 eV. The total MDC-q charges on the most stable gold adsorption orientation are negative in all cases, suggesting the electron transfer from the support to the metal. However, for their relatively unstable adsorption isomers, the orientation of the electron transfer is reversed. Based on the data that are presented in Table 2, the adsorption strength is mainly due to the electrostatic interactions between the clusters and support. If the Aun clusters bear more charges (whether positive or negative), the adsorption strength is stronger, otherwise the adsorption strength is relatively weak.
Table 2. Adsorption properties of the studied Aun (n = 2–7) clusters on N-graphene.
Table 2. Adsorption properties of the studied Aun (n = 2–7) clusters on N-graphene.
Aun clusterSpin multiplicityE3 (eV)MDC-q charge
Au2, ┴2–0.58–0.103
Au2, ‖2–0.300.058
Au3, ┴1–0.51–0.107
Au3, ‖1–0.300.030
Au4, ┴2–0.81–0.089
Au4, ‖2–0.570.080
Au5, ┴1–0.670.002
Au5, ‖1–0.79–0.019
Au6, ┴2–0.640.098
Au6, ‖2–0.74–0.164
Au7, ┴1–0.420.023
Au7, ‖1–1.15–0.171

3.3.2. O2 on N-Graphene Supported Aun Clusters

Among all the O2 adsorption geometries on isolated Aun clusters shown in Figure 1, we choose the most stable adsorption modes of “end-on” and “bridge” for each Aun (n = 2–7) cluster and then put these structures on to N-graphene’s surface. The calculated results are shown in Table 3. In all cases, the adsorption energies of O2 molecule on N-graphene supported Aun clusters (E2) are higher than those on isolated ones (E1) to varying degrees. There is no doubt that the increased adsorption energies would enhance the catalytic activity of small Aun clusters. For example, the O–O bond lengths on Au3 and Au4 clusters with N-graphene support is largely elongated for both end-on and bridge modes, and are longer than those on isolated ones without support. The optimized structures are shown in Figure 4. It can be seen that the Au–O bond distances in the presence of support are further shortened. At the same time, the average Au–Au bond lengths have been elongated, as shown in Figure 4. These structural changes significantly facilitate the electron transfer from Au d-orbital to π* orbital of O2, which could lead to a charge increasing on O2. From Table 3, it can be seen that there are more negative charges of O2 on N-graphene supported Au clusters than those on isolated ones. The calculated data indicate that the catalytic activity for oxygen reduction of Aun clusters could be improved by supporting them on N-graphene through increasing the interaction between the adsorbate and adsorbent. Actually, N-graphene itself has a good oxygen reduction activity both in acid and base solution [44,45]. Therefore, when Au clusters are supported on graphene, there may be a synergistic effect between them. This is also an important study area and needs further research.
Table 3. Calculated adsorption energies, E1 and E2 (eV), and net MDC-q charges, ΔQ, for O2 molecule in the most stable “end-on” and “bridge” adsorption with and without N-graphene support.
Table 3. Calculated adsorption energies, E1 and E2 (eV), and net MDC-q charges, ΔQ, for O2 molecule in the most stable “end-on” and “bridge” adsorption with and without N-graphene support.
Aun clusterE1 (eV)E2 (eV)ΔQ (O2)ΔQ (O2, with support)
End-onBridgeEnd-onBridgeEnd-onBridgeEnd-onBridge
Au2–0.56––––0.83–––0.041––––0.096–––
Au3–1.05–1.07–1.26–1.69–0.161–0.191–0.261–0.272
Au4–0.36–0.25–0.42–0.30–0.077–0.073–0.157–0.091
Au5–0.73–1.25–0.77–1.32–0.084–0.203–0.259–0.223
Au6–0.34––––0.52––––0.126––––0.134–––
Au7–0.77–0.93–0.86–0.99–0.169–0.231–0.198–0.248
Figure 4. Key bond lengths for the optimized structures of the O2 molecule adsorbed on N-graphene supported Au3 and Au4 cluster, respectively (distances are in angstrom).
Figure 4. Key bond lengths for the optimized structures of the O2 molecule adsorbed on N-graphene supported Au3 and Au4 cluster, respectively (distances are in angstrom).
Molecules 18 03279 g004
To further clarify the enhanced catalytic activity, the adsorption energies of two important species involved in oxygen reduction, O and OH, are also calculated, as shown in Table 4. Being similar to the adsorption properties of O2 molecule, the adsorption energies of atomic O on N-graphene supported Aun clusters (E2) are all higher than those on isolated ones (E1). It is reported that the stronger a material binds atomic O, the more effective it will be in breaking apart molecular O2, which could be used to identify the efficiency of a catalyst [46,47,48], and therefore the enhanced catalytic activity is further confirmed. In addition, experimental results indicate that the strong OH adsorption on Pt may induce overpotential [49], which caused by the coverage of adsorbed OH on Pt surface and then block the adsorption of O2 in the next reduction step. From Table 4, it can be seen that when OH is adsorbed on N-graphene supported Au7 cluster, the adsorption energies are decreased. Therefore, the adsorbed Au clusters on N-graphene may also reduce the overpotential of oxygen reduction.
Table 4. Calculated adsorption energies of O and OH on Aun (n = 4, 7) clusters with and without N-graphene support.
Table 4. Calculated adsorption energies of O and OH on Aun (n = 4, 7) clusters with and without N-graphene support.
Aun clusterE1 (O)E2 (O, with support)E1 (OH)E2 (OH, with support)
Au4–3.43–3.96–2.75–2.97
Au7, ┴–4.21–3.99–3.80–3.50
Au7, ‖–4.34–3.65

3.3.3. Improved Structural Stability of Aun Clusters

As discussed in Section 3.2.1, the geometrical structures of pure Au7 and Au9 clusters would be greatly changed after O2 is adsorbed on their bridge sites. It is reported that the shape changes could modify the O2 bonding mode, therefore alter the cluster’s catalytic activity [50]. Thus, enhancing the cluster’s stability without decreasing its catalytic activity is an important issue for catalytic applications. Figure 5 shows both the parallel and perpendicular orientations of Au7 cluster supported on N-graphene with O2 adsorption. It is clearly seen that although the cluster geometry of parallel orientation has a little distortion when compared with the isolated structure, the basal cluster morphology is still maintained. The geometry of the cluster for the perpendicular case barely changed even O2 adsorbed on bridge sites. The reason that N-graphene enhanced the stability of Aun cluster could be attributed to the interactions between the metal atoms and the surface. For perpendicular case, the carbon atoms on N-graphene could anchor the cluster, which make it more difficult to structural distortion. In the case of parallel orientation, although there is no direct Au–C (or Au–N) interaction, the morphology of the cluster is also difficult to change due to strong adsorption energy between the cluster and the surface (–1.15 eV), as shown in Table 2.
Figure 5. Optimized structures of the O2 molecule adsorbed on N-graphene supported Au7 cluster with bridge mode (distances are in angstrom).
Figure 5. Optimized structures of the O2 molecule adsorbed on N-graphene supported Au7 cluster with bridge mode (distances are in angstrom).
Molecules 18 03279 g005

4. Conclusions

By means of density functional theory, the adsorption properties of O2 on both isolated and N-graphene supported gold clusters have been studied. Our results indicate that the adsorption energies of O2 on odd-numbered Au clusters are larger than those on adjacent even-numbered ones. Similarly, the catalytic activity of odd-numbered Aun clusters, which is measured by the O–O bond weakening, is also higher than that of neighboring even-numbered ones. The odd-even oscillation of adsorption energies for AunO2 is clearly evident. Furthermore, the O2 molecule is in favor of bonding to the bridge sites of odd-numbered Aun clusters, whereas for odd-numbered ones, the end-on adsorption mode is favored.
The adsorption energies on N-graphene of all studied clusters are in the range from –0.30 to –1.15 eV. The perpendicular orientation is preferred than the parallel ones for Au2, Au3 and Au4 clusters, whereas for Au5, Au6 and Au7, the situation is quite the contrary. Charge analysis suggests that the adsorption strength is mainly due to the electrostatic interactions between the clusters and support.
When O2 is adsorbed on N-graphene supported Aun clusters, the adsorption energies are largely increased compared with those on isolated ones. The increased adsorption energies could significantly facilitate the electron transfer from Au d-orbital to π* orbital of O2, which could further weaken the O–O bond and therefore enhancing the catalytic activity. This is also confirmed by the increased adsorption energy of atomic O on N-graphene supported Aun (n = 4, 7) clusters. The carbon atoms on N-graphene could anchor the clusters and make it more difficult to structural distortion, therefore enhance their stability.

Acknowledgments

This work was performed with the financial supports from the major program of Beijing Municipal Natural Science Foundation (No. 20110001), the National Natural Science Foundation of China (Nos. 11179001, 51172007) and the Doctoral Fund of Innovation of Beijing University of Technology.

References

  1. Wallace, W.T.; Whetten, R.L. Coadsorption of CO and O2 on selected gold clusters: Evidence for efficient room-temperature CO2 generation. J. Am. Chem. Soc. 2002, 124, 7499–7505. [Google Scholar] [CrossRef]
  2. Hagen, J.; Socaciu, L.D.; Elijazyfer, M.; Heiz, U.; Bernhardt, T.M.; Woste, L. Coadsorption of CO and O2 on small free gold cluster anions at cryogenic temperatures: Model complexes for catalytic CO oxidation. Phys. Chem. Chem. Phys. 2002, 4, 1707–1709. [Google Scholar] [CrossRef]
  3. Hakkinen, H.; Landman, U. Gas-phase catalytic oxidation of CO by Au2–. J. Am. Chem. Soc. 2001, 123, 9704–9705. [Google Scholar] [CrossRef]
  4. Lopez, N.; Norskov, J.K. Catalytic CO oxidation by a gold nanoparticle: A density functional study. J. Am. Chem. Soc. 2002, 124, 11262–11263. [Google Scholar] [CrossRef]
  5. Molina, L.M.; Hammer, B. Active role of oxide support during CO oxidation at Au/MgO. Phys. Rev. Lett. 2003, 90, 206102. [Google Scholar] [CrossRef]
  6. Boccuzzi, F.; Chiorino, A. FTIR study of CO oxidation on Au/TiO2 at 90 K and room temperature. An insight into the nature of the reaction centers. J. Phys. Chem. B 2000, 104, 5414–5416. [Google Scholar] [CrossRef]
  7. Choudhary, T.V.; Goodman, D.W. Oxidation catalysis by supported gold nano-clusters. Top. Catal. 2002, 21, 25–34. [Google Scholar] [CrossRef]
  8. Assadollahzadeh, B.; Schwerdtfeger, P. A systematic search for minimum structures of small gold clusters Aun (n = 2–20) and their electronic properties. J. Chem. Phys. 2009, 131, 064306. [Google Scholar] [CrossRef]
  9. Kang, G.J.; Chen, Z.X.; Li, Z.; He, X. A theoretical study of the effects of the charge state and size of gold clusters on the adsorption and dissociation of H2. J. Chem. Phys. 2009, 130, 034701. [Google Scholar] [CrossRef]
  10. Li, G.P.; Hamilton, I.P. Complexes of small neutral gold clusters and hydrogen sulphide: A theoretical study. Chem. Phys. Lett. 2006, 420, 474–479. [Google Scholar] [CrossRef]
  11. Yoon, B.; Hakkinen, H.; Landman, U. Interaction of O2 with gold clusters: Molecular and dissociative adsorption. J. Phys. Chem. A 2003, 107, 4066–4071. [Google Scholar] [CrossRef]
  12. Mills, G.; Gordon, M.S.; Metiu, H. The adsorption of molecular oxygen on neutral and negative Aun clusters (n = 2–5). Chem. Phys. Lett. 2002, 359, 493–499. [Google Scholar] [CrossRef]
  13. Ding, X.; Li, Z.; Yang, J.; Hou, J.G.; Zhu, Q. Adsorption energies of molecular oxygen on Au clusters. J. Chem. Phys. 2004, 120, 9594–9600. [Google Scholar] [CrossRef]
  14. Fernandez, E.M.; Ordejon, P.; Balbas, L.C. Theoretical study of O2 and CO adsorption on Aun clusters (n = 5–10). Chem. Phys. Lett. 2005, 408, 252–257. [Google Scholar] [CrossRef]
  15. Lyalin, A.; Taketsugu, T. Cooperative adsorptionof O2 and C2H4 on small gold clusters. J. Phys. Chem. C 2009, 113, 12930–12934. [Google Scholar] [CrossRef]
  16. Coquet, R.; Howard, K.L.; Willock, D.J. Theory and simulation in heterogeneous gold catalysis. Chem. Soc. Rev. 2008, 37, 2046–2076. [Google Scholar] [CrossRef]
  17. Novoselov, K.S.; Geim, A.K.; Morozov, S.V.; Jiang, D.; Katsnelson, M.I.; Grigorieva, I.V.; Dubonos, S.V.; Firsov, A.A. Two-dimensional gas of massless dirac fermions in graphene. Nature 2005, 438, 197–200. [Google Scholar] [CrossRef] [Green Version]
  18. Zhang, Y.B.; Tan, Y.W.; Stormer, H.L.; Kim, P. Experimental observation of the quantum Hall effect and Berry’s phase in graphene. Nature 2005, 438, 201–204. [Google Scholar] [CrossRef]
  19. Novoselov, K.S.; McCann, E.; Morozov, S.V.; Fal’ko, V.I.; Katsnelson, M.I.; Zeitler, U.; Jiang, D.; Schedin, F.; Geim, A.K. Unconventional quantum Hall effect and Berry's phase of 2π in bilayer graphene. Nat. Phys. 2006, 2, 177–180. [Google Scholar] [CrossRef] [Green Version]
  20. Castro Neto, A.H.; Guinea, F.; Peres, N.M.R.; Novoselov, K.S.; Geim, A.K. The electronic properties of graphene. Rev. Mod. Phys. 2009, 81, 109–162. [Google Scholar] [CrossRef]
  21. Yoo, E.; Okata, T.; Akita, T.; Kohyama, M.; Nakamura, J.; Honma, I. Enhanced electrocatalytic activity of Pt subnanoclusters on graphene nanosheet surface. Nano Lett. 2009, 9, 2255–2259. [Google Scholar] [CrossRef]
  22. Scheuermann, G.M.; Rumi, L.; Steurer, P.; Bannwarth, W.; Mulhaupt, R. Palladium nanoparticles on graphite oxide and its functionalized graphene derivatives as highly active catalysts for the Suzuki−Miyaura coupling reaction. J. Am. Chem. Soc. 2009, 131, 8262–8270. [Google Scholar] [CrossRef]
  23. Pulido, A.; Boronat, M.; Corma, A. Theoretical investigation of gold clusters supported on graphene sheets. New J. Chem. 2011, 35, 2153–2161. [Google Scholar] [CrossRef]
  24. Chen, G.; Li, S.J.; Su, Y.; Wang, V.; Mizuseki, H.; Kawazoe, Y. Improved stability and catalytic properties of Au16 cluster supported on graphane. J. Phys. Chem. C 2011, 115, 20168–20174. [Google Scholar] [CrossRef]
  25. te Velde, G.; Bickelhaupt, F.M.; Baerends, E.J.; Fonseca Guerra, C.; van Gisbergen, S.J.A.; Snijders, J.G.; Ziegler, T. Chemistry with ADF. J.Comput. Chem. 2001, 22, 931–967. [Google Scholar] [CrossRef]
  26. Fonseca Guerra, C.; Snijders, J.G.; te Velde, G.; Baerends, E.J. Towards an order-N DFT method. Theor. Chem. Acc. 1998, 99, 391–403. [Google Scholar]
  27. ADF2009.01, SCM, Theoretical Chemistry, Vrije Universiteit, Amsterdam, The Netherlands. SCM Home Page. Available online: http://www.scm.com (accessed on 5 March 2013).
  28. Swart, M.; van Duijnen, P.T.; Snijders, J.G. A charge analysis derived from an atomic multipole expansion. J.Comput. Chem. 2001, 22, 79–88. [Google Scholar] [CrossRef]
  29. Häkkinen, H.; Moseler, M.; Landman, U. Bonding in Cu, Ag, and Au clusters: Relativistic effects, trends, and surprises. Phys. Rev. Lett. 2002, 89, 033401. [Google Scholar] [CrossRef]
  30. Häkkinen, H.; Yoon, B.; Landman, U.; Li, X.; Zhai, H.J.; Wang, L.S. On the electronic and atomic structures of small AuN− (N = 4−14) clusters:  A photoelectron spectroscopy and density-functional study. J. Phys. Chem. A 2003, 107, 6168–6175. [Google Scholar] [CrossRef]
  31. Deka, A.; Deka, R.C. Structural and electronic properties of stable Aun (n = 2–13) clusters: A density functional study. J. Mol. Struc.-Theochem. 2008, 870, 83–93. [Google Scholar] [CrossRef]
  32. Hakkinen, H.; Landman, U. Gold clusters (AuN, 2<=N<=10) and their anions. Phys. Rev. B 2000, 62, R2287–R2290. [Google Scholar] [CrossRef]
  33. Lee, H.M.; Ge, M.; Sahu, B.R.; Tarakeswar, P.; Kim, K.S. Geometrical and electronic structures of gold, silver, and gold-silver binary clusters: Origins of ductility of gold and gold-silver alloy formation. J. Phys. Chem. B 2003, 107, 9994–10005. [Google Scholar] [CrossRef]
  34. Fernandez, E.M.; Soler, J.M.; Garzon, I.L.; Balbas, L.C. Trends in the structure and bonding of noble metal clusters. Phys. Rev. B 2004, 70, 165403. [Google Scholar] [CrossRef]
  35. Kuang, X.J.; Wang, X.Q.; Liu, G.B. All-electron scalar relativistic calculation of water molecule adsorption onto small gold clusters. J. Mol. Model. 2011, 17, 2005–2016. [Google Scholar] [CrossRef]
  36. Bishea, G.A.; Morse, M.D. Spectroscopic studies of jetcooled AgAu and Au2. J. Chem. Phys. 1991, 95, 5646–5659. [Google Scholar] [CrossRef]
  37. Shafai, G.S.; Shetty, S.; Krishnamurty, S.; Shah, V.; Kanhere, D.G. Density functional investigation of the interaction of acetone with small gold clusters. J. Chem. Phys. 2007, 126, 014704. [Google Scholar] [CrossRef]
  38. Wang, J.; Wang, G.; Zhao, J. Density-functional study of Aun (n = 2–20) clusters: Lowest-energy structures and electronic properties. Phys. Rev. B 2002, 66, 035418. [Google Scholar] [CrossRef]
  39. De, H.S.; Krishnamurty, S.; Mishra, D.; Pal, S. Finite temperature behavior of gas phase neutral Aun (3≤n≤10) clusters: A first principles investigation. J. Phys. Chem. C 2011, 115, 17278–17285. [Google Scholar] [CrossRef]
  40. Zhou, J.C.; Li, W.J.; zhu, J.B. Particle swarm optimization computer simulation of Ni clusters. Trans. Nonferrous. Met. Soc. China 2008, 18, 410–415. [Google Scholar] [CrossRef]
  41. Ding, X.L.; Li, Z.Y.; Yang, J.L.; Hou, J.G.; Zhu, Q.S. Theoretical study of nitric oxide adsorption on Au clusters. J. Chem. Phys. 2004, 121, 2558–2562. [Google Scholar]
  42. Wu, X.; Senapati, L.; Nayak, S.K.; Selloni, A.; Hajaligol, M. A density functional study of carbon monoxide adsorption on small cationic, neutral, and anionic gold clusters. J. Chem. Phys. 2002, 117, 4010–4015. [Google Scholar] [CrossRef]
  43. Ghebriel, H.W.; Kshirsagar, A. Adsorption of molecular hydrogen and hydrogen sulfide on Au clusters. J. Chem. Phys. 2007, 126, 244705. [Google Scholar] [CrossRef]
  44. Zhang, L.; Xia, Z. Mechanisms of oxygen reduction reaction on nitrogen-doped graphene for fuel cells. J. Phys. Chem. C 2011, 115, 11170–11176. [Google Scholar] [CrossRef]
  45. Yu, L.; Pan, X.; Cao, X.; Hu, P.; Bao, X. Oxygen reduction reaction mechanism on nitrogen-doped graphene: A density functional theory study. J. Catal. 2011, 282, 183–190. [Google Scholar]
  46. Xu, Y.; Ruban, A.V.; Mavrikakis, M. Adsorption and dissociation of O2 on Pt-Co and Pt-Fe alloys. J. Am. Chem. Soc. 2004, 126, 4717–4725. [Google Scholar] [CrossRef]
  47. Chen, X.; Li, F.; Wang, X.; Sun, S.; Xia, D. Density functional theory study of the oxygen reduction reaction on a cobalt−polypyrrole composite catalyst. J. Phys. Chem. C 2012, 116, 12553–12558. [Google Scholar] [CrossRef]
  48. Chen, X.; Sun, S.; Wang, X.; Li, F.; Xia, D. DFT study of polyaniline and metal composites as nonprecious metal catalysts for oxygen reduction in fuel cells. J. Phys. Chem. C 2012, 116, 22737–22742. [Google Scholar] [CrossRef]
  49. Uribe, F.A.; Zawodzinski, T.A., Jr. A study of polymer electrolyte fuel cell performance at high voltages. Dependence on cathode catalyst layer composition and on voltage conditioning. Electrochim. Acta 2002, 47, 3799–3806. [Google Scholar] [CrossRef]
  50. Lamas, E.J.; Balbuena, P.B. Adsorbate effects on structure and shape of supported nanoclusters: A molecular dynamics study. J. Phys. Chem. B 2003, 107, 11682–11689. [Google Scholar] [CrossRef]
