Article

Lepidotrichilins A and B, New Protolimonoids with Cytotoxic Activity from Trichilia Lepidota (Meliaceae)

1
Laboratório de Ciências Químicas, Universidade Estadual do Norte Fluminense Darcy Ribeiro, Avenida Alberto Lamego 2000, 28013-602, Campos dos Goytacazes, Rio de Janeiro, Brazil
2
Laboratório de Biologia do Reconhecer, Universidade Estadual do Norte Fluminense Darcy Ribeiro, Avenida Alberto Lamego 2000, 28013-602, Campos dos Goytacazes, Rio de Janeiro, Brazil
3
Departamento de Química Orgânica e Inorgânica, Universidade Federal do Ceará, 60021-970, Fortaleza, Ceará, Brazil
*
Author to whom correspondence should be addressed.
Molecules 2013, 18(10), 12180-12191; https://doi.org/10.3390/molecules181012180
Submission received: 20 August 2013 / Revised: 20 September 2013 / Accepted: 26 September 2013 / Published: 30 September 2013
(This article belongs to the Section Natural Products Chemistry)

Abstract

:
Two novel protolimonoids, named lepidotrichilins A (1) and B (2), four known protolimonoids, 21,23-epoxy-7α-21α-dihydroxyapotirucalla-14,24-dien-3-one (3), 21,23-epoxy-7α-21β-dihydroxyapotiru-calla-14,24-dien-3-one (4), dysorone D (5), deoxy-flindissone (6), and the two steroids β-sitosterol (7) and stigmasterol (8) were identified in leaves of Trichilia lepidota subsp. schumanniana (Harms) T.D. Pennington. From wood the coumarin scopoletin (9) was isolated. The structures were established by NMR (1D 1H and 13C-NMR and 2D 1H-1H COSY, HMQC and HMBC), mass spectroscopy and infrared (IR) spectral data. The hexane and methanol extracts of the leaves, the protolimonoids lepidotrichilins A (1) and B (2) (IC50 42.7 µg mL−1) and the protolimonoid deoxy-flindissone (6; IC50 9.3 µgmL−1) exhibited significant cytotoxic activity against the MOLT-4 and U937 leukemic cell lines.

1. Introduction

Trichilia lepidota subsp. schumanniana (Harms) T.D. Pennington (known popularly as “Cedrinho” in Santa Catarina and Minas Gerais States, Brazil) is a tree of 3-6 meters in height. This wood of this species is used to make furniture [1]. The Trichilia genus consists of about 230 species distributed throughout tropical America and other countries ranging from Africa and Asia [2,3]. Previous investigations on the chemical constituents of the dichloromethane extract from the leaves of this species revealed the presence of hydrocarbons mixtures (C29H60, C31H64 and C33H68), sesquiterpenes, steroids, amino acids and other compounds derived from the terpene metabolic pathway [4].
Species of the genus Trichilia (Meliaceae) are known to contain varied limonoid structures (tetranortriterpenoids) and other terpenic metabolites which are responsible for various biological properties. Limonoids of various Trichilia with a wide spectrum of biological effects such as potential antiviral, analgesic, insecticidal, and insect growth inhibition activity have been documented [5,6]. Previous investigations involving limonoids isolated of another Meliaceae species, namely Melia azedarach, have demonstrated antiproliferative activity against an adenocarcinoma epithelial cell line A549 [7]. Additionally, it has been proved that limonoids from Citrus fruits demonstrated in vitro the capacity to induce apoptosis and to inhibit the proliferation of neuroblastoma cells [8].
In the present paper, we describe the isolation and characterization of the mixture of two new protolimonoids named lepidotrichilin A (1) and lepidotrichilin B (2), along with the known protolimonoids 21,23-epoxy-7α-21α-dihydroxyapotirucalla-14,24-dien-3-one (3), 21,23-epoxy-7α-21β-dihydroxyapotirucalla-14,24-dien-3-one (4), dysorane D (5) and deoxyflindissone (6), the steroids β-sitosterol (7) and stigmasterol (8) and the coumarin scopoletin (9), whose structures are summarized in Figure 1.

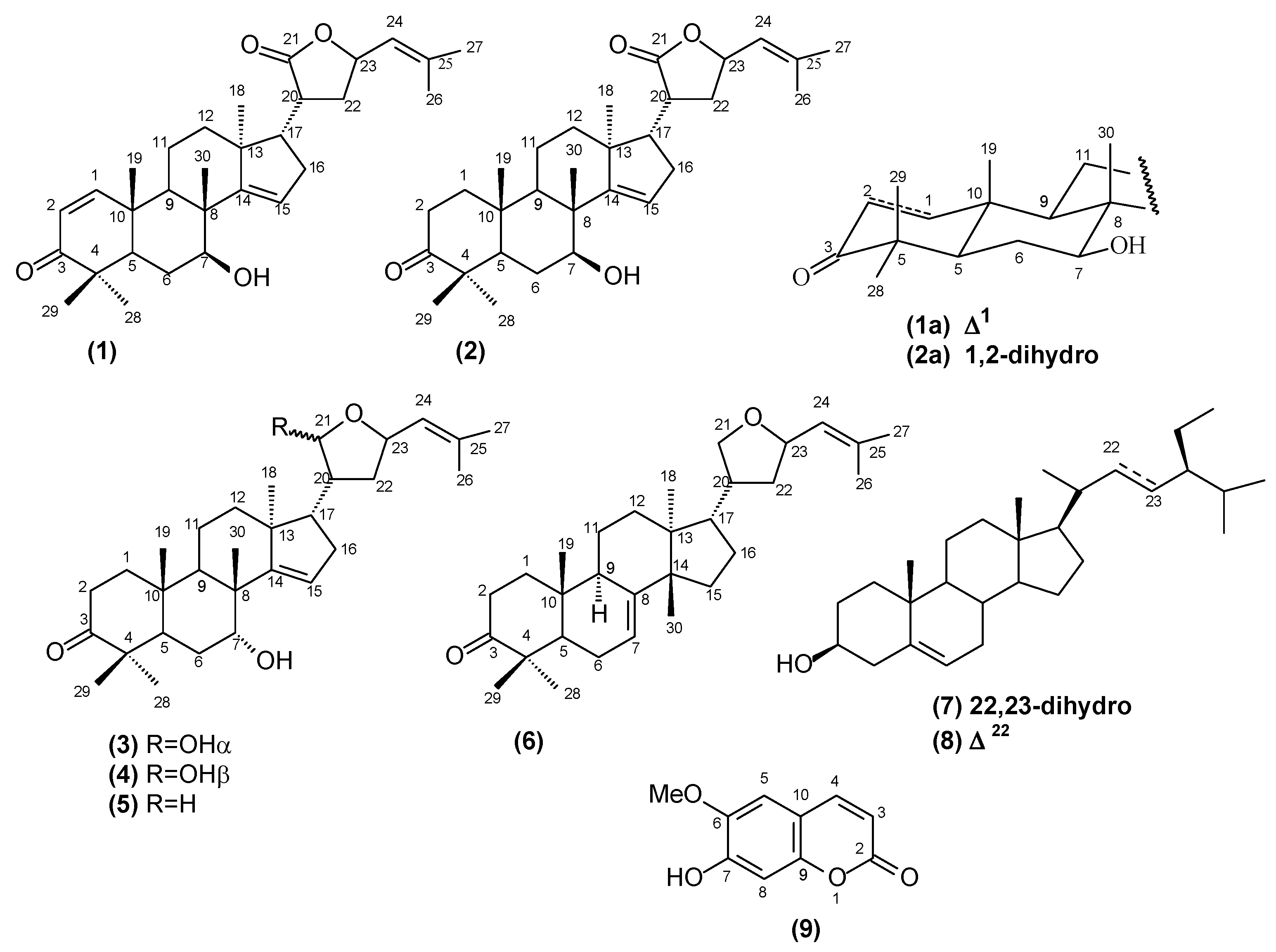

Figure 1. Chemical structures of the compounds isolated from T. lepidota.
Figure 1. Chemical structures of the compounds isolated from T. lepidota.
Molecules 18 12180 g001
The structures of the known and new compounds were established on the basis of spectral data, mainly 1H- and 13C-NMR (1D and 2D), HRESIMS spectra and by comparison with literature data. This paper also describes the viability of human leukemic lineages cells U937 and MOLT-4 treated with the hexane and methanol extracts, the mixture of the protolimonoids lepidotrichilins A (1) and B (2) and the protolimonoid desoxyflindissone (6).

2. Results and Discussion

The hexane extract of T. lepidota leaves was eluted successively in several chromatographic columns affording a mixture of two new protolimonoids, lepidotrichilin A (1) and lepidotrichilin B (2), four known protolimonoids, 21,23-epoxy-7α-21α-dihydroxyapotirucalla-14,24-dien-3-one (3), 21,23-epoxy-7α-21β-dihydroxyapotirucalla-14,24-dien-3-one (4), dysorane D (5), deoxyflindissone (6) and the steroid β-sitosterol (7). These compounds were identified by comparison of their spectroscopic data (MS, IR, 1D- 1H and 13C-NMR, 2D-NMR) with those reported in the literature [9]. The methanol extract of T. lepidota leaves was processed on several chromatographic columns affording two steroids, β-sitosterol (7) and stigmasterol (8) and the protolimonoid deoxyflindissone (6). The methanol extract of T. lepidota wood affording the coumarin scopoletin (9).
The mixture of protolimonoids 1 and 2 was obtained as yellow oil. The IR spectrum (KBr disk) for the compounds showed bands at νmax 3,438 cm−1, attributed to a hydroxyl group, 2,925 and 2,855, attributed to methyne and methylene groups, and 1,736 and 1,649 cm−1, attributed to two carbonyl groups at C-21(ester function) and C-3 (α,β-conjugated). The HRESIMS spectrum (positive mode) exhibited peaks at m/z 467.3200 ([M+H]+, calcd. m/z 467.3161) and 489.3021 ([M+Na]+, calcd. m/z 489.2981) corresponding to the molecular formula C30H42O4 of 1, along with additional peaks at m/z 469.3363 ([M+H]+, calcd. m/z 469.3318) and 491.3188 ([M+Na]+, calcd. m/z 491.3137) corresponding to the molecular formula C30H40O4 of 2, in accordance with ten (1) and nine (2) unsaturation degrees. Details of the molecular structures of compounds 1 and 2 were obtained by analysis of its 1H- and 13C-NMR spectra (Table 1) and from the observed 1H-1H-COSY, HMQC and HMBC correlations.
Table 1. 13C- (100 MHz) and 1H- (400 MHz) NMR data of the protolimonoids 1 and 2 in CDCl3, δ in ppm and multiplicities and J in Hz (in parenthesis), including results obtained by heteronuclear 2D shift-correlated HMQC (1JHC) and HMBC (nJHC n = 2 and 3) *.
Table 1. 13C- (100 MHz) and 1H- (400 MHz) NMR data of the protolimonoids 1 and 2 in CDCl3, δ in ppm and multiplicities and J in Hz (in parenthesis), including results obtained by heteronuclear 2D shift-correlated HMQC (1JHC) and HMBC (nJHC n = 2 and 3) *.
12
HMQCHMBCHMQCHMBC
δC δH 2JHC 3JHC δC δH 2JHC 3JHC
C
3204.0- H-1; 3H-28; 3H-29218.0- 3H-28; 3H-29
444.2- 46.7-
844.2- 44.2-
1041.8- 37.2-
1346.8- 46.9-
14161.0- 161.0-
21178.2- 178.2-
225 140.0-3H-26; 3H-27 140.0-3H-26; 3H-27
CH
1158.9714 (d, 10.5) 3H-19--
2125.45.83 (d, 10.5) --
544.62.40 (m) 46.72.40 (m)
772.13.98 (d, 11.7) 3H-3071.63.98 (d, 11.7) 3H-30
940.8 3H-19; 3H-3041.1 3H-19;3H-30
15119.65.51 (m) 119.65.51 (m)
1754.72.28 (m) 3H-1854.02.28 (m) 3H-18
2036.81.84 (m) 36.81.84 (m)
2375.35.19 (brd, 8.8) 75.35.19 (brd, 8.8)
24122.85.05 (m) 3H-26; 3H-27122.85.05 (m)
CH2
1-- 38.5 3H-19
2-- 32.22.28
624.8 24.3
1116.2 16.2
1232.02.32 (m) 3H-1832.02.32 (m) 3H-18
1633.92.10 (m) 33.92.10 (m)
2235.0 35.1
CH3
1818.91.16 (s) 20.21.17 (s)
1924.91.02 (s) 14.91.02 (s)
2618.41.75 (brs) 3H-2718.41.75 (brs) 3H-27
2725.71.78 (brs) 3H-2625.71.78 (brs) 3H-26
2827.11.09 (s) 27.71.05 (s)
2926.11.15 (s) 27.21.05 (s)
3021.21.04 (s) 21.51.04 (s)
a *Number of hydrogens bound to carbon atoms deduced by comparative analysis of {1H}- and APT-13C NMR spectra. Chemical shifts and coupling constants (J) obtained of 1D 1H-NMR spectrum. Superimposed 1H signals are described without multiplicity and chemical shifts deduced by HMQC, HMBC and 1H-1H-COSY spectra.
Comparative analysis of the 13C-NMR spectra ({1H}- and APT) of the protolimonoids 1 and 2 was used to recognize the signals corresponding to eight non-hydrogenated [four sp3 and four sp2, including two carbonyl groups at δC 204.0 (α,β-unsaturated C-3 of 1) and 218.0 (C-3 of 2)], ten to 1 (four sp2 and six sp3 including two linked to oxygen atom) and eight to 2 (two sp2 and six sp3 including two linked to oxygen atom) methine, five to 1 (all sp3) and seven to 2 (all sp3) methylene and seven methyl (1 and 2) carbon atoms, corresponding to 30 carbon signals for each compound (Table 1): (C=O)(COO)(=C)2(C)4(=CH)4(CH-O)(CH-OH)(CH)4(CH2)5(CH3)7 = C30H42O4 for 1 [ten degrees of unsaturation: tetracyclic skeleton, the presence of two carbonyl groups at δC 204.0 (α,β-unsaturated ketone C-3) and δC 178.2 (lactone C-21) and three double bonds] and (C=O)(COO)(=C)2(C)4(=CH)2(CH-O)(CH-OH)(CH)6(CH2)5(CH3)7 = C30H42O4 for 2 [nine degrees of unsaturation: tetracyclic skeleton, the presence of two carbonyl groups at δC 218.0 (ketone C-3) and δC 178.2 (lactone C-21) and two double bonds]. Thus, seven methyl groups and eight non-hydrogenated carbon atoms (four sp2 and four sp3) on each compound 1 and 2, revealed clearly the principal differences anticipated by the presence of a double bond between the carbon atoms 1 and 2 of 1 [δC 158.9/δH 7.14 (J = 10.5 Hz, CH-1) and δC 125.4/δH 5.83 (J = 10.5 Hz, CH-2)] and their corresponding absence in 2 suggested by two additional methylene signals [δC 38;5 (CH2-1) and 32.2 (CH2-2)]. The signals corresponding to methine carbons linked to an oxygen atom HOCH-7 were observed at δC 72.1/δH 3.98 (d, J = 11.7 Hz, 1) and 71.6/δH 3.98 (d, J = 11.7 Hz. 2), using a value of J = 11.7 Hz (axial-axial interaction) to locate the hydroxyl group at OH as equatorial (1a and 2a) and HMQC spectrum to confirm these deductions by direct heteronuclear (1JHC) correlations. The signals (δC/δH) at δC 75.3/δH 5.19 (brd, J = 8.8 Hz) were attributed to CH-23 of 1 and 2. Analogous results for 1 and 2 were attributed to carbon signals of the double bonds located between C-14 (δC 161.0) and CH-15 [δC 119.6/δH 5.51 (m)] and between CH-24 [δC 122.8/δH 5.05 (m)] and C-25 (δC 140.0). The proposed structures of 1 and 2 were confirmed by analyses of the 2D NMR spectra (HMBC, HMQC and 1H-1H-COSY), shown in Table 1.
The location of a hydroxyl group at CH-7 in both compounds was confirmed by HMBC correlations of the signals corresponding to CH-7 of 1 (δC 72.1/δH 1.04 (3H-30, 3JHC) and 2 (δC 71.6/δH 1.04 (3H-30, 3JHC). The value from the coupling constants (J = 11 7 Hz) corresponding to a vicinal interaction (3JH,H) between the hydrogens H-7 (δH 3.98, d, 11.7 Hz) with H-6ax is consistent with the axial-axial interaction shown in 1/1a and 2/2a. The significant differences between 1 and 2 can be attributed to the presence of the one more endocyclic (J = 10.5 Hz, cis) double bond in the ring-A (CH-1/CH-2) of 1. The protolimonoids 1 and 2 were named lepidotrichilin A (1) and lepidotrichilin B (2, 1,2-dihydro-lepidotrichilin A).
The compounds 3, 4 and 5 were obtained as colorless crystals, their 13C-NMR spectra showed 30 carbon signals. The compounds 3, 4 and 5 were identified as 21,23-epoxy-7α-21α-dihydroxy-apotirucalla-14,24-dien-3-one, and 21,23-epoxy-7α-21β-dihydroxyapotiru-calla-14,24-dien-3-one previously isolated from Luvunga sarmentosa [10] and dysorane D isolated from Dysoxylum roseum [11].
The protolimonoid 6 was obtained as purple crystals. The molecular weight was deduced from a molecular ion peak at m/z 438.3498 allowing the assignment of the molecular formula C30H46O2. The IR spectrum of compound 6 showed absorptions at 1,732 cm−1, attributed to a carbonyl group (C-3), 800, 959, 1053 and 1,377 cm−1, attributed to a stretch of the C-O bonds in the ether function. It revealed the presence of one carbonyl functionality at δC 217.1 (C-3), seven methyl groups, nine methylene groups (CH2), seven methine groups (CH) including a carbon linked to an oxygen atom at (CH-23) δC 74.7/δH 4.61 (dt, J = 8.5 and 6.3 Hz) and seven nonhydrogenated carbons (C): four sp3 and three sp2. This compound have two double bonds between δC 118.3 (CH-7) and δC 145.7 (C-8); δC 127.0 (CH-24) and δC 135.3 (C-25). The protolimonoid 6 was identified as deoxyflindissone previously isolated from Cornus walteri [12] and synthesized by reduction of flindissol with lithium aluminum hydride following the oxidation of the deoxyflindissol [13]. Compounds 7, 8 and 9 were were identified as β-sitosterol (7), stigmasterol (8) [14] and scopoletin (9) by comparison of their 1H- and 13C-NMR and GC/MS spectra with data from the literature [15].
Cellular viability after treatment with purified compounds and plant extracts was evaluated by MTT metabolization. Reduction in cell viability in both cell lineage submitted to treatment to all extract and isolated compounds were shown on Figure S16 (see the Supplementary Material) and summarized in Table 2. In all cell viability experiments DMSO was used as a normal cell culture control and meaningless cell death was observed, therefore those controls treatments were depicted as 100% of cell viability compared to the cell culture treated with compounds and extracts. Concerning cell death control 15 µgmL−1 of cisplatin was used to treat the cells and 90% of cell death was observed. Based on both leukemia cell viability analyses, our data suggest that protolimonoid 6 would be more active than the protolimonoid compounds 1 and 2.
Our results are in agreement with the activity limonoids isolated from Citrus [8], which were able to reduce viability of neuroblastoma cell line SH-SY5Y. In contrast to our data, the limonoids isolated from Toona ciliata var. pubescens [16] were inactive or had weak activity on cancer and non-cancer cell line, but were able to inhibit CDC25B dual specificity phosphatase. Altogether, these data suggest a range of biological activity associated with a variety of limonoids molecules structures. Table 2 lists the IC50 values for cellular viability and LDH release. Analysis of the IC50 values shows that the isolated protolimonoid 6 was more efficient at inducing cellular cytotoxicity than the new protolimonoids 1 and 2.
Table 2. IC50 determination for cellular viability and LDH release.
Table 2. IC50 determination for cellular viability and LDH release.
U937-IC50 (µgmL−1)MOLT4-IC50 (µgmL−1)
Extract/CompoundViability-MTTLDH-ReleaseViability-MTTLDH-Release
1 and 248.0681.442.7315.0
6≤9.332.8≤9.319.8
Methanol extract61.4528.347.4472.7
Hexane extract<62.5<62.5<62.588.2
The lower IC50 value 9.3 µgmL−1 was observed for protolimonoid 6 for both cells line U937 and MOLT-4. Among the T. lepidota extracts the hexane ones were more efficient than the methanol ones. Comparing the values of IC50 for LDH release and cellular cytotoxicity we can observe that the sample concentration to induce LDH release was much higher than the sample concentration to induce cytotoxicity. Those data suggested that cell death occurred by apoptosis. Other studies on limonoids showed that these compounds were able to reduce cell viability and induce apoptosis in some cancer cells. Tian et al. showed that four isolated limonoids from Citrus reticulata induced cell death by apoptosis in breast cancer cell line (MCF-7) [17]. Additionally neuroblastoma cell culture was shown to die by apoptosis when incubated with limonoids isolated from Citrus [8].

3. Experimental

3.1. General Procedures

The IR spectrum was measured on a Shimadzu IR affinity spectrometer. 1H- and 13C-NMR, APT-NMR and 2D-NMR spectra (1H-1H-COSY, HMQC and HMBC) were recorded on a Jeol Eclipse-400 (400 MHz for 1H and 100 MHz for 13C), using CDCl3 as the solvent. High resolution electrospray ionization mass spectra (HRESIMS) were acquired using a LCMS-IT-TOF (Shimadzu) spectrometer, at the Departmento de Química Orgânica e Inorgânica, UFC, Fortaleza, Ceará, Brazil.

3.2. Plant Material

The leaves (1.9 kg) and wood (2.4 kg) of T. lepidota subsp. schumanniana (Harms) T. D. Pennington were collected in November 2006 at Vale Doce Forest Reserve, Linhares City, Espírito Santo State, Brazil. A voucher specimen (CVRD 8743) is deposited at Vale Doce Forest Reserve herbarium, Linhares, Espírito Santo State, Brazil.

3.3. Extraction and Isolation

The leaves (1.9 Kg) were dried, powdered and extracted consecutively with hexane (3 L) and methanol (3 L) for three time and ambient temperature. The hexane extract of T. lepidota leaves (24.8 g) was subjected to chromatography on silica gel 60G (63-200 µm, Merck), using a gradient of hexane-ethyl acetate. Initially 100% hexane was used, and then the composition was changed to 100% ethyl acetate in 5% increments, affording 13 fractions. The fraction 3 (1.32 g) was rechomatographed (hexane-ethyl acetate) affording 10 fractions. The fraction 3.4 (99.0 mg) was subjected to preparative chromatography, eluted with an ethyl acetate-hexane mixture (35:75, v/v), affording protolimonoid 6 (14.8 mg). Fraction 4 (3.17 g) after column chromatography using a gradient of hexane-ethyl acetate (initially 90% hexane was used, and then the composition was changed to 100% ethyl acetate in 5% increments), affording a mixture of steroids 7 and 8 (923.0 mg). Fraction 8 (1.70 g) after column chromatography using a gradient of hexane-ethyl acetate (initially 90% hexane was used, and then the composition was changed to 100% ethyl acetate in 5% increments), affording 11 fractions. The crystals of fraction 8.6 were collected affording protolimonoids 3, 4 and 5 (79.3 mg). Fraction 10 (1.09 g) after column chromatography using a gradient of CH2Cl2-MeOH (initially 90% CH2Cl2 was used, and then the composition was changed to 100% dichloromethane in 1% increments, and then CH2Cl2-MeOH (9:1, v/v)) affording six fractions. The fraction 10.2 (97.8 mg) after column chromatography using a gradient of hexane-ethyl acetate (initially 90% hexane was used, and then the composition was changed to 100% ethyl acetate in 5% increments) affording a mixture a new protolimonoids 1 (37.2%) and 2 (62.8%; 14.3 mg in total).
The methanol extract of T. lepidota leaves (17.35 g) was fractionated on silica gel 60G (63-200 µm, Merck), using a gradient of CH2Cl2-MeOH. Initially 100% dichloromethane was used, and then the composition was changed to 5% methanol in 1% increments affording eight fractions. Fraction 8.4 affording a mixture of steroids 7 and 8 (392.7 mg). Fraction 8.5 (609.2 mg) was subjected to chromatography on silica gel 60G (63-200 µm, Merck), using a gradient of CH2Cl2-MeOH, mixed with activated charcoal. Initially 100% dichloromethane was used, and then the composition was changed to 5% methanol in 1% increments affording the protolimonoid desoxyflindissone 6 (27.7 mg).
The wood (1.5 kg) was dried, powdered and extracted with methanol (3 L) for three time and ambient temperature. The extract of T. lepidota wood (29.47 g) was first submitted to a liquid-liquid partition with H2O-CH2Cl2 (1:3). Part of the dichloromethane fraction (150.0 mg) was fractionated by column chromatography using a gradient of CH2Cl2-MeOH. Initially 100% dichloromethane was used, and then the composition was changed to 5% methanol in 1% increments, affording coumarin 9 (17.4 mg).

3.4. Spectroscopic Data

Lepidotrichilin A (1) + Lepidotrichilin B (2). Obtained as yellow oil. HRESIMS (positive mode) m/z 467.3200 ([M+H]+, calcd. m/z 467.3161) and 489.3021 ([M+Na]+, calcd. m/z 489.2981) 1); m/z 469.3363 ([M+H]+, calcd. m/z 469.3318) and 491.3188 ([M+Na]+, calcd. m/z 491.3137) 2); 1H- and 13C-NMR data, see Table 1.
21,23-Epoxy-7α-21α-dihydroxyapotirucalla-14,24-dien-3-one (3): Obtained as colorless crystals; 13C-NMR δ (ppm): 217.4 (C-3); 46.9 (C-4); 44.0 (C-8); 37.3 (C-10); 46.8 (C-13); 161.9 (C-14); 135.2 (C-25); 46.5 (CH-5); 72.2 (CH-7); 40.9 (CH-9); 119.9 (CH-15); 58.8 (CH-17); 48.2 (CH-20); 90.3 (CH-21); 74.7 (CH-23); 126.6 (CH-24); 38.4 (CH2-1); 33.6 (CH2-2); 24.9 (CH2-6); 16.4 (CH2-11); 33.7 (CH2-12); 35.5 (CH2-16); 38.2 (CH2-22); 19.5 (CH3-18); 14.9 (CH3-19); 18.2 (CH3-26); 25.9 (CH3-27); 26.4 (CH3-28); 21.3 (CH3-29); 27.3 (CH3-30). 1H-NMR δ (ppm): (2.10; m; H-5); (3.96; s; H-7); (2.00; m; H-9); (5.49; s; H-15); (1.65; m; H-17); (2.38; m; H-20); (5.06; m; H-21); (4.62; m; H-23); (5.21; d; J = 8.8 Hz; H-24); (1.48 and 1.76; m; 2H-1); (2.38 and 2.50; m; 2H-2); (1.80 and 1.32; m; 2H-6); (1.60 and 1.54; m; 2H-11); (1.68 and 1.40; m; 2H-12); (2.18; m; 2H-16); (1.70; m; 2H-22); (1.02; s; 3H-18); (1.00; s; 3H-19); (1.69; s; 3H-26); (1.72; s; 3H-27); (1.10; s; 3H-28); (1.05; s; 3H-29); (1.09; s; 3H-30).
21,23-Epoxy-7α-21β-dihydroxyapotirucalla-14,24-dien-3-one (4): Obtained as colorless crystals; 13C-NMR δ (ppm): 217.4 (C-3); 46.9 (C-4); 44.0 (C-8); 37.3 (C-10); 46.8 (C-13); 161.9 (C-14); 135.2 (C-25); 46.5 (CH-5); 72.2 (CH-7); 40.9 (CH-9); 119.9 (CH-15); 58.8 (CH-17); 48.2 (CH-20); 91.6 (CH-21); 74.7 (CH-23); 126.6 (CH-24); 38.4 (CH2-1); 33.6 (CH2-2); 24.9 (CH2-6); 16.4 (CH2-11); 33.7 (CH2-12); 35.5 (CH2-16); 38.2 (CH2-22); 19.5 (CH3-18); 14.9 (CH3-19); 18.2 (CH3-26); 25.9 (CH3-27); 26.4 (CH3-28); 21.3 (CH3-29); 27.3 (CH3-30). 1H-NMR δ (ppm): (2.10; m; H-5); (3.96; s; H-7); (2.00; m; H-9); (5.49; s; H-15); (1.65; m; H-17); (2.38; m; H-20); (5.06; m; H-21); (4.62; m; H-23); (5.21; d; J = 8.8 Hz; H-24); (1.48 and 1.76; m; 2H-1); (2.38 and 2.50; m; 2H-2); (1.80 and 1.32; m; 2H-6); (1.60 and 1.54; m; 2H-11); (1.68 and 1.40; m; 2H-12); (2.18; m; 2H-16); (1.70; m; 2H-22); (1.02; s; 3H-18); (1.00; s; 3H-19); (1.69; s; 3H-26); (1.72; s; 3H-27); (1.10; s; 3H-28); (1.05; s; 3H-29); (1.09; s; 3H-30).
Dysorone D (5): Obtained as colorless crystals; 13C-NMR δ (ppm): 217.4 (C-3); 46.9 (C-4); 44.0 (C-8); 37.3 (C-10); 46.8 (C-13); 161.9 (C-14); 135.2 (C-25); 46.5 (CH-5); 72.2 (CH-7); 40.9 (CH-9); 119.9 (CH-15); 58.8 (CH-17); 40.3 (CH-20); 74.7 (CH-23); 126.6 (CH-24); 38.4 (CH2-1); 33.6 (CH2-2); 24.9 (CH2-6); 16.4 (CH2-11); 33.7 (CH2-12); 35.5 (CH2-16); 72.3 (CH2-21); 38.2 (CH2-22); 19.5 (CH3-18); 14.9 (CH3-19); 18.2 (CH3-26); 25.9 (CH3-27); 26.4 (CH3-28); 21.3 (CH3-29); 27.3 (CH3-30). 1H-NMR δ (ppm): (2.10; m; H-5); (3.96; s; H-7); (2.00; m; H-9); (5.49; s; H-15); (1.65; m; H-17); (2.38; m; H-20); (4.62; m; H-23); (5.21; d; J = 8.8 Hz; H-24); (1.48 and 1.76; m; 2H-1); (2.38 and 2.50; m; 2H-2); (1.80 and 1.32; m; 2H-6); (1.60 and 1.54; m; 2H-11); (1.68 and 1.40; m; 2H-12); (2.18; m; 2H-16); [(4.08; t, J = 7.0 Hz; H-21a); (3.25; td; J = 7.0 and 8.2 Hz; H-21b)]; (1.70; m; 2H-22); (1.02; s; 3H-18); (1.00; s; 3H-19); (1.69; s; 3H-26); (1.72; s; 3H-27); (1.10; s; 3H-28); (1.05; s; 3H-29); (1.09; s; 3H-30).
Deoxyflindissone (6): Purple crystals; m.p. 123 ºC; 13C-NMR δ (ppm): 217.1 (C-3); 48.1 (C-4); 145.7 (C-8); 35.3 (C-10); 43.9 (C-13); 50.9 (C-14); 135.3 (C-25); 51.1 (CH-5); 118.3 (CH-7); 48.5 (CH-9); 52.6 (CH-17); 42.4 (CH-20); 74.7 (CH-23); 127.0 (CH-24); 38.9 (CH2-1); 35.3 (CH2-2); 24.5 (CH2-6); 17.9 (CH2-11); 34.5 (CH2-12); 32.1 (CH2-15); 28.0 (CH2-16); 72.3 (CH2-21); 38.9 (CH2-22); 12.9 (CH3-18); 22.8 (CH3-19); 18.3 (CH3-26); 26.0 (CH3-27); 24.8 (CH3-28); 21.8 (CH3-29); 27.5 (CH3-30). 1H-NMR δ (ppm): (1.68; m; H-5); (5.31; d; J = 3.0 Hz; H-7); (2.32; m; H-9); (1.75; m; H-17); (2.25; m; H-20); (4.61; td; J = 8.5 and 6.3 Hz; H-23); (5.21; d; J = 8.5 Hz; H-24); (1.50 and 2.01; m; 2H-1); [(2.75; ddd; J = 14.1; 9.0 and 5.5 Hz; H-2a); (2.25; m; H-2b)]; (2.30 and 2.10; m; 2H-6); (1.80 and 1.60; m; 2H-11); (1.65 and 1.60; m; 2H-12); (1.70; m; 2H-15); (1.90 and 1.40; m; 2H-16); [(4.00; dd, J = 7.0 and 9.0 Hz; H-21a); (3.24; t; J = 9.0 Hz; H-21b)]; (1.78 and 1.68; m; 2H-22); (1.02; s; 3H-18); (1.12; s; 3H-19); (1.75; brs; 3H-26); (1.69; brs; 3H-27); (1.05; s; 3H-28); (0.83; s; 3H-29); (1.01; s; 3H-30). HR-ESIMS (positive mode) (m/z) 439.3402 [M+H]+ (calcd. 439.3576); 421.3313 [M−H2O+H]+ ((calcd. 4213470); 313.2400 [M−H2O−C8H12+H]+ (calcd. 313.2531); 295.2288 [M−2H2O−C8H12+H]+ (calcd. 295.2425); 403.3233 [M−2H2O+H]+ (calcd. 403.3364).
β-Sitosterol (7): 13C-NMR δ (ppm): 140.8 (C-5); 36.5 (C-10); 42.4 (C-13); 71.8 (CH-3); 121.7 (CH-6); 31.9 (CH-8); 50.2 (CH-9); 56.8 (CH-14); 56.1 (CH-17); 39.8 (CH-20); 45.9 (CH-24); 29.7 (CH-25); 37.3 (CH2-1); 31.9 (CH2-2); 42.4 (CH2-4); 34.0 (CH2-7); 21.1 (CH2-11); 39.8 (CH2-12); 24.3 (CH2-15); 28.9 (CH2-16); 31.9 (CH2-22); 26.2 (CH2-23); 23.1 (CH2-28); 12.0 (CH3-18); 19.4 (CH3-19); 18.8 (CH3-21); 19.8 (CH3-26); 19.8 (CH3-27); 11.9 (CH3-29). LRMS m/z (rel. int.): 414 (100%); 399; 381; 329; 273; 255; 231; 213.
Stigmasterol (8): 13C-NMR δ (ppm): 140.8 (C-5); 36.2 (C-10); 42.4 (C-13); 71.8 (CH-3); 121.7 (CH-6); 31.9 (CH-8); 50.2 (CH-9); 56.8 (CH-14); 56.1 (CH-17); 39.8 (CH-20); 138.3 (CH-22); 129.3 (CH-23); 50.2 (CH-24); 31.7 (CH-25); 37.3 (CH2-1); 31.9 (CH2-2); 42.4 (CH2-4); 34.0 (CH2-7); 21.1 (CH2-11); 39.8 (CH2-12); 24.3 (CH2-15); 28.9 (CH2-16); 25.4 (CH2-28); 12.0 (CH3-18); 19.4 (CH3-19); 19.1 (CH3-21); 21.2 (CH3-26); 19.8 (CH3-27); 12.0 (CH3-29). LRMS m/z (rel. int.): 412 (100%); 394; 273; 255; 231; 213.
Scopoletin (9): white amorphous powder; m.p. 206-207 ºC; 13C-NMR δ (ppm): 161.4 (C-2); 144.0 (C-6); 149.7 (C-7); 150.0 (C-9); 111.5 (C-10); 113.4 (CH-3); 143.3 (CH-4); 107.5 (CH-5); 103.2 (CH-8); 56.4 (OCH3). 1H-NMR δ (ppm): (6.27; d; J = 9.4 Hz; H-3); (7.60; d; J = 9.4 Hz; H-4); (6.85; s; H-5); (6.92; s; H-8); (3.95; s; OCH3). LRMS m/z (rel. int.): 192 (100%); 177 (63%); 164 (30%); 149 (59%); 121 (30%).

3.5. Cell Lines and Culture Conditions

Human Leukemia cells lineages U937 and MOLT-4 were grown in DMEM-12 (Gibco—BRL, Campos dos Goytacazes City, Rio de Janeiro State, Brazil) supplemented with 10% of bovine fetal serum and 20 μgmL−1 of gentamicin. The cultures were split every two or three days in 25 cm2 culture flask and maintained in incubator at 37 °C with 5% of CO2 and controlled humidity.

3.6. Extracts, Isolated Compounds and Treatments

The protolimonoids lepidotrichilin A (1) and B (2) were dissolved in DMSO and 500.0 μg·mL−1 was the highest concentration used for cell culture treatments. Due to the low solubility of the isolated protolimonoid desoxyflindissone (6) and the viscosity of the methanol and hexane extracts, 300 μL of DMSO was added to the each sample, which was homogenized and left standing for 24 h at room temperature. Samples were centrifuged at 11,000 × g for 10 min., then 200 µL of supernatant were collected and submitted to lyophilization. Freeze-dried samples were weighed and diluted in DMSO again. The starting dilution of protolimonoid desoxyflindissone (6) was 150 μg·mL−1, methanol extract 512.5 μg·mL−1 and hexane extract 1000.0 μg·mL−1. Cell viability assay was performed in 96 well plates with 5.0 × 105 cellmL−1. As controls DMSO and cisplatin were included in all experiments.

3.7. Lactate Dehydrogenase Release Assay

Quantification of the enzyme lactate dehydrogenase (LDH) was performed in cell culture supernatants after treatment with the isolated compounds and plant extracts after the period of 48 hours of incubation at 37 °C. The enzyme LDH release was measured by the colorimetric assay from Doles (DLH Doles, Campos dos Goytacazes City, Brazil) according to the manufacturer's recommendation. For negative control, cells were treated with DMSO and positive control Triton was added to the culture. Optical density of the samples was measured in multichannel spectrophotometer with wavelength adjusted for 492 nm.

3.8. MTT Assay

Cell viability was determined by a 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) assay. MTT (5.0 mg·mL−1, 20 μL·well−1) was added to the cell culture after 48 h of treatments with different samples and incubated for 4 h at 37 °C. After incubation, 150 μL of medium from each one well was discarded and the purple crystals of MTT were dissolved by adding 100 μL of isopropanol solution with 0.0014% of HCl. After vigorous agitation the optical density of the samples was measured in multichannel spectrophotometer with wavelength adjusted for 570 nm. For negative and positive control cells were treated with DMSO and Triton, respectively.

3.9. Statistical Analyses

Data analysis was performed with GraphPad Prism Version 5.0 software with ANOVA and the powder-test of Tukey. The IC50 was calculated through the Non-linear regression test.

4. Conclusions

The hexane extract from the fruits of T. lepidota provided six protolimonoids 16, two steroids 78 and one coumarin 9 which were isolated in a previous phytochemical investigation. The protolimonoids named lepidotrichilin A (1) and B (2) are described for the first time in the literature. The hexane and methanol extracts of the leaves, the protolimonoids lepidotrichilins A (1) and B (2) (IC50 42.7 µg·mL−1) and the protolimonoid deoxyflindissone (6; IC50 9.3 µg·mL−1) exhibited significant cytotoxic activity against the MOLT-4 and U937 leukemic cell lines.

Supplementary Materials

Supplementary materials can be accessed at: https://www.mdpi.com/1420-3049/18/10/12180/s1.

Acknowledgments

The authors are grateful to Fundação Carlos Chagas Filho de Amparo à Pesquisa do Rio de Janeiro (FAPERJ), Consenho Nacional de Desenvolvimento Científico e Tecnológico (CNPq) and Coordenação de Aperfeiçoamento de Pessoal de Nível Superior (CAPES) for scholarships and financial support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Patrício, P.C.; Cervi, A.C. The genus Trichilia P. Browne (Meliaceae) in the State of Paraná, Brazil. Acta Biol. Par. 2005, 34, 27–71. [Google Scholar]
  2. Vieira, I.J.C.; Figueiredo, E.R.; Freitas, V.R.; Mathias, L.; Braz-Filho, R.; Araújo, R.M. A New Sesquiterpene from Trichilia casarettii (Meliaceae). Am. J. Anal. Chem. 2010, 2, 70–72. [Google Scholar]
  3. Ramírez, M.C.; Toscano, R.A.; Arnason, J.; Omar, S.; Cerda-García-Rojas, C.M.; Mata, R. Structure, conformation and absolute configuration of new antifeedant dolabellanes from Trichilia trifolia. Tetrahedron 2000, 56, 5085–5091. [Google Scholar]
  4. Pupo, M.T.; Adorno, A.T.; Vieira, P.C.; Fernandes, J.B.; Silva, M.F.G.F.; Pirani, J.R.J. Terpenoids and steroids from Trichilia species. J. Braz. Chem. Soc. 2002, 13, 382–388. [Google Scholar] [CrossRef]
  5. Simmonds, M.S.J.; Stevenson, P.C.; Porter, E.A.; Veitch, N.C. Insect antifeedant activity of three tetranortriterpenoids from Trichilia pallida. J. Nat. Prod. 2001, 64, 1117–1120. [Google Scholar] [CrossRef]
  6. Pupo, M.T.; Vieira, P.C.; Fernandes, J.B.; Silva, M.F.G.F.; Rodrigues-Filho, E. Androstane and pregnane 2β,19-hemiketal steroids from Trichilia claussenii. Phytochemistry 1997, 45, 1495–1500. [Google Scholar]
  7. Ntalli, N.G.; Cottiglia, F.; Bueno, C.A.; Alché, L.E.; Leonti, M.; Vargiu, S.; Bifulco, E.; Menkissoglu-Spiroudi, U.; Caboni, P. Cytotoxic Tirucallane Triterpenoids from Melia azedarach Fruits. Molecules 2010, 15, 5866–5877. [Google Scholar] [CrossRef]
  8. Poulose, S.M.; Harris, E.D.; Patil, B.S. Citrus limonoids induce apoptosis in human neuroblastoma cells and have radical scavenging activity. J. Nutr. 2005, 135, 870–877. [Google Scholar]
  9. Rodrigues-Filho, E.; Fernandes, J.B.; Vieira, P.C.; Silva, M.F.; das, G.F.; Zukerman-Schpector, J.; Lima, R.M.O.C.; Nascimento, S.C.; Thomas, W. Protolimonoids and quassinoids from Picrolemma granatensis. Phytochemistry 1996, 43, 857–862. [Google Scholar]
  10. Kamperdick, C.; Lien, T.P.; Adam, G.; Sung, T.V. Apotirucallane and tirucallane triterpenoids from Luvunga sarmentosa. J. Nat. Prod. 2003, 66, 675–678. [Google Scholar] [CrossRef]
  11. Adesanya, S.A.; Pais, M.; Sévenet, T. Apoticucallane triterpene from Dysoxylum roseum. J. Nat. Prod. 1991, 54, 1588–1594. [Google Scholar] [CrossRef]
  12. Kim, K.H.; Choi, S.U.; Kim, Y.C.; Lee, K.R. Tirucallane triterpenoids from Cornus walteri. J. Nat. Prod. 2011, 74, 54–59. [Google Scholar] [CrossRef]
  13. Birch, A.J.; Collins, D.J.; Muhammad, S.; Turnbull, J.P. The structure of flindissol. Some remarks on the elemi acids. J. Chem. Soc. 1963, 2762–2772. [Google Scholar]
  14. Correia, S.J.; David, J.P.; David, J.M. Constituintes das Cascas de Tapirira guianensis (Anacardiaceae). Quim. Nova 2003, 26, 36–38. [Google Scholar] [CrossRef]
  15. Razdan, T.K.; Qadri, B.; Harkar, S.; Waight, E.S. Lupene derivatives from Skimmia laureola. Phytochemistry 1988, 26, 1890–1892. [Google Scholar]
  16. Wang, J.R.; Liu, H.L.; Kurtán, T.; Mándi, A.; Antus, S.; Li, J.; Zhang, H.Y.; Guo, Y.W. Protolimonoids and norlimonoids from the stem bark of Toona ciliata var. pubescens. Org. Biomol. Chem. 2011, 9, 7685–7695. [Google Scholar] [CrossRef]
  17. Tian, Q.; Miller, E.G.; Ahmad, H.; Tang, L.; Patil, B. S. Differential inhibition of human cancer cell proliferation by Citrus limonoids. Nutr. Cancer 2011, 40, 180–184. [Google Scholar]
  • Sample Availability: Samples of the compounds 19 are available from the authors.
