Synthesis and Biological Activity of 23-Hydroxybetulinic Acid C-28 Ester Derivatives as Antitumor Agent Candidates

Abstract

23-Hydroxybetulinic acid (1) served as the precursor for the synthesis of C-28 ester derivatives. The target compounds were evaluated in vitro for their antitumor activities against five cell lines (A549, BEL-7402, SF-763, B16 and HL-60). Among the obtained compounds, 6i had the most potent antitumor activity, with the IC₅₀ values of 8.35 µM in HL-60 cells and showed similar antitumor activity as cyclophosphamide in H22 liver tumor and as 5-fluorouracil in B16 melanoma in vivo.

1. Introduction

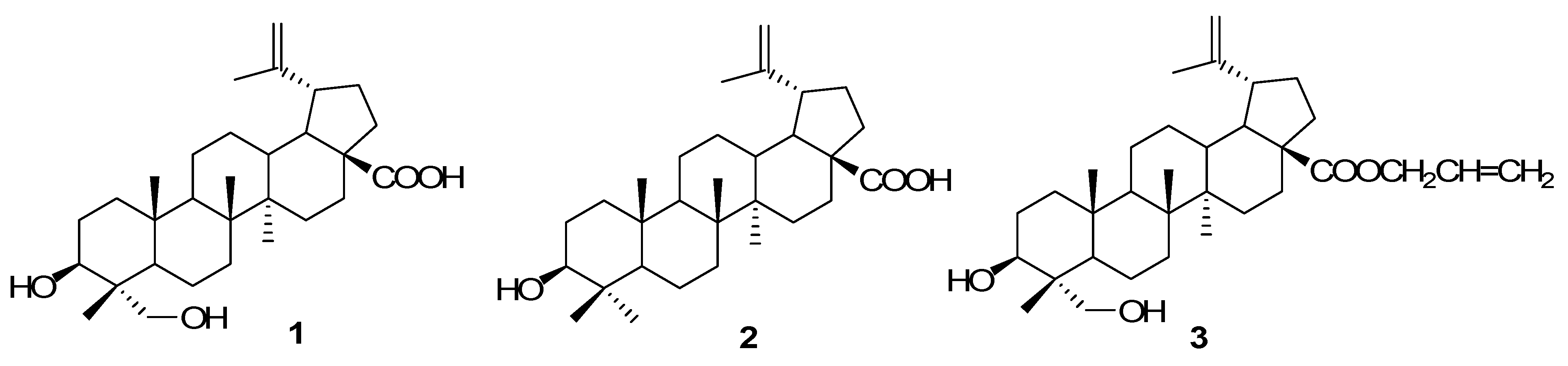

23-Hydroxybetulinic acid (1, Figure 1) and betulinic acid (2, Figure 1) are well-known members of the class of pentacyclic triterpenes [1,2]. Many biological activities of betulinic acid have been reported, such as antitumor, antiviral, antioxidant and so on [3,4,5,6,7,8,9]. As a good lead compound, betulinic acid showed potent antitumor activity in a series of cell lines and the mechanism of this action might be related to its effects on the proliferation, migration, cell cycle and apoptosis of tumor cells [3,4,5,6,7,8,9].

The chemical structure of 23-hydroxybetulinic acid is similar to that of betulinic acid, and they also have the similar pharmaceutical activities [10]. In our previous study, many derivatives of 23-hydroxy- betulinic acid showed antitumor activity in different cell lines in vitro and compound 3 (Figure 1) displayed stronger antitumor activity in mice H22 and B16 than betulinic acid or 23-hydroxybetulinic acid [11]. It was shown that the polarity and length of the chain in C-28 had an important impact on the antitumor activity. These results motivated us to undertake further modifications of the 28-carboxylic acid moiety of lead compound 1. In this paper, we wish to report a series of 28-carboxylic acid modified 23-hydroxybetulinic acid ester derivatives and their antitumor activity. The preliminary structure-activity relationships are also discussed.

2. Results and Discussion

2.1. Chemistry

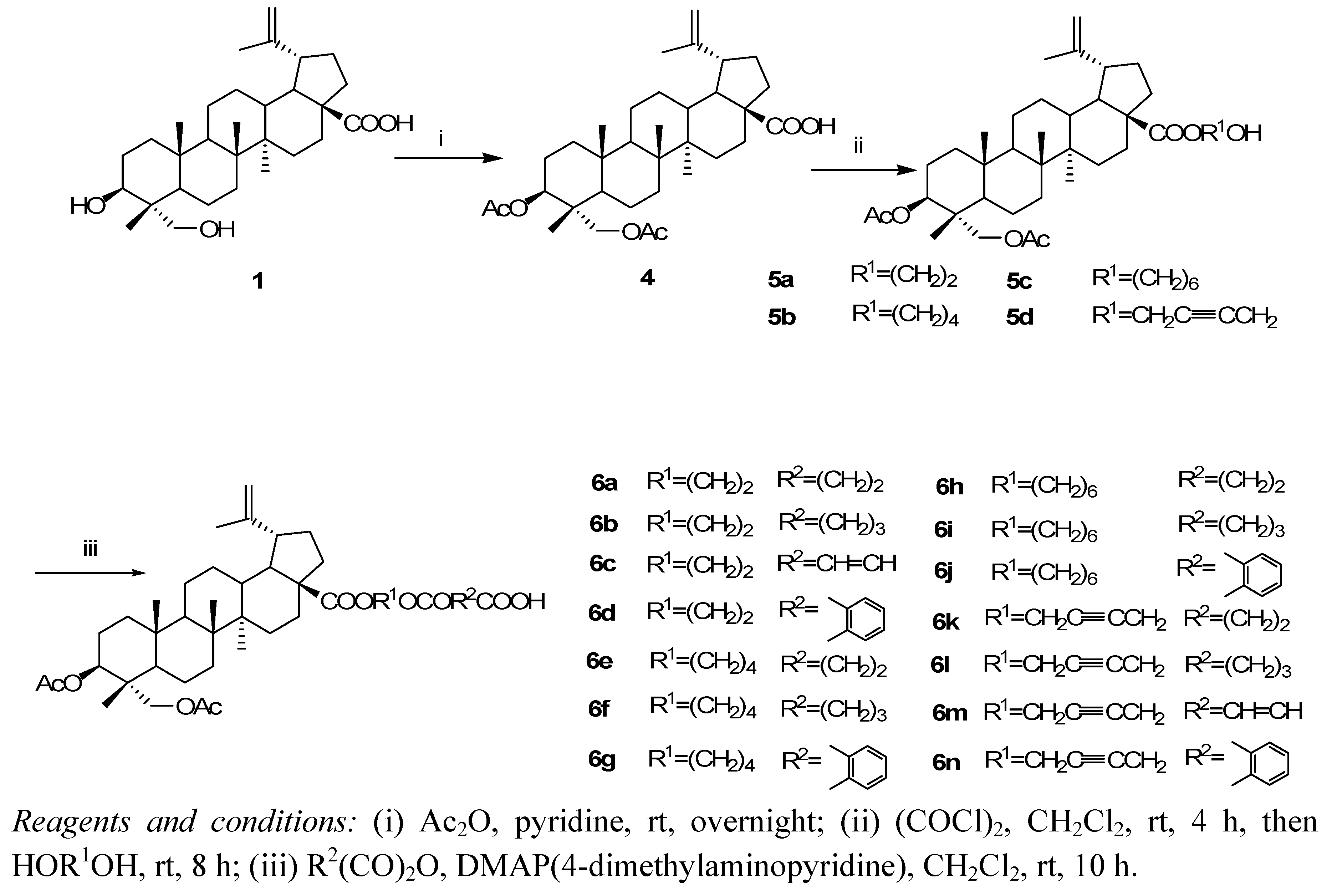

For the synthetic experiments, the starting material 23-hydroxybetulinic acid (1) was isolated from the root of Pulsatilla chinensis. As described in Scheme 1, several derivatives of 23-hydroxybetulinic acid were synthesized. Compounds 5a–d were readily prepared in two steps starting from compound 1. Treatment of 5a–d with anhydrides R₂(CO)₂O, such as succinic anhydride, glutaric anhydride, maleic anhydride and phthalic anhydride, in the presence of DMAP in CH₂Cl₂ gave compounds 6a–n in the yields of 53%–76%.

2.2. Biological Studies

The MTT (3-(4,5)dimethylthiahiazo (-z-y1) -3,5- diphenyltetrazoliumromide) assay results (

Table 1. The cytotoxicity data of 23-hydroxybetulinic acid and its derivatives [IC₅₀ (μmol/L) ± SD].

Compound	Cell line
	A549	BEL-7402	SF-763	B16	HL-60
HBA	81.36 ± 3.54	89.81 ± 7.32	90.09 ± 8.31	75.64 ± 8.55	80.54 ± 9.13
BA	89.62 ± 11.23	52.51 ± 2.55	78.89 ± 9.24	50.09 ± 7.32	76.77 ± 10.58
6a	34.12 ± 11.10	43.06 ± 9.71	42.45 ± 12.11	31.04 ± 9.48	22.85 ± 9.04
6b	35.18 ± 15.42	48.90 ± 11.56	51.05 ± 9.75	46.06 ± 1.56	35.37 ± 14.35
6c	27.12 ± 9.84	36.81 ± 12.05	43.67 ± 15.70	32.15 ± 4.02	28.63 ± 9.31
6d	68.48 ± 13.10	59.37 ± 9.57	63.51 ± 8.92	51.57 ± 8.10	49.18 ± 10.48
6e	31.36 ± 19.04	22.06 ± 11.75	34.04 ± 9.11	29.12 ± 7.27	14.80 ± 7.91
6f	12.35 ± 1.80	17.08 ± 5.09	19.52 ± 9.01	15.22 ± 8.67	12.94 ± 6.55
6g	69.82 ± 8.14	57.81 ± 15.85	73.10 ± 15.02	72.13 ± 2.52	52.73 ± 10.24
6h	15.80 ± 6.51	28.78 ± 9.12	21.84 ± 3.41	19.09 ± 6.42	10.03 ± 1.76
6i	10.02 ± 5.04	11.15 ± 9.34	12.32 ± 6.10	14.05 ± 2.97	8.35 ± 4.28
6j	62.72 ± 5.03	59.25 ± 10.84	49.61 ± 12.46	40.43 ± 10.06	39.66 ± 9.75
6k	57.09 ± 16.13	69.09 ± 7.55	53.74 ± 9.82	43.48 ± 9.77	37.09 ± 14.63
6l	40.86 ± 8.44	55.62 ± 9.02	42.88 ± 10.39	35.70 ± 15.12	30.53 ± 8.34
6m	51.71 ± 10.05	68.13 ± 5.89	55.43 ± 13.74	46.56 ± 11.84	47.61 ± 2.45
6n	60.16 ± 9.58	76.92 ± 12.70	66.75 ± 16.83	50.40 ± 15.22	56.23 ± 14.91

BA: betulinic acid, HBA: 23-hydroxybetulic acid; data is mean of three experiments.

) showed that most of the 23-hydroxybetulinic acid derivatives displayed better cytotoxic activities against the tested cells than betulinic acid and 23-hydroxybetulinic acid, especially compounds 6f, 6h, and 6i with IC₅₀ values ranging from 8.35 to 28.78 μM. As the assay results showed, C-28 ester derivatives with carboxylic acid substituents at the end of the C-28 side chain and whose C-28 side chain had appropriate length and flexibility exhibited stronger cytotoxicity. The activities of compounds 6k–n were weaker compared with 6f, 6h and 6i. It was possible due to the alkyne group in the C-28 side chain blocking the bending and rotation of the compounds.

Compound 6i was chosen to evaluated its antitumor activities in mice in vivo based on its significant efficiency in vitro. As illustrated in

Table 2. The cytoxicity data of 23-hydroxybetulinic acid and its derivative 6i in mice H22 in vivo.

Drugs	Dose	Injection	Number of mice		Weight of mice (g)		Weight of tumor X ± SD (g)	Ratio of inhibition (%)	P value
			Start	End	Start	End
Normal saline	0.4 mL/mouse	iv	10	10	18.8 ± 1.1	25.3 ± 1.2	1.70 ± 0.45
CP	30 mg/kg	iv	10	10	18.4 ± 1.2	25.2 ± 1.6	0.71 ± 0.27	58.2	<0.01
HBA	25 mg/kg	ip	10	10	18.5 ± 1.6	26.1 ± 1.5	1.31 ± 0.75	22.9	>0.05
6i	25 mg/kg	ip	10	10	18.3 ± 0.9	25.7 ± 1.4	0.75 ± 0.63	55.9	<0.01

CP – cyclophosphamide; HBA – 23-hydroxybetulinic acid.

and

Table 3. The cytoxicity data of 23-hydroxybetulinic acid and its derivative 6i in mice B16 in vivo.

Drugs	Dose	Injection	Number of mice		Weight of mice (g)		Weight of tumor X ± SD (g)	Ratio of inhibition (%)	P value
			Start	End	Start	End
Normal Saline	0.4 mL/mouse	iv	10	10	18.9 ± 2.1	23.8 ± 1.6	1.96 ± 0.52
5-FU	25 mg/kg	iv	10	10	19.4 ± 1.8	23.2 ± 1.8	0.59 ± 0.31	69.9	<0.01
HBA	25 mg/kg	ip	10	10	19.1 ± 1.7	24.2 ± 1.7	1.59 ± 0.44	18.9	>0.05
6i	25 mg/kg	ip	10	10	18.9 ± 1.4	24.7 ± 1.1	0.81 ± 0.21	58.7	<0.01

5-FU – 5-fluorouracil; HBA – 23-hydroxybetulinic acid.

, in H22 mice, compound 6i exhibited stronger activity than 23-hydroxybetulinic acid and comparable activity to cyclophosphamide, which was used as a positive control. In the B16 group, compound 6i also showed more potent activity than 23-hydroxybetulinic acid but somewhat weaker than 5-fluorouracil.

3. Experimental

3.1. Synthesis

3.1.1. General

Melting points were obtained on a MEL-TEMP II melting-point apparatus and are uncorrected. IR were recorded on Nicolet Impact 410 or Bruker FT-IR TENSOR27 instruments. ¹H-NMR spectra were recorded on a Bruker-ACF-300 (chemical shifts are expressed as values relative to TMS as internal standard). HR-MS were obtained using a Agilent QTOF 6520 instrument.

3.1.2. General Procedure for the Synthesis of 6a–n

Ac₂O (0.15 mL, 1.5 mmol) was added to a solution of 23-hydroxybetulinic acid (1, 120.0 mg, 0.25 mmol) in dry pyridine (5 mL). The mixture was stirred overnight at room temperature. After adding acetic ether (10 mL), the mixture was washed with 9% HCl (20 mL × 3) and brine (20 mL × 3), dried over anhydrous Na₂SO₄, filtered, and evaporated to dryness. The residue was purified by crystallization from ethyl acetate to afford the desired compound 4 as yellow powder (136.0 mg, 98%). (COCl)₂ (0.1 mL) was added to a solution of 4 (100.0 mg, 0.18 mmol) in dry CH₂Cl₂ (10 mL). The mixture was stirred for 4 h at room temperature and evaporated to dryness. Immediately, the corresponding alcohol (5 equiv.) and CH₂Cl₂ (10 mL) were added and the mixture allowed to stir for 8vh at room temperature, evaporated to dryness and purified by column chromatography on silica gel, eluted with an mixture of petroleum ether/ethyl acetate to give compounds 5a–d. The corresponding R₂(CO)₂O (4 equiv.) was added to a solution of compounds 5a–d in CH₂Cl₂ (10 mL) in the presence of DMAP (1.5 equiv.). The mixture was stirred for 10 h at room temperature and washed with 9% HCl (20 mL × 2), H₂O (20 mL × 2), brine (20 mL × 2), dried over anhydrous Na₂SO₄, filtered, and concentrated to dryness. The residue was purified by column chromatography on silica gel to afford compounds 6a–n.

Butanedioic acid, 1-[2-[(3β,23-diacetoxylup-20(29)-en-28-oyl)oxy]ethyl] ester (6a). From 1,2-ethanediol (56.0 mg, 0.9 mmol) and succinic anhydride (55.0 mg, 0.55 mmol); column chromatography with petroleum ether/ethyl acetate/acetic acid = 50:50:1 (v:v:v). Yield: 73.0 mg (76%) as a yellow solid, mp 68 °C–70 °C; IR (KBr, cm⁻¹) ν 3429, 2985, 2947, 2872, 1738, 1731, 1649, 1453, 1370, 1246, 1151, 1039, 881; ¹H-NMR (CDCl₃, 300 MHz) δ 0.80, 0.88, 0.91, 0.96, 1.68 (3H each, s, 24, 25, 26, 27, 30-CH₃), 2.02, 2.06 (3H each, s, 3 and 23-OCOCH₃), 2.67 (4H, m, 28-COOCH₂CH₂O COCH₂CH₂), 2.99 (1H, m, 19-CH), 3.68 (1H, d, J = 11.9 Hz, 23-CH₂), 3.84 (1H, d, J = 11.9 Hz, 23-CH₂), 4.29 (4H, m, 17-COOCH₂CH₂), 4.61 (1H, s, 29=CH₂), 4.72 (1H, s, 29=CH₂), 4.74 (1H, m, 3-CH); HR-MS (ESI, M+H) m/z: calcd for C₄₀H₆₁O₁₀ 701.4108, found 701.4104.

Pentanedioic acid, 1-[2-[(3β,23-diacetoxylup-20(29)-en-28-oyl)oxy]ethyl] ester (6b). From 1,2-ethanediol (56.0 mg, 0.9 mmol) and glutaric anhydride (63.0 mg, 0.55 mmol); column chromatography with petroleum ether/ethyl acetate/acetic acid = 50:50:1 (v:v:v). Yield: 71.0 mg (73%) as a yellow oil; IR (KBr, cm⁻¹) ν 3457, 2948, 2873, 1738, 1711, 1642, 1451, 1375, 1245, 1153, 1039, 885, 756; ¹H-NMR (CDCl₃, 300 MHz) δ 0.80, 0.87, 0.91, 0.96, 1.68 (3H each, s, 24, 25, 26, 27, 30-CH₃), 2.01, 2.06 (3H each, s, 3 and 23-OCOCH₃), 2.43 (4H, m, 28-COOCH₂CH₂OCOCHCH₂), 2.98 (1H, m, 19-CH), 3.68 (1H, d, J = 11.6 Hz, 23-CH₂), 3.85 (1H, d, J = 11.6 Hz, 23-CH₂), 4.29 (4H, m, 17-COOCH₂CH₂), 4.60 (1H, s, 29=CH₂), 4.72 (1H, s, 29=CH₂), 4.75 (1H, m, 3-CH); HR-MS (ESI, M+H) m/z: calcd for C₄₁H₆₃O₁₀ 715.4265, found 715.4262.

Butylenedioic acid, 1-[2-[(3β,23-diacetoxylup-20(29)-en-28-oyl)oxy]ethyl] ester (6c). From 1,2-ethanediol (56.0 mg, 0.9 mmol) and maleic anhydride (54.0 mg, 0.55 mmol); column chromatography with petroleum ether/ethyl acetate = 1:1 (v:v). Yield: 59.0 mg (62%) as a white solid; mp 68 -70 °C; IR (KBr, cm⁻¹) ν 3458, 3418, 2945, 2869, 1732, 1640, 1452, 1375, 1245, 1155, 1038, 758; ¹H-NMR (CDCl₃, 300 MHz) δ 0.80, 0.87, 0.91, 0.96, 1.68 (3H each, s, 24, 25, 26, 27, 30-CH₃), 2.01, 2.06 (3H each, s, 3 and 23-OCOCH₃), 2.95 (1H, m, 19-CH), 3.69(1H, d, J = 11.3 Hz, 23-CH₂), 3.83 (1H, d, J = 11.3 Hz, 23-CH₂), 4.36 (2H, m, 17-COOCH₂CH₂), 4.44 (2H, m, 17-COOCH₂CH₂), 4.61 (1H, s, 29=CH₂), 4.72 (1H, s, 29=CH₂), 4.76 (1H, m, 3-CH), 6.36(1H, d, J = 12.8 Hz, 28-COOCH₂CH₂OCOCH=CH), 6.50 (1H, d, J = 12.8 Hz, 28-COOCH₂CH₂OCOCH=CH). HR-MS (ESI, M+H) m/z: calcd for C₄₀H₅₉O₁₀ 699.3952, found 699.3959.

1,2-Xylenedioic acid, 1-[2-[(3β,23-diacetoxylup-20(29)-en-28-oyl)oxy]ethyl] ester (6d). From 1,2-ethanediol (56.0 mg, 0.9 mmol) and phthalic anhydride (81.0 mg, 0.55 mmol); column chromatography with petroleum ether/ethyl acetate/acetic acid = 50:50:1 (v:v:v). Yield: 75.0 mg (73%) as a white solid, mp 70 °C–72 °C; IR (KBr, cm⁻¹) ν 3450, 2947, 2871, 1731, 1635, 1448, 1380, 1248, 1128, 1038, 883, 743; ¹H-NMR (CDCl₃, 300 MHz) δ 0.79, 0.82, 0.89, 0.92, 1.65 (3H each, s, 24, 25, 26, 27, 30-CH₃), 2.01, 2.06 (3H each, s, 3 and 23-OCOCH₃), 2.97 (1H, m, 19-CH), 3.68 (1H, d, J = 11.6 Hz, 23-CH₂), 3.83 (1H, d, J = 11.6 Hz, 23-CH₂), 4.58 (7H, m, 29 = CH2, 3-CH and 17-COOCH₂CH₂), 7.70 (4H, m, 17-COOCH₂CH₂OCOC₆H₄COOH); HR-MS (ESI, M+H) m/z: calcd for C₄₄H₆₁O₁₀ 749.4108, found 749.4111.

Butanedioic acid, 1-[4-[(3β,23-diacetoxylup-20(29)-en-28-oyl)oxy]ethyl] ester (6e). From 1,4-butanediol (81.0 mg, 0.9 mmol) and succinic anhydride (44.0 mg, 0.44 mmol); column chromatography with petroleum ether/ethyl acetate/acetic acid = 50:50:1 (v:v:v). Yield: 56.0 mg (70%) as a yellow oil; IR (KBr, cm⁻¹) ν 3488, 3422, 2923, 2854, 1738, 1641, 1461, 1377, 1245, 1157, 1037, 974, 883; ¹H-NMR (CDCl₃, 300 MHz) δ 0.80, 0.88, 0.91, 0.96, 1.68 (3H each, s, 24, 25, 26, 27, 30-CH₃), 2.01, 2.06 (3H each, s, 3 and 23-OCOCH₃), 2.65 (4H, m, 28-COOCH₂(CH₂)₂CH₂OCOCH₂CH₂), 2.99 (1H, m, 19-CH), 3.68 (1H, d, J = 11.7 Hz, 23-CH₂), 3.84 (1H, d, J = 11.7 Hz, 23-CH₂), 4.13 (4H, m, 17-COOCH₂(CH₂)₂CH₂), 4.60 (1H, s, 29=CH₂), 4.72 (1H, s, 29=CH₂), 4.74 (1H, m, 3-CH); HR-MS (ESI, M+H) m/z: calcd for C₄₂H₆₅O₁₀ 729.4421, found 729.4428.

Pentanedioic acid, 1-[4-[(3β,23-diacetoxylup-20(29)-en-28-oyl)oxy]ethyl] ester (6f). From 1,4-butanediol (81.0 mg, 0.9 mmol) and glutaric anhydride (50.0 mg, 0.44 mmol); column chromatography with petroleum ether/ethyl acetate/acetic acid = 50:50:1 (v:v:v). Yield: 55.0 mg (67%) as a yellow oil; IR (KBr, cm⁻¹) ν 3425, 2947, 2871, 1735, 1641, 1451, 1384, 1244, 1155, 1036, 975; ¹H-NMR (CDCl₃, 300 MHz) δ 0.80, 0.87, 0.91, 0.96, 1.70 (3H each, s, 24, 25, 26, 27, 30-CH₃), 2.01, 2.06 (3H each, s, 3 and 23-OCOCH₃), 2.43 (4H, m, 28-COOCH₂(CH₂)₂CH₂OCOCH₂CH₂CH₂), 2.99 (1H, m, 19-CH), 3.68 (1H, d, J = 12.3 Hz, 23-CH₂), 3.85 (1H, d, J = 12.3 Hz, 23-CH₂), 4.10 (4H, m, 28-COOCH₂(CH₂)₂CH₂), 4.60 (1H, s, 29=CH₂), 4.73 (1H, s, 29=CH₂), 4.76 (1H, m, 3-CH); HR-MS (ESI, M+H) m/z: calcd for C₄₃H₆₇O₁₀ 743.4578, found 743.4573.

1,2-xylenedioic acid, 1-[4-[(3β,23-diacetoxylup-20(29)-en-28-oyl)oxy]ethyl] ester (6g). From 1,4-butanediol (81.0 mg, 0.9 mmol) and phthalic anhydride (65.0 mg, 0.44 mmol); column chromatography with petroleum ether/ethyl acetate/acetic acid = 50:50:1 (v:v:v). Yield: 53.0 mg (62%) as a white solid, mp 163 °C–165 °C; IR (KBr, cm⁻¹) ν 3457, 2973, 2866, 1643, 1455, 1381, 1055, 1025, 1012, 771; ¹H-NMR (CDCl₃, 300 MHz) δ 0.80, 0.88, 0.91, 0.95, 1.68 (3H each, s, 24, 25, 26, 27, 30-CH₃), 2.02, 2.06 (3H each, s, 3 and 23-OCOCH₃), 2.99 (1H, m, 19-CH), 3.69 (1H, d, J = 11.6 Hz, 23-CH₂), 3.84 (1H, d, J = 11.6 Hz, 23-CH₂), 4.12 (4H, m, 28-COOCH₂(CH₂)₂CH₂), 4.60 (1H, s, 29=CH₂), 4.72 (1H, s, 29 = CH₂), 4.76 (1H, m, 3-CH), 7.52 (4H, m, 17-COO(CH₂)₄OCOC₆H₄COOH); HR-MS (ESI, M+H) m/z: calcd for C₄₆H₆₅O₁₀ 777.4421, found 777.4427.

Butanedioic acid, 1-[6-[(3β,23-diacetoxylup-20(29)-en-28-oyl)oxy]ethyl] ester (6h). From 1,6-hexanediol (106.0 mg, 0.9 mmol) and succinic anhydride (42.0 mg, 0.42 mmol); column chromatography with petroleum ether/ethyl acetate = 2:1 (v:v). Yield: 58.0 mg (73%) as a yellow oil; IR (KBr, cm⁻¹) ν 3480, 3417, 2945, 2867, 1738, 1641, 1454, 1372, 1244, 1160, 1038, 885, 756; ¹H-NMR (CDCl₃, 300 MHz) δ 0.80, 0.88, 0.91, 0.96, 1.68 (3H each, s, 24, 25, 26, 27, 30-CH₃), 2.01, 2.06 (3H each, s, 3 and 23-OCOCH₃), 2.65 (4H, m, 17-COOCH₂(CH₂)₄CH₂OCOCH₂CH₂), 2.99 (1H, m, 19-CH), 3.68 (1H, d, J = 11.5 Hz, 23-CH₂), 3.86 (1H, d, J = 11.5 Hz, 23-CH₂), 4.05 (4H, m, 17-COOCH₂(CH₂)₄CH₂), 4.60 (1H, s, 29=CH₂), 4.72 (1H, s, 29=CH₂), 4.74 (1H, m, 3-CH); HR-MS (ESI, M+H) m/z: calcd for C₄₄H₆₉O₁₀ 757.4734, found 757.4738.

Pentanedioic acid, 1-[6-[(3β,23-diacetoxylup-20(29)-en-28-oyl)oxy]ethyl] ester (6i). From 1,6-hexanediol (106 mg, 0.9 mmol) and glutaric anhydride (48.0 mg, 0.42 mmol); column chromatography with petroleum ether/ethyl acetate = 1:2 (v:v). Yield: 55.0 mg (68%) as a yellow oil; IR (KBr, cm⁻¹) ν 3454, 2943, 2866, 1731, 1642, 1454, 1378, 1247, 1157, 1054, 771; ¹H-NMR (CDCl₃, 300 MHz) δ 0.80, 0.87, 0.91, 0.96, 1.68 (3H each, s, 24, 25, 26, 27, 30-CH₃), 1.98, 2.06 (3H each, s, 3 and 23-OCOCH₃), 2.41 (4H, m, 28-COOCH₂(CH₂)₄CH₂OCOCH₂CH₂CH₂), 2.99 (1H, m, 19-CH), 3.69 (1H, d, J = 10.2 Hz, 23-CH₂), 3.83 (1H, d, J = 10.2 Hz, 23-CH₂), 4.06 (4H, m, 28-COOCH₂(CH₂)₄ CH₂), 4.60 (1H, s, 29=CH₂), 4.72 (1H, s, 29=CH₂), 4.74 (1H, m, 3-CH); HR-MS (ESI, M+H) m/z: calcd for C₄₅H₇₁O₁₀ 771.4891, found 771.4896.

1,2-Xylenedioic acid, 1-[6-[(3β,23-diacetoxylup-20(29)-en-28-oyl)oxy]ethyl] ester (6j). From 1,6-hexanediol (106.0 mg, 0.9 mmol) and phthalic anhydride (62.0 mg, 0.42 mmol); column chromatography with petroleum ether/ethyl acetate/acetic acid = 50:50:1 (v:v:v). Yield: 50.0 mg (59%) as a yellow oil; IR (KBr, cm⁻¹) ν 3479, 2946, 2866, 1735, 1704, 1591, 1384, 1369, 1246, 1130, 1040, 652; ¹H-NMR (CDCl₃, 300 MHz) δ 0.79, 0.87, 0.91, 0.95, 1.68 (3H each, s, 24, 25, 26, 27, 30-CH₃), 2.01, 2.05 (3H each, s, 3 and 23-OCOCH₃), 2.99 (1H, m, 19-CH), 3.68(1H, d, J = 11.6 Hz, 23-CH₂), 3.84 (1H, d, J = 11.6 Hz, 23-CH₂), 4.07 (4H, m, 28-COOCH₂(CH₂)₄CH₂), 4.60 (1H, s, 29=CH₂), 4.73 (1H, s, 29=CH₂), 4.76 (1H, m, 3-CH), 7.48 (4H, m, 17-COO(CH₂)₆OCOC₆H₄COOH); HR-MS (ESI, M+H) m/z: calcd for C₄₈H₆₉O₁₀ 805.4734, found 805.4739.

Butanedioic acid, 1-[4-[(3β,23-diacetoxylup-20(29)-en-28-oyl)oxy]butynyl] ester (6k). Butyne-1,4-diol (77.0 mg, 0.9 mmol) and succinic anhydride (37.0 mg, 0.37 mmol); column chromatography with petroleum ether/ethyl acetate/acetic acid = 50:50:1 (v:v:v). Yield: 50.0 mg (64%) as a yellow solid, mp 99 °C–101 °C; IR (KBr, cm⁻¹) ν 3450, 2929, 2870, 1736, 1649, 1427, 1370, 1246, 1148, 1041, 971, 803, 641; ¹H-NMR (CDCl₃, 300 MHz) δ 0.80, 0.87, 0.90, 0.96, 1.68(3H each, s, 24, 25, 26, 27, 30-CH₃), 2.01, 2.06 (3H each, s, 3 and 23-OCOCH₃), 2.69 (4H, t, 17- 17-COOCH₂C≡CCH₂O COCH₂CH₂COOH), 2.99 (1H, m, 19-CH), 3.68 (1H, d, J = 11.7 Hz, 23-CH2), 3.85 (1H, d, J = 11.7 Hz, 23-CH2), 4.69 (7H, m, 29=CH₂, 3-CH and 17-COOCH₂C≡CCH₂); HR-MS (ESI, M+H) m/z: calcd for C₄₂H₆₁O₁₀ 725.4108, found 725.4102.

Pentanedioic acid, 1-[4-[(3β,23-diacetoxylup-20(29)-en-28-oyl)oxy]butynyl] ester (6l). From butyne-1,4-diol (77.0 mg, 0.9 mmol) and glutaric anhydride (42.0 mg, 0.37 mmo); column chromatography with petroleum ether/ethyl acetate/acetic acid = 50:50:1 (v:v:v). Yield: 50.0 mg (67%) as a yellow solid, mp 90 °C–92 °C; IR (KBr, cm⁻¹) ν 3438, 2946, 2871, 1737, 1643, 1582, 1451, 1369, 1245, 1146, 1123, 1041, 973; ¹H-NMR (DMSO, 300 MHz) δ 0.76, 0.83, 0.87, 0.94, 1.65 (3H each, s, 24, 25, 26, 27, 30-CH₃), 1.96, 1.99 (3H each, s, 3 and 23-OCOCH₃), 2.19 (4H, m, 17-COOCH₂ C≡CCH₂OCOCH₂CH₂CH₂COOH), 2.91 (1H, m, 19-CH), 3.63 (1H, d, J = 11.9 Hz, 23-CH₂), 3.78 (1H, d, J = 11.9 Hz, 23-CH₂), 4.70 (7H, m, 29=CH₂, 3-CH and 17-COOCH₂≡CCH₂); HR-MS (ESI, M+H) m/z: calcd for C₄₃H₆₃O₁₀ 739.4265, found 739.4261.

Butylenedioic acid, 1-[4-[(3β,23-diacetoxylup-20(29)-en-28-oyl)oxy]butynyl] ester (6m). From butyne-1,4-diol (77.0 mg, 0.9 mmol) and maleic anhydride (36.0 mg, 0.37 mmol); column chromatography with petroleum ether/ethyl acetate = 1:2 (v:v). Yield: 36.0 mg (53%) as a yellow oil; IR (KBr, cm⁻¹) ν 3405, 2967, 2922, 2872, 1731, 1650, 1584, 1437, 1407, 1334, 1126, 1044, 953; ¹H-NMR (DMSO, 300 MHz) δ 0.76, 0.82, 0.87, 0.94, 1.65 (3H each, s, 24, 25, 26, 27, 30-CH₃), 1.96, 1.99 (3H each, s, 3 and 23-OCOCH₃), 3.39 (1H, m, 19-CH), 3.63 (1H, d, J = 11.4 Hz, 23-CH₂), 3.78 (1H, d, J = 11.4 Hz, 23-CH₂), 4.69 (7H, m, 29=CH₂, 3-CH and 17-COOCH₂C≡CCH₂), 6.22 (1H, d, J = 15.8 Hz, 17-COOCH₂C≡CCH₂OCOCH=CHCOOH), 6.77 (1H, d, J = 15.8 Hz, 17-COOCH₂C≡CCH₂OCO CH=CHCOOH); HR-MS (ESI, M+H) m/z: calcd for C₄₂H₅₉O₁₀ 723.3952, found 723.3948.

1,2-Xylenedioic acid, 1-[4-[(3β,23-diacetoxylup-20(29)-en-28-oyl)oxy]butynyl] ester (6n). From butyne-1,4-diol (77.0 mg, 0.9 mmol) and phthalic anhydride (55.0 mg, 0.37 mmol); column chromatography with petroleum ether/ethyl acetate/acetic acid = 50:50:0.4 (v:v:v). Yield: 44.0 mg (61%) as a yellow oil; IR (KBr, cm⁻¹) ν 3435, 3070, 2948, 2871, 1728, 1591, 1450, 1385, 1247, 1131, 1040, 747; ¹H-NMR (CDCl₃, 300 MHz) δ 0.82, 0.88, 0.91, 0.98, 1.71 (3H each, s, 24, 25, 26, 27, 30-CH₃), 2.03, 2.08 (3H each, s, 3 and 23-OCOCH₃), 3.06 (1H, m, 19-CH), 3.71 (1H, d, J = 11.7 Hz, 23-CH₂), 3.86 (1H, d, J = 11.7 Hz, 23-CH₂), 4.83 (7H, m, 29=CH₂, 3-CH and 17-COOCH₂C≡CCH₂), 7.78 (4H, m, 17-COOCH₂C≡CCH₂OCOC₆H₄COOH); HR-MS (ESI, M+H) m/z: calcd for C₄₆H₆₁O₁₀ 773.4108, found 773.4101.

3.2. Pharmacology

In vitro, the cytotoxic activities of 23-hydroxybetulinic acid, betulinic acid and all derivatives were determined by the MTT cytotoxicity assay, which was performed in 96-well plates. The tumor cell line panel consisted of A549 (human lung carcinoma), BEL-7402 (human hepatoma), SF-763 (human cerebroma), B16 (mice melanoma), HL-60 (human leukaemia) (final concentration in the growth medium was 2~4 × 10⁴ /mL). MTT solution (20 μL/well) was added after cells were treated with drug for 48 h, and cells were incubated for a further 4 h at 37 °C. The purple formazan crystals were dissolved in 150 μL DMSO. After 5 min, the plates were read on an automated microplate spectrophotometer at 570 nm. Assays were performed in triplicate in three independent experiments. The concentration required for 50% inhibition of cell viability (IC₅₀) what was calculated. In all of these experiments, three replicate wells were used to determine each point [11].

In vivo, ICR female mice with body weight of 18–22 g were transplanted with H22 and B16 subcutaneously into the right axilla according to protocols of transplant tumor research. After 24 h of tumor transplantation, mice were weighed, and each model group was at random divided into 4 groups, each of which had 10 mice in H22 and B16 group. The groups with 23-OH betulinic acid and 6i were administered intraperitoneously 25 mg/kg in a vehicle of 20% DMSO/80% saline. respectively. The positive control group was treated with cyclophosphamide (30 mg/kg) in H22 group and 5-fluorouracil (25 mg/kg) in B16 group through intravenous injection in a vehicle of 20% DMSO/80% saline. The negative control group received 0.9% normal saline through intravenous injection. All test compounds were given through injections 24 h after tumor transplantation (or inoculation). Treatments were done at a frequency of intravenous or intraperitoneal injection one dose per day for a total of four consecutive days in H22 group and for a total of 11 consecutive days in B16 group. After the treatments, all mice were killed and weighed simultaneously, and then segregated and weighed the tumor [11]. Tumor inhibitory ratio was calculated by the following formula and perform T test:

Tumor inhibitory ratio (%) = (1-average tumor weight of treated group/average tumor weight of control group) × 100%

4. Conclusions

In summary, a series of novel of 23-hydroxybetulinic acid C-28 ester derivatives were synthesized and tested for their in vitro cytotoxic activities against five human tumor cell lines. Most of the compounds showed moderate potent cytotoxic activities on all the tested cells. The results of preliminary biological activity showed that three compounds (6f, 6h, 6i) possessed impressive cytotoxicities. Compound 6i was chosen to evaluate its antitumor activities in vivo. Compound 6i showed similar antitumor activity as cyclophosphamide in H22 and as 5-fluorouracil in B16. Further structure modification and SAR studies of antitumor 23-hydroxybetulinic acid derivatives are in progress in our laboratory and the results will be reported in due course [12].
