An Alternative Synthesis of 3′,4′-Diaminoflavones to Evaluate Their Antioxidant Ability and Cell Apoptosis of Zebrafish Larvae

Department of Chemistry, Tamkang University, Tamsui Dist., 25137 New Taipei City, Taiwan
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Molecules 2012, 17(7), 8206-8216; https://doi.org/10.3390/molecules17078206
Submission received: 1 June 2012 / Revised: 2 July 2012 / Accepted: 6 July 2012 / Published: 9 July 2012
(This article belongs to the Section Medicinal Chemistry)

Abstract

:
We described herein a concise synthesis of 3′,4′-diaminoflavone 10. This new, three-step synthetic approach is more efficient than the conventional seven-step synthetic method. The route is shortened significantly by introducing the amino moieties early and eliminating the need for nitro group reduction. The other two analogues, 5,7-dihydroxy-3′,4′-diaminoflavone 11 and 5,7-dimethoxy-3′,4′-diaminoflavone 12, were also synthesized similarly. The above three compounds, along with flavone, were evaluated for their antioxidant and UVB-protection abilities on zebrafish larvae. The data showed that compound 10 exhibited the best result, with −102.3% of ROS-scavenging rate.

1. Introduction

Over 6,500 flavonoids are known [1], and many naturally occurring flavonoids show bioactivity [2,3]. Flavonoids are widely distributed in vegetables and plants [4,5,6], and their diverse biological roles have been extensively investigated. For example, many flavonoids show antioxidant activity [2,3,7], are metal chelators [8,9], cell-membrane protectors [10,11,12], or oxidase inhibitors [13]. Certain synthetic flavonoid analogues have shown to prevent inflammation [14,15], cancer [16,17,18,19], or cardiovascular diseases [20].
The hydroxyl groups presented in flavonoids play an important role in their activities [21]. It has been claimed that the amino groups in flavonoids have the same behaviors as hydroxyl groups as hydrogen bond donors and acceptors [22]. Therefore, replacement of the hydroxyl groups with amino groups in flavonoids may help to develop more soluble salt form of flavonoids while sustaining or even improving their biological activities [22].
Few natural or synthetic aminoflavonoids have been reported however [21,22,23,24,25,26,27,28,29,30,31,32]. The most common method includes the reduction of the nitro [23,24,26,28,29] or azido [27,32] group(s) on the aromatic rings, followed by protection and deprotection of the resulting amino moieties [25,28,30,31]. As a part of our ongoing interest in the various aminoflavonoids, we are interested in the roles of their amino groups. We have selected for study compounds 10, 11 and 12, which bear amino groups at the 3′ and 4′ positions in the B ring and various substituents (H, OH, OMe) at the A rings. We wished to understand more the roles of amino groups on the A ring of flavones to compare with the existing potent antioxidants, such as luteolin [2]. This should allow us to evaluate their antioxidant ability. Among these molecules, we have prepared in three steps (~24.7% total yield) compound 10, which was previously synthesized by Göker et al. in seven steps (~11.5% total yield) [23]. Based on the same strategy, compounds 11 and 12 could be easily prepared in an efficient manner.
In order to rapidly screen the above diaminoflavones, we selected the zebrafish as an excellent model organism for chemical and toxicological studies because of its physiological similarity to mammals. In particular, the rapid developed and optical transparency of zebrafish embryos allow non-invasive cellular ROS detection in vivo. In this regard, the antioxidant abilities of flavone and newly synthesized diaminoflavones 10, 11, and 12 were evaluated on zebrafish larvae.

2. Results and Discussion

2.1. Chemistry

An altenative synthesis of 3,4-diaminoflavone 10 is depicted in Scheme 1. Unlike the early reported method for the synthesis of compound 10 [23], we chose commercially available free diamino compound 1 as the starting material. Compound 1 was coupled with 2 by EDCI in DMF to afford 4 in 35% yield. Although the DMF increased the solubility of starting materials, the lower yield was due to the formation of 5 (8%) and recovered unreacted 2 (53% conversion). Compound 5 was derived from the reaction of one of the amino groups of 4 with DMF. The structure elucidation of 5 was based on its HMQC and HMBC spectra. When DMF was replaced with DMSO, the coupling yield of 4 was enhanced significantly, up to 73%, and only small amounts of 2 were recovered (92% conversion). Compound 4 underwent smoothly the Baker-Venkataraman rearrangement [28,33,34,35] under KOH/pyridine conditions [28] at 50 °C to afford 8 in a keto/enol form (1/3.1) mixture. Compound 8 was treated with InBr3 (0.5 equiv.) [36] under reflux conditions to afford compound 9 in 36% yield. The yield was enhanced to 49% when 8 was heated under reflux condition in 48% HBr solution.
Scheme 1. Syntheses of 3′,4′-diaminoflavone 10 and analogues 11 and 12.
Scheme 1. Syntheses of 3′,4′-diaminoflavone 10 and analogues 11 and 12.
Molecules 17 08206 g003
The same strategy was also employed for the synthesis of 11 which possesses two hydroxyl groups at C5 and C7 of the A ring. The two hydroxyl groups of 2′,4′,6′-trihydroxyacetophenone can be selectively protected [37] to furnish 3, which was subjected to coupling with 1 to give 6 in 25% yield in DMSO (38% conversion of 3). When DMF was used as solvent, compound 6 was isolated in 14% yield (22% conversion of 3) and a trace amount of 7 (1%) was also formed. We found out the electron-donating groups in A ring affects the coupling yields. The Baker-Venkataraman rearrangement of 6 to 9 gave comparable yields as the preparation of 8, but the keto/enol ratio was 2.8:1, which is opposite the result seen for 8 (1:3.1). Sequential cyclization and demethylation of compound 9 by heating in HBr afforded 11 in 47% yield. The best yield of compound 12 was isolated in 50% when compound 9 was heated under reflux in 20% H2SO4 solution.

2.2. Comparison of the ROS-Scavenging Ability of Flavone and Aminoflavones 10, 11, and 12

We have previously developed a protocol to detect the level of ROS-scavenaging in zebrafish embryos [38]. The same protocol was employed to evaluate the newly synthesized diaminoflavones 10, 11, and 12 with flavone for comparison. As shown in Figure 1, the detected ROS-scavenging rates in flavone-treated zebrafish embryos were decreased in a concentration dependent manner by −24.4% (1 ppm of flavone) and −94.5% (10 ppm of flavone) in comparison with that of the UV group (without addition of flavone). As previously described [38,39], negative ROS-scavenging rates indicated that the testing flavones possesses of ROS-scavenging activities. Similar dose-dependent results were obtained when zebrafish embryos were treated by different concentrations (1 and 10 ppm, individually) of diaminoflavones 10, 11, and 12 (ROS-scavenging rates: −39% to −102.3%). These data clearly demonstrated that diaminoflavone 10 exhibited the highest ROS-scavenging ability compared with those of flavone, 11 and 12 in low (1 ppm) as well as high concentrations (10 ppm).

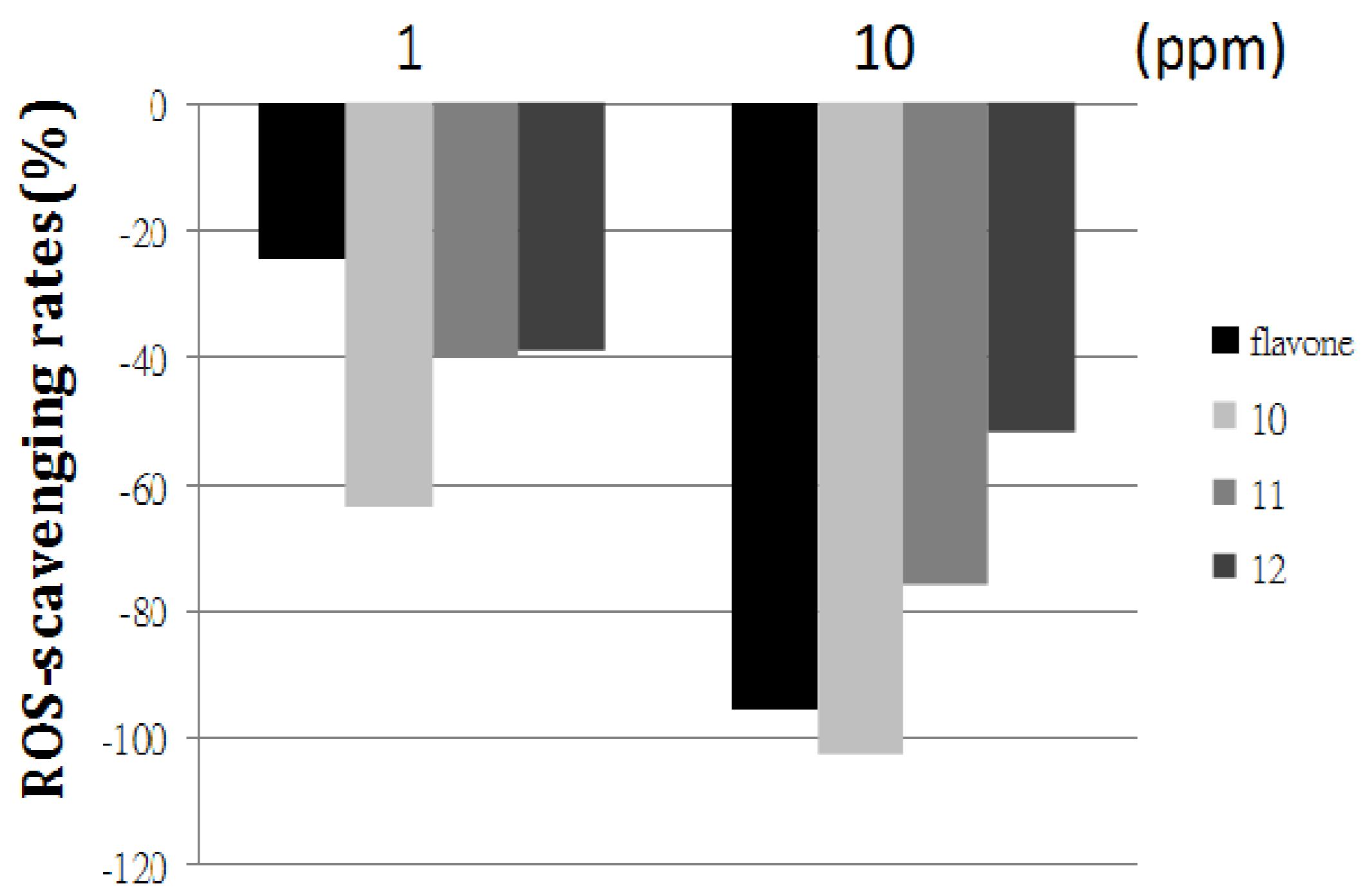

Figure 1. Comparison of ROS-scavenging ability of flavone and 3′,4′-diaminoflavones 10, 11, and 12.
Figure 1. Comparison of ROS-scavenging ability of flavone and 3′,4′-diaminoflavones 10, 11, and 12.
Molecules 17 08206 g001

2.3. Flavone and Diaminoflavones Protecting Zebrafish Cells from UV-Induced Apoptosis

Zebrafish is an efficient model for evaluating sun-protective compounds because embryonic zebrafish fins are very sensitive to UVB radiation [38,39]. Using the zebrafish model, we have shown that flavone could protect zebrafish fins from UVB-induced apoptosis [40]. Therefore, we used the same protocol on flavone, diaminoflavones 10, 11, and 12 to compare with their UVB-protection ability. Results showed that no apoptotic signals were observed in the mock control embryos (no UVB, Figure 2A). After exposing fish to UVB, many apoptotic signals accompanying with malformed fin phenotypes were observed in the embryos (arrow in Figure 2B). However, few signals at 1 ppm or no signals at 10 ppm were found when those embryos were co-exposed to UVB with flavone or diaminoflavones 11 and 12 (Figure 2C,D,G–J). The concentrations of aminoflavone 10 at either 1 ppm or 10 ppm were enough protecting fin cells from apoptosis. We concluded that compound 10 might have the highest UVB-protection ability among these flavones (Figure 2E,F). On the basis of these observations, we suggest that flavone, diaminoflavones 10, 11, and 12 are able to protect UVB-damaged fin cells from apoptosis.
Figure 2. UVB exposure results for cell apoptosis in the fin region. Lateral views of mock control embryos without (A) and with UVB exposure (B) after TUNEL assay staining. (C, E, G, I) Lateral views of embryos derived from UVB + 1 ppm flavones group, or (D, F, H, J) UV+10 ppm flavones after TUNEL assay staining. Arrows indicate the apoptotic cells.
Figure 2. UVB exposure results for cell apoptosis in the fin region. Lateral views of mock control embryos without (A) and with UVB exposure (B) after TUNEL assay staining. (C, E, G, I) Lateral views of embryos derived from UVB + 1 ppm flavones group, or (D, F, H, J) UV+10 ppm flavones after TUNEL assay staining. Arrows indicate the apoptotic cells.
Molecules 17 08206 g002

3. Experimental

3.1. General

Melting points were determined on a MP-2D apparatus and were not corrected. All chemicals were commercially available and used without further purification except otherwise mentioned. 1H (600 MHz) and 13C (150 MHz) NMR spectra were recorded on a Bruker 600 MHz instrument and the units were reported in δ (ppm). Mass spectra (LRMS and HRMS) were recorded on a Finnigan MAT 95S spectrometer.

3.2. Synthetic Procedures for the Key Intermediates and Aminoflavones 10, 11, and 12

2′-(3,4-Diaminobenzoyloxy)acetophenone (4). A solution of 3,4-diaminobenzoic acid (1, 1.264 g, 8.307 mmol) in DMSO (25 mL) was sequentially added 2′-hydroxyacetophenone (2, 0.50 mL, 4.154 mmol), EDCI (1.991 g, 10.385 mmol), and DMAP (0.254 g, 2.077 mmol) at 0 °C. This mixture was stirred for 17.5 h at ambient temperature. The reaction was diluted by Na2S2O3 (sat’d). The brown solid was filtered and the filtrate was extracted by EtOAc (×3). The organic layer was dried (MgSO4) and concentrated. Purification by flash column chromatography (200–350 mesh amino SiO2, hex/EtOAc = 2/1–1/2) afforded a dark red syrup and recovered 2 (0.105 g). This syrup was crystallized from a mixture of hex/EtOAc (v/v = 7/10) solution to give a pale yellow solid (0.820 g). Yield = 73%. MP = 156.5–158.5 °C. 1H-NMR (C6D6) δ 7.82 (d, J = 8.1 Hz, 1H), 7.65 (d, J = 7.9 Hz, 1H), 7.49 (s, 1H), 7.02 (d, J = 4.3 Hz, 2H), 6.84 (dt, J = 7.9, 4.3 Hz, 1H), 6.19 (d, J = 8.1 Hz, 1H), 2.99 (s, 2H), 2.44 (s, 2H), 2.27 (s, 3H). 13C-NMR (C6D6) δ 197.2, 165.6, 150.8, 142.2, 134.1, 133.2, 133.1, 126.0, 124.8, 124.7, 120.5, 119.5, 115.1, 39.2. HRMS (ESI) ([M+]) calcd for C15H14N2O3 270.1004. Found: 270.1002.
2′-Acetylphenyl-2-(dimethylamino)-1H-benzo[d]imidazole-6-carboxylate (5). Purification by flash column chromatography (230−400 mesh SiO2, hex/EtOAc = 2/1–0/1) provided a white solid. Yield = 8%. Mp = 148.0–151.0 °C. 1H-NMR (CDCl3) δ 7.82 (dd, J = 7.7, 1.2 Hz, 1H), 7.75 (dd, J = 8.2, 1.8 Hz, 1H), 7.69 (s, 1H), 7.56 (d, J = 1.7 Hz, 1H), 7.54 (dd, J = 8.6, 1.5 Hz, 1H), 7.31 (t, J = 7.4 Hz, 1H), 7.21 (d, J = 8.1 Hz, 1H), 6.70 (d, J = 8.2 Hz, 1H), 4.65 (br s, 2H), 3.05 (s, 6H), 2.54 (s, 3H). 13C-NMR (CDCl3) δ 198.2, 165.4, 153.1, 150.0, 146.7, 137.6, 133.1, 132.0, 129.9, 126.9, 126.1, 124.0, 119.1, 117.8, 112.9, 40.3, 34.5, 30.4. HRMS (EI) ([M+]) calcd for C18H17N3O3 325.1426. Found: 325.1429.
1-(2-Hydroxyphenyl)-3-[3′,4′-diamino]propane-1,3-dione (8). To a solution of 4 (0.539 g, 1.993 mmol) in pyridine (10 mL) was added KOH (0.168 g, 2.989 mmol) and the mixture was stirred at 50 °C for 3 h. The reaction was adjusted to pH 3 by 2 N HCl and extracted with EtOAc (×3). The organic layer was dried (MgSO4), filtered through celite, and concentrated. Purification by flash column chromatography (230–400 mesh SiO2, hex/EtOAc = 2/1–0/1) afforded a red solid (0.369 g). Yield = 69%. MP = 168.0–170.0 °C. (major, enol form): 1H-NMR (CDCl3) δ 7.95 (d, J = 7.9 Hz, 1H), 7.41 (t, J = 7.7 Hz, 1H), 7.29 (d, J = 8.3 Hz, 1H), 7.25 (s, 1H), 7.08 (s, 1H), 6.97−6.90 (m, 2H), 6.58 (d, J = 8.3 Hz, 1H), 5.61 (NH2), 4.74 (br s, NH2). (minor, keto form). 1H-NMR (CDCl3) δ 7.80 (d, J = 7.9 Hz, 1H), 7.50 (t, J = 7.7 Hz, 1H), 7.19 (d, J = 8.2 Hz, 1H), 7.14 (s, 1H), 6.97–6.90 (m, 2H), 6.53 (d, J = 8.1 Hz, 1H), 5.52 (NH2), 4.59 (br s, NH2). (major, enol form). 13C-NMR (CDCl3) δ 201.1, 185.7, 183.4, 159.2, 141.7, 134.1, 134.0, 129.0, 121.4, 120.0, 119.5, 119.2, 117.5, 112.9, 112.5, 92.7. (minor, keto form). 13C-NMR (CDCl3) δ 192.2, 160.5, 136.1, 133.9, 131.3, 125.3, 120.9, 117.6, 113.5, 112.2, 50.1. HRMS (ESI) ([M+]) calcd for C15H14N2O3 270.1004. Found: 270.1002.
2-(3,4-Diaminophenyl)-4H-1-benzopyran-4-one (10). A solution of compound 8 (0.110 g, 0.407 mmol) was dissolved in 48% HBr (5 mL) and heated under reflux for 15 h. The mixture was slowly poured into Na2S2O3 saturated solution and extracted with EtOAc (×3). The organic layer was dried (MgSO4) and concentrated. Purification by flash column chromatography (230–400 mesh SiO2, hex/EtOAc = 1/1–0/1) furnished a red solid which was washed several times with methanol to give a yellow-red solid (0.050 g). Yield = 49%. MP = 256.0–258.0 °C. lit.23 237 °C (dec.). 1H-NMR (DMSO-d6) δ 8.00 (d, J = 7.7 Hz, 1H), 7.77 (t, J = 7.4 Hz, 1H), 7.65 (d, J = 8.3 Hz, 1H), 7.45 (t, J = 7.4 Hz, 1H), 7.23 (d, J = 8.4 Hz, 1H), 7.22 (s, 1H), 6.62 (d, J = 7.9 Hz, 1H), 6.59 (s, 1H), 5.39 (s, 2H, NH2), 4.75 (s, 2H, NH2). 13C-NMR (DMSO-d6) δ 176.5, 164.5, 155.5, 140.0, 134.6, 133.8, 125.1, 124.7, 123.5, 118.3, 118.0, 117.3, 113.5, 111.4, 103.0. HRMS (ESI) ([M+]) calcd for C15H12N2O2 252.0899. Found: 252.0899.
4′,6′-Dimethoxy-2′-(3,4-diaminobenzoyloxy)acetophenone (6). Compound 1 (3.726 g, 24.486 mmol) and compound 3 (2.826 g, 14.402 mmol) were dissolved in DMSO (85 mL) at 0 °C. To this cold solution was added EDCI (5.522 g, 28.804 mmol) and DMAP (1.231 g, 10.083 mmol) and stirred for 48 h. The reaction was added Na2S2O3 saturated solution. The resulting brown solid was filtered and the filtrant was extracted by EtOAc (×3). The organic layer was dried (MgSO4), concentrated, and purified by flash column chromatography (230–400 mesh SiO2, hex/EtOAc = 2/1–1/2) to provide an orange solid (1.192 g) and recovered 3 (1.760 g). Yield = 25%. MP = 174.0–176.0 °C. 1H-NMR (CDCl3) δ 7.56 (dd, J = 8.2, 1.9 Hz, 1H), 7.47 (d, J = 1.9 Hz, 1H), 6.68 (d, J = 8.2 Hz, 1H), 6.37 (d, J = 2.2 Hz, 1H), 6.34 (d, J = 2.2 Hz, 1H), 3.84 (s, 3H), 3.80 (s, 3H), 2.46 (s, 3H). 13C-NMR (CDCl3) δ 199.8, 165.0, 162.0, 158.8, 149.9, 141.5, 133.1, 124.3, 119.5, 118.9, 117.7, 114.8, 100.1, 96.4, 55.9, 55.6, 31.9. HRMS (ESI) ([M+]) calcd for C17H18N2O5 330.1216. Found: 330.1214.
2-Acetyl-3,5-dimethoxyphenyl-2-(dimethylamino)-1H-benzo[d]imidazole-6-carboxylate (7). The same procedure as in preparation of 5 was used to give a white solid. MP = 58.0–62.0 °C. 1H-NMR (CDCl3) δ 7.72–7.68 (br d, 2H), 7.54 (s, 1H), 6.67 (d, J = 8.3 Hz, 1H), 6.37 (d, J = 2.1 Hz, 1H), 6.36 (d, J = 2.1 Hz, 1H), 3.84 (s, 3H), 3.81 (s, 3H), 3.10 (s, 6H), 2.46 (s, 3H). 13C-NMR (CDCl3) δ 199.9, 165.3, 161.9, 158.6, 153.1, 150.0, 146.5, 137.4, 127.0, 119.1, 118.0, 117.9, 112.9, 100.1, 96.4, 55.9, 55.6, 40.3, 34.5, 31.9. HRMS (EI) ([M+]) calcd for C20H21N3O5 385.1638. Found: 385.1631
1-(3,4-Diaminophenyl)-3-(2-hydroxy-4,6-dimethoxyphenyl)propane-1,3-dione (9). The same procedure as in preparation of 8 was used. Purification by flash column chromatography (230–400 mesh SiO2, hex/EtOAc = 2/1–0/1) provided a pale orange solid. Yield = 72%. MP = 207.0−209.0 °C. (major, keto form): 1H-NMR (DMSO-d6) δ 13.76 (s, 1H), 7.16–7.12 (m, 2H), 6.54 (d, J = 8.1 Hz, 1H), 6.10 (d, J = 2.3 Hz, 1H), 6.00 (d, J = 2.3 Hz, 1H), 5.45 (s, 2H), 4.68 (br s, 2H), 4.38 (s, 2H), 3.80 (s, 3H), 3.44 (s, 3H). (minor, enol form): 1H NMR (DMSO-d6) δ 12.75 (s, 1H), 7.12–7.10 (m, 1H), 6.98 (s, 1H), 6.57 (d, J = 8.8 Hz, 1H), 6.14 (d, J = 2.2 Hz, 1H), 6.08 (d, J = 2.2 Hz, 1H), 5.55 (s, 2H), 4.77 (br s, 2H), 3.90 (s, 3H), 3.79 (s, 3H) (major, keto form). 13C-NMR (DMSO-d6) δ 200.8, 192.5, 166.5, 166.2, 162.2, 141.3, 133.8, 125.4, 120.3, 113.3, 112.3, 105.3, 93.8, 90.7, 55.8, 55.7, 53.9 (minor, enol form). 13C-NMR (DMSO-d6) δ 188.6, 179.5, 164.1, 163.8, 160.9, 134.1, 120.8, 118.6, 113.1, 112.1, 104.3, 95.3, 94.2, 91.0, 56.1, 55.5. HRMS (ESI) ([M+]) calcd for C17H18N2O5 330.1216. Found: 330.1213.
2-(3,4-Diaminophenyl)-5,7-dihydroxy-4H-chromen-4-one (11). The same procedure as in preparation of 10 was used.Purification by flash column chromatography (230–400 mesh SiO2, hex/EtOAc = 2/1–0/1) provided an orange-yellow solid. The resulting solid was repeatedly washed with MeOH to afford a pale orange-yellow solid. Yield = 47%. MP = 323 °C (dec.). 1H-NMR (DMSO-d6) δ 13.09 (-OH), 7.17–7.14 (m, 2H), 6.59 (d, J = 8.1 Hz, 1H), 6.44 (s, 1H), 6.33 (d, J = 1.6 Hz, 1H), 6.09 (d, J = 1.6 Hz, 1H), 5.40 (s, 2H, -NH2), 4.73 (br s, 2H, -NH2). 13C-NMR (DMSO-d6) δ 181.2, 165.1, 164.9, 161.4, 157.3, 140.2, 134.5, 117.9, 117.4, 113.5, 111.2, 103.1, 100.7, 98.9, 93.8. HRMS (ESI) ([M+]) calcd for C15H12N2O4 284.0797. Found: 284.0792.
2-(3,4-Diaminophenyl)-5,7-dimethoxy-4H-chromen-4-one (12). Compound 9 was heated under reflux in 20% H2SO4 for 12 h. The reaction mixture was slowly poured into a cold saturated NaHCO3 solution. The mixture was extracted with EtOAc, dried (MgSO4) and purified by flash column chromatography (230–400 mesh SiO2, hex/EtOAc = 1/2−0/1) to provide an orange-red solid. Yield = 50%. MP = 152.0–154.0 °C. 1H-NMR (DMSO-d6) δ 7.13–7.11 (m, 2H), 6.69 (d, J = 2.3 Hz, 1H), 6.58 (d, J = 8.7 Hz, 1H), 6.45 (d, J = 2.3 Hz, 1H), 6.29 (s, 1H), 5.25 (s, 2H), 4.68 (s, 2H), 3.87 (s, 3H), 3.80 (s, 3H). 13C-NMR (DMSO-d6) δ 175.5, 163.3, 161.5, 160.2, 159.1, 139.4, 134.5, 118.1, 116.6, 113.5, 111.1, 108.3, 104.5, 96.0, 93.1, 56.0, 55.9. HRMS (EI) ([M+]) calcd for C17H16N2O4 312.1110. Found: 312.1110.

3.3. Evaluation

3.3.1. Methods for Fish Embryos Maintenance, Chemicals Treatment and Survival Rates Analysis

The procedures for zebrafish culture and embryo collection used in this study have been described previously [41,42]. For chemicals treatment, flavone and diaminoflavones 10, 11 and 12 were individually dissolved in DMSO to the designated concentrations (1, and 10 ppm). Thirty embryos were collected and treated with different concentrations of aminoflavones for 3 h (72−75 hpf) then counted for their survival rates.

3.3.2. UVB Exposure, ROS Detection and Data Analysis

Modified procedures were used in this study for UVB exposure and embryo collection [38,39]. After UVB exposure, all embryos were cultivated in 6-well cell culture plates until the analysis of their ROS levels. To detect the accumulation of ROS in zebrafish embryos, embryos from the UVB-only group (no flavone added), UVB + flavone and embryos from the UVB + diaminoflavone groups (10, 11, and 12) were incubated with 500 ng/mL dihydrodichlorofluorescein diacetate (H2DCFDA, Molecular Probes, Eugene, OR, USA). After a 150 min incubation period at 28 °C, the fluorescence intensity of the embryo was measured at excitation/emission = 485/530 nm. All data were presented as “ROS-scavenging rates” calculated by the equation described previously [43]. A positive ROS-scavenging rate indicates that the treatment with the flavone leads to the generation of ROS. A negative ROS-scavenging rate means that the tested flavone compound exhibits ROS-scavenging activities.

4. Conclusions

In conclusion, we have developed an improved three-step synthesis of 10. The same procedure was used to prepare two new compounds 11 and 12. It is worth noting that the solvent plays an important role in the coupling yields, whereby DMSO was shown to be superior to DMF as solvent. In particular, compounds 10, 11 and 12 have shown increased ROS scavenging ability along with UV-protecting abilities to compare with flavone. In this article, we established a rapid screening model of diaminoflavones by zebrafish larvae. We are also synthesizing a series of derivatives with diamino groups on the A ring of flavones along with compounds 1012 to compare their bioactivities. The details will be published in due course. We conclude that the diaminoflavones have potential to develop as antioxidants and drugs.

Acknowledgments

The authors gratefully acknowledge the National Science Council (NSC98-2119-M-032-004-MY3) and Tamkang University for supporting this work. We thank the National Center for High-Performing Computing for assistance.

Conflict of Interest

The authors declare no conflict of interest.

References and Notes

  1. Pick, A.; Müller, H.; Mayer, R.; Haenisch, B.; Pajeva, I.K.; Weigt, M.; Bönisch, H.; Müller, C.E.; Wiese, M. Structure-activity relationships of flavonoids as inhibitors of breast cancer resistance protein (BCRP). Bioorg. Med. Chem. 2011, 19, 2090–2102. [Google Scholar] [CrossRef]
  2. Verma, A.K.; Pratap, R. The biological potential of flavones. Nat. Prod. Rep. 2010, 27, 1571–1593. [Google Scholar] [CrossRef]
  3. Veitch, N.C.; Grayer, R.J. Flavonoids and their glycosides, including anthocyanins. Nat. Prod. Rep. 2011, 28, 1626–1695. [Google Scholar] [CrossRef]
  4. Harborne, J.B.; Williams, C.A. Advances in flavonoid research since 1992. Phytochemistry 2000, 55, 481–504. [Google Scholar] [CrossRef]
  5. Heim, K.E.; Tagliaferro, A.R.; Bobilya, D.J. Flavonoid antioxidants: Chemistry, metabolism and structure-activity relationships. J. Nutr. Biochem. 2002, 13, 572–584. [Google Scholar] [CrossRef]
  6. Lee, E.-R.; Kim, J.-H.; Kang, Y.-J.; Cho, S.-G. The anti-apoptotic and anti-oxidant effect of eriodictyol on UV-induced apoptosis in keratinocytes. Biol. Pharm. Bull. 2007, 30, 32–37. [Google Scholar] [CrossRef]
  7. Havsteen, B. Flavonoids, a class of natural products of high pharmacological potency. Biochem. Pharmacol. 1983, 32, 1141–1148. [Google Scholar] [CrossRef]
  8. Formica, J.V.; Regelson, W. Review of the biology of quercetin and related bioflavonoids. Food Chem. Toxicol. 1995, 33, 1061–1080. [Google Scholar] [CrossRef]
  9. Pietta, P.-G. Flavonoids as Antioxidants. J. Nat. Prod 2000, 63, 1035–1042. [Google Scholar] [CrossRef]
  10. Oteiza, P.I.; Erlejman, A.G.; Verstraeten, S.V.; Keen, C.L.; Fraga, C.G. Flavonoid-membrane interactions: A protective role of flavonoids at the membrane surface? Clin. Dev. Immunol. 2005, 12, 19–25. [Google Scholar] [CrossRef]
  11. Ollila, F.; Halling, K.; Vuorela, P.; Vuorela, H.; Slotte, J.P. Characterization of flavonoid-biomembrane interactions. Arch. Biochem. Biophys. 2002, 399, 103–108. [Google Scholar] [CrossRef]
  12. Han, D.; Williams, E.; Cadenas, E. Mitochondrial respiratory chain-dependent generation of superoxide anion and its release into the intermembrane space. Biochem. J. 2001, 353, 411–416. [Google Scholar] [CrossRef]
  13. Cos, P.; Ying, L.; Calomme, M.; Hu, J.P.; Cimanga, K.; van Poel, B.; Pieters, L.; Vlietinck, A.J.; Vanden Berghe, D. Structure-activity relationship and classification of flavonoids as inhibitors of xanthine oxidase and superoxide scavengers. J. Nat. Prod. 1998, 61, 71–76. [Google Scholar] [CrossRef]
  14. Inaba, T.; Tanaka, K.; Takeno, R.; Nagaki, H.; Yoshida, C.; Takano, S. Synthesis and Antiinflammatory Activity of 7-Methanesulfonylamino-6-phenoxychromones. Antiarthritic Effect of the 3-Formylamino Compound (T-614) in Chronic Inflammatory Cisease Models. Chem. Pharm. Bull. 2000, 48, 131–139. [Google Scholar] [CrossRef]
  15. Yagi, A.; Kabash, A.; Okamura, N.; Haraguchi, H.; Moustafa, S.M.; Khalifa, T.I. Antioxidant, free radical scavenging and anti-inflammatory effects of aloesin derivatives in Aloe vera. Planta Med. 2002, 68, 957–960. [Google Scholar] [CrossRef]
  16. Dixon, R.A.; Steele, C.L. Flavonoids and isoflavonoids-A gold mine for metabolic engineering. Trends Plant Sci. 1999, 4, 394–400. [Google Scholar] [CrossRef]
  17. Nijveldt, R.J.; van Nood, E.; van Hoorn, D.E.C.; Boelens, P.G.; van Norren, K.; van Leeuwen, P.AM. Flavonoids: A review of probable mechanisms of action and potential applications. Am. J. Clin. Nutr. 2001, 74, 418–425. [Google Scholar]
  18. Hernández-Abreu, O.; Castillo-España, P.; León-Rivera, I; Ibarra-Barajas, M.; Villalobos-Molina, R.; González-Christen, J.; Vergara-Galicia, J.; Estrada-Soto, S. Antihypertensive and vasorelaxant effects of tilianin isolated from Agastache mexicana are mediated by NO/cGMP pathway and potassium channel opening. Biochem. Pharmacol. 2009, 78, 54–61. [Google Scholar]
  19. Torres-Piedra, M.; Ortiz-Andrade, R.; Villalobos-Molina, R.; Singh, N.; Medina-Franco, J.L.; Webster, S.P.; Binnie, M.; Navarrete-Vázquez, G.; Estrada-Soto, S. A comparative study of flavonoid analogues on streptozotocin-nicotinamide induced diabetic rats: Quercetin as a potential antidiabetic agent acting via 11β–Hydroxysteroid dehydrogenase type 1 inhibition. Eur. J. Med. Chem. 2010, 45, 2606–2612. [Google Scholar]
  20. Kohno, H.; Tanaka, T.; Kawabata, K.; Hirose, Y.; Sugie, S.; Tsuda, H.; Mori, H. Silymarin, a naturally occurring polyphenolic antioxidant flavonoid, inhibits azoxymethane-induced colon carcinogenesis in male F344 rats. Int. J. Cancer 2002, 101, 461–468. [Google Scholar] [CrossRef]
  21. Cushman, M.; Nagarathnam, D.; Geahlen, R.L. Synthesis and Evaluation of Hydroxylated Flavones and Related Compounds as Potential Inhibitors of the Protein-Tyrosine Kinase p56lck. J. Nat. Prod. 1991, 54, 1345–1352. [Google Scholar] [CrossRef]
  22. Cushman, M.; Zhu, H.; Geahlen, R.L.; Kraker, A.J. Synthesis and Biochemical Evaluation of a Series of Aminoflavones as Potential Inhibitors of Protein-Tyrosine Kinases p56lck, EGFr, and p60v-src. J. Med. Chem. 1994, 37, 3353–3362. [Google Scholar] [CrossRef]
  23. Göker, H.; Ayhan, G.; Tuncbilek, M.; Ertan, R.; Leoncini, G.; Garzoglio, R.; Mazzei, M. Synthesis and antiaggregator activity of some new derivatives of 4H-1-benzopyran-4-one. Eur. J. Med. Chem. 1995, 30, 561–567. [Google Scholar]
  24. Dauzonne, D.; Martinez, L. Synthesis of the 3-aminoflavone-8-acetic acid. Tetrahedron Lett 1995, 36, 1845–1848. [Google Scholar] [CrossRef]
  25. Akama, T.; Shida, Y.; Sugaya, T.; Ishida, H.; Gomi, K.; Kasai, M. Novel 5-Aminoflavone Derivatives as Specific Antitumor Agents in Breast Cancer. J. Med. Chem. 1996, 39, 3461–3469. [Google Scholar] [CrossRef]
  26. Dauzonne, D.; Folléas, B.; Martinez, L.; Chabot, G.G. Synthesis and in vitro cytotoxicity of a series of 3-aminoflavones. Eur. J. Med. Chem. 1997, 32, 71–82. [Google Scholar] [CrossRef]
  27. Tanaka, H.; Stohlmeyer, M.M.; Wandless, T.J.; Taylor, L.P. Synthesis of flavonol derivatives as probes of biological processes. Tetrahedron Lett. 2000, 41, 9735–9739. [Google Scholar] [CrossRef]
  28. Menichincheri, M.; Ballinari, D.; Bargiotti, A.; Bonomini, L.; Ceccarelli, W.; D’Alessio, R.; Fretta, A.; Moll, J.; Polucci, P.; Soncini, C.; et al. Catecholic Flavonoids Acting as Telomerase Inhibitors. J. Med. Chem. 2004, 47, 6466–6475. [Google Scholar]
  29. Gao, H.; Kawabata, J. α-Glucosidase inhibition of 6-hydroxyflavones. Part 3: Synthesis and evaluation of 2,3,4-trihydroxybenzoyl-containing flavonoid analogs and 6-aminoflavones as a-glucosidase inhibitors. Bioorg. Med. Chem. 2005, 13, 1661–1671. [Google Scholar] [CrossRef]
  30. Takechi, A.; Takikawa, H.; Miyake, H.; Sasaki, M. Synthesis of 3-Aminoflavones from 3-Hydroxyflavones via 3-Tosyloxy- or 3-Mesyloxyflavones. Chem. Lett. 2006, 35, 128–129. [Google Scholar] [CrossRef]
  31. Lecoutey, C.; Fossey, C.; Demuynck, L.; Lefoulon, F.; Fabis, F.; Rault, S. A convenient microwave-assisted 5-amination of flavones. Tetrahedron 2008, 64, 11243–11248. [Google Scholar]
  32. Lewin, G.; Shridhar, N.B.; Aubert, G.; Thoret, S.; Dubois, J.; Cresteil, T. Synthesis of antiproliferative flavones from calycopterin, major flavonoid of Calycopteris floribunda Lamk. Bioorg. Med. Chem. 2011, 19, 186–196. [Google Scholar] [CrossRef]
  33. Baker, W. Molecular rearrangement of some o-acyloxyacetophenones and the mechanism of the production of 3-acylchromones. J. Chem. Soc. 1933, 1381–1389. [Google Scholar] [CrossRef]
  34. Mahal, H.S.; Venkataraman, K. Synthetical experiments in the chromone group. Part XIV. The action of sodamide on 1-acyloxy-2-acetonaphthones. J. Chem. Soc. 1934, 1767–1769. [Google Scholar]
  35. Barros, A.I.R.N.A.; Silva, A.M.S. Efficient synthesis of nitroflavones by cyclodehydrogenation of 2prime;-hydroxychalcones and by the Baker-Venkataraman method. Monatshefte für Chemie 2006, 137, 1505–1528. [Google Scholar] [CrossRef]
  36. Lee, Y.R.; Kang, K.Y. Mild and Efficient Method for the Synthesis of Flavones by InCl3-Mediated Cyclization of 1,3-Diketones: Concise Total Synthesis of Lanceolatin B. Lett. Org. Chem. 2007, 4, 440–444. [Google Scholar] [CrossRef]
  37. Aponte, J.; Castillo, D.; Estevez, Y.; Gonzalez, G.; Arevalo, J.; Hammond, G.B.; Sauvain, M. In vitro and in vivo anti-Leishmania activity of polysubstituted synthetic chalcones. Bioorg. Med. Chem. Lett. 2010, 20, 100–103. [Google Scholar] [CrossRef]
  38. Chen, Y.-H.; Wen, C.-C.; Lin, C.-Y.; Chou, C.-Y.; Yang, Z.-S.; Wang, Y.-H. UV-Induced fin damage in zebrafish as a system for evaluating the chemopreventive potential of broccoli and cauliflower extracts. Toxicol. Mech. Methods 2011, 21, 63–69. [Google Scholar] [CrossRef]
  39. Wang, Y.-H.; Wen, C.-C.; Yang, Z.-S.; Cheng, C.-C.; Tsai, J.-N.; Ku, C.-C.; Wu, H.-J.; Chen, Y.-H. Development of a whole-organism model to screen new compounds for sun protection. Mar. Biotechnol. 2009, 11, 419–429. [Google Scholar] [CrossRef]
  40. Tsai, I.-T.; Yang, Z.-S.; Lin, Z.-Y.; Wen, C.-C.; Cheng, C.-C.; Chen, Y.-H. Flavone is efficient to protect zebrafish fins from UV-induced damages. Drug Chem. Toxicol. 2012, 35, 341–346. [Google Scholar] [CrossRef]
  41. Chen, Y.-H.; Lee, W.-C.; Liu, C.-F.; Tsai, H.-J. Molecular structure, dynamic expression and promoter analysis of zebrafish (Danio rerio) myf-5 gene. Genesis 2001, 29, 22–35. [Google Scholar] [CrossRef]
  42. Lee, G.-H.; Chang, M.-Y.; Hsu, C.-H.; Chen, Y.-H. Essential roles of basic helix-loop-helix transcription factors, Capsulin and Musculin, during craniofacial myogenesis of zebrafish. Cell. Mol. Life Sci. 2011, 68, 4065–4078. [Google Scholar] [CrossRef]
  43. Chen, Y.-H.; Yang, Z.-S.; Wen, C.-C.; Chang, Y.-S.; Wang, B.-C.; Hsiao, C.-A.; Shih, T.-L. Evaluation of the structure-activity relationship of flavonoids as antioxidants and toxicants of zebrafish larvae. Food Chem. 2012, 134, 717–724. [Google Scholar] [CrossRef]
  • Sample Availability: Samples of the compounds 412 are available from the authors.
