molecules Molecules Molecules Molecules 1420-3049 MDPI 10.3390/molecules171112704 molecules-17-12704 Article An Efficient Synthesis of Novel Dispirooxindole Derivatives via One-Pot Three-Component 1,3-Dipolar Cycloaddition Reactions Huang Zhibin 1 † Zhao Qian 2 † Chen Gang 3 Wang Huiyuan 1 Lin Wei 1 Xu Lexing 4 Liu Hongtao 4 Wang Juxian 4 Shi Daqing 1 * Wang Yucheng 4 * Key Laboratory of Organic Synthesis of Jiangsu Province, College of Chemistry, Chemical Engineering and Materials Science, Soochow University, Suzhou 215123, China Tianjin ShuiGe Hospital, Tianjin 300120, China Zhejiang Medicine Co., Ltd. Xinchang Pharmaceutical Factory, Xinchang 312500, China Institute of Medicinal Biotechnology, Chinese Academy of Medical Sciences and Peking Union Medical College, Beijing 100050, China

These authors contributed equally to this work.

 Authors to whom correspondence should be addressed; Email: dqshi@suda.edu.cn (D.S.); wyc9999@126.com (Y.W.); Tel.: +86-512-6588-0049 (D.S.); Fax: +86-512-6588-0089 (D.S.); Tel./Fax: +86-010-6316-5263 (Y.W.). 26 10 2012 11 2012 17 11 12704 12717 04 09 2012 16 10 2012 18 10 2012 © 2012 by the authors; licensee MDPI, Basel, Switzerland. 2012

This article is an open-access article distributed under the terms and conditions of the Creative Commons Attribution license (http://creativecommons.org/licenses/by/3.0/).

A series of novel dispirooxindoles have been synthesized through three-component 1,3-dipolar cycloaddition of azomethine ylides generated in situ by the decarboxylative condensation of isatin and an α-amino acid with the dipolarophile 5-benzylidene-1,3-dimethylpyrimidine-2,4,6-trione. This method has the advantages of mild reaction conditions, high atom economy, excellent yields, and high regio- and stereo-selectivity.

 dispirooxindole three-component reaction 1,3-dipolar cycloaddition azomethine ylide 1. Introduction

In recent decades, multicomponent reactions (MCRs) have emerged as a powerful synthetic strategy due to their efficiency, atom economy, high selectivity and convenience in the construction of multiple new bonds, which permit a rapid access to combinatorial libraries of complex organic molecules for efficient lead structure identification and optimization in drug discovery [1,2,3,4]. According to this method, the products are formed in a single step and diversity can be achieved simply by varying the reacting components.

1,3-Dipolar cycloaddition of azomethine ylides with olefinic and acetylenic dipolarophiles has gained significance as it proceeds with high regiochemical and stereochemical selectivity yielding pyrroline and pyrrolidine derivatives [5,6,7], which are prevalent in a variety of biologically active compounds [8] and are also inhibitors of many diseases such as diabetes [9], cancer [10] and viral infections [11]. Because of their remarkable biological activities, significant efforts have been devoted to the synthesis of their novel derivatives.

Among the various nitrogen-containing heterocycles, functionalized pyrrolidine, pyrrolizidine and oxindole alkaloids have become important synthetic targets as they constitute classes of compounds with significant biological activity [12]. The synthesis of spiro compounds has drawn considerable attention of chemists as have their highly pronounced biological properties [13,14]. The spirooxindole system as the core structure of many pharmacological agents and natural alkaloids [15,16,17,18], and has potent nonpeptide p53-MDM2 inhibitory activity [19]. Elacomine, spirotryprostatins A and B are some of the alkaloids containing spiropyrrolidinyloxindole ring systems. Some spiropyrrolidines are potential antileukaemic and anticonvulsant agents [20] and possess antiviral and local anaesthetic activities [21].

Barbituric acid has widely been used in the manufacture of plastics [22], textiles [23], polymers [24] and pharmaceuticals [25,26,27,28]. Barbiturates (derivatives of barbituric acid) like pentobarbital and phenobarbital were long used as anxiolytics and hypnotics. Spirobarbiturates are a class of compounds with interesting pharmacological and physiological activity [29,30,31]. We have recently reported the regio- and stereoselective synthesis of novel dispirooxindole derivatives via multicomponent reactions [32,33,34,35,36]. To expand our research program which aims to synthesize new spiro compounds and nitrogen heterocycles with biological activities, we report herein, the efficient synthesis of a series of novel dispirooxindole derivatives in excellent yields by the three-component 1,3-dipolar cycloaddition reaction of nonstabilized azomethine ylides generated in situ by the decarboxylative condensation of isatin and α-amino acids with 5-benzylidene-1,3-dimethylpyrimidine-2,4,6-trione using ethanol under reflux conditions.

 2. Results and Discussion

In an effort to optimize this process, the three-component reaction of isatin (1), sarcosine (2), and the dipolarophile 5-(4-bromobenzylidene)-1,3-dimethylpyrimidine-2,4,6-trione (3a) was carried out in various solvents under reflux conditions as a simple model reaction in order to determine the best reaction solvent (Scheme 1). The results are summarized in Table 1. As can be seen from the data, the reaction could be efficiently carried out in solvents such as ethanol, methanol, acetonitrile, THF and 1,4-dioxane. In particular, the reaction using ethanol as the solvent resulted in higher yields and shorter reaction times than those using methanol, acetonitrile, THF and 1,4-dioxane. Thus, ethanol, which is a low cost bio-renewable product with low toxicity to human health and is relatively non-hazardous to the environment was chosen as the solvent for all further reactions (Table 1, entry 1) [37].

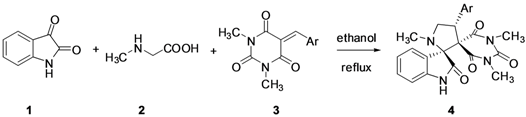

molecules-17-12704-scheme1_Scheme 1

The model reaction.

 molecules-17-12704-t001_Table 1

Optimization of solvent effect on the model reaction a.

Entry Solvent Time (h) Yield b (%)
1 Ethanol 2 84
2 Methanol 2 56
3 Acetonitrile 3 75
4 Tetrahydrofuran (THF) 6 80
5 1,4-Dioxane 8 60

a Reaction conditions: isatin (0.5 mmol), sarcosine (0.5 mmol) and 5-(4-bromobenzylidene)-1,3-dimethylpyrimidine-2,4,6-trione (0.5 mmol) in solvent (10 mL) at reflux temperature; b Yields of isolated products.

Using the optimized reaction conditions, various structurally diverse 5-benzylidene-1,3-dimethyl-pyrimidine-2,4,6-triones were investigated (Table 2). It was found that the aromatic rings bearing either electron-withdrawing or electron-donating functional groups were suitable for the reaction, while the cycloaddition reactions with dipolarophiles carrying electron-donating substituents required a longer times and the yield decreased (Table 2, entry 2).

molecules-17-12704-t002_Table 2

Synthesis of dispirooxindole derivatives 4 via three-component reaction.

Entry Product Ar Time (h) Yield (%)
1 4a 4-BrC6H4 2 84
2 4b 4-CH3C6H4 2.5 75
3 4c 4-NO2C6H4 1.5 90
4 4d 4-ClC6H4 2 88

In order to establish the scope of this cycloaddition reaction, we extended the same protocol using istain (1), L-thioproline (5) and dipolarophiles 3 under the same reaction conditions to give a series of cycloadducts 6 in excellent yields (Table 3).

molecules-17-12704-t003_Table 3

Synthesis of dispirooxindole derivatives 6 via three-component reactions.

Entry Product Ar Time (h) Yield (%)
1 6a 4-BrC6H4 1 84
2 6b 4-CH3C6H4 2 81
3 6c 4-NO2C6H4 1 87
4 6d 4-ClC6H4 1 83
5 6e C6H5 1 82
6 6f 2-NO2C6H4 1.5 82
7 6g 3,4-Cl2C6H3 1.5 88
8 6h Thiophen-2-yl 3 86

With the use of Discrete Fourier Transformation (DFT) and the B3LYP/6-31G computer programme [38], a geometrical optimization of product 4a was obtained and is shown in Figure 1. From Figure 1, we found that the geometry A (trans) was more stable than geometry B (cis) (∆E = 10.98 kJ/mol).

Optimized geometry of 4a.

To expand the scope of the current method, acenaphthenequinone (7) was examined as a replacement for isatin (1). The desired products 8 were obtained under the optimized conditions. The results are summarized in Table 4.

molecules-17-12704-t004_Table 4

Synthesis of dispirooxindole derivatives 8 via three-component reaction.

Entry Product Ar Time (h) Yield (%)
1 8a C6H5 1 82
2 8b 3,4-Cl3C6H3 1.5 80
3 8c 3,4-OCH2OC6H3 3 78

The structures of the products were identified by IR, 1H-NMR, 13C-NMR and HRMS spectra. The structure and regiochemistry of the products were assigned on the basis of their spectroscopic analysis. For example, in the 1H-NMR spectrum of compound 4c, a sharp singlet at δ 2.13 due to the N-methyl protons was seen. The benzylic proton exhibited a doublet of doublets at δ 3.71 (J = 10.4 Hz and 8.0 Hz). The off resonance decoupled 13C-NMR spectrum added conclusive support. The 13C-NMR spectrum of 5c showed peaks at δ 81.17 and δ 67.26 for the two spirocarbons, respectively. The mass spectrum of 4c showed a molecular ion peak at m/z 486.1392 (M+Na). The X-ray crystallographic study of single of 8b (Figure 2) not only confirmed the structure deduced from NMR spectroscopic studies, but also determined the stereochemical outcome of the cycloaddition.

X-Ray crystal structure of compound 8b.

Although the detailed mechanism of the above reaction has not been elucidated yet, the formation of 4 can be explained by the mechanism proposed in Scheme 2. The reaction proceeds through the generation of azomethine ylide (dipole 7) via the condensation of isatin (1) with sarcosine (2) and decarboxylation. The dipolarophile 3 regioselectively reacts with azomethine ylides (dipole 7) in ethanol to give the desired products dispiro compounds 4 (Scheme 2, path A). The cycloaddition proceeds via an endo transition state [39,40,41]. The regioselectivity in the product formation can be explained by considering the secondary orbital interaction (SOI) [42,43] of the orbital of the carbonyl group of dipolarophile 3 with those of the ylide 7 as shown in Scheme 2. In this transition state, these orbital interactions are typically orthogonal in nature and occur between the oxygen atom of the carbonyl of the isatin and the carbon atom of the carbonyl of the dipolarophile 3. Accordingly, the observed regioisomer 4 via path A is more favorable because of the SOI which is not possible in path B.

molecules-17-12704-scheme2_Scheme 2

Proposed reaction mechanism for the formation of compound 4.

 3. Experimental 3.1. General

All reagents were purchased from commercial sources and used without further purification. Melting points are uncorrected. IR spectra were recorded on a Nicolet 6700 spectrometer in KBr with absorptions in cm−1. 1H-NMR spectra were determined on a Varian Inova-300/400 MHz spectrometer in DMSO-d6 solution. J values are in Hz. Chemical shifts are expressed in ppm downfield from internal standard TMS. HRMS data were obtained using Bruker micrOTOF-Q instrument or TOF-MS instrument. The starting compounds 3 were prepared according to the previously reported procedures [44,45].

 3.2. General Procedure for the Synthesis of Dispirooxindoles <italic><bold>4</bold></italic>, <italic><bold>6</bold></italic> and <italic><bold>8</bold></italic>

A dry 50 mL flask was charged with isatin (1) or acenaphthenequinone (7) (0.5 mmol), sarcosine (2) or L-thioproline (5) (0.5 mmol), dipolarophile 3 (0.5 mmol) and ethanol (10 mL). The mixture was stirred at reflux temperature for 1–3 h. After completion of the reaction (monitored by TLC), the solvent was removed under vacuum. The solid was recrystallized from ethanol, and then dried at 80 °C for 4h under vacuum to give compounds 4, 6 or 8.

2,7,9-Trimethyl-4-(4-bromophenyl)-1-(spiro-3'-indolino)-2,7,9-triazaspiro[4.5]decane-6,8,10-trione (4a). White solid; m.p. 180–182 °C; IR (KBr, cm−1): 3313, 2939, 1735, 1679, 1618, 1468, 1420, 1374, 1070, 753; 1H-NMR (400 MHz, DMSO-d6): δ (ppm) 2.12 (s, 3H, CH3), 2.88–2.89 (m, 6H, 2 × CH3), 3.60 (m, 1H, CH2), 3.89 (t, J = 8.0 Hz, 1H, CH2), 5.18 (t, J = 8.8 Hz, 1H, CH), 6.78 (d, J = 7.6 Hz, 1H, ArH), 6.82 (d, J = 7.2 Hz, 1H, ArH), 6.96 (t, J = 6.4 Hz, 1H, ArH), 7.13–7.15 (m, 2H, ArH), 7.26 (t, J = 6.8 Hz, 1H, ArH), 7.41 (d, J = 8.4 Hz, 2H, ArH), 10.51 (s, 1H, NH); 13C-NMR (75 MHz, DMSO-d6): δ (ppm) 28.52, 29.67, 35.92, 41.98, 56.60, 67.26, 81.17, 110.42, 112.85, 120.15, 122.12, 123.59, 125.16, 131.02, 131.56, 137.96, 143.70, 150.33, 164.76, 166.92, 175.70; HRMS: calculated for C23H2179BrN4O4Na [M+Na]+: 519.0638, found: 519.0621.

2,7,9-Trimethyl-4-(4-methylphenyl)-1-(spiro-3'-indolino)-2,7,9-triazaspiro[4.5]decane-6,8,10-trione (4b). White solid; m.p. 190–191 °C; IR (KBr, cm−1): 3321, 2949, 1735, 1689, 1672, 1515, 1471, 1373, 752; 1H-NMR (400 MHz, DMSO-d6): δ (ppm) 2.13 (s, 3H, CH3), 2.23 (s, 3H, CH3), 2.90 (s, 6H, 2 × CH3), 3.56–3.60 (m, 1H, CH2), 3.91 (t, J = 9.2 Hz, 1H, CH2), 5.19 (t, J =9.2 Hz, 1H, CH), 6.76–6.78 (m, 1H, ArH), 6.82–6.84 (m, 1H, ArH), 6.96 (t, J = 7.2 Hz, 1H, ArH), 7.04 (s, 4H, ArH), 7.26 (t, J = 7.6 Hz, 1H, ArH), 10.49 (s, 1H, NH); 13C-NMR (100 MHz, DMSO-d6): δ (ppm) 21.17, 28.47, 29.61, 35.91, 42.26, 56.84, 67.33, 81.08, 110.36, 122.09, 123.73, 125.09, 128.43, 129.37, 131.63, 135.38, 135.93, 143.66, 150.33, 164.77, 167.02, 175.77; HRMS: calculated for C24H24N4O4[M]+: 432.1792, found: 432.1800.

2,7,9-Trimethyl-4-(4-nitrophenyl)-1-(spiro-3'-indolino)-2,7,9-triazaspiro[4.5]decane-6,8,10-trione (4c). White solid; m.p. 188–190 °C; IR (KBr, cm−1): 3350, 2926, 1730, 1684, 1619, 1599, 1520, 1469, 1379, 1348, 754; 1H-NMR (400 MHz, DMSO-d6): δ (ppm) 2.13 (s, 3H, CH3), 2.90 (s, 6H, 2 × CH3), 3.71 (dd, J1 = 8.0 Hz, J2 = 10.4 Hz, 1H, CH2), 3.93 (t, J = 8.0 Hz, 1H, CH2), 5.30 (t, J = 9.2 Hz, 1H, CH), 6.78–6.84 (m, 2H, ArH), 6.97 (t, J = 7.6 Hz, 1H, ArH), 7.28 (t, J = 8.0 Hz, 1H, ArH), 7.44 (d, J = 8.8 Hz, 2H, ArH), 8.08 (d, J = 8.8 Hz, 2H, ArH), 10.57 (s, 1H, NH); 13C-NMR (75 MHz, DMSO-d6): δ (ppm) 30.51, 31.670, 37.85, 44.31, 58.50, 69.16, 83.07, 112.41, 124.11, 125.34, 125.67, 127.20, 131.77, 133.77, 145.70, 148.45, 148.98, 152.31, 166.77, 168.80, 177.57; HRMS: calculated for C23H21N5O6Na [M+Na]+: 486.1384, found: 486.1392.

2,7,9-Trimethyl-4-(4-chlorophenyl)-1-(spiro-3'-indolino)-2,7,9-triazaspiro[4.5]decane-6,8,10-trione (4d). White solid; m.p. 240–242 °C; IR (KBr, cm−1): 3317, 2926, 1736, 1718, 1679, 1620, 1570, 1468, 1379, 758; 1H-NMR (400 MHz, DMSO-d6): δ (ppm) 2.89 (s, 3H, CH3), 2.90 (s, 3H, CH3), 3.08 (s, 3H, CH3), 3.61 (dd, J1 = 8.4 Hz, J2 = 10.0 Hz, 1H, CH2), 3.89 (t, J = 8.0 Hz, 1H, CH2), 5.20 (t, J = 9.2 Hz, 1H, CH), 6.78 (d, J = 8.0 Hz, 1H, ArH), 6.82–6.84 (m, 1H, ArH), 6.96 (t, J = 7.6 Hz, 1H, ArH), 7.19–7.21 (m, 1H, ArH), 7.29 (d, J = 8.4 Hz, 3H, ArH), 7.33–7.35 (m, 1H, ArH), 10.52 (s, 1H, NH); 13C-NMR (100 MHz, DMSO-d6): δ (ppm) 28.53, 29.67, 35.93, 41.97, 56.69, 67.34, 81.18, 110.42, 122.13, 123.62, 125.17, 128.66, 130.63, 131.63, 131.72, 137.55, 143.72, 150.53, 164.78, 166.94, 175.70; HRMS: calculated for C23H2135ClN4O4 [M]+: 452.1251, found: 452.1260.

1,3-Dimethyl-5'-(4-bromophenyl)-7'-(spiro-3''-indolino)tetrahydro-1H,1'H-spiro[pyrimidine-5,6'-pyrrolo[1,2-c]thiazole]-2,4,6-trione (6a). White solid; m.p. 194–196 °C; IR (KBr, cm−1): 3236, 2926, 1741, 1719, 1679, 1615, 1469, 1376, 749; 1H-NMR (400 MHz, DMSO-d6): δ (ppm) 2.94 (s, 3H, CH3), 3.05–3.08 (m, 1H, CH2), 3.28–3.33 (m, 2H, CH2), 3.40–3.42 (m, 4H, CH3 and CH), 3.79 (d, J = 10.4 Hz, CH), 4.29 (d, J = 10.0 Hz, 1H, CH2), 4.96–5.00 (m, 1H, CH2), 6.82 (d, J = 7.2 Hz, 1H, ArH), 6.98–7.02 (m, 1H, ArH), 7.29 (t, J = 7.2 Hz, 1H, ArH), 7.39–7.41 (m, 2H, ArH), 7.46–7.48 (m, 2H, ArH), 7.61 (d, J = 7.2 Hz, 1H, ArH), 10.84 (s, 1H, NH); 13C-NMR (75 MHz, DMSO-d6): δ (ppm) 33.93, 34.09, 42.24, 55.22, 58.79, 76.38, 76.57, 85.45, 115.22, 125.77, 126.48, 127.08, 135.10, 136.20, 136.30, 137.28, 140.40, 147.07, 155.71, 169.89, 171.56, 180.61; HRMS: calculated for C24H2279BrN4O4S [M+H]+: 541.0540, found: 541.0559.

1,3-Dimethyl-5'-(4-methylphenyl)-7'-(spiro-3''-indolino)tetrahydro-1H,1'H-spiro[pyrimidine-5,6'-pyrrolo[1,2-c]thiazole]-2,4,6-trione (6b). White solid; m.p. 188–190 °C; IR (KBr, cm−1): 3213, 2921, 1740, 1684, 1620, 1472, 1369, 752; 1H-NMR (400 MHz, DMSO-d6): δ (ppm) 2.24 (s, 3H, CH3), 2.52 (s, 3H, CH3), 2.95 (s, 3H, CH3), 3.02 (dd, J1 = 3.2 Hz, J2 = 11.2 Hz, 1H, CH2), 3.31–3.33 (m, 1H, CH2), 3.38–3.40 (m, 1H, CH), 3.78–3.81 (m, 1H, CH), 4.28–4.31 (m, 1H, CH2), 4.98–5.03 (m, 1H, CH2), 6.82 (d, J = 7.6 Hz, 1H, ArH), 7.00 (t, J = 7.6 Hz, 1H, ArH), 7.07–7.09 (m, 2H, ArH), 7.27–7.32 (m, 3H, ArH), 7.61 (d, J = 7.6 Hz, 1H, ArH), 10.76 (s, 1H, NH); 13C-NMR (75 MHz, DMSO-d6): δ (ppm) 25.95, 33.90, 34.10, 42.45, 55.63, 58.78, 76.57, 76.63, 85.40, 115.26, 126.45, 127.13, 134.11, 134.72, 135.12, 136.13, 137.83, 141.50, 147.05, 155.68, 169.81, 171.56, 180.65; HRMS: calculated for C25H25N4 O4S [M]+: 477.1591, found: 477.1607.

1,3-Dimethyl-5'-(4-nitrophenyl)-7'-(spiro-3''-indolino)tetrahydro-1H,1'H-spiro[pyrimidine-5,6'-pyrrolo[1,2-c]thiazole]-2,4,6-trione (6c). White solid; m.p. 186–188 °C; IR (KBr, cm−1): 3205, 3086, 2952, 1741, 1683, 1522, 1419, 1348, 749; 1H-NMR (400 MHz, DMSO-d6): δ (ppm) 2.94 (s, 3H, CH3), 3.14–3.17 (m, 2H, CH2), 3.41 (s, 4H, CH3 and CH), 3.79 (d, J = 10.0 Hz, 1H, CH), 4.46–4.48 (m, 1H, CH2), 5.02 (s, 1H, CH2), 6.82–6.84 (m, 1H, ArH), 7.00–7.02 (m, 1H, ArH), 7.28–7.30 (m, 1H, ArH), 7.61–7.62 (m, 1H, ArH), 7.68–7.70 (m, 2H, ArH), 8.11–8.13 (m, 2H, ArH), 10.86 (s, 1H, NH); 13C-NMR (100 MHz, DMSO-d6): δ (ppm) 29.21, 29.39, 37.49, 50.57, 53.77, 71.59, 72.13, 80.60, 121.79, 122.27, 123.58, 130.29, 131.38, 131.53, 142.33, 144.55, 146.96, 150.95, 165.20, 166.83, 175.71; HRMS: calculated for C24H22N5O6S [M+H]+: 508.1285, found: 508.1290.

1,3-Dimethyl-5'-(4-chlorophenyl)-7'-(spiro-3''-indolino)tetrahydro-1H,1'H-spiro[pyrimidine-5,6'-pyrrolo[1,2-c]thiazole]-2,4,6-trione (6d). White solid; m.p. 162–164 °C; IR (KBr, cm−1): 3289, 3062, 2908, 1751, 1733, 1680, 1496, 1376, 755; 1H-NMR (400 MHz, DMSO-d6): δ (ppm) 2.87 (s, 3H, CH3), 2.89 (s, 3H, CH3), 3.18 (t, J = 9.6 Hz, 1H, CH2), 3.25–3.29 (m, 1H, CH2), 3.42 (d, J = 7.6 Hz, 1H, CH), 3.72 (d, J = 7.6 Hz, 1H, CH), 4.70–4.74 (m, 1H, CH2), 4.83–4.85 (m, 1H, CH2), 6.77–6.79 (m, 1H, ArH), 6.94–7.01 (m, 2H, ArH), 7.25–7.29 (m, 1H, ArH), 7.32–7.34 (m, 4H, ArH), 10.71 (s, 1H, NH); HRMS: calculated for C24H2135ClN4O4SNa [M+Na]+: 519.0864, found: 519.0871.

1,3-Dimethyl-5'-phenyl-7'-(spiro-3''-indolino)tetrahydro-1H,1'H-spiro[pyrimidine-5,6'-pyrrolo[1,2-c]thiazole]-2,4,6-trione (6e). White solid; m.p. 183–184 °C; IR (KBr, cm−1): 3212, 3082, 2953, 1740, 1680, 1615, 1472, 1367, 754; 1H-NMR (400 MHz, DMSO-d6): δ (ppm) 2.53 (s, 3H, CH3), 2.96 (s, 3H, CH3), 3.07 (dd, J1 = 3.6 Hz, J2 = 11.2 Hz, 1H, CH2), 3.33–3.35 (m, 1H, CH2), 3.39 (d, J = 10.0 Hz, 1H, CH), 3.80 (d, J = 10.4 Hz, 1H, CH), 4.36 (d, J = 10.0 Hz, 1H, CH2), 4.99–5.04 (m, 1H, CH2), 6.83 (d, J = 7.6 Hz, 1H, ArH), 7.01 (t, J = 7.6 Hz, 1H, ArH), 7.19–7.23 (m, 1H, ArH), 7.26–7.31 (m, 3H, ArH), 7.40–7.42 (m, 2H, ArH), 7.61 (d, J = 7.6 Hz, 1H, ArH), 10.77 (s, 1H, NH); 13C-NMR (100 MHz, DMSO-d6): δ (ppm) 34.27, 34.46, 42.90, 56.16, 59.00, 76.97, 85.73, 115.54, 126.83, 127.51, 132.64, 133.88, 135.04, 135.50, 136.49, 141.47, 147.38, 156.06, 170.16, 171.94, 180.97; HRMS: calculated for C24H23N4O4S [M+H]+: 463.1435, found: 463.1443.

1,3-Dimethyl-5'-(2-nitrophenyl)-7'-(spiro-3''-indolino)tetrahydro-1H,1'H-spiro[pyrimidine-5,6'-pyrrolo[1,2-c]thiazole]-2,4,6-trione (6f). White solid; m.p. 184–186 °C; IR (KBr, cm−1): 3220, 2947, 1743, 1685, 1616, 1536, 1471, 1370, 782, 763; 1H-NMR (400 MHz, DMSO-d6): δ (ppm) 2.34 (s, 3H, CH3), 2.97 (s, 3H, CH3), 3.00 (s, 1H, CH2), 3.04 (s, 1H, CH2), 3.10–3.14 (m, 1H, CH), 3.82 (d, J =10.8 Hz, 1H, CH), 4.88–4.90 (m, 1H, CH2), 5.07–5.11 (m, 1H, CH2), 6.81–6.83 (m, 1H, ArH), 7.01 (t, J = 7.6 Hz, 1H, ArH), 7.29 (t, J =7.6 Hz, 1H, ArH), 7.50 (t, J =8.0 Hz, 1H, ArH), 7.59 (d, J = 7.6 Hz, 1H, ArH), 7.68 (t, J = 8.0 Hz, 1H, ArH), 7.78 (d, J = 7.6 Hz, 1H, ArH), 8.36 (d, J = 8.0 Hz, 1H, ArH), 10.84 (s, 1H, NH); HRMS: calculated for C24H22N5O6S [M+H]+: 508.1285, found: 508.1296.

1,3-Dimethyl-5'-(3,4-dichlorophenyl)-7'-(spiro-3''-indolino)tetrahydro-1H,1'H-spiro[pyrimidine-5,6'-pyrrolo[1,2-c]thiazole]-2,4,6-trione (6g). White solid; m.p. 192–194 °C; IR (KBr, cm−1): 3074, 2957, 1757, 1721, 1688, 1614, 1469, 1367, 748; 1H-NMR (400 MHz, DMSO-d6): δ (ppm) 2.46 (s, 3H, CH3), 2.94 (s, 3H, CH3), 3.03 (dd, J1 = 2.4 Hz, J2 = 11.2 Hz, 1H, CH2), 3.23–3.28 (m, 1H, CH2), 3.40 (s, 1H, CH), 3.78 (d, J = 10.8 Hz, 1H, CH), 4.27 (d, J = 10.0 Hz, 1H, CH2), 4.99–5.04 (m, 1H, CH2), 6.83 (d, J = 7.6 Hz, 1H, ArH), 7.00 (t, J = 7.6 Hz, 1H, ArH), 7.30 (t, J = 7.6 Hz, 1H, ArH), 7.49–7.56 (m, 2H, ArH), 7.63 (d, J = 7.6 Hz, 1H, ArH), 7.71 (s, 1H, ArH), 10.84 (s, 1H, NH); 13C-NMR (75 MHz, DMSO-d6): δ (ppm) 28.69, 35.78, 43.32, 57.18, 67.90, 84.56, 120.35, 122.04, 122.14, 127.39, 128.96, 129.47, 130.19, 130.47, 130.92, 131.70, 132.97, 133.13, 137.67, 142.05, 149.92, 164.77, 167.07, 203.16; HRMS: calculated for C24H2135Cl2N4O4S [M+H]+: 531.0655, found: 531.0674.

1,3-Dimethyl-5'-(thiophen-2-yl)-7'-(spiro-3''-indolino)tetrahydro-1H,1'H-spiro[pyrimidine-5,6'-pyrrolo[1,2-c]thiazole]-2,4,6-trione (6h). White solid; m.p. 164–166 °C; IR (KBr, cm−1): 3243, 3078, 2956, 1738, 1679, 1568, 1439, 1382; 1H-NMR (400 MHz, DMSO-d6): δ (ppm) 2.88 (s, 3H, CH3), 2.92 (s, 3H, CH3), 3.12–3.17 (m, 2H, CH2), 3.44 (d, J = 7.6 Hz, 1H, CH), 3.70 (d, J = 7.2 Hz, 1H, CH), 4.72–4.76 (m, 1H, CH2), 5.05 (d, J = 8.4 Hz, 1H, CH2), 6.79 (d, J = 7.6 Hz, 1H, ArH), 6.92–7.00 (m, 4H, ArH), 7.25–7.29 (m, 1H, ArH), 7.37–7.38 (m, 1H, ArH), 10.74 (s, 1H, NH); 13C-NMR (75 MHz, DMSO-d6): δ (ppm) 28.68, 29.70, 36.56, 43.83, 51.33, 73.06, 74.23, 79.44, 110.74, 122.54, 124.32, 125.06, 126.02, 127.49, 127.69, 132.03, 138.48, 142.86, 150.04, 164.75, 165.76, 176.46; HRMS: calculated for C22H21N4O4S2 [M+H]+: 469.0999, found: 469.0980.

2,7,9-Trimethyl-4-phenyl-1-(spiro-2'-acenaphthylenone)-2,7,9-triazaspiro[4.5]decane-6,8,10-trione (8a). White solid; m.p. 168–170 °C; IR (KBr, cm−1): 3063, 2920, 1748, 1723, 1685, 1442, 1371, 833, 783, 751; 1H-NMR (400 MHz, DMSO-d6): δ (ppm) 2.19 (s, 6H, 2 × CH3), 2.91 (s, 3H, CH3), 3.83 (t, J = 8.0 Hz, 1H, CH2), 4.08 (t, J = 8.0 Hz, 1H, CH2), 5.18 (t, J = 8.0 Hz, 1H, CH), 7.16 (s, 3H, ArH), 7.25 (s, 2H, ArH), 7.30 (d, J = 8.0 Hz, 1H, ArH), 7.72 (s, 1H, ArH), 7.82–7.88 (m, 2H, ArH), 8.04–8.06 (m, 1H, ArH), 8.29–8.31 (m, 1H, ArH); 13C-NMR (100 MHz, DMSO-d6): δ (ppm) 33.40, 33.45, 40.51, 48.79, 62.13, 72.64, 89.12, 126.78, 126.80, 131.85, 132.07, 133.12, 133.68, 133.70, 134.19, 135.06, 135.22, 137.60, 138.01, 143.03, 146.74, 154.67, 169.55, 171.95, 207.93; HRMS: calculated for C27H23N3O4Na [M+Na]+: 476.1581, found: 476.1582.

2,7,9-Trimethyl-4-(3,4-dichlorophenyl)-1-(spiro-2'-acenaphthylenone)-2,7,9-triazaspiro[4.5]decane-6,8,10-trione (8b). White solid; m.p. 192–194 °C; IR (KBr, cm−1): 2965, 1721, 1684, 1640, 1372, 783, 750; 1H-NMR (400 MHz, DMSO-d6): δ (ppm) 2.12 (s, 3H, CH3), 2.17 (s, 3H, CH3), 2.89 (s, 3H, CH3), 3.79 (t, J = 8.0 Hz, 1H, CH2), 4.05 (t, J = 8.0 Hz, 1H, CH2), 5.15 (t, J = 7.6 Hz, 1H, CH), 7.17–7.19 (m, 1H, ArH), 7.28–7.30 (m, 1H, ArH), 7.46–7.51 (m, 2H, ArH), 7.71–7.75 (m, 1H, ArH), 7.83–7.90 (m, 2H, ArH), 8.07 (d, J = 8.0 Hz, 1H, ArH), 8.32 (d, J = 7.2 Hz, 1H, ArH); 13C-NMR (75 MHz, DMSO-d6): δ (ppm) 28.66, 35.73, 42.82, 56.93, 56.95, 68.00, 84.70, 120.77, 122.08, 122.15, 127.42, 128.89, 129.44, 129.99, 130.07, 130.42, 130.70, 131.09, 131.22, 131.39, 133.01, 139.12, 142.07, 149.89, 164.73, 166.92, 203.09; HRMS: calculated for C27H21Cl2N3O4Na [M+Na]+: 509.1113, found: 509.1338.

2,7,9-Trimethyl-4-(3,4-methylenedioxylphenyl)-1-(spiro-2'-acenaphthylenone)-2,7,9-triazaspiro[4.5]decane-6,8,10-trione (8c). White solid; m.p. 186–188 °C; IR (KBr, cm−1): 2939, 2897, 1730, 1692, 1500, 1364, 1233, 832, 783; 1H-NMR (400 MHz, DMSO-d6): δ (ppm) 2.16 (s, 6H, 2 × CH3), 2.91 (s, 3H, CH3), 3.73 (s, 1H, CH2), 4.02 (s, 1H, CH2), 5.10 (s, 1H, CH), 5.96 (s, 2H, CH2), 6.64 (s, 1H, ArH), 6.77–6.82 (m, 2H, ArH), 7.30 (s, 1H, ArH), 7.72–7.87 (m, 3H, ArH), 8.05 (s, 1H, ArH), 8.30 (s, 1H, ArH); 13C-NMR (75 MHz, DMSO-d6): δ (ppm) 27.39, 34.47, 42.72, 56.19, 67.02, 83.22, 100.23, 107.34, 108.13, 120.73, 120.89, 126.02, 127.68, 128.15, 129.06, 129.20, 130.11, 131.55, 132.06, 140.67, 145.25, 146.47, 148.62, 163.47, 165.86, 201.87; HRMS: calculated for C28H23N3O6 [M]+: 497.1587, found: 497.1585.

 3.3. X-ray Crystallography [<xref ref-type="bibr" rid="B46-molecules-17-12704">46</xref>]

The single-crystals of compound 8b were obtained by slow evaporation from ethanol. Intensity data were collected on a Bruker P4 diffractometer with graphite monochromated Mo Kα radiation (λ = 0.71073 Å) using the ω scan mode with 1.34º < θ < 25.02º; 4188 unique reflections were measured and 3254 reflections with I > 2σ(I) were used in the Fourier techniques. The final refinement was converged to R = 0.0428 and wR = 0.1266. Crystal data for 8b: empirical formula C27H21Cl2N3O4, crystal dimension 0.42 × 0.40 × 0.37 mm, triclinic, space group P-1, a = 8.0847(7) Å, b = 10.0554(10) Å, c = 15.5500(13) Å, α = 76.8210(10)º, β = 86.626(2)º, γ = 76.2960(10)º, V = 1195.79(19)Å3, Mr = 522.37, Z = 2, Dc = 1.451 Mg/m3, μ(Mo Kα) = 0.312 mm−1, F(000) = 540, S = 1.079.

 4. Conclusions

In summary, we have successfully developed a 1,3-dipolar cycloaddition of azomethine ylides, and a series of novel dispiro cycloadducts were obtained. This method has the advantages of convenient operation, mild reaction conditions, short reaction time, and high efficiency.

 Acknowledgments

We gratefully acknowledge the Natural Science Foundation of China (No. 81072577, 81102376, 21072144), the Major Basic Research Project of the Natural Science Foundation of the Jiangsu Higher Education Institutions (No. 10KJA150049), the Priority Academic Project Development of Jiangsu Higher Education Institutions and Key Laboratory of Organic Synthesis of Jiangsu Province (No. KJS0812) and the National S&T Major Special Project on Major New Drug Innovation (No. 2012ZX093101002-001-017) for support of this research.

 References and Notes Dömling A. Ugi I. Multicomponent Reactions with Isocyanides Angew. Chem. Int. Ed. Engl. 2000 39 3168 3210 10.1002/1521-3773(20000915)39:18<3168::AID-ANIE3168>3.0.CO;2-U Dömling A. Recent Developments in Isocyanide Based Multicomponent Reactions in Applied Chemistry Chem. Rev. 2006 106 17 89 10.1021/cr0505728 Zhu J. Bienaymé H. Multicomponent Reactions Wiley-VCH Weinheim, Germany 2005 Dou G.L. Shi C.L. Shi D.Q. Highly Regioselective Synthesis of Polysubstituted Pyrroles through Three-Component Reaction Induced by Low-Valent Titanium Reagent J. Comb. Chem. 2008 10 810 813 10.1021/cc8000844 Dondas H.A. Fishwick C.W.G. Grigg R. Kilner C. 1,3-Dipolar cycloaddition of stabilised and non-stabilised azomethine ylides derived from uracil polyoxin C (UPoC): Access to nikkomycin analogues Tetrahedron 2004 60 3473 3485 10.1016/j.tet.2004.02.028 Boruah M. Konwar D. Sharma S.D. KF/Al2O3 mediated 1,3-dipolar cycloaddition of azomethine ylides: A novel and convenient procedure for the synthesis of highly substituted pyrrolidines Tetrahedron Lett. 2007 48 4535 4537 10.1016/j.tetlet.2007.04.131 Kawashima K. Kakehi A. Noguchi M. Generation of functionalized azomethine ylides and their application to stereoselective heterocycle synthesis: An equivalent process of C-unsubstituted nitrile ylide cycloaddition reaction Tetrahedron 2007 63 1630 1643 10.1016/j.tet.2006.12.004 Watson A.A. Flett G.W.J. Asano N. Molyneux R.J. Nash R.J. Polyhydroxylated alkaloids-natural occurrence and therapeutic applications Phytochemistry 2001 56 265 295 10.1016/S0031-9422(00)00451-911243453 Horri S. Fukase H. Matsuo T. Kameda Y. Asano N. Matsui K. Synthesis and alpha-D-glucosidase inhibitory activity of N-substituted valiolamine derivatives as potential oral antidiabetic agents J. Med. Chem. 1986 29 1038 1046 10.1021/jm00156a023 Spearman M.A. Jamieson J.C. Wright J.A. Studies on the effect of glycoprotein processing inhibitors on fusion of L6 nyoblast cell lines Exp. Cell Res. 1987 168 116 126 10.1016/0014-4827(87)90421-6 Karpas A. Fleet G.W.J. Dwek R.A. Petursson S. Namgoong S.K. Pamsden N.G. Jacob G.S. Rademacher T.W. Aminosugar derivatives as potential anti-human immunodeficiency virus agents Proc. Natl. Acad. Sci. USA 1988 85 9229 9233 10.1073/pnas.85.23.92293264071 Alcaide B. Almendros P. Alonso J.M. Aly M.F. Rapid and Stereocontrolled Synthesis of Racemic and Optically Highly Functionalized Pyrrolidine Systems via Rearrangement of 1,3-Dipolar Cycloadducts Derived from 2-Azetidinone-Tethered Azomethine Ylides J. Org. Chem. 2001 66 1351 1358 10.1021/jo005686s Kobayashi J. Tsuda M. Agemi K. Shigemori H. Ishibashi M. Sasaki T. Mikami Y. Purealidines B and C, new bromotyrosine alkaloids from the okinawan marine sponge psammaplysilla purea Tetrahedron 1991 47 6617 6622 10.1016/S0040-4020(01)82314-0 James D.M. Kunze H.B. Faulkner D.J. Two New Brominated Tyrosine Derivatives from the Sponge Druinella (=Psammaplysilla) purpurea J. Nat. Prod. 1991 54 1137 1140 10.1021/np50076a040 Dandia A. Singh R. Khaturia S. Merienne C. Morgant G. Loupy A. Efficient microwave enhanced regioselective synthesis of a series of benzimidazolyl/triazolyl spiro[indole-thiazolidinones] as potent antifungal agents and crystal structure of spiro[3H-indole-3,2'-thiazolidine]-3'(1,2,4-triazol-3-yl)-2,4'(1H)-dione Bioorg. Med. Chem. 2006 14 2409 2417 10.1016/j.bmc.2005.11.025 Sebahar P.R. Williams R.M. The Asymmetric Total Synthesis of (+)- and (−)-Spirotryprostatin B J. Am. Chem. Soc. 2000 122 5666 5667 10.1021/ja001133n Ma J. Hecht S.M. Javaniside, a novel DNA cleavage agent from Alangium javanicum having a unusual oxindole skeleton Chem. Commun. 2004 1190 1191 Kang T.H. Matsumoto K. Tohda M. Murakami Y. Takayama H. Kitajima M. Aimi N. Watanabe H. Pteropodine and isopteropodine positively modulate the function of rat muscarinic M1 and 5-HT2 receptors expressed in Xenopus oocyte Eur. J. Pharmacol. 2002 444 39 45 10.1016/S0014-2999(02)01608-4 Ding K. Lu Y. Coleska N.Z. Qiu S. Ding Y. Gao W. Stuckey J. Krajewski K. Roller P.P. Tomita Y. Structure-Based Design of Potent Non-Peptide MDMZ Inhibitors J. Am. Chem. Soc. 2005 127 10130 10131 10.1021/ja051147z16028899 Abou-Gharbia M.A. Doukas P.H. Synthesis of Tricyclic Arylspiro Compounds as Potential Antileukemic and Anticonvulsant Agents Heterocycles 1979 12 637 640 10.3987/R-1979-05-0637 Kornet M.J. Thio A.P. Oxindole-3-spiropyrrolidines and -piperidines. Synthesis and local anesthetic activity J. Med. Chem. 1976 19 892 898 10.1021/jm00229a007 Thetford D. Chorlton A.P. Hardman J. Synthesis and properties of some polycyclic barbiturate pigments Dyes Pigments 2003 59 185 191 10.1016/S0143-7208(03)00104-9 Bartzatt R. Determination of barbituric acid, utilizing a rapid and simple colorimetric assay J. Pharm. Biomed. Anal. 2002 29 909 915 10.1016/S0731-7085(02)00168-1 Andreu R. Garin J. Orduna J. Alcala R. Villacampa B. Novel NLO-phores with Proaromatic Donor and Acceptor Groups Org. Lett. 2003 5 3143 3146 10.1021/ol0352005 Meusel M. Ambrozak A. Hecker T.K. Gutschow M. The Aminobarbituric Acid-Hydrantoin Rearrangement J. Org. Chem. 2003 68 4684 4692 10.1021/jo020761f Brunner H. Ittner K.P. Lunz D. Schmatloch S. Schmidt T. Zabel M. Highly Enriched Mixtures of Methohexital Stereoisomers by Palladium-Catalyzed Allylation and Their Anaesthetic Activity Eur. J. Org. Chem. 2003 5 855 862 Neumann D.M. Jursic B.S. Martin K.L. Preparation of 5-(cyclohexylmethyl)barbituric acid derivatives by acid-catalyzed reductive cyclohexylmethylation of barbituric acids with p-hydroxy or p-methoxybenzaldehydes Tetrahedron Lett. 2002 43 1603 1606 10.1016/S0040-4039(02)00073-4 Jursic B.S. Neumann D.M. Preparation of 5-formyl- and 5-acetylbarbituric acids, including the corresponding Schiff bases and phenylhydrazones Tetrahedron Lett. 2001 42 8435 8439 10.1016/S0040-4039(01)01830-5 Galati E.M. Monforte M.T. Miceli N. Raneri E. Anticonvulsant and sedative effects of some 5-substituted bromopyrazolinic spirobarbiturates Farmaco 2001 56 459 461 10.1016/S0014-827X(01)01062-X Singh P. Paul K. A practical approach for spiro- and 5-monoalkylated barbituric acid J. Heterocycl. Chem. 2006 43 607 612 10.1002/jhet.5570430313 Lomlm L. Einsiedel J. Heinemann F.W. Meyer K. Gmeiner P. Proline Derived Spirobarbiturates as Highly Effective β-Turn Mimetics Incorporating Polar and Functionalizable Constraint Elements J. Org. Chem. 2008 73 3608 3611 10.1021/jo702573z Liu H. Dou G.L. Shi D.Q. Regio- and Stereoselective Synthesis of Novel Spiropyrrolidine Bioxindole Derivatives via Multicomponent Reactions J. Comb. Chem. 2010 12 292 294 10.1021/cc900195t Liu H. Dou G.L. Shi D.Q. Regioselective Synthesis of Novel Spiropyrrolidines and Spirothiapyrrolizidines Through Multicomponent 1,3-Dipolar Cycloaddition Reaction of Azomethin Ylides J. Comb. Chem. 2010 12 633 637 10.1021/cc100035q Chen H. Shi D.Q. Efficient one-pot synthesis of spiro[indoline-3,4'-pyrazolo[3,4-e][1,4]thiazepine]dione via three-component reaction Tetrahedron 2011 67 5686 5692 10.1016/j.tet.2011.05.069 Hu Y. Zou Y. Wu H. Shi D.Q. A facile and efficient ultrasound-assisted synthesis of novel dispiroheterocycles through 1,3-dipolar cycloaddition reactions Ultrason. Sonochem. 2012 19 264 269 10.1016/j.ultsonch.2011.07.006 Liu H. Zou Y. Hu Y. Shi D.Q. An Efficient One-Pot Synthesis of Dispiropyrrolidine Derivatives Through 1,3-Dipolar Cycloaddition Reactions Under Ultrasound Irradiation J. Heterocycl. Chem. 2011 48 877 881 10.1002/jhet.654 Capello C. Fischer U. Hungerbühler K. What is a green solvent? A comprehensive framework for the environmental assessment of solvents Green Chem. 2007 9 927 934 10.1039/b617536h

We have calculated possible configurations of the products at the DFT level of theory, and all the calculations were performed at the B3LYP/6-31G level of theory. First, the geometrical optimizations of the two possible configurations were obtained, and then the lowest energy minimum corresponds to the configurations were calculated. All calculations were carried out with a Gaussian 09W program package.

 Ardill H. Dorrity M.J.R. Grigg R. Leon-Ling M.S. Malone J.F. Sridharan V. Thianpatanagul S. X=Y-ZH compounds as potential 1,3-Dipoles. Part 28, the iminium ion route to azomethine ylides. Background and reaction of amines with bifunctional ketones Tetrahedron 1990 46 6433 6448 10.1016/S0040-4020(01)96013-2 Ardill H. Fontaine X.L.R. Grigg R. Henderson D. Montgomery J. Sridharan V. Surendrakumar S. X=Y-ZH compounds as potential 1,3-dipoles. Part 29. The iminium ion route to azomethine ylides. Reaction of cyclic secondary amines with mono- and bi-functional aldehydes Tetrahedron 1990 46 6449 6466 10.1016/S0040-4020(01)96014-4 Subramaniyan G. Raghunathan R. Nethaji M. A facile entry into a new class of spiroheterocycles: Synthesis of dispiro[oxindolechromanone/flavanone/tetralone]pyrroloiso-quinoline ring systems Tetrahedron 2002 58 9075 9079 10.1016/S0040-4020(02)01130-4 Pardasani R.T. Pardasani P. Chaturvedi V. Yadav S.K. Saxena A. Sharma I. Theoretical and synthetic approach to novel spiroheterocycles derived from isatin derivatives and L-proline via 1,3-dipolar cycloaddition Heteroat. Chem. 2003 14 36 41 10.1002/hc.10063 Lakshmi N.V. Thirumurugan P. Perumal P.T. An expedient approach for the synthesis of dispiropyrrolidine bisoxindoles, spiropyrrolidine oxindoles and spiroindane-1,3-diones through 1,3-dipolar cycloaddition reactions Tetrahedron Lett. 2010 51 1064 1068 10.1016/j.tetlet.2009.12.079 Jursic B.S. Neumann D.M. Reductive C-alkylation of barbituric acid derivatives with carbonyl compounds in the presence of platinum and palladium catalysts Tetrahedron Lett. 2001 42 4103 4107 10.1016/S0040-4039(01)00621-9 Krasnov K.A. Kartsev V.G. Gorovoi A.S. Khrustalev V.N. Chemical Modification of Plant Alkaloids. III. X-Ray Diffraction and NMR Studies of the Structure of 1,3-Dimethyl-5-arylmethyl-5-cytisylmethylbarbituric Acids Chem. Nat. Compd. 2002 38 450 457 10.1023/A:1022163710687

Crystallographic data for 8b have been deposited at the Cambridge Crystallographic Data Centre with the deposition number CCDC906792. Copies of these data can be obtained free of charge via www.ccdc.cam.ac.uk/conts/retrieving.html (or from the Cambridge Crystallographic Data Centre, 12 Union Road, Cambridge, CB 2 1EZ, UK; Fax: +44-1223-336-033; or Email: deposit@ccdc.cam.ac.uk).

Sample Availability: Samples of the compounds 4 and 6 are available from the authors.
