Development of a Specifically Enhanced Enzyme-Linked Immunosorbent Assay for the Detection of Melamine in Milk
Abstract
:1. Introduction
2. Results and Discussion

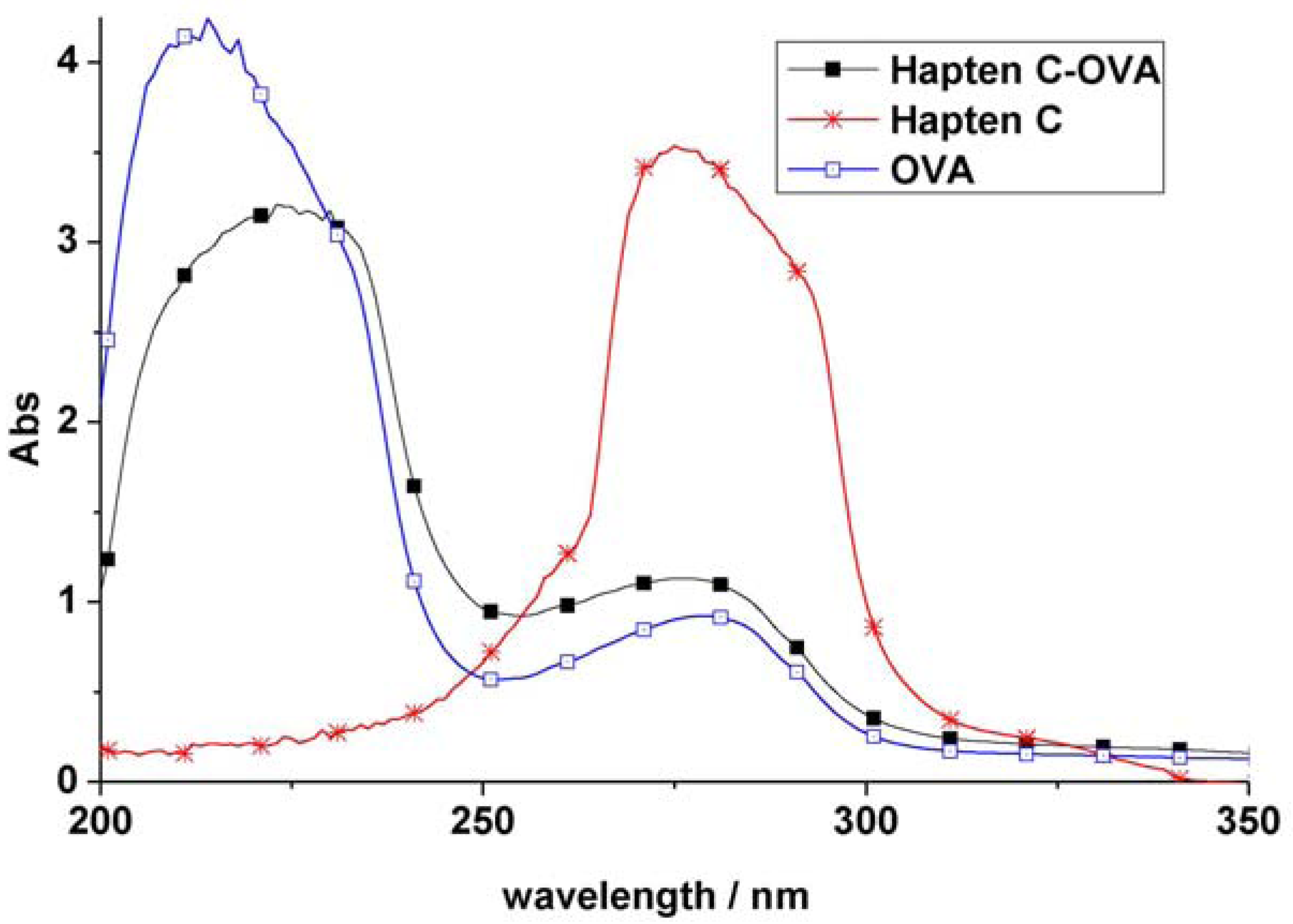

2.1. Conjugate Preparation

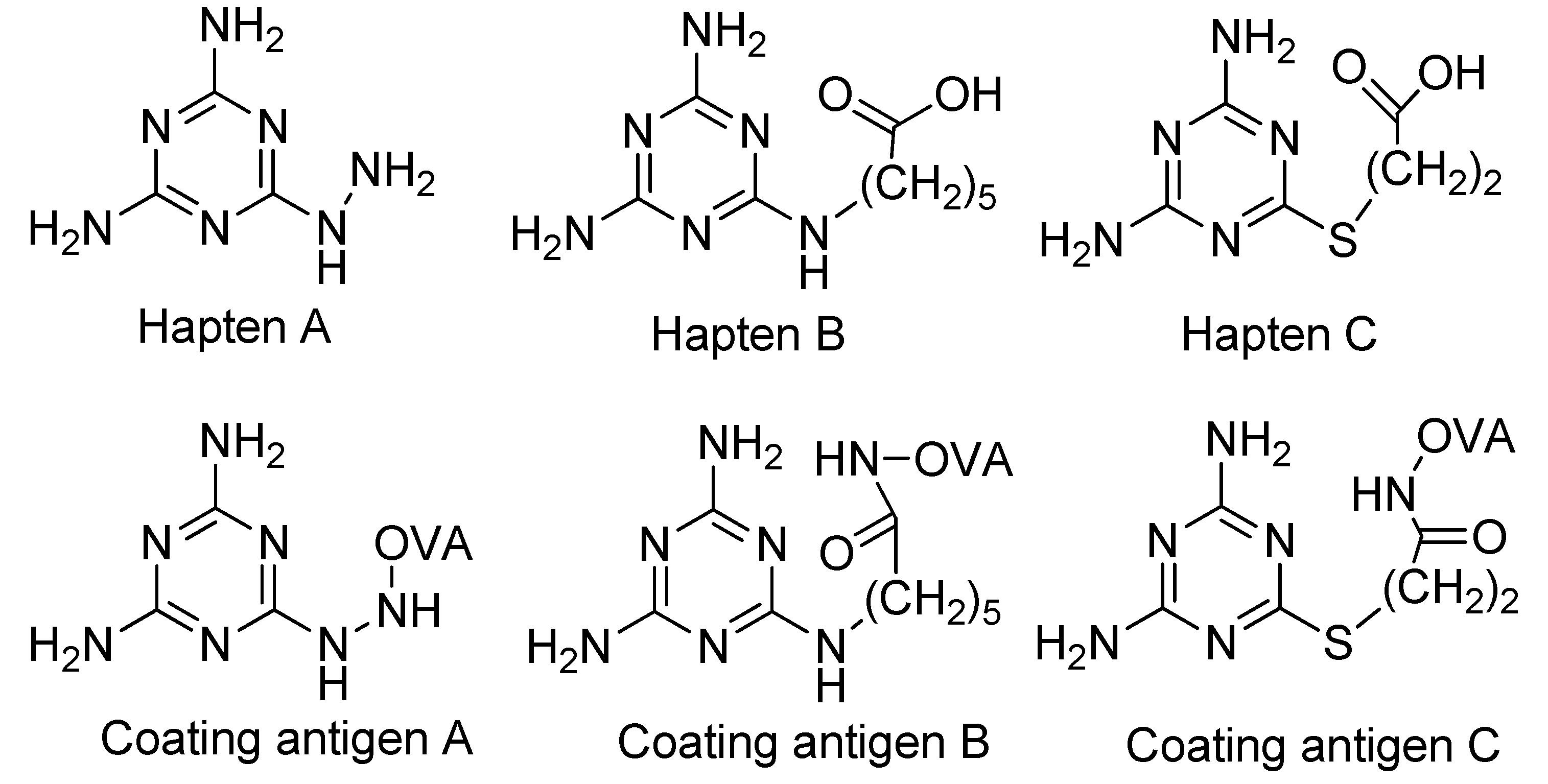

2.2. Coating Antigen Selection
Plate Coating Antigen | Coating Concentration (ng·mL−1) | Titer | Amax | IC50 (ng·mL−1) | LOD (ng·mL−1) | Working Range (ng·mL−1) |
---|---|---|---|---|---|---|
A | 22.2 | 6 × 104 | 1.601 | 632.8 | 221.0 | ND a |
B | 16.7 | 6 × 103 | 1.87 | 107.5 | 21.0 | 41.5–952.8 |
C | 133.3 | 8 × 103 | 1.42 | 35.4 | 8.9 | 14.9–108.5 |
2.3. Cross-Reactivity
Compound | Structure | Space-filling model | Coating antigen C | Coating antigen B | ||
---|---|---|---|---|---|---|
IC50 (nmol·mL−1) | CR% | IC50 (nmol·mL−1) | CR% | |||
Melamine | 0.28 | 100 | 0.85 | 100.0 | ||
Hapten B | 2.31 | 12.1 | 3.41 | 25.0 | ||
Hapten C | 1.54 | 18.0 | 6.44 | 13.2 | ||
Cyromazine | 1.61 | 17.1 | 4.03 | 21.1 | ||
Hapten A | 2.57 | 10.7 | 8.72 | 9.8 | ||
CAAT | 4.43 | 6.2 | 16.33 | 5.2 | ||
Ammeline | ND a | ≤0.01 | ND | ≤0.01 | ||
Ammelide | ND | ≤0.01 | ND | ≤0.01 | ||
Cyanuric acid | ND | ≤0.01 | ND | ≤0.01 | ||
Cyanuric chloride | ND | ≤0.01 | ND | ≤0.01 | ||
Atrazine | ND | ≤0.01 | ND | ≤0.01 |
2.4. Analysis of Spiked Samples
Sample | Added Levels (ng·mL−1) | Observed Value (ng·mL−1) | Recovery (%, n = 3) | Recovery Mean (%) | CV (%) | CV Mean (%) |
---|---|---|---|---|---|---|
Milk | 120.0 | 116.3 ± 7.4 | 96.9 ± 6.2 | 93.4 | 6.4 | 6.0 |
240.0 | 214.5 ± 5.3 | 89.4 ± 2.2 | 2.5 | |||
360.0 | 340.4 ± 13.8 | 94.6 ± 3.8 | 4.0 | |||
480.0 | 435.0 ± 18.2 | 90.6 ± 3.8 | 4.2 | |||
540.0 | 516.5 ± 66.8 | 95.7 ± 12.4 | 12.9 |

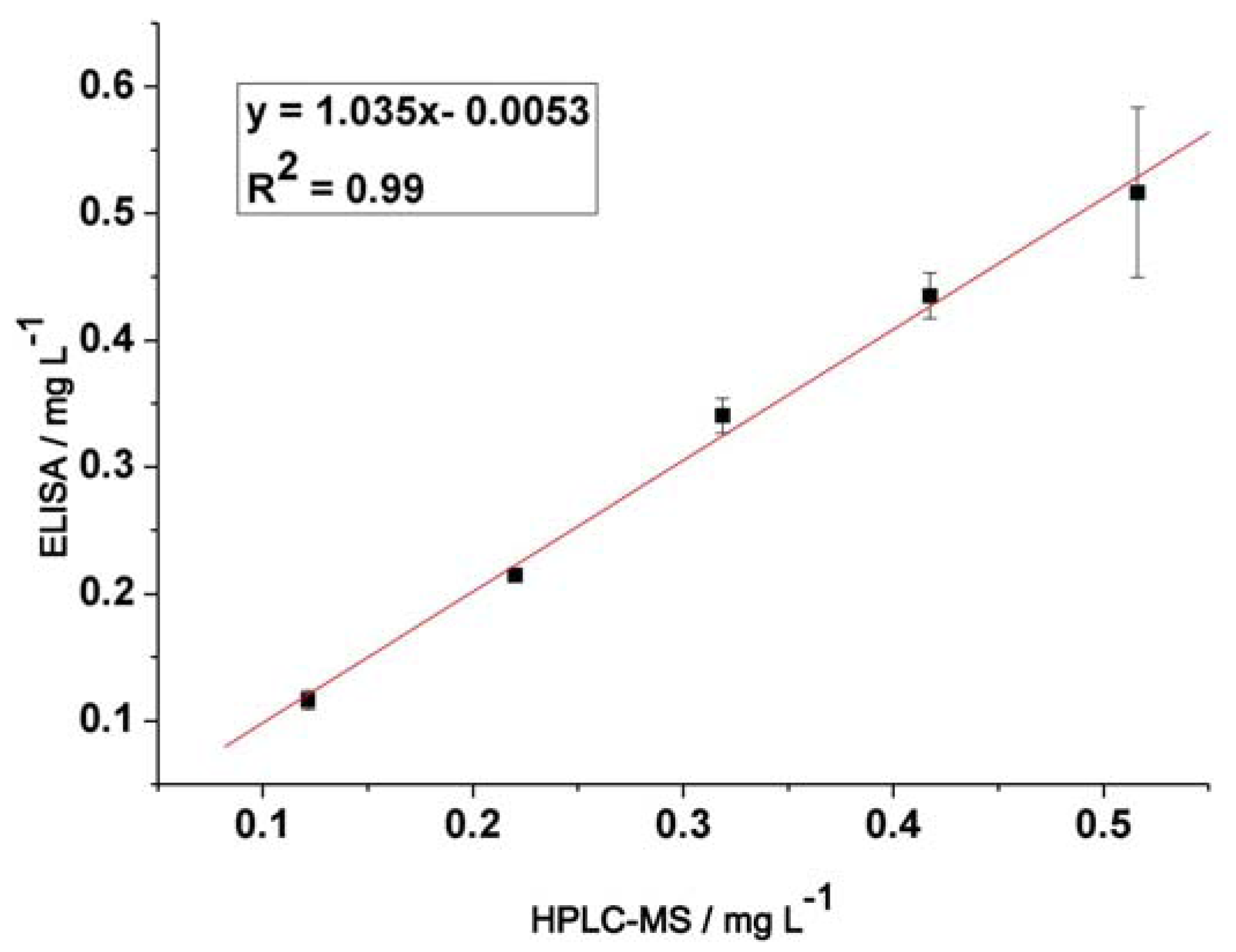

2.5. Validation by HPLC-MS
3. Experimental
3.1. Reagents
3.2. Instrumentation
3.3. Preparation of Hapten-Protein Conjugates
3.4. ELISA Protocol
3.5. Specificity
3.6. Analysis of Spiked Samples
4. Conclusions
Acknowledgements
References
- Brown, C.A.; Jeong, K.S.; Poppenga, R.H.; Puschner, B.; Miller, D.M.; Ellis, A.E.; Kang, K.I.; Sum, S.; Cistola, A.M.; Brown, S.A. Outbreaks of renal failure associated with melamine and cyanuric acid in dogs and cats in 2004 and 2007. J. Vet. Diagn. Invest. 2007, 19, 525–531. [Google Scholar] [CrossRef]
- Tran, B.N.; Okoniewski, R.; Storm, R.; Jansing, R.; Aldous, K.M. Use of methanol for the efficient extraction and analysis of melamine and cyanuric acid residues in dairy products and pet foods. J. Agric. Food. Chem. 2010, 58, 101–107. [Google Scholar]
- Word Health Organization. International experts limit melamine levels in food: New guidance to help improve food safety provided by UN food standards commission. Available online: http://www.who.int/mediacentre/news/releases/2010/melamine_food_20100706/en/print.html (accessed on 10 June 2011).
- Tittlemier, S.A. Methods for the analysis of melamine and related compounds in foods: A review. Food Addit. Contam. A 2010, 27, 129–145. [Google Scholar] [CrossRef]
- Rambla-Alegre, M.; Peris-Vicente, J.; Marco-Peiro, S.; Beltran-Martinavarro, B.; Esteve-Romero, J. Development of an analytical methodology to quantify melamine in milk using micellar liquid chromatography and validation according to EU Regulation 2002/654/EC. Talanta 2010, 81, 894–900. [Google Scholar] [CrossRef]
- Sun, H.; Liu, N.; Wang, L.; Wu, Y. Effective separation and simultaneous detection of cyromazine and melamine in food by capillary electrophoresis. Electrophoresis 2010, 31, 2236–2241. [Google Scholar] [CrossRef]
- Mauer, L.J.; Chernyshova, A.A.; Hiatt, A.; Deering, A.; Davis, R. Melamine detection in infant formula powder using near- and mid-infrared spectroscopy. J. Agric. Food. Chem. 2009, 57, 3974–3980. [Google Scholar] [CrossRef]
- Lachenmeier, D.W.; Humpfer, E.; Fang, F.; Schütz, B.; Dvortsak, P.; Sproll, C.; Spraul, M. NMR-spectroscopy for nontargeted screening and simultaneous quantification of health-relevant compounds in foods: the example of melamine. J. Agric. Food. Chem. 2009, 57, 7194–7199. [Google Scholar]
- Yu, J.; Zhang, C.; Dai, P.; Ge, S. Highly selective molecular recognition and high throughput detection of melamine based on molecularly imprinted sol–gel film. Anal. Chim. Acta 2009, 651, 209–214. [Google Scholar] [CrossRef]
- Ding, N.; Yan, N.; Ren, C.; Chen, X. Colorimetric determination of melamine in dairy products by Fe(3)O(4) magnetic nanoparticles-H(2)O(2)-ABTS detection system. Anal. Chem. 2010, 82, 5897–5899. [Google Scholar] [CrossRef]
- Kuang, H.; Chen, W.; Yan, W.; Xu, L.; Zhu, Y.; Liu, L.; Chu, H.; Peng, C.; Wang, L.; Kotov, N.A. Crown ether assembly of gold nanoparticles: Melamine sensor. Biosens. Bioelectron. 2010, 26, 2032–2037. [Google Scholar]
- Sun, F.; Ma, W.; Xu, L.; Zhu, Y.; Liu, L.; Peng, C.; Wang, L.; Kuang, H.; Xu, C. Analytical methods and recent developments in the detection of melamine. TrAC, Trends Anal. Chem. 2010, 29, 1239–1249. [Google Scholar]
- Lee, J.K.; Park, S.H.; Lee, E.Y.; Kim, Y.J.; Kyung, K.S. Development of an enzyme-linked immunosorbent assay for the detection of the fungicide fenarimol. J. Agric. Food. Chem. 2004, 52, 7206–7213. [Google Scholar]
- Choi, J.; Kim, Y.T.; Lee, J.H. Rapid quantification of melamine in milk using competitive 1,1’-oxalyldiimidazole chemiluminescent enzyme immunoassay. Analyst 2010, 135, 2445–2450. [Google Scholar] [CrossRef]
- Garber, E.A.; Brewer, V.A. Enzyme-linked immunosorbent assay detection of melamine in infant formula and wheat food products. J. Food Prot. 2010, 73, 701–707. [Google Scholar]
- Lei, H.; Shen, Y.; Song, L.; Yang, J.; Chevallier, O.P.; Haughey, S.A.; Wang, H.; Sun, Y.; Elliott, C.T. Hapten synthesis and antibody production for the development of a melamine immunoassay. Anal. Chim. Acta 2010, 665, 84–90. [Google Scholar] [CrossRef]
- Yin, W.; Liu, J.; Zhang, T.; Li, W.; Liu, W.; Meng, M.; He, F.; Wan, Y.; Feng, C.; Wang, S.; et al. Preparation of monoclonal antibody for melamine and development of an indirect competitive ELISA for melamine detection in aw milk, milk powder, and animal feeds. J. Agric. Food. Chem. 2010, 58, 8152–8157. [Google Scholar]
- Zhu, X.; Wang, S.; Liu, Q.; Xu, Q.; Xu, S.; Chen, H. Determination of residues of cyromazine and its metabolite, melamine, in animal-derived food by gas chromatography-mass spectrometry with derivatization. J. Agric. Food. Chem. 2009, 57, 11075–11080. [Google Scholar] [CrossRef]
- Liu, J.; Zhong, Y.; Liu, J.; Zhang, H.; Xi, J.; Wang, J. An enzyme linked immunosorbent assay for the determination of cyromazine and melamine residues in animal muscle tissues. Food Control 2010, 21, 1482–1487. [Google Scholar] [CrossRef]
- Xu, Z.-L.; Xie, G.-M.; Li, Y.-X.; Wang, B.-F.; Beier, R.C.; Lei, H.-T.; Wang, H.; Shen, Y.-D.; Sun, Y.-M. Production and characterization of a broad-specificity polyclonal antibody for O,O-diethyl organophosphorus pesticides and a quantitative structure–activity relationship study of antibody recognition. Anal. Chim. Acta 2009, 647, 90–96. [Google Scholar] [CrossRef]
- Wang, Z.; Ma, X.; Zhang, L.; Yang, W.; Gong, L.; He, P.; Li, Z. Screening and determination of melamine residues in tissue and body fluid samples. Anal. Chim. Acta 2010, 662, 69–75. [Google Scholar] [CrossRef]
- Goodrow, M.H.; Harrison, R.O.; Hammock, B.D. Hapten synthesis, antibody development, and competitive inhibition enzyme immunoassay for s-triazine herbicides. J. Agric. Food. Chem. 1990, 38, 990–996. [Google Scholar] [CrossRef]
- Zhang, Y.; Lu, S.; Liu, W.; Zhao, C.; Xi, R. Preparation of anti-tetracycline antibodies and development of an indirect heterologous competitive enzyme-linked immunosorbent assay to detect residues of tetracycline in milk. J. Agric. Food. Chem. 2007, 55, 211–218. [Google Scholar] [CrossRef]
- Wang, Q.; Haughey, S.A.; Sun, Y.-M.; Eremin, S.A.; Li, Z.-F.; Liu, H.; Xu, Z.-L.; Shen, Y.-D.; Lei, H.-T. Development of a fluorescence polarization immunoassay for the detection of melamine in milk and milk powder. Anal. Bioanal.Chem. 2011, 399, 2275–2284. [Google Scholar] [CrossRef]
- Nasir, M.S.; Jolley, M.E. Fluorescence polarization (FP) assays for the determination of grain mycotoxins (fumonisins, DON vomitoxin and aflatoxins). Comb. Chem. High Throughput Screening 2003, 6, 267–273. [Google Scholar]
- Eremin, S.A.; Smith, D.S. Fluorescence polarization immunoassays for pesticides. Comb. Chem. High Throughput Screening 2003, 6, 257–266. [Google Scholar]
- Xu, Z.-L.; Shen, Y.-D.; Beier, R.C.; Yang, J.-Y.; Lei, H.-T.; Wang, H.; Sun, Y.-M. Application of computer-assisted molecular modeling for immunoassay of low molecular weight food contaminants: A review. Anal. Chim. Acta 2009, 647, 125–136. [Google Scholar] [CrossRef]
- Ostler, E.L.; Resmini, M.; Brocklehurst, K.; Gallacher, G. Polyclonal catalytic antibodies. J. Immunol. Methods 2002, 269, 111–124. [Google Scholar] [CrossRef]
- Kato, M.; Ihara, Y.; Nakata, E.; Miyazawa, M.; Sasaki, M.; Kodaira, T.; Nakazawa, H. Development of enrofloxacin ELISA using a monoclonal antibody tolerating an organic solvent with broad cross-reactivity to other newquinolones. Food Agric. Immunol. 2007, 18, 179–187. [Google Scholar] [CrossRef]
- Lu, S.; Zhang, Y.; Liu, J.; Zhao, C.; Liu, W.; Xi, R. Preparation of anti-Pefloxacin antibody and development of an indirect competitive enzyme-linked immunosorbent assay for detection of pefloxacin residue in chicken liver. J. Agric. Food. Chem. 2006, 54, 6995–7000. [Google Scholar] [CrossRef]
