Review

Recent Advances in the Studies on Luotonins

by
Jing Lu Liang
,
Hyo Chang Cha
and
Yurngdong Jahng
*
College of Pharmacy, Yeungnam University, Gyeongsan 712-749, Korea
*
Author to whom correspondence should be addressed.
Molecules 2011, 16(6), 4861-4883; https://doi.org/10.3390/molecules16064861
Submission received: 12 April 2011 / Revised: 8 June 2011 / Accepted: 10 June 2011 / Published: 14 June 2011
Browse Figures
Versions Notes

Abstract

:
Luotonins are alkaloids from the aerial parts of Peganum nigellastrum Bunge. that display three major skeleton types. Luotonins A, B, and E are pyrroloquinazolino-quinoline alkaloids, luotonins C and D are canthin-6-one alkaloids, and luotonin F is a 4(3H)-quinazolinone alkaloid. All six luotonins have shown promising cytotoxicities towards selected human cancer cell lines, especially against leukemia P-388 cells. Luotonin A is the most active one, with its activity stemming from topoisomerase I-dependent DNA-cleavage. Such intriguing biological activities and unique structures have led not only to the development of synthetic methods for the efficient synthesis of these compounds, but also to interest in structural modifications for improving the biological properties. Recent progress in the study of luotonins is covered.

1. Introduction

The plant Peganum nigellastrum Bunge (Zygophyllaceae) has long been used in Chinese traditional medical practice for the treatment of rheumatism, abscesses, and diseases accompanying inflammation [1]. The basic fractions of P. nigellastrum showed potent anti-tumor activity [2], and the origin of such activity was revealed by identifying its constituents luotonin A (1aa) (We have two systems that one varies a substituent on the ring A-E (1a-1x) and the other varies the length of the bridge on the ring C (1aa-1ac) as seen in page 4875) and B (1b), which inhibited the growth of leukemia P-388 cells (IC50 of luotonin A = 1.8 μg/mL) [3]. Later, additional luotonins such as luotonin C (2a) and D (2b) [4] and luotonin E (1c) and F (3) [5] were consecutively isolated from the same plant. Most of these luotonins show promising cytotoxicity against leukemia P-388 cells [6,7,8] (see Table 1).
Table

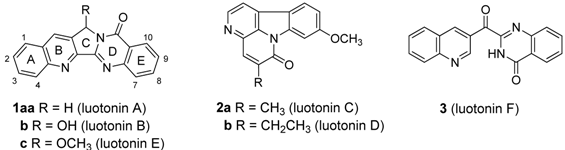

Table 1. Cytotoxic activity of luotonins against mouse leukemia P-388 cells [6].
Molecules 16 04861 i001
Table 1. Cytotoxic activity of luotonins against mouse leukemia P-388 cells [6].
Molecules 16 04861 i001
CompoundLuotonin ALuotonin BLuotonin CLuotonin DLuotonin ELuotonin F
IC50 (μg/mL)1.85.0--9.02.3
The mechanism of action of such cytotoxicity was first revealed by Hecht and his coworkers [9]. Luotonin A stabilizes the human DNA Topo I-DNA covalent binary complex by binding through the minor groove [10] and mediates topoisomerase I (Topo I)-dependent cytotoxicity in intact cells (IC50 = 5.7–12.6 μg/mL), like camptothecin (CPT, Figure 1) [11], that is a selective inhibitor of DNA Topo I [12,13,14,15]. Although the biological activities of luotonins towards selected human cancer cell lines are less potent and less selective to Topo I than CPT, the structural similarities of luotonin A, B, and E to CPT are enough to make them good lead compounds for the development of new potential anticancer agents.
Molecules 16 04861 g001 550

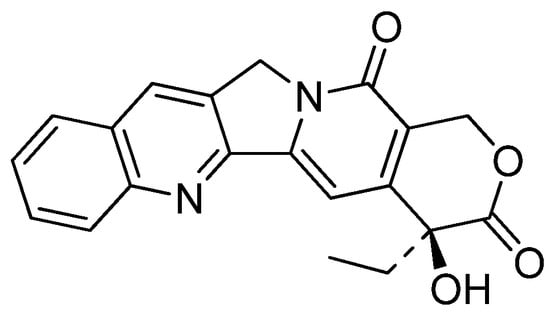

Figure 1. Structure of 20(S)-Camptothecin.
Figure 1. Structure of 20(S)-Camptothecin.
Molecules 16 04861 g001
More than a decade has passed since the first discovery of luotonin A and B, yet only two review papers have appeared in this time, one by Ma et al. in 2005 [16] and another by Huang et al. [17] in 2009, focusing on the synthetic strategies for the total synthesis of luotonin A and covering some thirty publications. Michael’s annual reviews covering quinoline, quinazoline, and acridine alkaloids in Natural Products Reports, have also included mentions of the annual progress in the studies on luotonins since 1999 [18]. A SCIFinder literature search revealed 64 papers covering the six luotonins A-F. After the first review, more than 25 papers have been published, most of which cover the development of synthetic methods for the total synthesis and the structural modification of luotonin A. The present review covers roughly in chronological order the total synthesis of all six luotonins based on the synthetic strategies for the ring formation and the structure-biological activity relationship studies.

2. Synthesis

The six luotonins can be classified into three categories: luotonins A, B, and E are pyrrolo-quinazolinoquinoline alkaloids, luotonin F is a 4(3H)-quinazoline alkaloid, and luotonins C and D are canthin-6-one alkaloids. Six synthetic strategies have been employed for the synthesis of luotonins A, B, and E, including via formation of the pyridine core (ring B), the pyrrole core (ring C), the pyrimidinone core (ring D), the 5H-pyrrolo[4,3-b]pyridine core (rings B and C), the pyrrolo[1,2-a]pyrimidin-4(6H)-one core (rings C and D), and the pyrido[2’3’:3,4]pyrrolo[1,2-a]pyrimidin-4(6H)-one core (rings B,C,D) as the final step.

2.1. via Formation of the Pyridine Core

This strategy was applied in the first total synthesis of luotonins A and B. Ma et al. also isolated vasicinone (4a), a pyrroloquinazoline alkaloid from Peganum nigellastrum Bunge, along with luotonin A and some other alkaloids, which allowed them to propose a possible biosynthetic route to luotonin A from vasicinone (4a) and anthranilic acid as shown in Scheme 1 [3].
Molecules 16 04861 g003 550

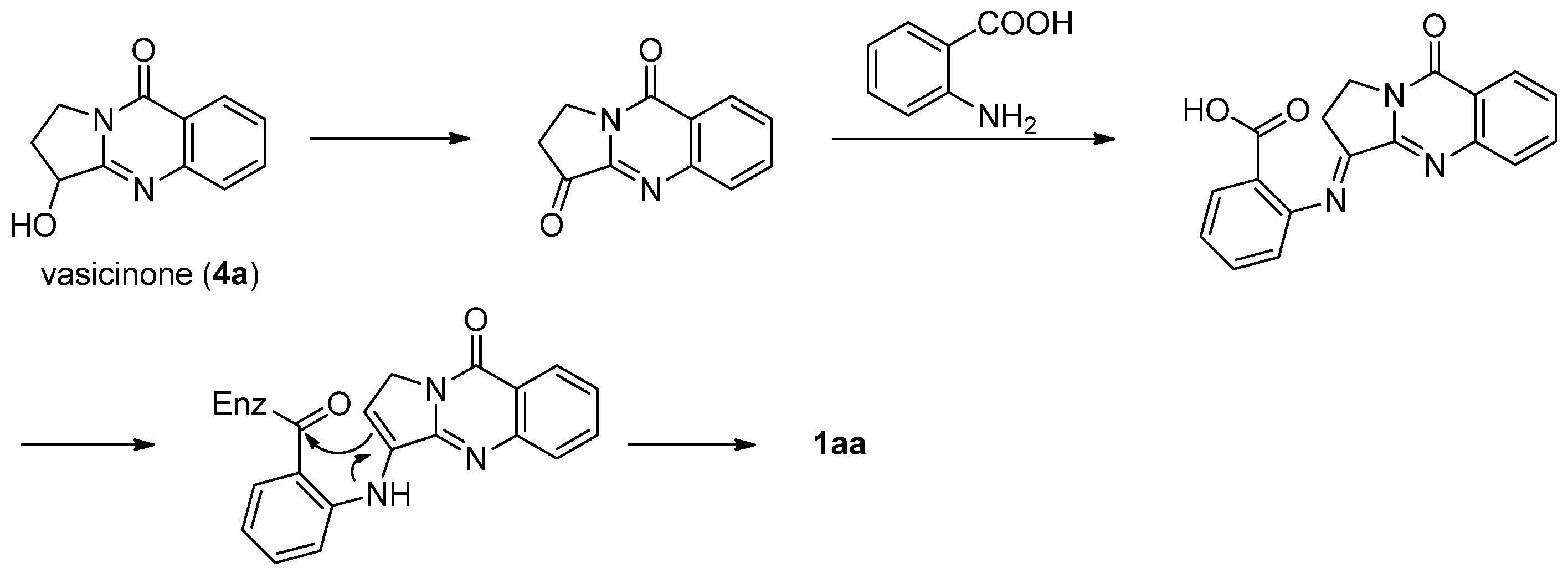

Scheme 1. Hypothetical biosynthesis of luotonin A from vasicinone.
Scheme 1. Hypothetical biosynthesis of luotonin A from vasicinone.
Molecules 16 04861 g003
A few years later, the same authors used the reaction between 4a and N-(2-aminobenzylidene)-p-toluidine in the presence of p-TsOH to prepare luotonin A [19] (Scheme 2). The starting vasicinone can be tautomerized to the corresponding keto tautomer 4c, which can be readily condensed with the toluidine derivative of 2-aminobenzaldehyde to form a Schiff’s base 5 which then undergoes cyclization via an enamine, followed by aromatization to afford luotonin A.
Molecules 16 04861 g004 550

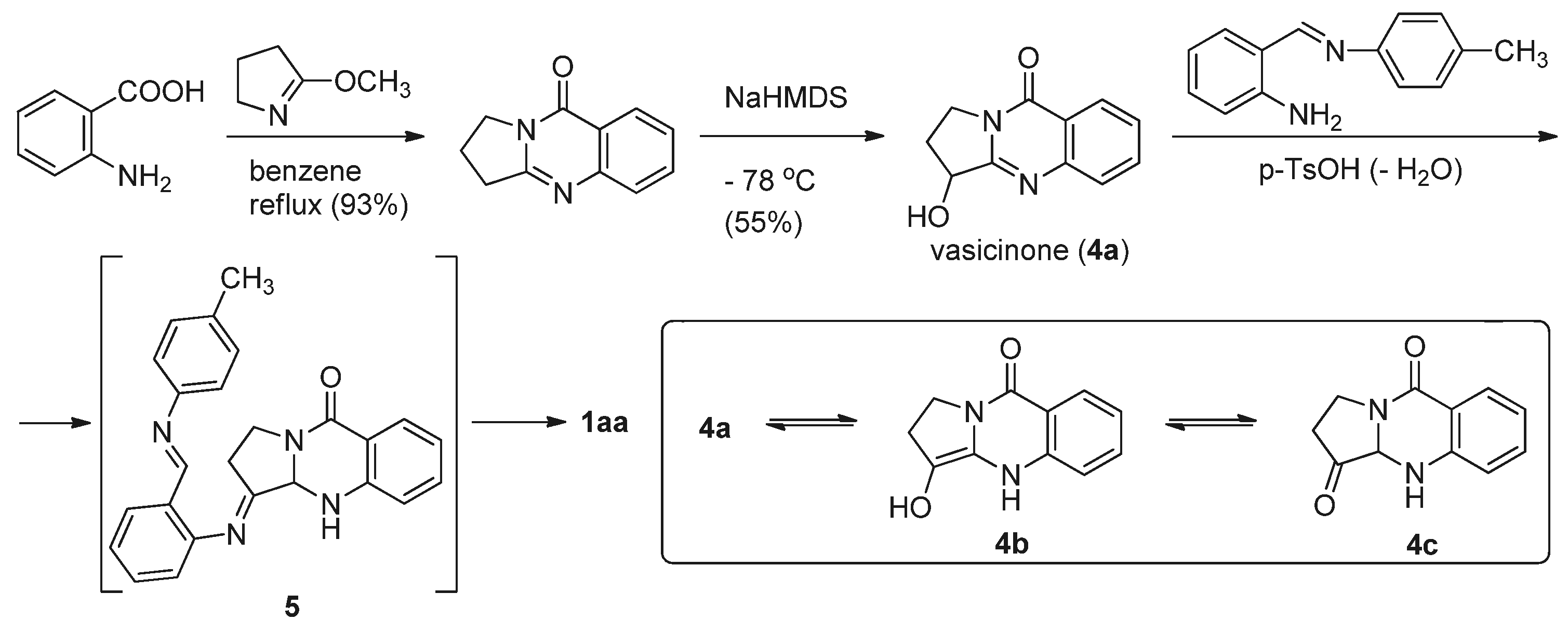

Scheme 2. Ma et al.’s [19] synthesis of luotonin A.
Scheme 2. Ma et al.’s [19] synthesis of luotonin A.
Molecules 16 04861 g004
Since its discovery in 1882 the Friedländer condensation of 2-aminobenzaldehyde and ketones has long been one of the most efficient synthetic methods for preparing quinolines [20,21,22]. Kelly et al. applied the Friedländer condensation to pyrrolo[2,1-b]quinazoline-3,9-dione (6a), prepared by Jones oxidation of vasicinone, to yield luotonin A in 36% yield (Scheme 3) [23,24]. Recently, this low yield was increased to 66% by employing cerium(IV) ammonium nitrate (CAN) as a catalyst [25]. In addition, replacement of 2-aminobenzaldehyde by N-(2-aminobenzylidene)-p-toluidine improved the yield up to 82%.
Molecules 16 04861 g005 550

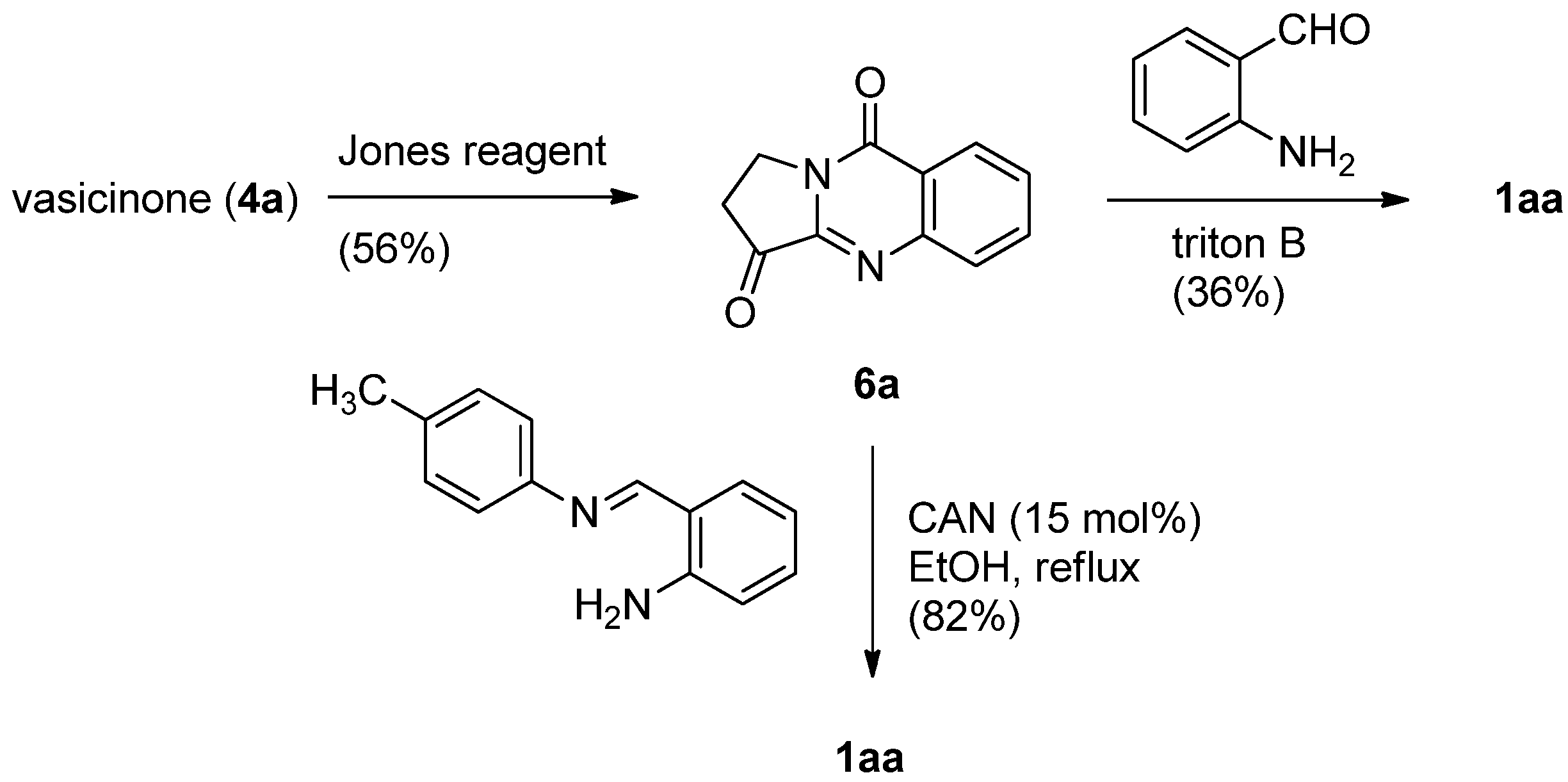

Scheme 3. Kelly et al.’s [23] synthesis of lutonin A.
Scheme 3. Kelly et al.’s [23] synthesis of lutonin A.
Molecules 16 04861 g005
In addition, the quinoline ring can be formed via 4(1H)-quinolinone [26]. Michael addition of ethyl 4-oxo-3,4-dihydroquinazoline-2-carboxylate (7) to 1-(2-nitrophenyl)propenone gave an 83% yield of compound 8, which undergoes a spontaneous intramolecular Claisen condensation to afford enolizable 1,3-diketone 9 (Scheme 4). Catalytic hydrogenation of 9 in the presence of Pd/C afforded the 4(1H)-quinolinone derivative 10, which was then chlorinated using POCl3 to yield 14-chloroluotonin A (11). Hydrogenolysis of 11 with activated Ra-Ni gave luotonin A. 14-Cloroluotonin A can be used as a useful starting material for introducing various substituents at the C14 position of luotonin A.
Molecules 16 04861 g006 550

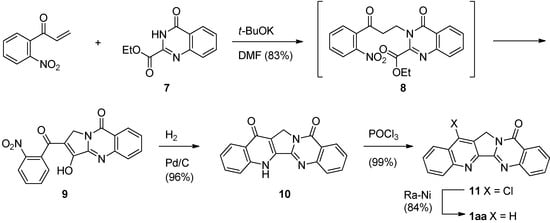

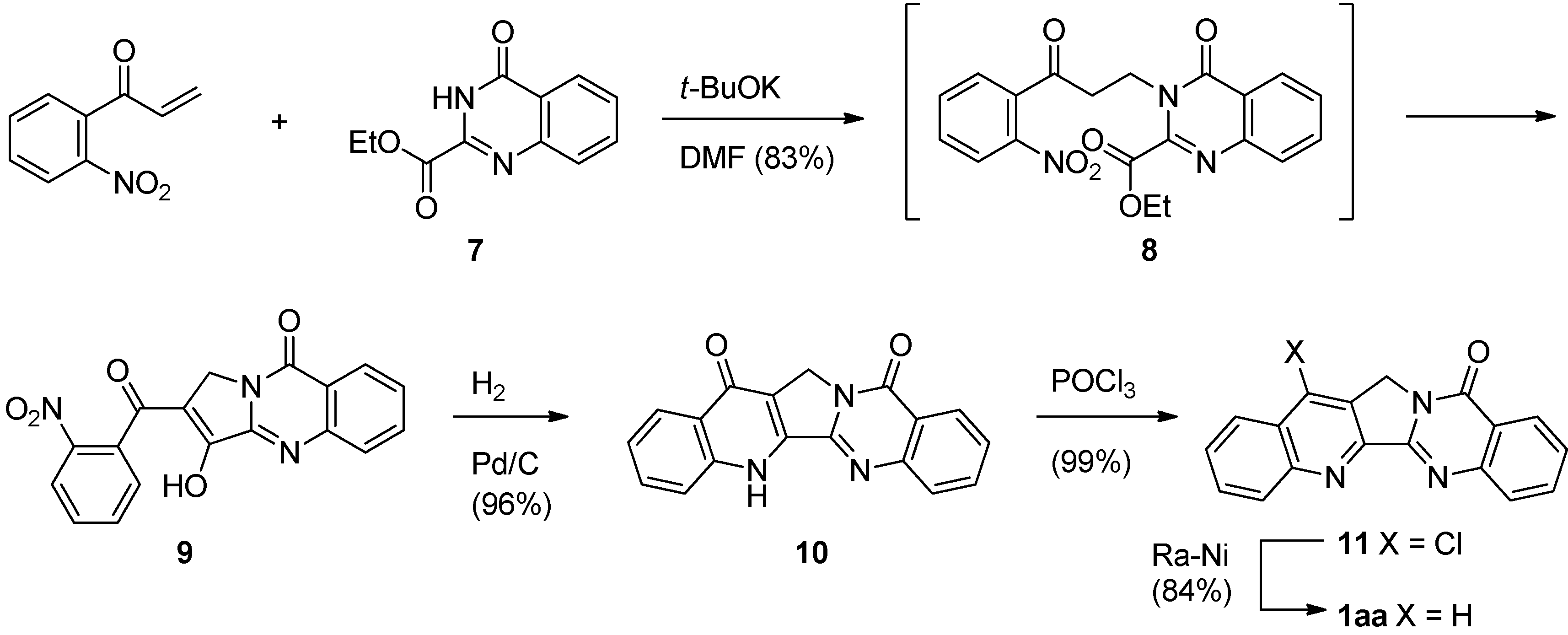

Scheme 4. Mason and Bergman’s [26] synthesis of luotonin A.
Scheme 4. Mason and Bergman’s [26] synthesis of luotonin A.
Molecules 16 04861 g006

2.2. via Formation of the Pyrrole Core

Harayama et al. reported the first synthesis of luotonin A via C-ring formation, in which Heck biaryl coupling reaction was employed to form a C-C bond between C2 of a 4(3H)-quinazolinone and C2 of a quinoline using an electrophilic Pd reagent in DMF. N-Alkylation of 4(3H)-quinazolinone with 2-bromoquinolin-3-ylmethyl bromide yielded 3-[(2-bromoquinolin-3-yl)methyl]-4(3H)-quinazolinone (12a) which was then subjected to Heck coupling condition [27,28] (Scheme 5).
Molecules 16 04861 g007 550

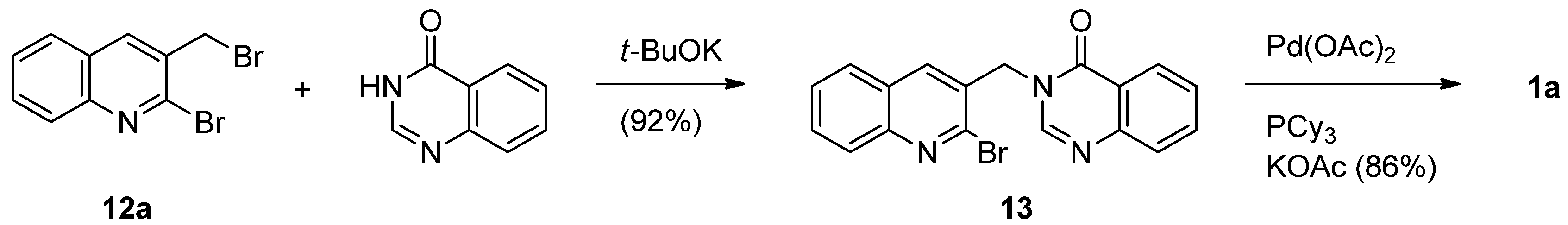

Scheme 5. Harayama et al.’s [27,28] synthesis of luotonin A.
Scheme 5. Harayama et al.’s [27,28] synthesis of luotonin A.
Molecules 16 04861 g007
On the other hand, Mhaske and Argade employed a regioselective quinazolininone-directed ortho-lithiation on an adjacent quinoline moiety as a key step to make luotonins A, B and E [29] (Scheme 6). Acylation of anthranilamide with quinaldic acid chloride afforded the corresponding diamide, which was readily cyclized by 5% KOH to yield 2-quinolino-4(3H)-quinazolinone (14) in quantitative yield. Lithiation of 14 afforded the di-lithiated species 15 which can be readily converted to luotonin A in two steps via 3-hydroxymethyl derivative 16 employing a Mitsunobu condensation. Reaction of 15 with DMF spontaneously afforded luotonin B, which could also be prepared by PCC oxidation of 16. Luotonin B was converted to luotonin E by treatment with methanol in the presence of p-TsOH. The procedure has the advantage of generating a library of quinazolinone alkaloids by reacting di-lithiated species with a variety of electrophiles.
Molecules 16 04861 g008 550

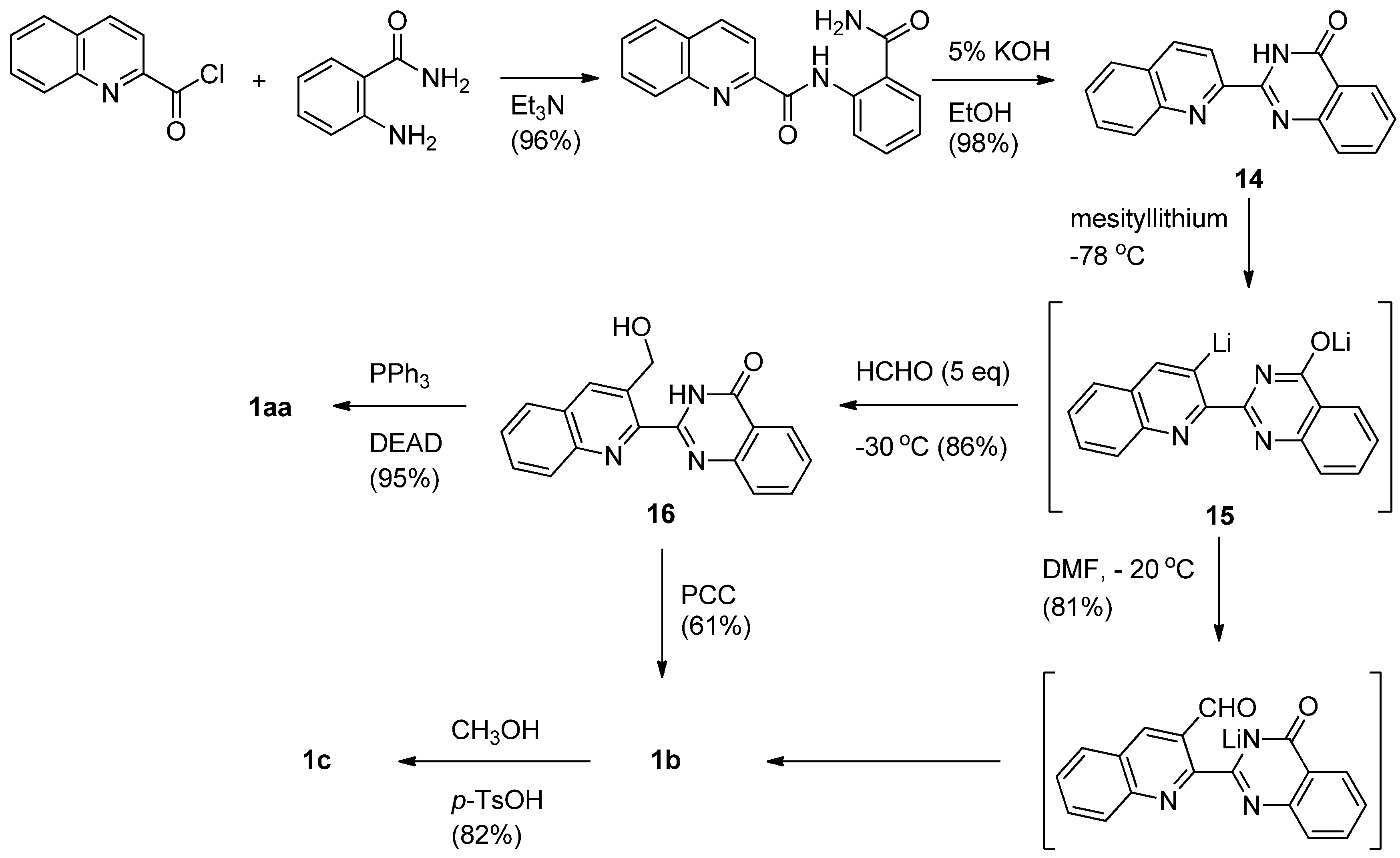

Scheme 6. Mhaske and Argade’s [29] synthesis of luotonin A.
Scheme 6. Mhaske and Argade’s [29] synthesis of luotonin A.
Molecules 16 04861 g008
Intermediate 16 was also be prepared by NaBH4 reduction of the corresponding carbaldehyde 19, prepared by hydrolysis of the prerequisite acetal 18 by Chavan and Sivappa [30] (Scheme 7). The key acetal 18 was prepared either directly from quinoline-2-carbaldehyde 17 and anthranilamide in the presence of 20% KOH in EtOH or by a two-step synthesis employing 15% NaOH in EtOH followed by oxidation with KMnO4. It is noteworthy that this procedure afford three luotonins from a common intermediate 18. Hydrolysis of the acetal moiety in 18 and reduction of the resulting aldehyde afforded the corresponding alcohol 16 which could be cyclized either by a Mitsunobu reaction or, more conveniently, by treatment with sulfuric acid in EtOH to yield luotonin A. Alternatively, refluxing of 18 in aqueous acid resulted in luotonin B (1b) while refluxing in a 1:1 mixture of conc. HCl-CH3OH afforded luotonin E (1c).
Molecules 16 04861 g009 550

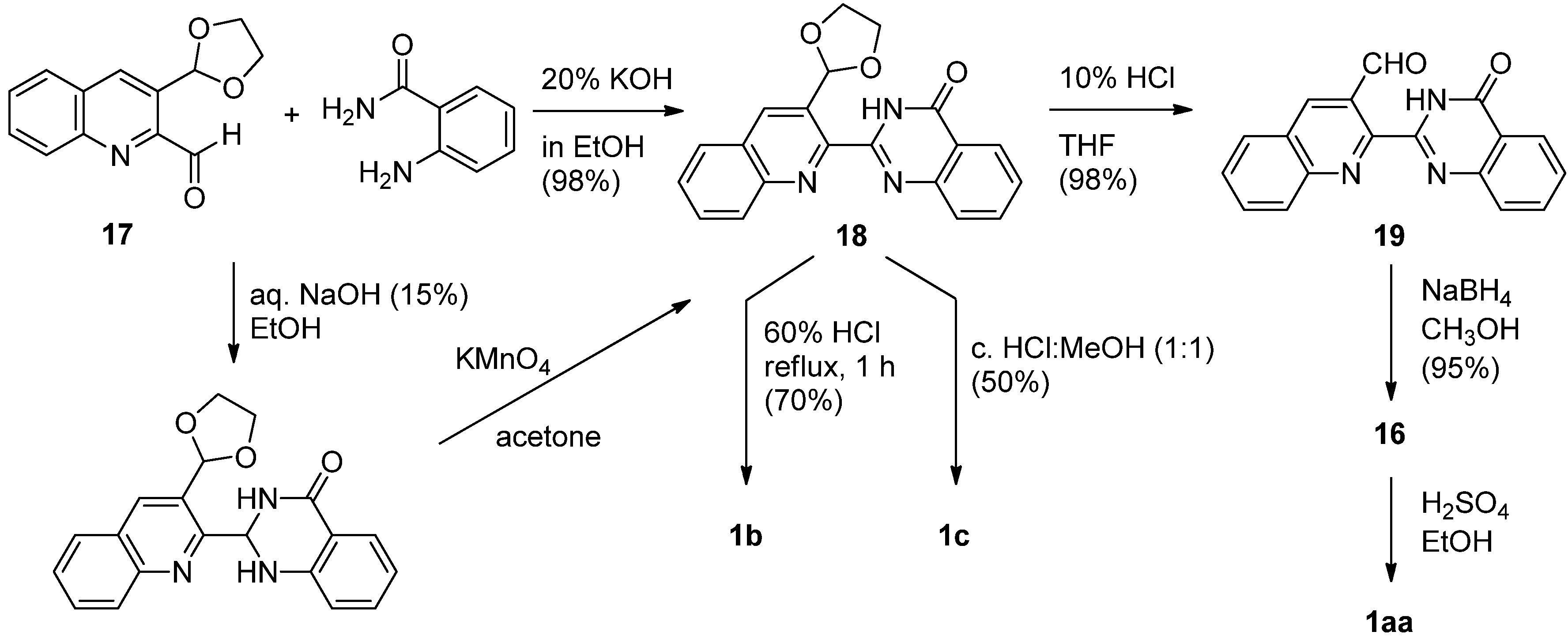

Scheme 7. Chavan and Sivappa’s [30] synthesis of luotonin A.
Scheme 7. Chavan and Sivappa’s [30] synthesis of luotonin A.
Molecules 16 04861 g009

2.3. via Formation of the Pyrimidinone Core

Among a variety of available synthetic procedures for assembling the pyrimidinone nucleus, Kametani’s one has long been employed for the construction of various quinazolinone derivatives from lactams and anthranilic acid in the presence of thionyl chloride [31]. Such a method has been applied with modifications to the synthesis of luotonin A in several cases.
Molecules 16 04861 g010 550

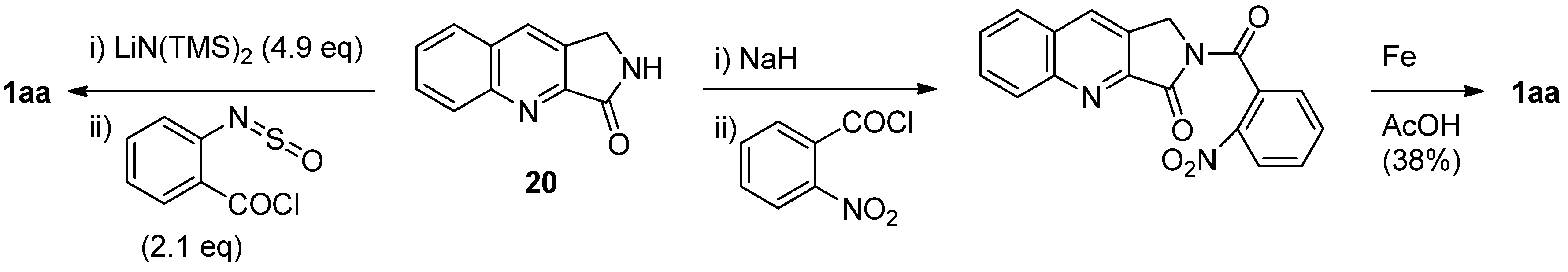

Scheme 8. Kametani’s [31] method for the synthesis of luotonin A and its modification.
Scheme 8. Kametani’s [31] method for the synthesis of luotonin A and its modification.
Molecules 16 04861 g010
In fact, the first total synthesis of luotonin A was achieved by Wang and Ganesan, in which 2,3-dihydro-[1H]-pyrrolo[3,4-b]quinolin-3-one (20) was coupled with 2-sulfinylaminobenzoyl chloride, generated from anthranilic acid and thionyl chloride, in the presence of LiN(TMS)2[32] while direct condensation of the lactam and 2-sulfinylaminobenzoyl chloride by Kametani’s quinazoline formation procedure yielded only a 6% yield of luotonin A (Scheme 8). In addition, reaction of lactam 20 with 2-nitrobenzoyl chloride followed by reduction of the nitro group resulted in luotonin A in 38% overall yield [33]. Microwave assisted synthesis of the quinazoline ring from a lactam and isatoic anhydride was also applied to the synthesis of luotonin A (Scheme 9). Thus, a mixture of lactam 20 and isatoic anhydride was subjected to microwave irradiation at 450 watts for 7 minutes to yield luotonin A in 85% yield [34]. On the other hand, direct reaction of 20 and methyl anthranilate in the presence of POCl3 yielded luotonin A [35,36], while the use of the HCl salt of 20 improved the yield significantly [37]. Such reaction conditions have been further simplified in a one-pot reaction of lactam 20, ethyl anthranilate, and SOCl2 in refluxing benzene to afford luotonin A in 75% yield [38].
Molecules 16 04861 g011 550

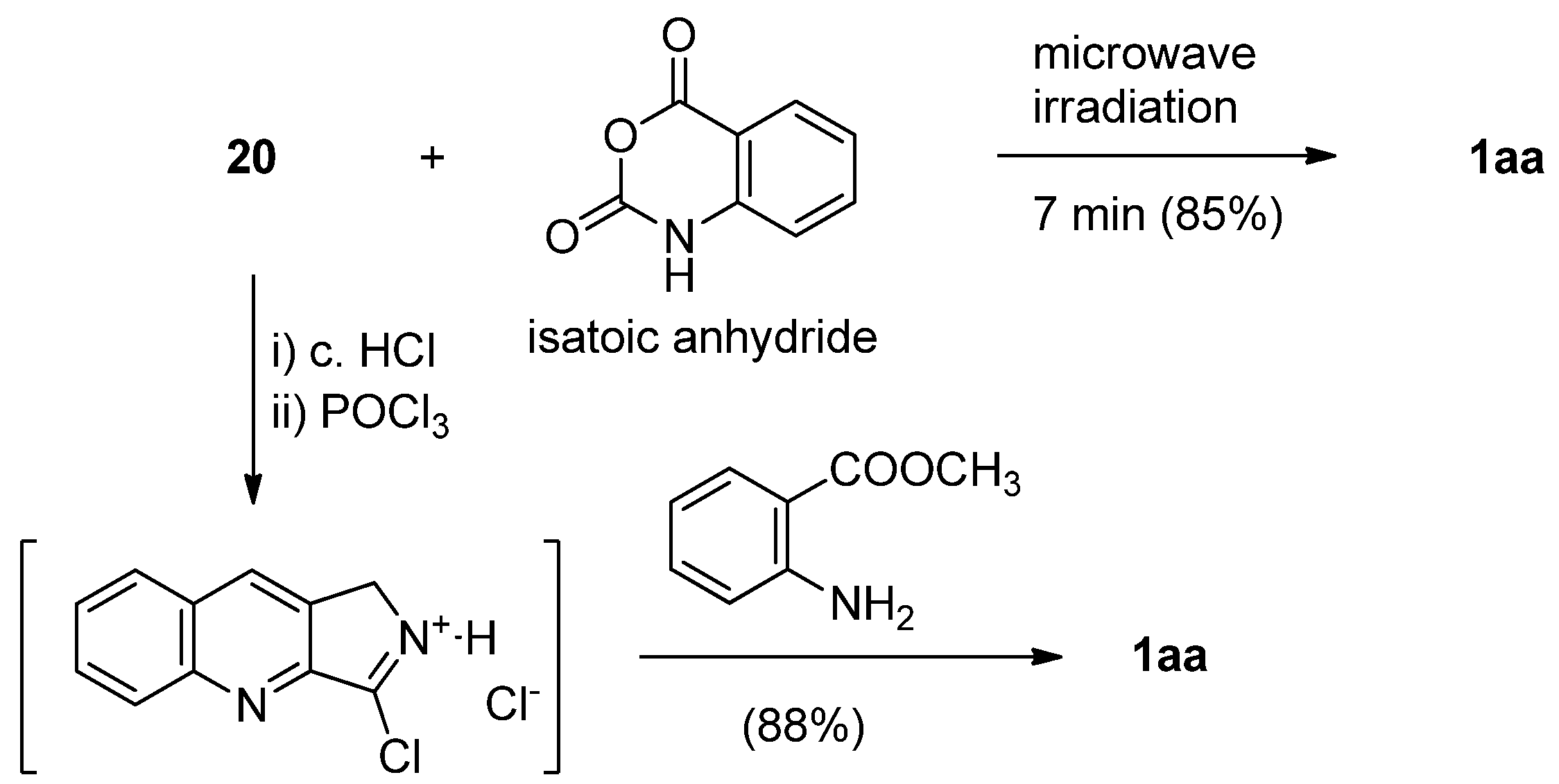

Scheme 9. Modified Kametani’s synthesis of luotonin A.
Scheme 9. Modified Kametani’s synthesis of luotonin A.
Molecules 16 04861 g011

2.4. via Formation of the Pyrrolo[4,3-b]pyridine Core

Twin and Batey employed an intramolecular hetero Diels-Alder (Povarov) reaction to construct the quinoline and pyrrole nuclei in one step from 2-formyl-3-propargyl-4(3H)-quinazolinone (24) and aniline in the presence of the mild Lewis acid catalyst Dy(OTf)3 [39]. The coupling reaction proceeded through sequential imine formation between a formyl group and aniline and a formal intramolecular aza-Diels-Alder reaction to form luotonin A (Scheme 10). Propargyl amide 21, readily prepared by refluxing isatoic anhydride and propargylamine, was acylated with 2-acetyloxyacetyl chloride to form the corresponding amide 22, which was subjected to Mazurkiewicz’ synthesis and rearrangement of 4-imino-4H-3,1-benzoxazine by triphenylphosphine and iodine in the presence of Hünig’s base to yield 23. A two-step, one-pot rearrangement of 23 using piperidine followed by treatment with silica gel afforded 2-acetyloxymethyl-3-propargyl-4(3H)-quinazolinone (24) in 85% yield. Base-catalyzed hydrolysis of 24 followed by Dess-Martin periodinane oxidation gave the desired 25. Reaction of 25 with aniline afforded the corresponding Schiff’s base 26 which then undergoes the intermolecular Povarov reaction in the presence of Dy(OTf)3to form luotonin A via an intramolecular inverse-electron demand hetero Diels-Alder reaction. Although the yields of all the reaction steps are good, overall the presented method suffers from a lengthy synthetic sequence starting from commercially available isatoic anhydride.
Molecules 16 04861 g012 550

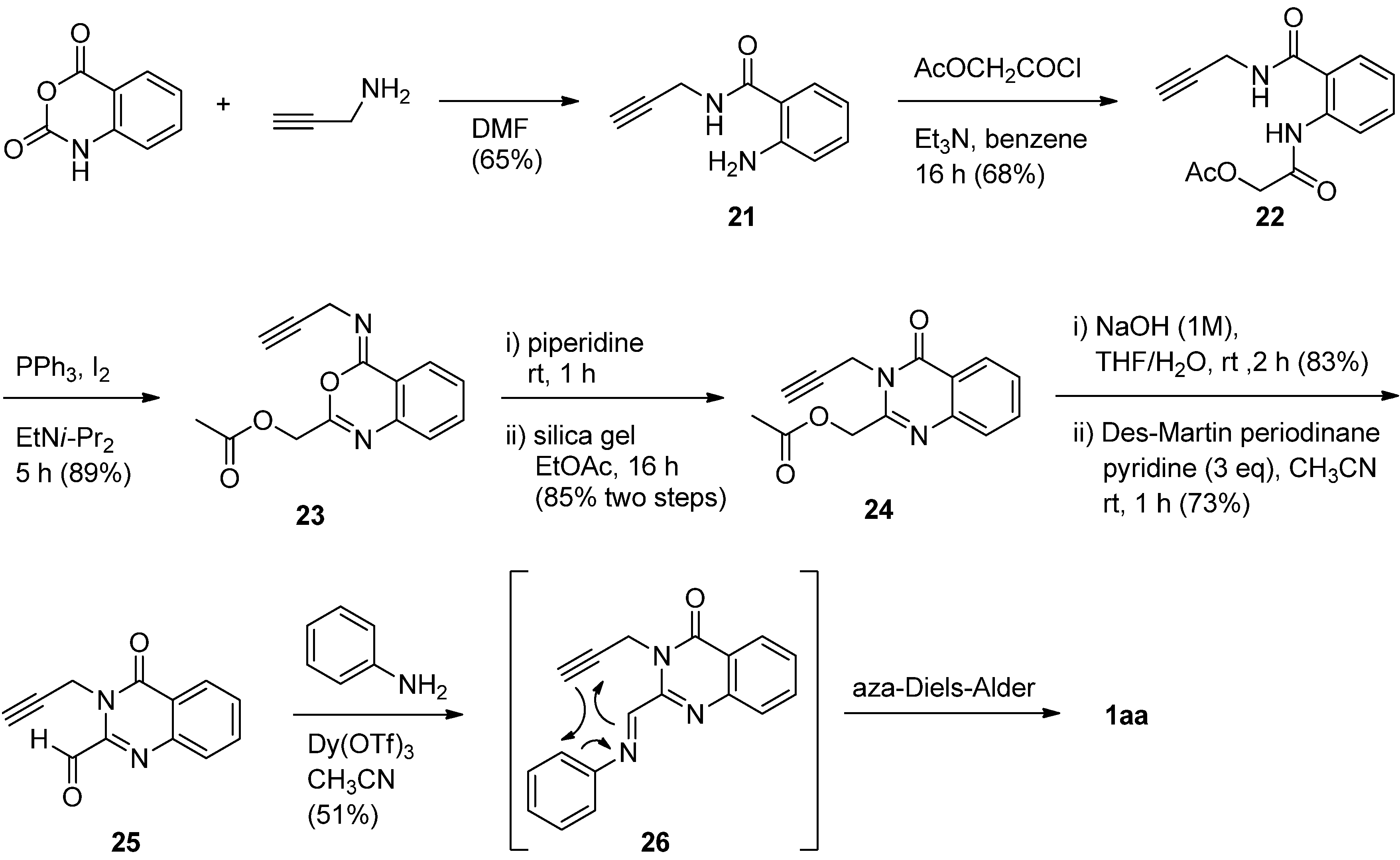

Scheme 10. Twin and Batey’s [39] synthesis of luotonin A.
Scheme 10. Twin and Batey’s [39] synthesis of luotonin A.
Molecules 16 04861 g012
A similar cascade reaction was applied to 27 in the presence of bis(triphenyl)oxodiphosphonium triflate (prepared in situ) to yield luotonin A via an intramolecular aza Diels-Alder reaction [40] (Scheme 11). Hydrolysis of ethyl 4-oxo-3,4-dihydroquinazoline-2-carboxylate (7), followed by a two-step amide formation, yielded the corresponding N-phenyl-4(3H)-quinazoline-2-carboxamide (27). N-phenyl-3-propargyl-4(3H)-quinazoline-2-carboxamide (28) was treated with triphenylphosphine oxide in the presence of (CF3SO2)2O to yield luotonin A in 58% overall yield.
Molecules 16 04861 g013 550

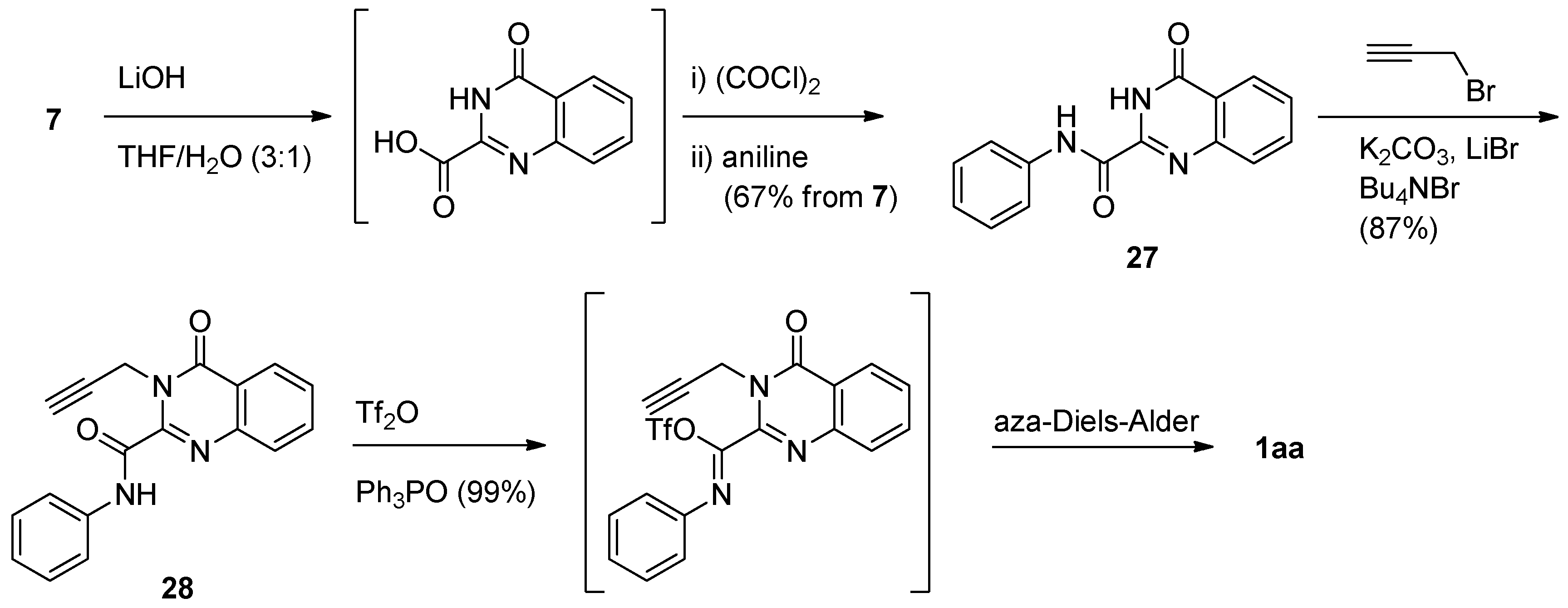

Scheme 11. Yao et al.’s [40] synthesis of luotonin A.
Scheme 11. Yao et al.’s [40] synthesis of luotonin A.
Molecules 16 04861 g013
Curran and his coworkers employed a similar intramolecular radical coupling of 2-bromo-3-propargyl-4(3H)-quinazolinone and phenyl isonitrile in the presence of hexamethylditin and light. [41] (Scheme 12).
Molecules 16 04861 g014 550

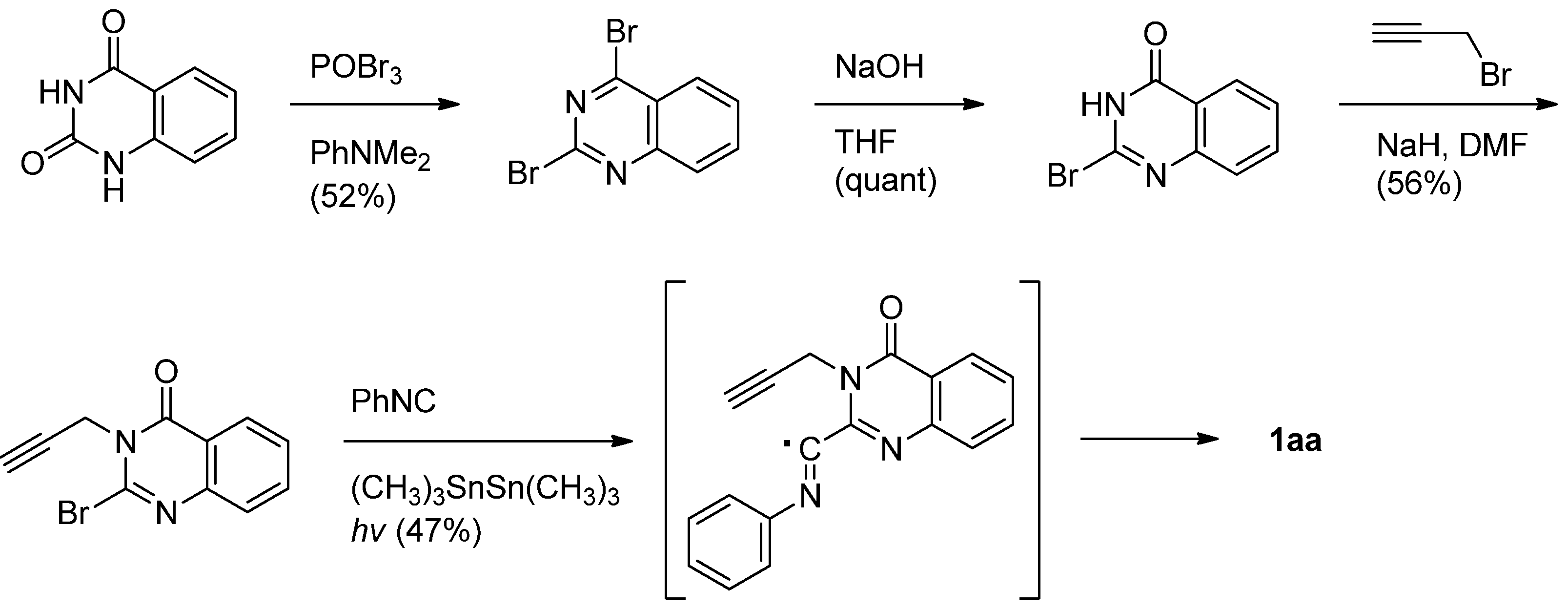

Scheme 12. Curran et al.’s [41] synthesis of luotonin A.
Scheme 12. Curran et al.’s [41] synthesis of luotonin A.
Molecules 16 04861 g014
Bowman et al. have reported yet another versatile synthesis employing a cascade radical cyclization of a cyano-alkene compound to produce luotonin A [42,43] (Scheme 13). The prerequisite radical precursor 30 was prepared in 42% yield by a reaction of ethyl 2-[(4-chloro-5H-1,2,3-dithiazol-5-yliden)amino]-benzene-1-carboxylate (29) and (Z)-2-iodo-3-phenylprop-2-en-1-amine while a direct N-alkylation of 2-cyano-4(3H)-quinazolinone with (Z)-2-iodo-3-phenylprop-2-enyl bromide yielded 30 in 16% yield. Treatment of above vinyl iodide 30 with hexamethylditin in the presence of light yielded the corresponding radical 31 which undergoes 5-exo cyclization onto the nitrile group at C2 of the 4(3H)-quinazolinone nucleus to produce the iminyl radical intermediate 32, which subsequently undergoes a homolytic aromatic substitution via 6-endo (or 5-exo cyclization followed by neophyl rearrangement) with the loss of a hydrogen atom to yield luotonin A.
Molecules 16 04861 g015 550

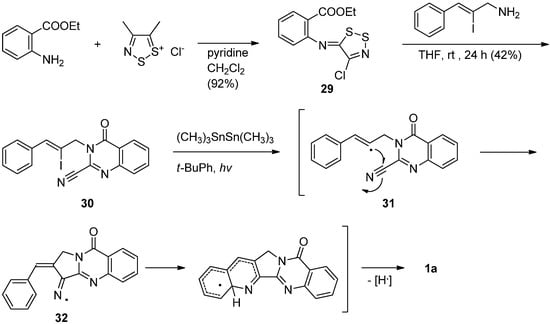

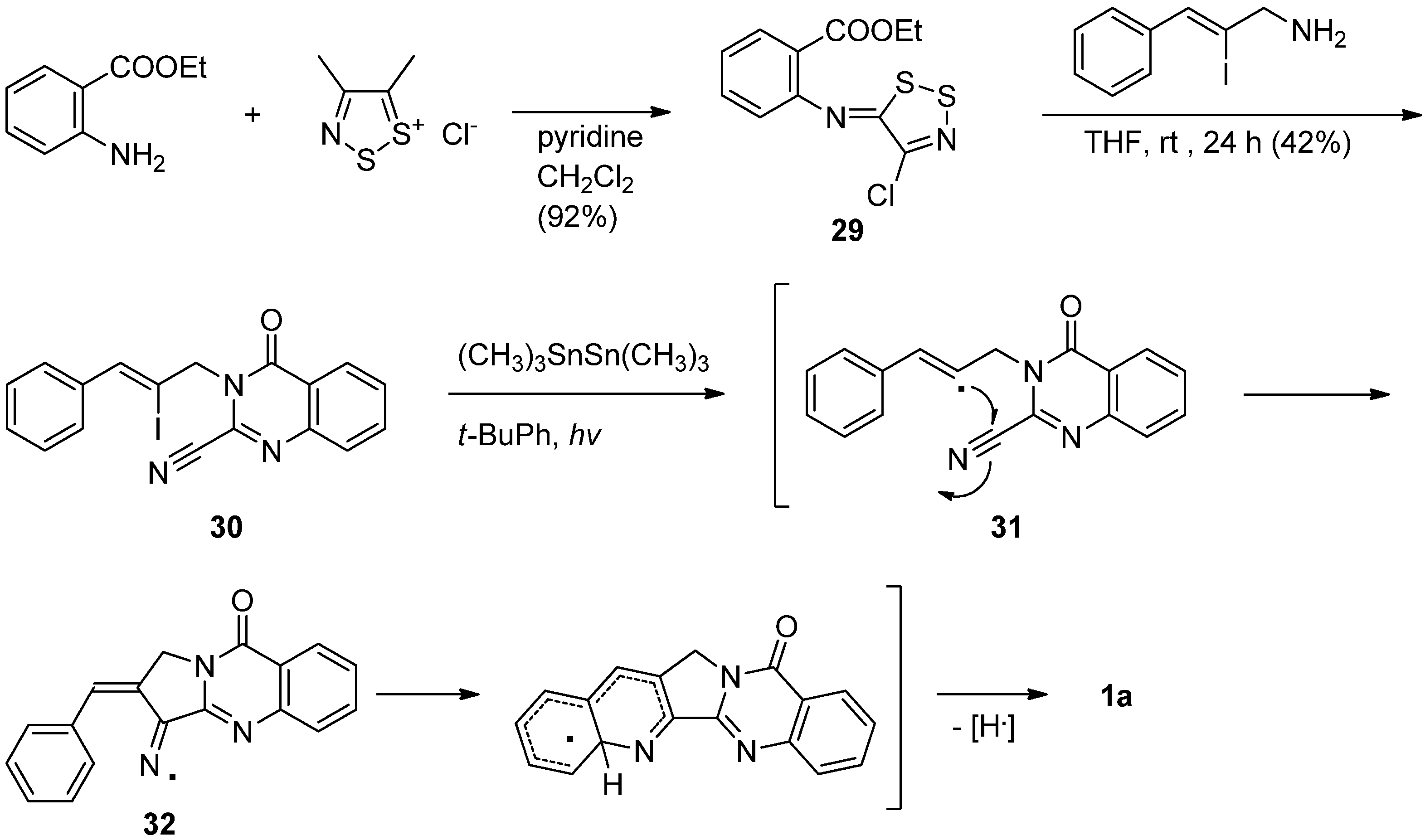

Scheme 13. Bowman et al.’s [42,43] synthesis of luotonin A.
Scheme 13. Bowman et al.’s [42,43] synthesis of luotonin A.
Molecules 16 04861 g015

2.5. via Formation of the Pyrrolo[1,2-a]pyrimidin-4(6H)-one Core

Toyota et al. reported an additional efficient synthesis of luotonin A employing an intramolecular hetero Diels-alder reaction of an aryl iminoether with an aryl nitrile [44,45] (Scheme 14). Palladium-catalyzed coupling reaction of 2-bromoquinoline derivatives 33 with CuCN afforded the corresponding 2-cyanoquinoline derivatives 34. Heating 34b with TMSCl and Et3N at 150 °C in toluene in a stainless sealed tube in the presence of ZnCl2, afforded luotonin A in 46% yield, while 34a did not yield luotonin A. The methoxy group in 34b apparently not only increases the HOMO energy to accelerate the reaction, but also readily acts as a good leaving group after cyclization to restore the aromaticity of the benzene ring (ring E).
Molecules 16 04861 g016 550

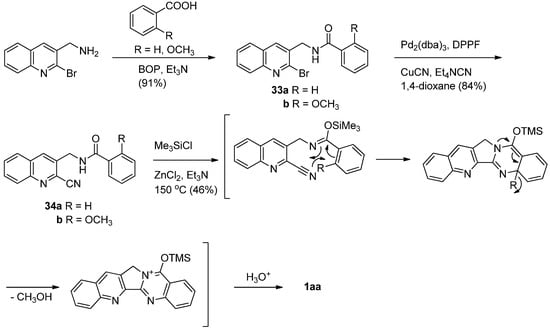

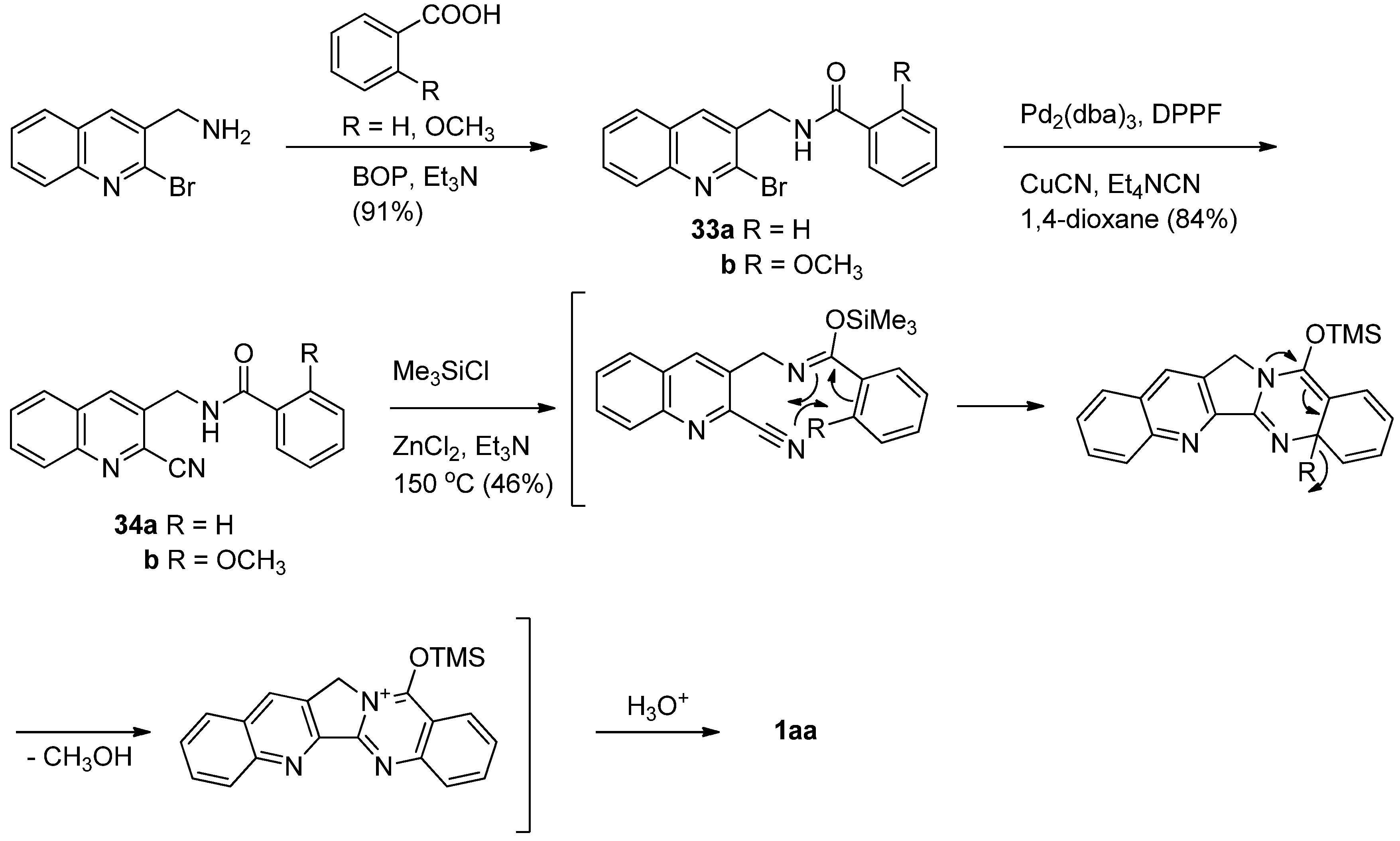

Scheme 14. Toyota et al.’s [44,45] synthesis of luotonin A.
Scheme 14. Toyota et al.’s [44,45] synthesis of luotonin A.
Molecules 16 04861 g016
Courillon and coworkers reported a cascade radical cyclization of N-acylcyanamides as an alternative procedure for the 4(3H)-quinazolinone nucleus, which led to the total synthesis of luotonin A [46,47] (Scheme 15). Cyanation of N-[(2-iodoquinol-3-yl)methyl]benzamide with cyanogen bromide afforded the corresponding N-CN compound which was subjected to radical cyclization to yield luotonin A. The yields were highly dependent on the reaction conditions.
Molecules 16 04861 g017 550

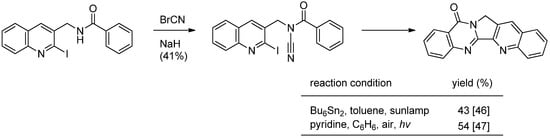

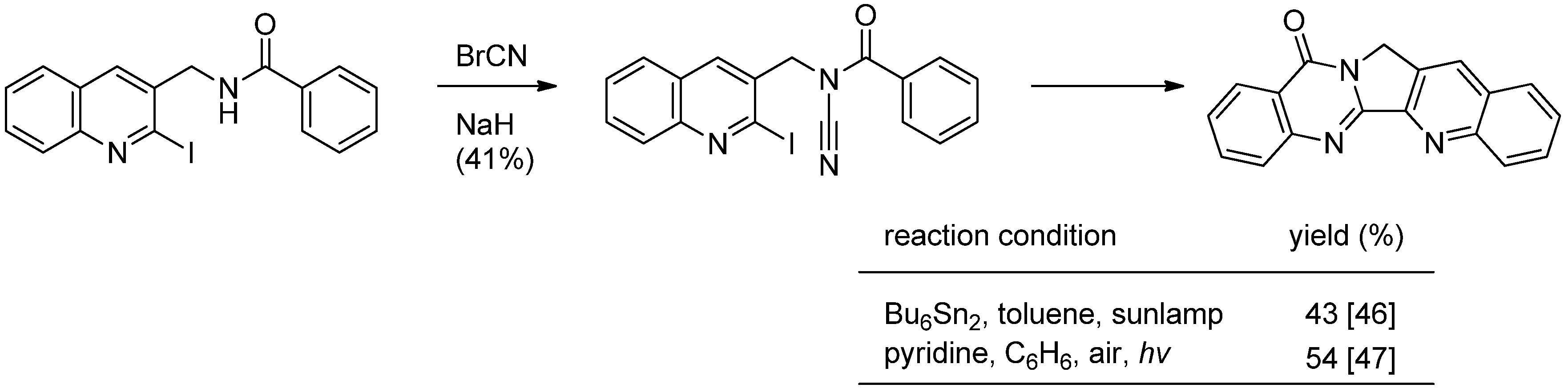

Scheme 15. Courillon et al.’s [46,47] synthesis of luotonin A.
Scheme 15. Courillon et al.’s [46,47] synthesis of luotonin A.
Molecules 16 04861 g017
This method has been modified by Ju et al. who employed sequential cyanation, N-addition, followed by N-arylation of N-[(2-bromoquinolin-3-yl)methyl]-2-bromobenzamide leading to construction of C- and D-rings in one step in a two-stage, one-pot manner [48] (Scheme 16). The reaction was initiated by the Pd-catalyzed cyanation at C2 of the quinoline moiety, followed by intermolecular nucleophilic N-addition of an amide to a nitrile to generate an imidamide intermediate, which undergoes additional Pd-catalyzed intramolecular N-arylation with an aryl halide to allow the one-step construction of the pyrroloquinazolinone skeleton.
Molecules 16 04861 g018 550

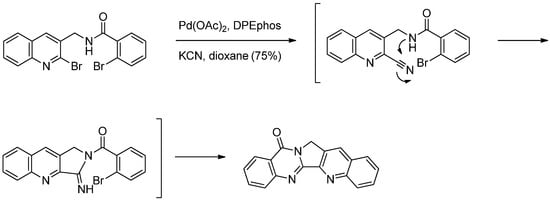

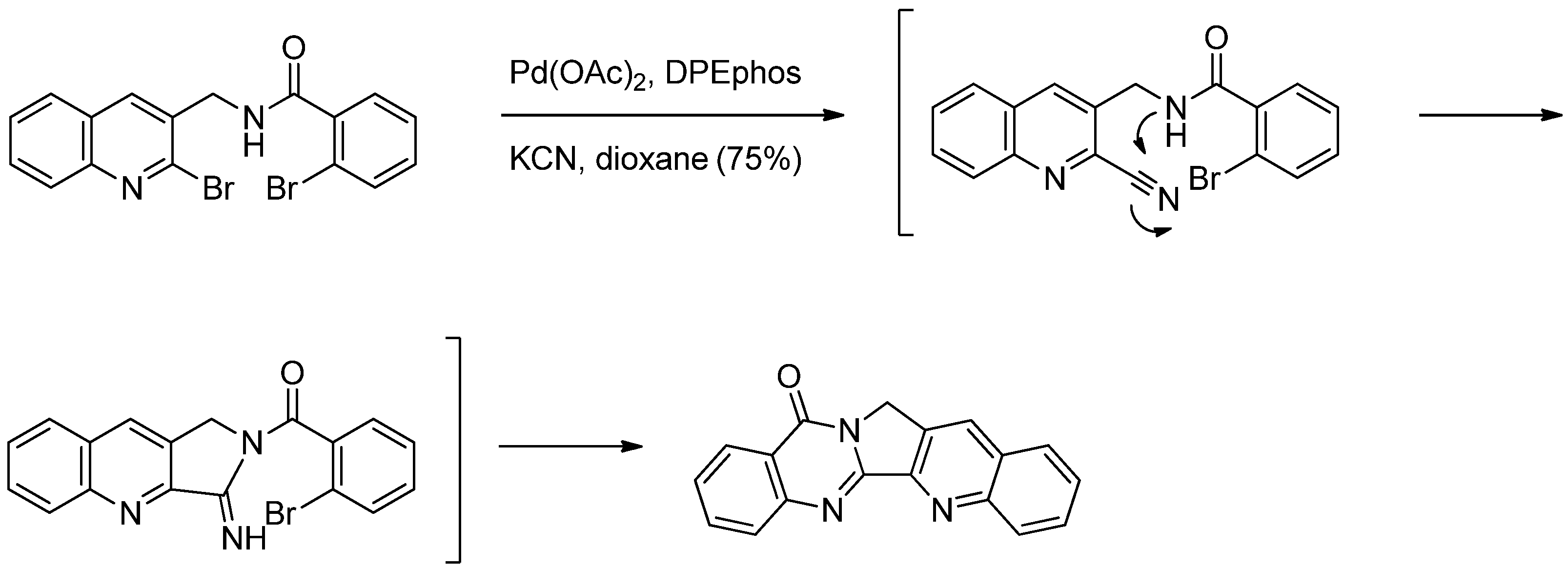

Scheme 16. Li et al.’s [48] synthesis of luotonin A.
Scheme 16. Li et al.’s [48] synthesis of luotonin A.
Molecules 16 04861 g018

2.6. Formation of Rings B, C and D

The cascade cyclization method was recently modified by Tseng et al. The reaction of 21 with glyoxal in the presence of Yb(OTf)3yielded 1,4-diazadiene 35 which underwent cyclization, followed by subsequent hydrogen abstraction to yield N-phenyliminium azadiene 36 [49] (Scheme 17). Lewis acid-catalyzed inverse electron-demand aza-Diels-Alder [4+ + 2] cycloaddition between N-chelated N-phenyliminium azadiene and the electron-rich dienophile in 36 afforded pentacyclic system 37 which in turn provided luotonin A by hydrogen abstraction followed by aromatization.
Molecules 16 04861 g019 550

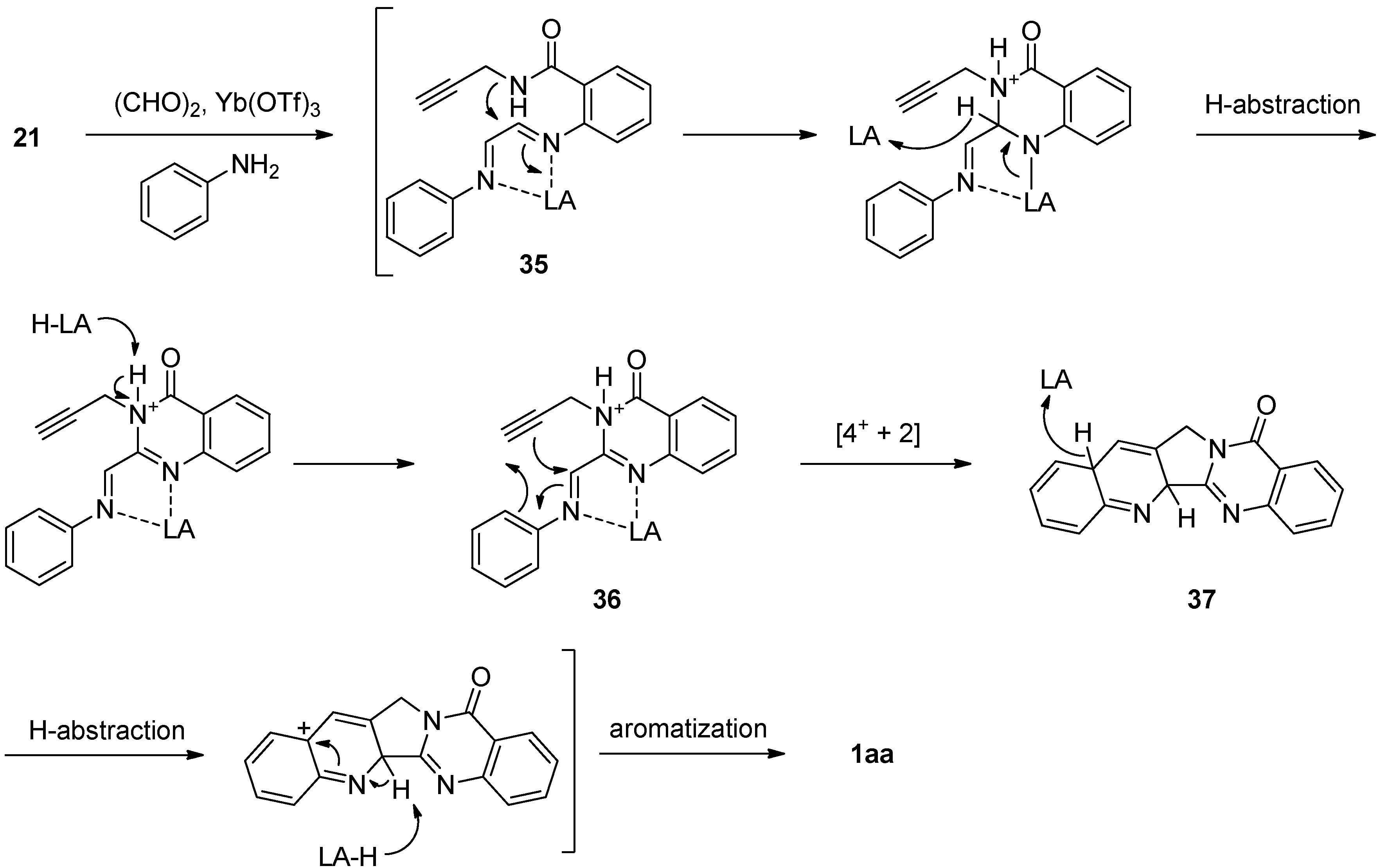

Scheme 17. Chu et al.’s [49] synthesis of luotonin A.
Scheme 17. Chu et al.’s [49] synthesis of luotonin A.
Molecules 16 04861 g019

2.7. Conversion of Luotonin A to Luotonins B and E

Luotonin A underwent slow conversion to luotonin B when a solution of the compound in chloroform was exposed to sunlight for two weeks [3]. Luotonin A can also be converted to luotonin B in two steps by AIBN-catalyzed bromination at the benzylic position followed by Ag(I)-mediated hydroxylation [27,28] (Scheme 18).
Molecules 16 04861 g020 550

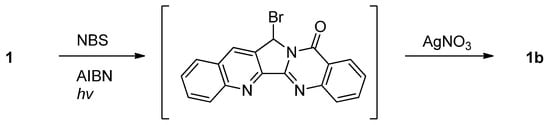

Scheme 18. Harayama et al’s [27,28] synthesis of luotonin B.
Scheme 18. Harayama et al’s [27,28] synthesis of luotonin B.
Molecules 16 04861 g020
Oxidation of luotonin A with CAN afforded luotonin B along with 14-acetamidoluotonin A, of which the reaction mechanism had been suggested [6] (Scheme 19).
Molecules 16 04861 g021 550

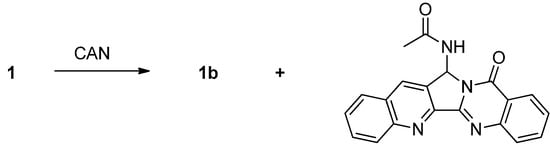

Scheme 19. Ma et al.’s [6] synthesis of luotonin B.
Scheme 19. Ma et al.’s [6] synthesis of luotonin B.
Molecules 16 04861 g021
Very recently, Wagh et al. reported a concise and convergent synthesis of luotonin B in 54% and 19%, respectively, along with 39, by employing a cascade cyclization of 2-cyanoquinoline-3-aldehyde (38a) or 3-(1,3-dioxolan-2-yl)quinoline-2-carbonitrile (38b) with methyl anthranilate in a mixture of acetic acid and acetic anhydride [50] (Scheme 20). Dehydration of luotonin B by Indion resin or Amberlist 25 acidic resin resulted in imminium ion 40 which was then underwent methylation to give luotonin E in 80% yield.
Molecules 16 04861 g022 550

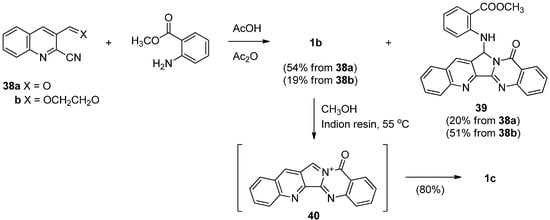

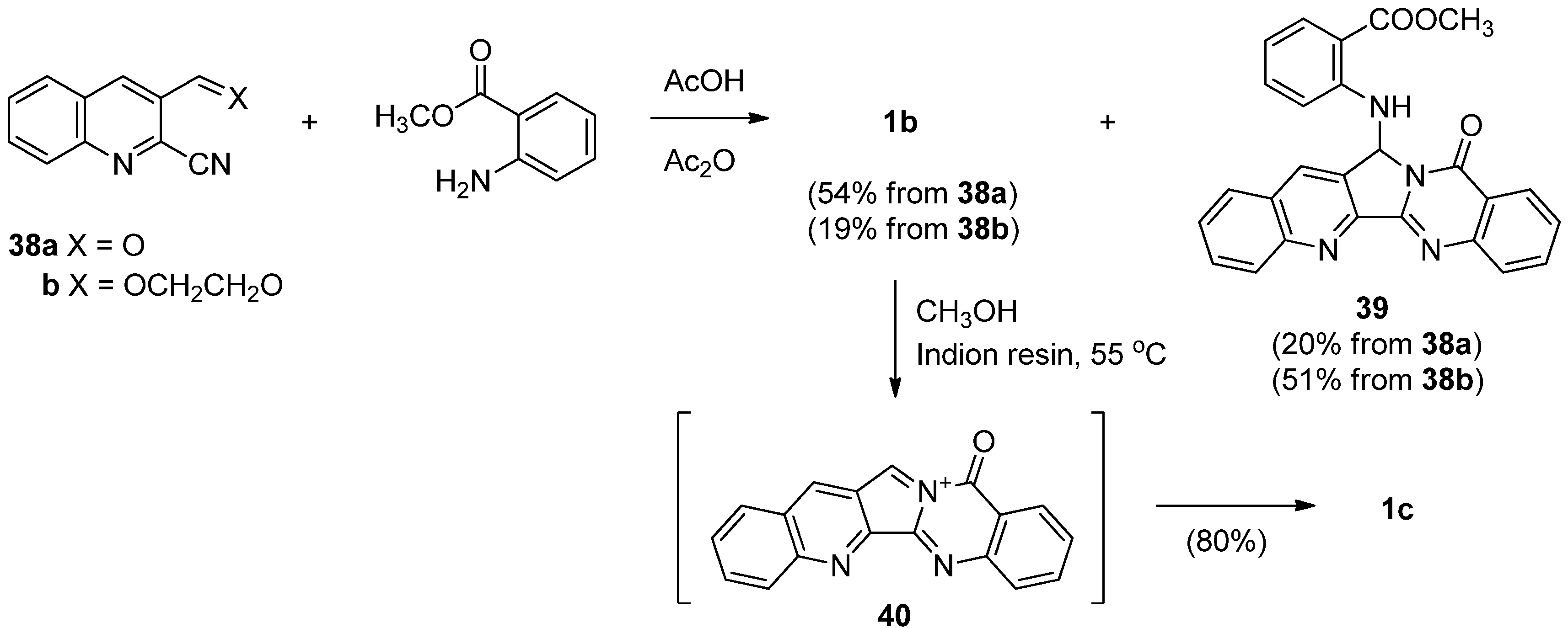

Scheme 20. Kumar et al.’s [50] synthesis of luotonins B and E.
Scheme 20. Kumar et al.’s [50] synthesis of luotonins B and E.
Molecules 16 04861 g022

3. Synthesis of Luotonin C and D

Although numerous synthetic procedures for the parent canthin-6-one core have been reported [51,52,53,54], only one synthetic procedure for luotonin C and D has been published [4]. Luotonin C and D were first prepared in two steps by a biomimetic way from harmine coexisting with these alkaloids in the same plant source. Selenium oxidation of harmine afforded the corresponding aldehyde in 27% yield which was acylated with propionic anhydride and n-butyric anhydride in the presence of triethylamine to yield luotonin C and D in 15% and 13% yields, respectively (Scheme 21).
Molecules 16 04861 g023 550

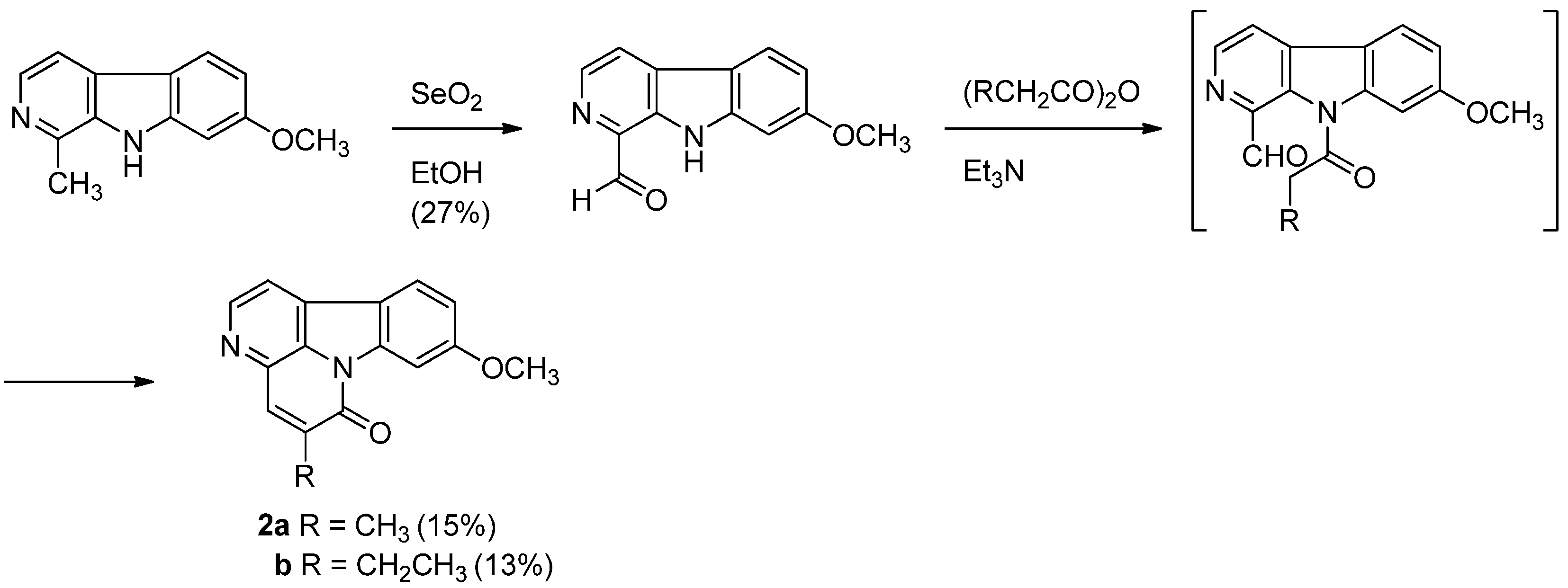

Scheme 21. Ma et al.’s [4] synthesis of luotonins C and D.
Scheme 21. Ma et al.’s [4] synthesis of luotonins C and D.
Molecules 16 04861 g023

4. Synthesis of Luotonin E and F

A synthetic sequence of Nomura and his coworkers for luotonin F started from 3-formylquinoline [5]. 3-Hydroxymethylquinoline prepared by a reduction of 3-formylquinoline with NaBH4 was converted to the corresponding 3-chloromethylquinoline which was then subjected to nucleophilic substitution by KCN to provide the nitrile compound 41. Partial hydrolysis by conc. sulfuric acid provided an amide 42 which was condensed with isatoic anhydride to yield 2-(quinolin-3-ylmethyl)-quinazolin-4(3H)-one (deoxyluotonin F, 43). The synthetic sequence was completed by oxidation of 43 with activated MnO2 in the presence of sunlight to afford luotonin F in 36% yield (Scheme 22).
Molecules 16 04861 g024 550

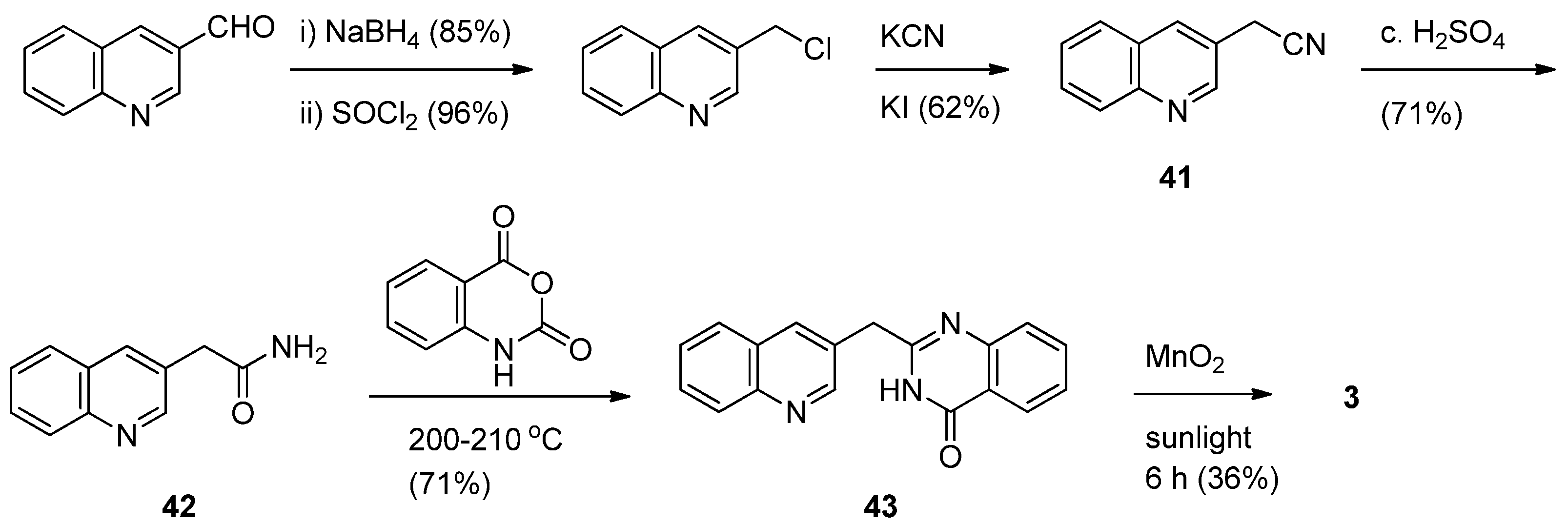

Scheme 22. Ma et al.’s [5] synthesis of luotonin F.
Scheme 22. Ma et al.’s [5] synthesis of luotonin F.
Molecules 16 04861 g024
Mhaske and Argade described a biogenetic synthesis of luotonin F starting from pegamine [55]. PCC oxidation of pegamine afforded isovasicinone (45) via the corresponding aldehyde 44which was subjected to Friedländer condensation with 2-aminobenzaldehyde in the presence of ethanolic KOH to give deoxyluotonin F in 62% yield via in situ ring opening of 45. Chromium trioxide catalyzed periodic acid oxidation of deoxyluotonin F afforded the desired luotonin F in 96% yield (Scheme 23).
Molecules 16 04861 g025 550

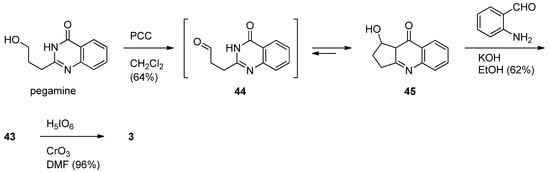

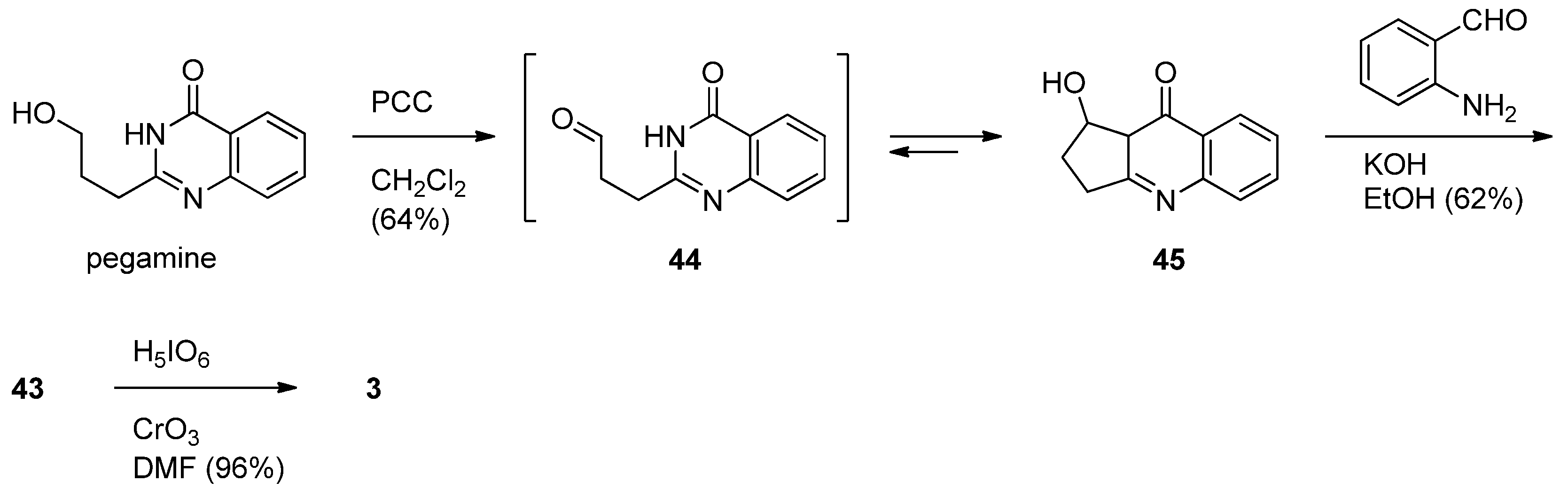

Scheme 23. Mhaske and Argade’s [55] synthesis of luotonin F.
Scheme 23. Mhaske and Argade’s [55] synthesis of luotonin F.
Molecules 16 04861 g025

5. Structural Modifications and Structure-Activity Relationships

Although luotonin A is less potent as well as less efficient than camptothecin in its ability to stabilize the covalent complex between DNA and Topo I, the structural similarities have spurred not only efforts to introduce a variety of substituents, but also to design and synthesize related compounds to improve such activities. Up to now, 10 papers pursuing structure-activity relationship study focusing a modification on rings A, B, C, D, and E have been published, covering inhibitory activities against DNA Topo I and/or DNA topoisomerase II (Topo II). It should be noted that the inhibitory activities of luotonin A (IC50 = 28.5 μM) and F against Topo II were somewhat related to their cytotoxicities [6,56].

5.1. Modifications on Ring A

The introduction of a substituent on ring A significantly affects the cytotoxicity. Compound 1d with fluorine at C3 showed strong inhibitory activity against Topo I, comparable to that of CPT, which was not directly related to its cytotoxicity. The compounds 1h and 1i with N,N-diethylaminoethoxy and N,N-dimethylaminoethoxy groups showed improved cytotoxicity against HCT-116 cancer (human colon tumor) cell lines [57]. It should be noted that stronger cytotoxicity of 1f against H460 (human non-small lung carcinoma cell line) by Topo-I-mediated DNA cleavage may open a new vista for future structural modification on luotonins [58]. On the other hand, compound 1k with an ethyl group at C14 displayed slightly improved cytotoxicity compared to that of luotonin A [30]. In addition, 14-trifluoromethylluotonin A (1m) caused apoptosis of cultured colon adenocarcinoma and leukemia cells (IC50 = 17(3) and 21(4) μM, respectively), which also showed inhibitory activity against Topo I at 40 μM/L [59]. These data are summarized in Table 2.

5.2. Modifications on Ring C

Structure-activity relationship studies on camptothecin and related compounds revealed that introduction of various substituents such as alkyl, alkylamino and alkylimino groups on the C4-position of quinoline moiety improved the Topo I inhibitory activity. Based on this, a series of compounds with a substituent on the ring C have been introduced. However, no detailed studies on their biological properties were described [26].
Table
Table 2. Inhibitory activities against Topo I and cytotoxicities of derivatives of luotonin A on ring A and B.
Molecules 16 04861 i002
Table 2. Inhibitory activities against Topo I and cytotoxicities of derivatives of luotonin A on ring A and B.
Molecules 16 04861 i002
Compd R1 R2 R3 R14Inhibitory activity against Topo I [% (rel. activity)] at 100 μMIC50 (μM)
HCT-116HL-60H460
1aaHHHH 33.7 (0.40) [56]51.11 [56]>100 [56]7.7 [58] a)
1dHHFH81.1 (0.91) [56]>100 [56]56.65 [56]-
1eHOHHH54.1 (0.65) [56]56.6 [56]66.29 [56]-
1fHOMeOMeH---5.47 [58]
1gH-OCH2CH2O-H19.2 (0.23) [56]19.36 [56]21.78 [56]81 [58]
1hHR c)HH- -2 [40]-
1iHR d) HH - -2 [40]-
1jOHR e)HH - -10 [40]-
1kHHHEtslightly more active b)[41] - --
1lHOHHEtsimilar to luotonin A [41] - --
1mHHHCF3inhibition at 40 μM [59] - --
Doxo f) -2.31 [56]4.78 [56] -
CPT 83.9 (1) [56]2.17 [56]5.51 [56] -
a) Values obtained from 72 h culture, b) no detailed data were available [41], c) R = OCH2CH2NEt2, d) OCH2CH2NMe2, e) CH2NMe2, f) doxorubicin.
On the other hand, the Friedländer condensation of lactam 6a and its homologues with 2-aminobenz-aldehyde and 2-aminonicotinaldehyde provided a homologous series of luotonin A [60] and their aza-derivatives, respectively (Scheme 24).
Molecules 16 04861 g026 550

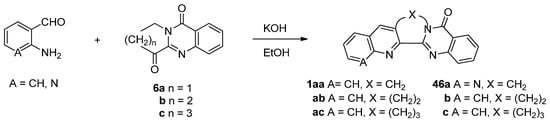

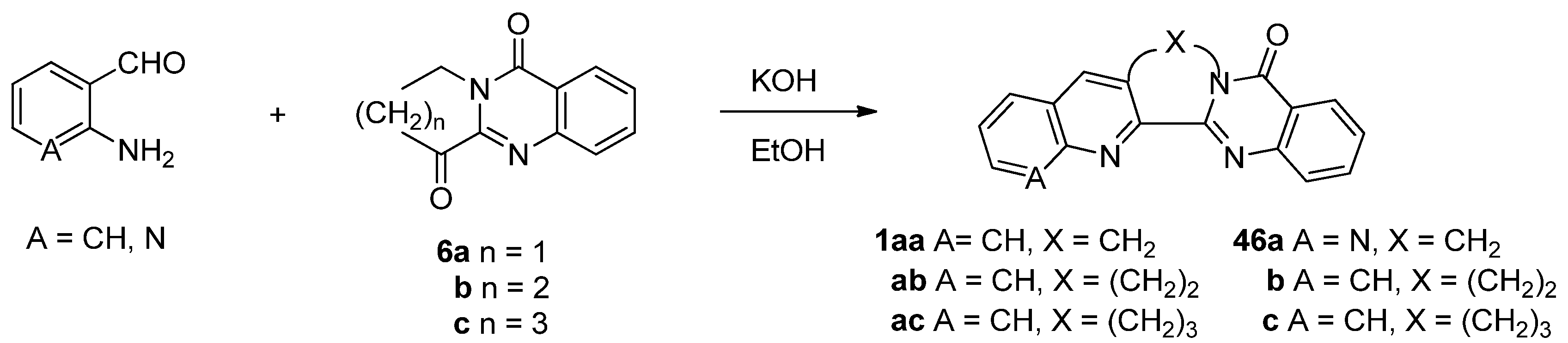

Scheme 24. Jahng et al.’s [60] synthesis of luotonin A homologues and their aza-derivatives.
Scheme 24. Jahng et al.’s [60] synthesis of luotonin A homologues and their aza-derivatives.
Molecules 16 04861 g026
The cytotoxicity of the compounds decreased as the length of bridge increased and a system with 1,8-naphthyridine generally showed increased cytotoxicity, especially towards human cancer cell lines. 7-Azaluotonin A (46a) showed the strongest cytotoxicity against L1210 (leukemia tumor) (IC50 = 0.13 μM), A549 (lung carcinoma) (IC50 = 6.3 μM) and SK-OV-3 (ovary adenocarcinoma) (IC50 = 5.6 μM) which may imply a direction of future study for development of anticancer agents based on luotonin A.

5.3. Modifications on Rings D and E

Studies of Hecht and his coworkers [35,36] and Dallavalle and her coworkers [58] have focused on the introduction of substituents on ring E and the substitution of ring A by its isosteres employing a reaction of 21 with appropriate 2-aminoarenecarboxylic acids, of which the parts are summarized in Table 3.
Table
Table 3. Cytotoxicities of derivatives of luotonin A on ring E and isosteres.
Molecules 16 04861 i003
Table 3. Cytotoxicities of derivatives of luotonin A on ring E and isosteres.
Molecules 16 04861 i003
R7 R8 R9 R10IC50 (μM)
Galactose [25]ADR-Res [40]HeLa [40]MCF7 [40]H460 [41] a)
1aaHHHH0.585337.7
1nHHFH9.58----
1oHNH2HH15.7----
1pHHHCl----13
1qHHNO2H----23
1rCH3HHH----7
1sHHClH----45
1tHHOHH----3.8
1uClHHH-13>1010-
1vNH2HHH-322-
1wOCH3eHHH->2012>2011
1xHOHOHH->20610-
46 11.8----
47 91.4----
CPT 0.860.010.010.01-
SN-38 ----0.21 b)
a) Values obtained from 72 h culture. b) Values from 1 h culture.
Although decisive conclusions about the structure-activity relationships cannot be drawn, a couple of significant features can be deduced. The activities of a compound with an amino group at C7 (1v) were increased against a broad range of selected human cancer cell lines such as ADR-Res (adriamycin-resistant breast carcinoma), HeLa (cervical carcinoma), MCF7 (breast carcinoma) and H460 compared to luotonin A. The compound with a hydroxyl group at C9 (1t) also showed promising cytotoxicity against the HL460 cancer cell line. Introduction of a substituent at C3 (1n,o) is also important for maintaining such cytotoxic activities. Compounds 1n and 1o showed reasonably strong Topo-I dependent cytotoxicity toward a yeast strain grown on galactose medium with IC50 values of 9.58 and 15.7 μM, respectively. It should be noted that compound 47, a regioisomer of luotonin A (Figure 2), showed promising activity (11.8 μM) while reduction of the A-ring (i.e., compound 48, Figure 2) reduced activity significantly. Although system with an isosteric aromatic ring including naphthalene and thiophene units (49 and 50, respectively, Figure 2) strongly stabilized the Topo I-DNA binary complex, these isosteres did not show any promising activity against human cancer cell lines [36] implying that ring A should be a benzene moiety for better cytotoxicity. Furthermore the stability of the Topo I-DNA binary complex might not be directly related to cytotoxicity.
Molecules 16 04861 g002 550

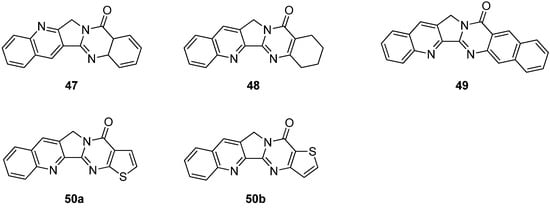

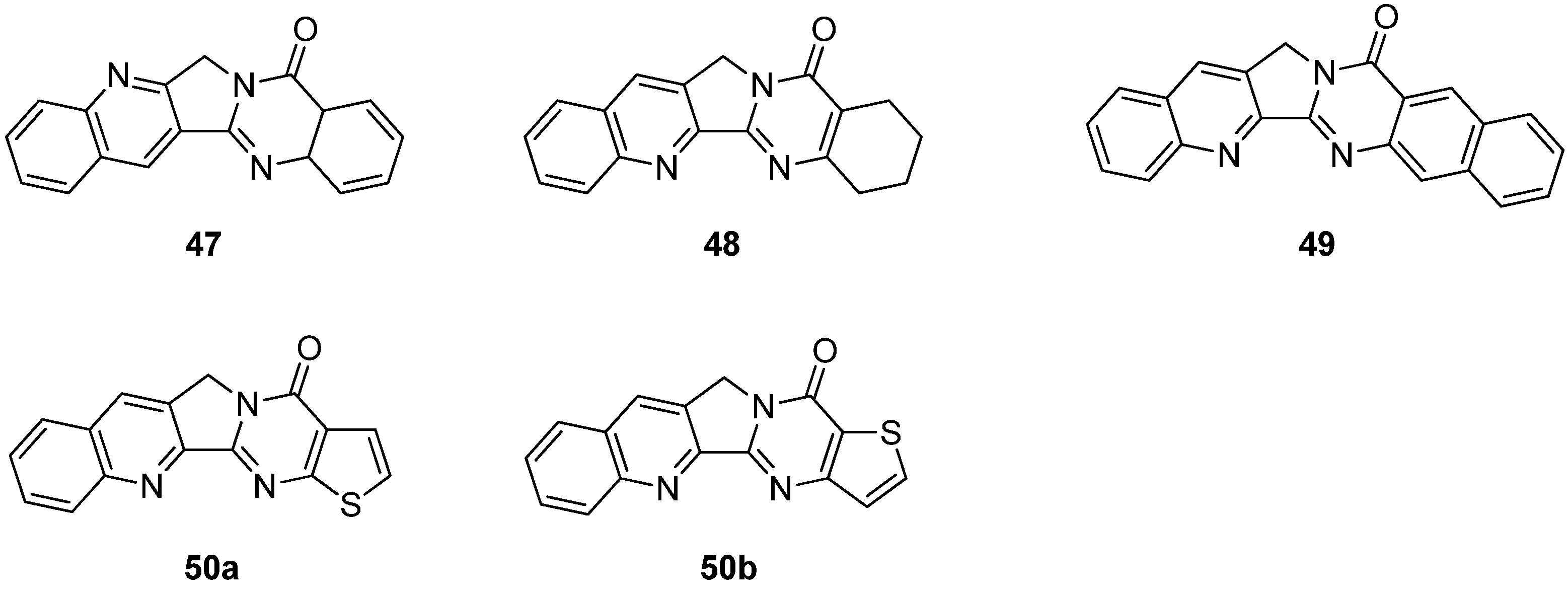

Figure 2. Isosteres of luotonin A.
Figure 2. Isosteres of luotonin A.
Molecules 16 04861 g002

5.4. 14-Azacamptothecin – A Hybrid Molecule of Luotonin A and Camptothecin

Hecht and his coworkers designed 14-aza-camptothecin (53a) [61] and its methylenedioxy derivative (53b) [45] as a hybrid of camptothecin and luotonin A and prepared them in two-steps (N-alklyation followed by a radical-mediated cyclization) from 2-bromo-3-(bromomethyl)quinoline (12a) and its 6,7-methylenedioxy derivative (12b) and pyranopyrimidindione (51) (Scheme 25).
Molecules 16 04861 g027 550

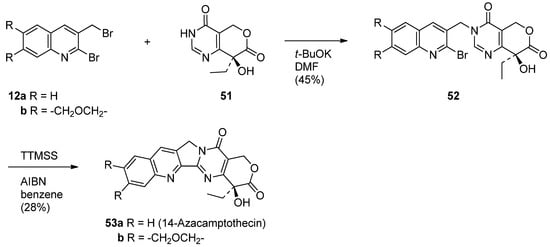

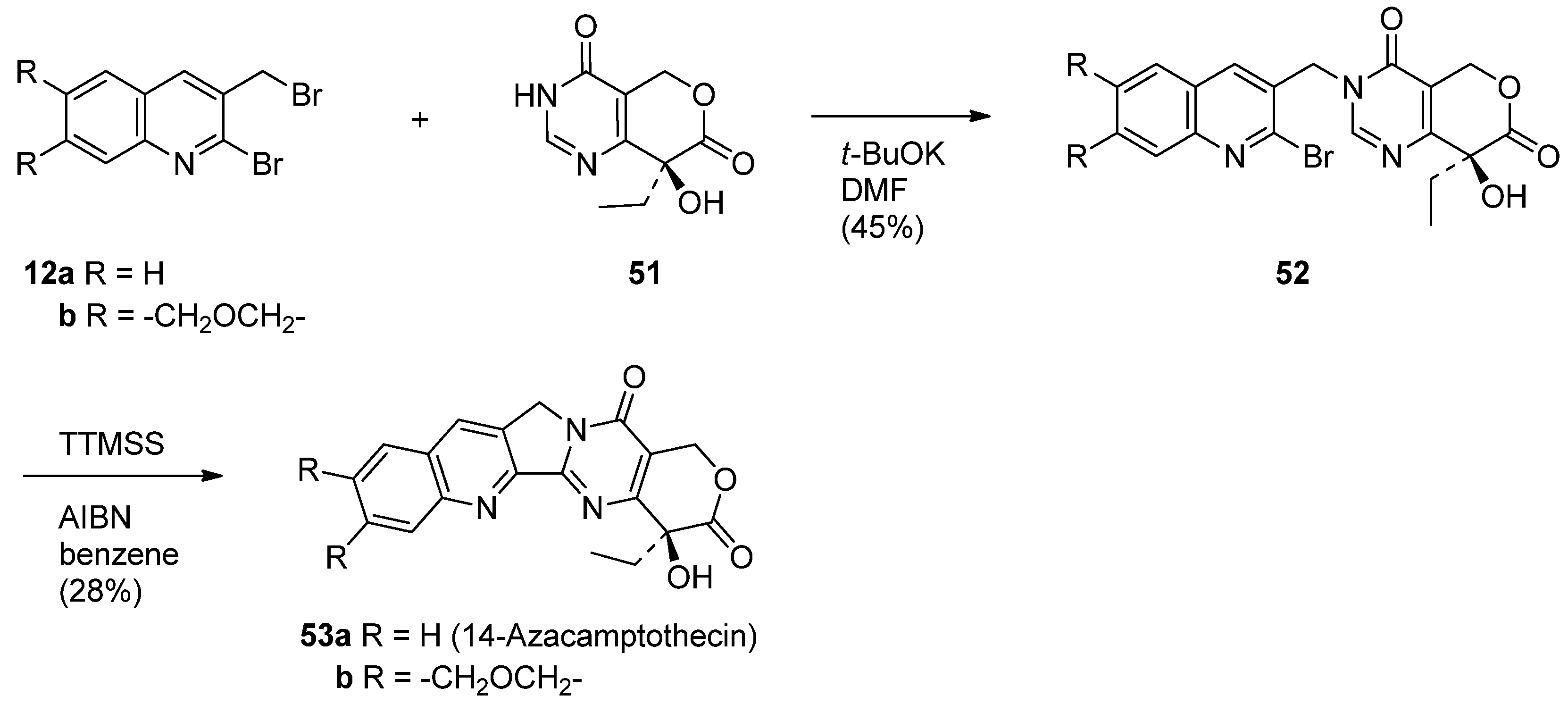

Scheme 25. Synthesis of 14-azacamptothecin and its derivative.
Scheme 25. Synthesis of 14-azacamptothecin and its derivative.
Molecules 16 04861 g027
The prerequisite 51 was prepared in nine steps from commercially available 2-chloro-6-methoxy-pyrimidine [60] (Scheme 26). Iodination of 54 gave 4-iodopyrimidine 55 which was lithiated with n-BuLi and subsequently treated with ethyl formate to give the corresponding aldehyde 56 in 88% yield. Reductive etherification with crotonyl alcohol in the presence of Et3SiH and TFA afforded crotyl ether 57 which was subjected to the Heck coupling to yield an alkene 58. Asymmetric dihydroxylation of 58 in the presence of the chiral ligand (DHQD)2-PYR (AD-system) afforded the corresponding lactol 59 which was not isolated, but instead treated with I2-mediated oxidation to give a lactone 60. The lactone was dechlorinated to provide 61 by hydrogenolysis over 10% Pd/C and subsequent hydrolysis with 6N HCl to afford the desired 51 in 4.9% overall yield.
Molecules 16 04861 g028 550

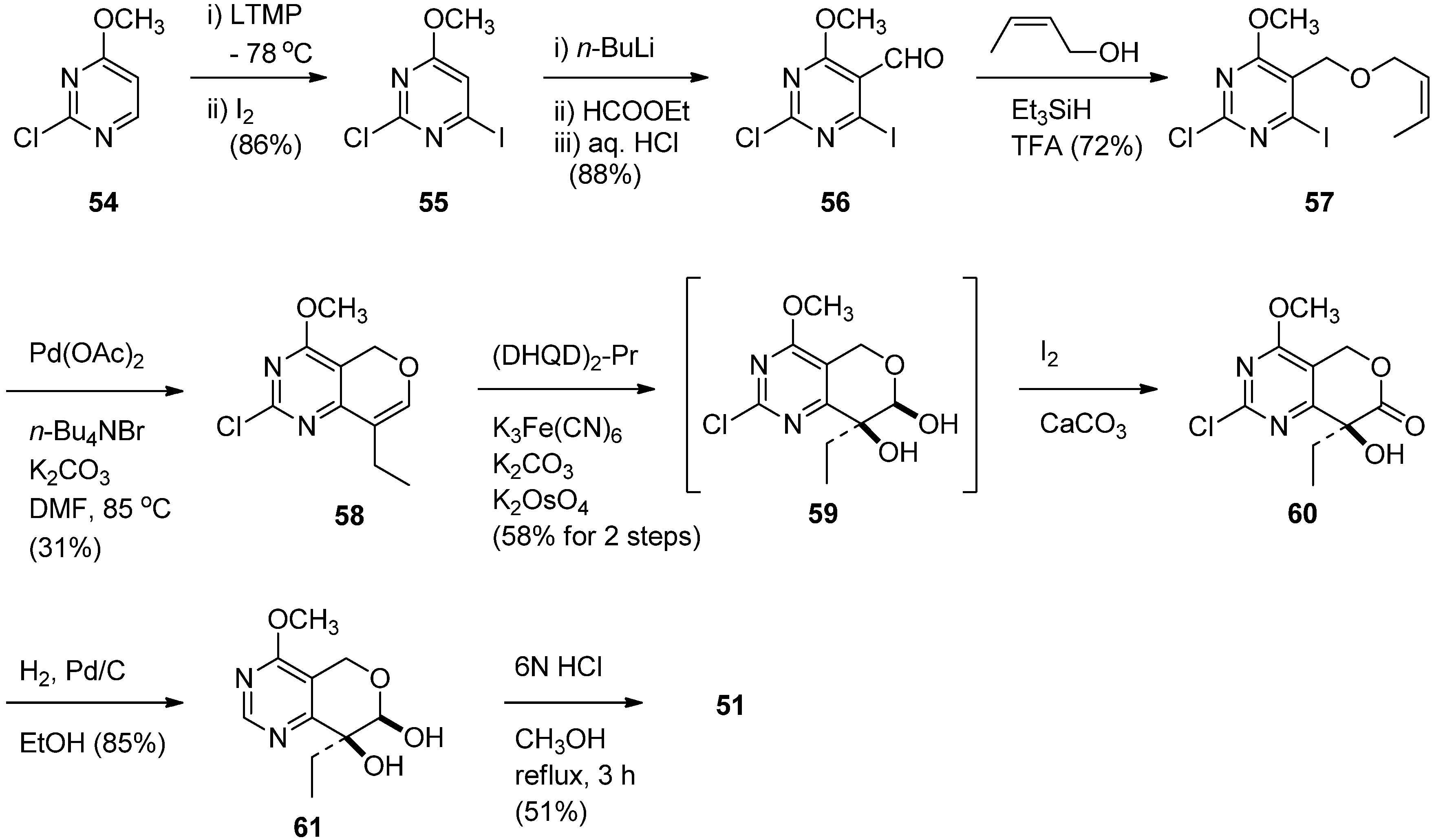

Scheme 26. Synthesis of chiral synthon of 14-azacamptothecin.
Scheme 26. Synthesis of chiral synthon of 14-azacamptothecin.
Molecules 16 04861 g028
Advantages of 14-aza-camptothecin and its methylenedioxy derivative 53b lie not only in its improved water solubility in water and ability to inhibit Topo I-mediated DNA relaxation more efficiently than CPT or luotonin A, but also in its stabilization of the covalent binary complex (Table 4).
Table
Table 4. Human Topo I dependent cytotoxicity of CPTs and luotonin A towards Saccharomyces cerevisiae.a)
Table 4. Human Topo I dependent cytotoxicity of CPTs and luotonin A towards Saccharomyces cerevisiae.a)
CompoundConcentration (μM)Inhibition on growth medium (%)Topo I dependent cytotoxicity (IC50, μM)b)
RaffinoseGalactose
CPT1.00740.15
Luotonin A (1aa)1.0036
0.5023
14-aza-CPT (53a)2.0046>10
53b 1.28
a) Inhibition of RS321Nph-Topo I grown in minimal medium containing 3% raffinose or galactose for 2 days at 30 °C. b) Values were obtained against A549 cells using an MTT assay.

6. Conclusions and Perspectives

Increasing interest in the luotonins especially luotonin A (1aa) may stem from its inhibitory activity against topoisomerases and cytotoxicity against various cancer cell lines. Such intriguing properties and characteristic structure have led to 13 synthetic strategies for the total synthesis of luotonin A and several synthetic methods for luotonin B and E. However, a synthetic method that is generally able to introduce substituents on the rings more efficiently (i.e., a method to introduce more than two substituents onto the different rings), has not as yet been established. Although the introduction of substituent(s) on the A, B, C, and E rings has been explored during last decade, the nature of the substituents as well as positions of the substituents on the rings are somewhat limited up to now due to the lack of synthetic methods of general applicability. In order to achieve the structural optimization of luotonin A and to improve the biological as well as pharmacokinetic properties as an anticancer drug, it will be necessary to synthesize more derivatives systematically. Studies on the development of CPT-related anticancer drugs [12,13,14,15,63] may afford useful information and a guideline for the future structural modification on luotonins.

Acknowledgements

Financial support from the Korean Science Foundation is gratefully acknowledged. Authors thank for the references 17 and 59 afforded by reviewers.

References

  1. A Pictorial Encyclopaedia of Chinese Medical Herbs; Xiao, P.-G. (Ed.) Chuokoron-sha: Tokyo, Japan, 1992; Volume 3, p. 125. (In Japanese)
  2. Xiao, X.-H.; Qiu, G.-L.; Wang, H.-L.; Liu, L.-S.; Zheng, R.-L.; Jia, Z.-J.; Deng, Z.-B. Effect of Alkaloids from Peganum nigellastrum on Mouse Ascitic Hepatoma and Isolated Cells. Chin. J. Pharmacol. Toxocol. 1988, 2, 232–234. [Google Scholar]
  3. Ma, Z.-Z.; Hano, Y.; Nomura, T.; Chen, Y.-J. Two New Pyrroloquinazolinoquinoline Alkaloids from Peganum nigellastrum. Heterocycles 1997, 46, 541–546. [Google Scholar] [CrossRef]
  4. Ma, Z.-Z.; Hano, Y.; Nomura, T.; Chen, Y.-J. Alkaloids and Phenylpropanoids from Peganum nigellastrum. Phytochemistry 2000, 53, 1075–1078. [Google Scholar]
  5. Ma, Z.-Z.; Hano, Y.; Nomura, T.; Chen, Y.-J. Two New Quinazoline-Quinoline Alkaloids from Peganum nigellastrum. Heterocycles 1999, 51, 1883–1889. [Google Scholar] [CrossRef]
  6. Ma, Z.; Hano, Y.; Nomura, T.; Chen, Y. Novel Quinazoline-quinoline Alkaloids with Cytotoxicites and DNS Topoisomerase II Inhibitory Activities. Biorg. Med. Chem. Lett. 2004, 14, 1193–1196. [Google Scholar] [CrossRef]
  7. Ma, Z.-Z.; Hano, Y.; Nomura, T.; Chen, Y.-J. The Structure of New Alkaloid Components from Peganum nigellastrum. Tennen Yuki Kagobutsu Koen Yoshishu 1999, 41, 547–552. [Google Scholar]
  8. Ma, Z.; Hano, Y.; Qiu, F.; Shao, G.; Chen, Y.; Nomura, T. Triterpenoids and Alkaloids from the Roots of Peganum nigellastrum. Nat. Prod. Commun. 2008, 3, 149–154. [Google Scholar]
  9. Cagir, A.; Jones, S.H.; Eisenhauer, B.M.; Hecht, S.M. Luotonin A, A Naturally Occurring DNA Topoisomerase I Poison. J. Am. Chem. Soc. 2003, 125, 13628–13629. [Google Scholar] [CrossRef]
  10. Mussardo, P.; Corda, E.; Gonzalez-Ruiz, V.; Rajesh, J.; Girotti, S.; Martin, A.; Olives, A.I. Study of Non-covalent Interaction of Luotonin A Derivatives and the DNS Minor Groove as a First Step in the Study of Their Analytical Potential as DNA Probes. Anal. Bioanal. Chem. 2011, 400, 321–327. [Google Scholar] [CrossRef]
  11. Wall, M.E.; Wani, M.C.; Cook, C.E.; Palmer, K.H.; McPhail, A.T.; Sim, G.A. Plants Antitumor Agents. 1. The isolation and Structure of Camptothecin, a Noval Alkaloidal Leukemia and Tumor Inhibition from Camptotheca acuminata. J. Am. Chem. Soc. 1966, 88, 3888–3890. [Google Scholar] [CrossRef]
  12. Slichemyer, W.J.; Rowinsky, E.K.; Donehower, R.C.; Kaufmann, S.H. The Current Status of Camptothecin Analogs as Antitumor agents. J. Nat. Cancer Invest. 1993, 85, 271–291. [Google Scholar] [CrossRef]
  13. Pommier, Y. Topoisomerase I Inhibitors: Camptothecins and Beyond. Nat. Rev. Cancer 1006, 6, 789–802. [Google Scholar] [CrossRef]
  14. Pommier, Y. DNA Topoisomerase I Inhibitors: Chemistry, Biology, and Interfacial Inhibition. Chem. Rev. 2009, 109, 2894–2902. [Google Scholar] [CrossRef]
  15. Pommier, Y. DNA Topoisomerases and Their Poisoning by Anticancer and Antibacterial Drugs. Chem. Biol. 2010, 17, 421–433. [Google Scholar] [CrossRef]
  16. Ma, Z.; Hano, Y.; Nomura, T. Luotonin A: A Lead Toward Anti-Cancer Agent Development. Heterocycles 2005, 65, 2203–2219. [Google Scholar] [CrossRef]
  17. Huang, W.P.; Liu, J.L.; Wang, C.L. Progress in the Synthesis of Natural Product Luotonin A and Its Derivatives. Chin. J. Org. Chem. 2009, 29, 1533–1543. [Google Scholar]
  18. Michael, J.P. Quinoline, Quinazoline, and Acridone Alkaloids. Nat. Prod. Rep. 2008, 25, 166–187, and references therein. [Google Scholar] [CrossRef]
  19. Ma, Z.-Z.; Hano, Y.; Nomura, T.; Chen, Y.-J. Synthesis of Cytotoxic Pyrroloquinazolino-Quinoline Alkaloid Luotonin A. Heterocycles 1999, 51, 1593–1596. [Google Scholar] [CrossRef]
  20. Friedländer, P. Über o-Amidobenzaldehyd. Ber. Detsch. Chem. Ges. 1882, 15, 2572–2575. [Google Scholar] [CrossRef]
  21. Cheng, C.-C.; Yan, S.-J. The Friedländer Synthesis of Quinolines. Org. React. 1992, 28, 37–201. [Google Scholar]
  22. Marco-Contelles, J.; Perez-Mayoral, E.; Samadi, A.; Carreiras, M. do C.; Soriano, E. Recent Advances in the Friedländer Reaction. Chem. Rev. 2009, 109, 2652–2671. [Google Scholar] [CrossRef]
  23. Kelly, T.R.; Chamberland, S.; Silva, R.A. Total Synthesis of Luotonin A. Tetrahedron Lett. 1999, 40, 2723–2724. [Google Scholar]
  24. Molina, P.; Tarraga, A.; Gonzalez-Tejero, A. A Convenient Divergent Approach to the Alkaloids Isaindigotone and Luoronin A. Synthesis 2000, 11, 1523–1525. [Google Scholar]
  25. Sridharan, V.; Ribelles, P.; Terresa Ramos, M.; Carlos Menendez, J. Cerium(IV) Ammonium Nitrate Is an Excellent, General Catalyst for the Friedländer and Friedländer-Borsche Quinoline Syntheses: Very Efficient Access to the Antitumor Alkaloid Luotonin A. J. Org. Chem. 2009, 74, 5715–5718. [Google Scholar] [CrossRef]
  26. Mason, J.J.; Bergman, J. Total Synthesis of Luotonin A and 14-Substituted Analogues. Org. Biomol. Chem. 2007, 5, 2486–2490. [Google Scholar] [CrossRef]
  27. Harayama, T.; Morikami, Y.; Shigeta, Y.; Abe, H.; Takeuchi, Y. A Convenient Synthesis of Luotonin A and B. Synlett 2003, 847–848. [Google Scholar]
  28. Harayama, T.; Hori, A.; Serba, G.; Morikami, Y.; Matsumoto, T.; Abe, H.; Takeuchi, Y. Concise Synthesis of Quinazoline Alkaloids, Luotonins A and B, and Rutaecarpine. Tetrahedron 2004, 60, 10645–10649. [Google Scholar] [CrossRef]
  29. Mhaske, S.B.; Argade, N.P. Regioselective Quinazolinone-Directed Ortho Lithiation of Quinazolinoylation: Practical Synthesis of Naturally Occurring Human DNA Topoisomerase I Poison Luotonin A and Luotonins B and E. J. Org. Chem. 2004, 69, 4563–4566. [Google Scholar] [CrossRef]
  30. Chavan, S.P.; Sivappa, R. A Short and Efficient General Synthesis of Luotonin A, B, and E. Tetrahedron Lett. 2004, 60, 9931–9935. [Google Scholar] [CrossRef]
  31. Kametani, T.; Higa, T.; Loc, C.V.; Ihara, M.; Koizmi, M.; Fukumoto, K. Iminoketene Cycloaddition. 1. A Facile Synthesis of Quinazoline System by Condensation of Iminoketene with Amines – A Total Synthesis of Evodine and Rutaecarpine by Retro Mass-Spectral Synthesis. J. Am. Chem. Soc. 1976, 98, 6186–6188. [Google Scholar] [CrossRef]
  32. Wang, H.; Ganesan, A. Total Synthesis of the Cytotoxic Alkaloid Luotonin A. Tetrahedron Lett. 1998, 39, 9097–9098. [Google Scholar] [CrossRef]
  33. Dallavalle, S.; Merlini, L. A New Synthesis of the Cytotoxic Alkaloid Luotonine A. Tetrahedron Lett. 2002, 43, 1835–1837. [Google Scholar] [CrossRef]
  34. Yadav, J.S.; Reddy, B.V.S. Microwave-assisted Rapid Synthesis of the Cytotoxic Alkaloid Luotonin A. Tetrahedron Lett. 2002, 43, 1905–1907. [Google Scholar]
  35. Cagir, A.; Eisenhauer, B.M.; Gao, R.; Thomas, S.J.; Hecht, S.M. Synthesis and Topoisomerase I Inhibitory Properties of Luotonin A Analogues. Bioorg. Med. Chem. 2004, 12, 6287–6299. [Google Scholar] [CrossRef]
  36. Cagir, A.; Jones, S.H.; Eisenhauer, B.M.; Gao, R.; Hecht, S.M. Synthesis and Biochemical Properties of E-Ring Modified Luotonin A Derivatives. Bioorg. Med. Chem. Lett. 2004, 12, 2051–2054. [Google Scholar]
  37. Lee, E.S.; Park, J.G.; Jahng, Y. A Simple Synthesis of Simple Alkaloids – Syntheis of 2,3-Polymethylene-4(3H)-quinazolinones and Related Alkaloids. Tetrahedon Lett. 2003, 44, 1883–1886. [Google Scholar] [CrossRef]
  38. Jahng, K.C.; Kim, S.I.; Kim, D.H.; Seo, C.S.; Son, J.-K.; Lee, S.H.; Lee, E.S.; Jahng, Y. One-Pot Synthesis of Simple Alkaloids: 2,3-Polymethylene-4(3H)-quinazolinones, Luotonin A, Tryptanthrin, and Rutaecarpine. Chem. Pharm. Bull. 2008, 56, 607–609. [Google Scholar] [CrossRef]
  39. Twin, H.; Batey, R.A. Intramolecular Hetero Diels-Alder (Povarov) Approach to the Synthesis of the Alkaloids Luotonin A and Camptothecin. Org. Lett. 2004, 6, 4913–4916. [Google Scholar] [CrossRef]
  40. Zhou, H.-B.; Liu, G.-S.; Yao, Z.-J. Short and efficient Total Synthesis of Luotonin A and 22-Hydroxyacuminatine Using A Common Cascade Strategy. J. Org. Chem. 2007, 72, 6270–6272. [Google Scholar] [CrossRef]
  41. Tangirala, R.; Antony, S.; Agama, K.; Pommier, Y.; Curran, D.P. Total Synthesis of Luotonin A and a Small Library of AB-Ring Substituted Analogues by Cascade Radical Annulation of Isonitriles. Synlett 2005, 18, 2843–2846. [Google Scholar]
  42. Bowman, W.R.; Cloonan, M.O.; Fletcher, A.J.; Stein, T. Synthesis of Heteroarenes Using Cascade Radical reaction via Iminyl Radicals. Org. Biomol. Chem. 2005, 3, 1460–1467. [Google Scholar] [CrossRef]
  43. Bowman, W.R.; Elsegood, M.R.J.; Stein, T.; Weaver, G.W. Radical Reactions with 3H-Quinazolin-4-ones: Synthesis of Deoxyvasicinone, Mackinazoline, Luotonin A, Rutaecarpine and Tryptanthrin. Org. Biomol. Chem. 2007, 5, 103–113. [Google Scholar] [CrossRef] [Green Version]
  44. Toyota, M.; Komori, C.; Ihara, M. Three-step Total Synthesis of Pyrroloquinazolinoquinoline Alkaloid, Luotonin A, by Intramolecular Hetero Diels-Alder Reaction. Heterocycles 2002, 56, 101–103. [Google Scholar] [CrossRef]
  45. Toyota, M.; Komori, C.; Ihara, M. An Efficient Total Synthesis of Pyrroloquinazolinoquinoline Alkaloid, Luotonin A, Employing An Intramolecular Hetero Diels-Alder Reaction. ARKIVOC 2003, 15–23. [Google Scholar]
  46. Servais, A.; Azzouz, M.; Lopes, D.; Courillon, C.; Malacria, M. Radical Cyclization of N-Acylcyanamides: Total Synthesis of Luotonin A. Angew. Chem. Int. Ed. 2007, 46, 576–579. [Google Scholar] [CrossRef]
  47. Beaume, A.; Courillon, C.; Derat, E.; Malacria, M. Unprecedented Aromatic Homolytic Substitutions and Cyclization of Amide-Iminyl Radicals: Experimental and theoretical Study. Chem. Eur. J. 2008, 14, 1238–1252. [Google Scholar] [CrossRef]
  48. Ju, Y.; Liu, F.; Li, C. Palladium-Catalyzed Sequential Cyanation/N-Addition/N-Arylation in One-Pot: Efficient Synthesis of Luotonin A and Its Derivatives. Org. Lett. 2009, 11, 3582–3585. [Google Scholar] [CrossRef]
  49. Tseng, M.-C.; Chu, Y.-W.; Tsai, H.-P.; Lin, C.-M.; Hwang, J.; Chu, Y.-H. One-Pot Synthesis of Luotonin A and Its Analogues. Org. Lett. 2011, 13, 920–923. [Google Scholar] [CrossRef]
  50. Wagh, M.B.; Shankar, R.; Kumar, U.K.S.; Gill, C.H. A Concise and Convergent Synthesis of Luotonin B and E. Synlett 2011, 84–88. [Google Scholar]
  51. Goller, A.; Koutentis, P.A. Two-Step synthesis of Canthin-6-one Alkaloids: New One-Pot Sequential Pd-Catalyzed Suzuki-Miyaura Coupling and Cu-Catalyzed Amidation Reaction. Org. Lett. 2010, 12, 1352–1355. [Google Scholar] [CrossRef]
  52. Soriano-Agaton, F.; Lagoutte, D.; Poupon, E.; Roblot, F.; Fournet, A.; Gantier, J.-C.; Hocquemiller, R. Extraction, Hemisynthesis, and Synthesis of Canthin-6-one Analogue. Evaluation of Their Antifungal Activities. J. Nat. Prod. 2005, 68, 1581–1587. [Google Scholar] [CrossRef]
  53. Suzuki, H.; Adachi, M.; Ebihara, Y.; Gyoutoku, H.; Furuya, H.; Murakami, Y.; Okuno, H. Synthetic Studies on Indoles and Related Compounds. Part 53. A Total Synthesis of 1-Methoxycanthin-6-one: An Efficient One-Pot Synthesis of the Canthin-6-one Skeleton from β-Carboline-1-carbaldehyde. Synthesis 2005, 28–32. [Google Scholar]
  54. Rossler, U.; Blechert, S.; Steckhan, E. Single Electron Transfer Induced Total Synthesis of Canthin-6-one. Tetrahedron Lett. 1999, 40, 7075–7078. [Google Scholar] [CrossRef]
  55. Mhaske, S.B.; Argade, N.P. Biogenetic Synthesis of Luotonin F. Synthesis 2002, 323–325. [Google Scholar]
  56. Rahman, A.F.M.M.; Kim, D.H.; Liang, J.L.; Lee, E.-S.; Na, Y.; Jin, K.-Y.; Kwon, Y.; Jahng, Y. Synthesis and Biological Properties of Luotonin Derivatives. Bull. Kor. Chem. Soc. 2008, 29, 1988–1992. [Google Scholar] [CrossRef]
  57. Narco, K.; Zha, C.C.; Guzzo, P.R.; Herr, R.J.; Peace, D.; Friedrich, T.D. Synthesis and Topoisomerase Poisoning Activity of A-Ring and E-Ring Substituted Luotonin A Derivatives. Bioorg. Med. Chem. 2007, 15, 4237–4246. [Google Scholar]
  58. Dallavalle, S.; Merlini, L.; Beretta, G.L.; Tinelli, S.; Zunino, F. Synthesis and Cytotoxic Activity of Substituted Luotonin A Derivatives. Bioorg. Med. Chem. Lett. 2004, 14, 5757–5761. [Google Scholar] [CrossRef]
  59. Dolubev, A.S.; Bogomolov, V.O.; Shidlovski, A.F.; Dezhenkova, L.G.; Peregudov, A.S.; Shtil, A.A.; Chkanikov, N.D. Synthesis of Fluoromethyl-Containing Analogs of Antitumor Alkaloid Luotonin A. Russ. Chem. Bull. 2010, 59, 209–218. [Google Scholar] [CrossRef]
  60. Lee, E.S.; Park, J.G.; Kim, S.I.; Jahng, Y. Synthesis and Properties of Luotonin A Homologues and Their Aza-analogues. Heterocycles 2006, 68, 151–158. [Google Scholar] [CrossRef]
  61. Rahier, N.J.; Cheng, K.; Gao, R.; Eisenhauer, B.M.; Hecht, S.M. Synthesis of 14-Azacamptothecin, a Water-Soluble Topoisomerase I Poison. Org. Lett. 2005, 7, 835–837. [Google Scholar] [CrossRef]
  62. Elban, M.A.; Sun, W.; Eisenhauer, B.M.; Gao, R.; Hecht, S.M. Synthesis and Biological Evaluation of 10,11-Methylenedioxy-14-azacamptothecin. Org. Lett. 2006, 8, 3513–3516. [Google Scholar]
  63. Thomas, C.J.; Rahier, N.J.; Hecht, S.M. Camptothecin: Current Perspectives. Bioorg. Med. Chem. 2004, 12, 1585–1604. [Google Scholar] [CrossRef]
  • Sample Availability: Samples of the compounds 1d,e,g are available from the authors.

Share and Cite

MDPI and ACS Style

Liang, J.L.; Cha, H.C.; Jahng, Y. Recent Advances in the Studies on Luotonins. Molecules 2011, 16, 4861-4883. https://doi.org/10.3390/molecules16064861

AMA Style

Liang JL, Cha HC, Jahng Y. Recent Advances in the Studies on Luotonins. Molecules. 2011; 16(6):4861-4883. https://doi.org/10.3390/molecules16064861

Chicago/Turabian Style

Liang, Jing Lu, Hyo Chang Cha, and Yurngdong Jahng. 2011. "Recent Advances in the Studies on Luotonins" Molecules 16, no. 6: 4861-4883. https://doi.org/10.3390/molecules16064861

Article Metrics

Back to TopTop
