Article

A New Sulfated α-Ionone Glycoside from Sonchus erzincanicus Matthews

1
Department of Pharmacognosy, Faculty of Pharmacy, Atatürk University, 25240 Erzurum, Turkey
2
Department of Chemistry, Faculty of Sciences, Atatürk University, 25240 Erzurum, Turkey
3
Department of Biology, Faculty of Education, Erzincan University, 24030 Erzincan, Turkey
4
Department of Pharmacognosy, Faculty of Pharmacy, Hacettepe University, 06100 Sıhhıye, Ankara, Turkey
*
Author to whom correspondence should be addressed.
Present address: Department of Pharmacognosy and Pharmaceutical Botany, Faculty of Pharmacy, Near East University, Nicosia, North Cyprus, Turkey.
Molecules 2010, 15(4), 2593-2599; https://doi.org/10.3390/molecules15042593
Submission received: 13 March 2010 / Accepted: 22 March 2010 / Published: 12 April 2010

Abstract

:
Sonchus erzincanicus (Asteraceae) is an endemic species in Turkey, where six Sonchus species grow. In this study, a phytochemical study was performed on the aerial parts of the plant. The study describes the isolation and structure elucidation of five flavonoids and two α-ionone glycosides from S. erzincanicus. The compounds were isolated using several and repeated chromatographic techniques from ethyl acetate and aqueous phases that were partitioned from a methanol extract obtained from the plant. 5,7,3′,4′-Tetrahydroxy-3-methoxyflavone (1) and quercetin 3-O-β-D-glucoside (2) were isolated from the ethyl acetate phase, while corchoionoside C 6’-O-sulfate (3), corchoionoside C (4), luteolin 7-O-glucuronide (5) and luteolin 7-O-β-D-glucoside (6), apigenin 7-O-glucuronide (7) were isolated from the aqueous phase. Corchoionoside C 6’-O-sulfate (3), isolated for the first time from a natural source, was a new compound. The structures of the compounds were elucidated by means of 1H-NMR, 13C-NMR, 2D-NMR (COSY, HMQC, HMBC) and ESI-MS.

1. Introduction

The Asteraceae family or Compositae is represented by about 900 genera and 13,000 species [1]. The genus Sonchus (Asteraceae) comprises 50 known species worldwide [1], and is represented by six species in the flora of Turkey, one of which, S. erzincanicus, is endemic, [2]. Sonchus species are variously known as “sütlük”, “kuzu gevreği”, and “eşek marulu” in Turkey [3]. It has been found that some Sonchus species contain sesquiterpene lactone glucosides, flavonoids, triterpenes and steroids [4,5]. No phytochemical study has so far been carried out on S. erzincanicus. This study describes the isolation and structure elucidation of five flavonoids and two α-ionone glycosides, one being a new compound, from S. erzincanicus.

2. Results and Discussion

In our phytochemical studies on the aerial parts of Sonchus erzincanicus, we isolated flavonoids and α-ionone glycosides by using several chromatographic methods. The flavonoids were identified as 5,7,3′,4′-tetrahydroxy-3-methoxyflavone (1) [6], quercetin 3-O-β-D-glucoside (2) [7,8], luteolin 7-O-glucuronide (5) [9], luteolin 7-O-β-glucoside (6) [10] and apigenin 7-O-glucuronide (7) [11]. Compound 4 was identified as a known α-ionone glycoside, corchoionoside C (4) [12]. Compound 3, corchoionoside C 6’-O-sulfate, was identified as a new natural compound (Figure 1).
The NMR data of compound 3 revealed the presence of a structure similar to that of compound 4. HRMS spectra of protonated 3 (MH+) was 467.1564, which was in agreement with the calculated value: 467.1582. The ESI-MS of compound 3 showed the deprotonated molecule ion peak at m/z 465 [M-H]- and a deprotonated positive ion peak with two added sodium atoms [M-H+2Na]+ at 511. The assignments of all proton and carbon resonances (Table 1) were based on 2D NMR (COSY, HETCOR, HMBC) experiments. The anomeric proton signal at δ 4.26 (d, J = 7.7 Hz) together with other resonances assigned to the sugar unit having a β-glucose moiety. Remaining signals were attributed to the ionone skeleton. All 1H-NMR and 13C-NMR signals were in agreement with the data given for the structure of corchoionoside C (4) except for C-6′ and H2-6′ due to esterification at this location [13]. While C-6′ of corchoionoside C (4) resonates at δ 61.6 ppm, the same carbon of its sulfate derivative 3 resonates at δ 67.1 ppm due to inductive effect of sulfate ester group. Four diastereomeric reseosides, diastereomers of corchoinoside C, were recently synthesized by Yajima et al.: (6S,9S), corchoinoside C; (6S,9R); (6R,9S), (6R,9R). Comparing NMR spectral data of 3 and 4 with the ones of the four reseosides provided clear evidence that both corchoinoside C 4 and corchoionoside C 6’-O-sulfate 3 are in agreement with the structure of (6S,9S) reseoside [14]. Thus, the structure of 3 was established as corchoionoside C 6’-O-sulfate. It is the first time that this compound has been isolated from Nature.

3. Experimental

3.1. General

1H-NMR and 13C-NMR spectra were recorded with a Varian Mercury plus spectrometer at 400 and at 100 MHz, respectively. Mass spectra were recorded with Micromass ZQ Mass Spectrometer (Manchester, UK). Sephadex LH-20 (Sigma-Aldrich) and Silica gel (Kiesel gel 60, 0.063-0.2 mm Merck 7734 and 0.040-0.063 mm Merck 9385 and LiChroprep RP-18, 25-40 μm, Merck 9303) were used for column chromatography, while silica gel 60 F254 (Merck, 5554) was used for TLC. TLC spots were detected with a UV lamp, spraying 1% Vanillin/H2SO4 and heated at 120 °C for 1-2 min.

3.2. Plant material

The aerial parts of S. erzincanicus were collected from Ekşisu (Erzincan Province, Turkey) in 2006 and was identified by Dr. A. Kandemir. A voucher specimen was deposited in the Herbarium of Erzincan University, Faculty of Education (EEFH 7794).

3.3. Extraction and isolation

Dried aerial parts (260 g) of the plant material were extracted by refluxing with methanol (2 L x 3) on a mantle. The methanol extract was concentrated and dried under reduced pressure to give a residue (44.3 g). Methanol extract (44.0 g) was dissolved in H2O-MeOH (9:1) and partitioned with chloroform and then ethyl acetate, which were separately concentrated and dried under reduced pressure to give 9.4 g and 0.9 g residues, respectively. The remaining aqueous phase was 32 g. There were too few compounds to isolate and identify in chloroform phase.
The ethyl acetate phase (0.9 g) was subjected to silica gel column chromatography using CHCl3-MeOH-H2O (80:20:2, 70:30:3, 50:50:5) solvent systems. Fifty nine fractions were collected. Fraction 6 (35.7 mg) gave compound 1 (9 mg) while fractions 18-24 (27 mg) gave compound 2 (15 mg).
The remaining aqueous phase (32 g) was subjected to reversed phase silica gel column chromatography using 0-100% aqueous MeOH as solvent systems. Fractions were monitored by TLC on silica gel plates and similar fractions were combined to give fraction A (Fr. 18-28, 5.5 g), fraction B (Fr. 30-40, 334 mg) and fraction C (Fr. 45-52, 270 mg).
Fraction A was subjected to silica gel column chromatography with CHCl3:MeOH:H2O (70:30:3, 65:35:5) solvent system. Fr. 36-47 gave compound 3 (18 mg).
Fraction B was subjected to a gel chromatography (Sephadex LH-20) eluting with MeOH and 15 fractions were collected. The fractions 2-5 (B1, 157 mg) were further purified by successive column chromatography on silica gel and Sephadex LH-20, respectively, yielding pure 4 (18 mg). The fractions 8-10 (B2, 25 mg) gave compound 5.
Fraction C was subjected to a silica gel column chromatography with CHCl3-MeOH-H2O (70:30:3) and 60 fractions were collected. The fractions 10-14 (C1, 50 mg) were subjected to gel chromatography (Sephadex LH-20) with MeOH to give compound 6 (14 mg). The fractions 41-50 (C2, 41 mg) were subjected to a gel chromatography (Sephadex LH-20) with MeOH to give compound 7 (10 mg).
Compound 1: Yellow powder; 1H-NMR (CD3OD): δ 7.60 (1H, bs, H-2′), 7.52 (1H, d, H-6′, J = 8.4 Hz), 6.89 (1H, d, H-5′, J = 8.4 Hz), 6.37 (1H, bs, H-8), 6.18 (1H, bs, H-6), 3.77 (s, OCH3); 13C-NMR (CD3OD): δ 178.8 (C-4), 164.9 (C-7), 161.8 (C-5), 157.2 (C-9), 156.8 (C-2), 148.7 (C-4′), 145.3 (C-3′), 138.3 (C-3), 121.7 (C-1′), 121.1 (C-6′), 115.3 (C-5′), 115.2 (C-2′), 104.6 (C-10), 98.6 (C-6), 93.6 (C-8), 59.3 (OCH3). 1H-NMR and 13C-NMR agree with data given in the literature for 5,7,3′,4′-tetrahydroxy-3-methoxyflavone [6].
Compound 2: Yellow powder; 1H-NMR (CD3OD): δ 7.70 (1H, d, H-2′, J = 1.9 Hz), 7.58 (1H, dd, H-6′, J = 8.5 Hz, 1.9 Hz), 6.86 (1H, d, H-5′, J = 8.5 Hz), 6.36 (1H, d, H-8, J = 2.2 Hz), 6.17 (1H, d, H-6, J = 2.2 Hz), 5.22 (1H, d, H-1″, J = 7.3 Hz), 3.85-3.30 (6H, sugar protons); 13C-NMR (CD3OD): δ 178.1 (C-4), 166.2 (C-7), 161.8 (C-5), 157.6 (C-2), 157.4 (C-9), 148.7 (C-4′), 144.7 (C-3′), 134.4 (C-3), 122.0 (C-1′), 121.9 (C-6′), 116.3 (C-5′), 114.8 (C-2′), 104.1 (C-10), 103.2 (C-1″), 99.2 (C-6), 93.8 (C-8), 77.2 (C-5″), 76.9 (C-3″), 74.5 (C-2″), 70.0 (C-4″), 61.4 (C-6″). 1H-NMR and 13C-NMR agree with data given in the literature for quercetin 3-O-β-D-glucoside [7,8].
Compound 3: Amorphous colourless solid; [α]D22 = +38 (c=1, MeOH), ESI-MS (C19H30O11S), m/e: 465 [M-H]¯ and 511 [M-H+2Na]+. HRMS: calculated for C19H31O11S+: 467.1582; found: 467.1564. For 1H-NMR (CD3OD) and 13C-NMR (CD3OD). See (Table 1).
Compound 4: Amorphous colourless solid, ESI-MS (C19H30O8), m/e: 409 [M+Na]+ and 385 [M-H]-, 1H-NMR (CD3OD): δ 5.97 (1H, d, H-7, J = 15.2 Hz), 5.86 (1H, s, H-4), 5.72 (1H, dd, H-8, J = 15.5 Hz, J = 7.0 Hz), 4.53 (1H, quintet, H-9, J = 6.6 Hz), 4.26 (1H, d, H-1′, J = 7.7 Hz), 3.85 (1H, dd, H-6a′, J = 11.9 Hz, J = 2.2 Hz), 3.62 (1H, dd, H-6b′, J = 11.9 Hz, J = 6.0 Hz), 3.25-3.34 (sugar protons, overlapped, 4H, H-2′, H-3′, H-4′, H-5′), 2.61 (1H, d, H-2a, J = 17.6 Hz), 2.16 (1H, d, H-2b, J = 17.6 Hz), 1.94 (3H, bs, H-13), 1.02 (3H, d, H-10, J = 8.4 Hz), 0.91 (3H, s, H-11), 0.88 (3H, s, H-12); 13C-NMR (CD3OD): δ 200.0 (C-3), 166.0 (C-5), 132.6 (C-7), 132.5 (C-8), 125.9 (C-4), 100.1 (C-1′), 77.1 (C-6), 77.0(C-5′), 73.8 (C-3′), 73.4 (C-2′), 70.7 (C-9), 70.5 (C-4′), 61.6 (C-6′), 49.8 (C-2), 41.2 (C-1), 23.5 (C-12), 22.5 (C-11), 22.3 (C-10), 18.4 (C-13). 1H-NMR and 13C-NMR agree with data given in the literature for corchoionoside C [12].
Compound 5: Yellow powder; 1H-NMR (DMSO-d6): δ 7.40 (1H, d, H-2′, J = 2.0 Hz), 7.36 (1H, dd, H-6′, J = 8.4 Hz, J = 2.0 Hz), 6.84 (1H, d, H-5′, J = 8.4 Hz), 6.74 (1H, d, H-8, J = 1.9 Hz), 6.69 (1H, s, H-3), 6.39 (1H, d, H-6, J = 1.9 Hz), 5.06 (1H, d, H-1″, J = 7.3 Hz), 3.60 (1H, d, H-5″, J = 9.9 Hz), 3.39-3.14 (m, 3H, sugar protons, overlapped with DMSO-d6 signals); 13C-NMR (DMSO-d6): δ 182.5 (C-4), 172.5 (C-6″), 165.1 (C-2), 163.6 (C-7), 161.7 (C-5), 157.6 (C-9), 150.8 (C-4′), 146.6 (C-3′), 121.7 (C-1′), 119.7 (C-6′), 116.7 (C-5′), 114.1 (C-2′), 105.9 (C-10), 103.6 (C-3), 100.2 (C-1″), 100.2 (C-6), 95.2 (C-8), 77.1 (C-3″), 74.5 (C-5″), 73.6 (C-2″), 72.6 (C-4″). 1H-NMR and 13C-NMR agree with data given in the literature for luteolin 7-O-glucuronide [9].
Compound 6: Yellow powder; 1H-NMR (DMSO-d6): δ 7.42 (1H, bd, H-6′, J = 8.8 Hz), 7.40 (1H, bs, H-2′), 6.87 (1H, d, H-5′, J = 8.4 Hz), 6.77 (1H, d, H-8, J = 1.8 Hz), 6.73 (1H, s, H-3), 6.42 (1H, d, H-6, J = 1.8 Hz), 5.06 (1H, d, H-1″, J = 7.3 Hz), 3.70-3.15 (6H, sugar protons); 13C-NMR (DMSO-d6): δ 182.5 (C-4), 165.2 (C-2), 163.6 (C-7), 161.8 (C-5), 157.6 (C-9), 151.1 (C-4′), 146.6 (C-3′), 121.7 (C-1′), 119.9 (C-6′), 116.6 (C-5′), 114.1 (C-2′), 106.0 (C-10), 103.7 (C-3), 100.6 (C-1″), 100.2 (C-6), 95.4 (C-8), 77.8 (C-5″), 77.1 (C-3″), 73.8 (C-2″), 70.2 (C-4″), 61.3 (C-6″). 1H-NMR and 13C-NMR agree with data given in the literature for luteolin 7-O-β-D-glucoside [10].
Compound 7: Yellow powder; 1H-NMR (DMSO-d6): δ 7.86 (2H, quasi d, H-2′/6′, J = 8.8 Hz), 6.88 (2H, quasi d, H-3′/5′, J = 8.8 Hz), 6.84 (1H, d, H-8, J = 2.0 Hz), 6.62 (1H, s, H-3), 6.49 (1H, d, H-6, J = 2.0 Hz), 5.10 (1H, d, H-1″, J = 6.6 Hz), 3.90-3.25 (sugar protons, 4H, H-2″, H-3″, H-4″, H-5″); 13C-NMR (DMSO-d6): δ 183.0 (C-4), 175.1 (C-6″), 165.9 (C-2), 163.7 (C-7), 161.8 (2C, C-4′ and C-5), 157.8 (C-9), 128.5 (2C, C-2′/6′), 121.1 (C-1′), 116.4 (2C, C-3′/5′), 106.0 (C-10), 102.4 (C-3), 100.4 (C-1″), 100.2 (C-6), 94.9 (C-8), 76.4 (C-5″), 75.4 (C-3″), 73.4 (C-2″), 72.3 (C-4″). 1H-NMR [11] and 13C-NMR [15] agree with data given in the literature for apigenin 7-O-glucuronide.

Supplementary Materials

Supplementary File 1

Acknowledgements

The authors are grateful to Erhan Palaska (Hacettepe University, Faculty of Pharmacy, Ankara, Turkey) for ESI mass spectra. We thank Arata Yajima for providing graphical NMR spectra of the four reseosides by which we could establish the structures of 3 and 4.

References

  1. Evans, W.C. Trease and Evans’ Pharmacognosy, 13th ed.; Balliére Tindall: London, UK, 1989; pp. 226–227. [Google Scholar]
  2. Matthews, V.A. Sonchus L. In Flora of Turkey and the East Aegean Islands; Davis, P.H., Ed.; University Press: Edinburgh, UK, 1975; Volume 5, pp. 690–696. [Google Scholar]
  3. Akartürk, R. Şifalı Bitkiler, Flora ve Sağlığımız; Orman Genel Müdürlüğü Mensupları Yardımlaşma Vakfı (in Turkish): Ankara, Turkey, 2001. [Google Scholar]
  4. Helal, A.M.; Nakamura, N.; El-Askary, H.; Haatori, M. Sesquiterpene lactone glucosides from Sonchus asper. Phytochemistry 2000, 53, 473–477. [Google Scholar] [CrossRef]
  5. Devkota, K.P. Cholinesterase inhibiting and antiplasmodial steroidal alkaloids from Sarcococca hookeriana. Ph.D. Thesis, Research Institute of Chemistry: University of Karachi, Karachi, Pakistan, 2005. [Google Scholar]
  6. Zheng, Z.P.; Cheng, K.W.; Chao, J.; Wu, J.; Wang, M. Tyrosinase inhibitors from paper mulberry (Broussonetia papyrifera). Food Chem. 2008, 106, 529–535. [Google Scholar] [CrossRef]
  7. Caldwell, S.T.; Petersson, H.M.; Farrugia, L.J.; Mullen, W.; Croizer, A.; Hartley, R.C. Isotopic labelling of quercetin 3-glucoside. Tetrahedron 2006, 62, 7257–7265. [Google Scholar] [CrossRef]
  8. Ko, J.H.; Kim, B.G.; Kim, J.H.; Kim, H.J.; Lim, C.E.; Lim, J.; Lee, C.; Lim, Y.H.; Ahn, J.H. Four glucosyltransferases from rice: cDNA cloning, expression, and characterization. J. Plant Physiol. 2008, 165, 435–444. [Google Scholar] [CrossRef] [PubMed]
  9. Lu, Y.; Foo, L.Y. Flavonoid and phenolic glycosides from Salvia officinalis. Phytochemistry 2000, 55, 263–267. [Google Scholar] [CrossRef]
  10. Asada, H.; Miyase, T.; Fukushima, S. Sesquiterpene lactones from Ixeris tamagawaensis KITAM. Chem. Pharm. Bull. 1984, 32, 1724–1728. [Google Scholar] [CrossRef]
  11. Malikov, V.M.; Yuldashev, M.P. Phenolic compounds of plants of the Scutellaria L. genus. Distribution, structure, and properties. Chem. Nat. Comp. 2002, 38, 358–406. [Google Scholar] [CrossRef]
  12. Çalış, İ.; Kuruüzüm-Uz, A.; Lorenzetto, P.A.; Rüedi, P. (6S)-Hydroxy-3-oxo-α-ionol glucosides from Capparis spinosa fruits. Phytochemistry 2002, 59, 451–457. [Google Scholar] [CrossRef]
  13. Yahara, S.; Ding, N.; Nohara, T.; Masuda, K.; Ageta, H. Taraxastane glycosides from Eclipta alba. Phytochemistry 1997, 44, 131–135. [Google Scholar] [CrossRef]
  14. Yajima, A.; Oono, Y.; Nakagawa, R.; Nukada, T.; Yabuta, G. A simple synthesis of four stereoisomers of roseoside and their inhibitory activity on leukotriene release from mice bone marrow-derived cultured mast cells. Bioorg. Med. Chem. 2009, 17, 189–194. [Google Scholar] [CrossRef] [PubMed]
  15. Sohn, U.D.; Whang, W.K.; Ham, I.H.; Min, Y.S.; Bae, K.L.; Yim, S.H.; Lee, Y.P. Process for preparing apigenin-7-O-beta-D-glucuronide from Clerodendron trichotomum folium. WO Pat. 2003099306, 2003. [Google Scholar]
Sample Availability: Samples of the compounds are available from the authors.

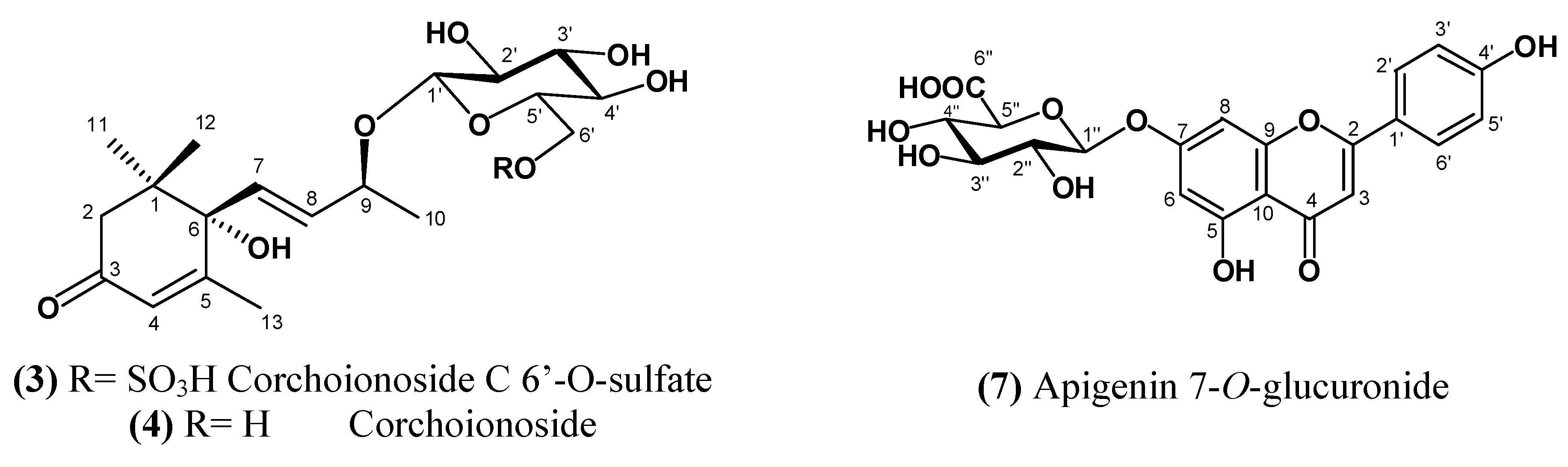

Figure 1. Isolated compounds from Sonchus erzincanicus.
Figure 1. Isolated compounds from Sonchus erzincanicus.
Molecules 15 02593 g001aMolecules 15 02593 g001b
Table 1. NMR Spectroscopic data for compound 3 (1H-NMR: 400 MHz, 13C-NMR: 100 MHz).
Table 1. NMR Spectroscopic data for compound 3 (1H-NMR: 400 MHz, 13C-NMR: 100 MHz).
C/H atomδCδH ppm, J (Hz)HMBC (H→C)
141.3
249.62.63 d (16.7)
2.16 d (16.7)
C-11, C-12
3200.2
4126.05.87 bsC-6, C-2
5165.9
678.8
7132.55.98 d (15.6)C-9, C-5
8132.45.70 dd (15.6, 7.2)C-6, C-10
973.54.50 quintet (6.8)C-1′, C-7
1021.01.28 d (6.2)C-8
1122.31.03 s C-2, C-6
1223.61.01 sC-2, C-6
1318.41.94 d (1.1)C-6, C-4
Glucose
1′100.14.26 d (7.7)
2′73.7 3.28-3.36 a
3′74.9
4′70.3
5′76.9
6′67.14.29 dd, (10.9, 1.8)
4.09 dd (10.9, 5.5)
a Signal patterns are not clear due to overlapping.
