Pd(II)/HPMoV-Catalyzed Direct Oxidative Coupling Reaction of Benzenes with Olefins

Abstract

The direct aerobic coupling reaction of arenes with olefins was successfully achieved by the use of Pd(OAc)₂/molybdovanadophosphoric acid (HPMoV) as a key catalyst under 1 atm of dioxygen. This catalytic system could be extended to the coupling reaction of various substituted benzenes with olefins such as acrylates, aclrolein, and ethylene through the direct aromatic C-H bond activation.

1. Introduction

The transition-metal-catalyzed arylation of olefins with aryl halides or triflates, which referred to as the Mizoroki-Heck reaction, is an important and a highly versatile C-C bond transformation for the synthesis of arene derivatives [1,2]. However, this existing methodology does not avoid the formation of undesired waste salts arising from the use of aryl halides and bases. Therefore, the development of the direct oxidative couplings of arenes with olefins to afford alkenyl arenes without formation of any salts is highly desired, especially from the environmental and industrial point of view [3,4,5,6,7].

The first waste-free oxidative coupling of arenes was achieved by Fujiwara and Moritani by the stoichiometric reaction of benzene with styrene-palladium chloride dimer in AcOH to give stilbenes in 24% yield [8]. Thereafter, the same group presented the catalytic aerobic oxidative Mizoroki-Heck type reaction by using Pd(OAc)₂ combined with Cu(OAc)₂ under elevated oxygen pressure (50 atm) [9]. After several modified versions of this prototype reactions were reported [10,11,12], several practical advances in the development of the catalytic method was evident in recent years [13,14,15]. For instance, Kitamura and Fujiwara reported that the use of a stoichiometric amount of tert-butyl hydroperoxide as the oxidant in the Pd(OAc)₂ combined with benzoquinone as catalysts led to a significant development in more active reoxidation system [13]. Furthermore, Jacobs and coworkers found that the addition of small amounts (4–20 mol %) of Mn(OAc)₃ or benzoic acid are effective for the Pd(II)-catalyzed oxidative Mizoroki-Heck type reaction under 8 atm of O₂ [14]. This methodology has been recently extended to the Pd (II)-catalyzed C-H bond alkenylation of anilides and heteroarenes such as pyrroles and indoles [15,16,17].

In this review, we summarize recent progress from our laboratory in terms of the aerobic oxidative coupling reaction of arenes with olefins such as acrylates [18,19], α,β-unsaturated aldehydes [20,21] as well as ethylene [22] under ambient dioxygen atmosphere by using Pd(OAc)₂/molybdovanado-phosphoric acid (HPMoV) as a key catalyst system.

2. Results and Discussion

2.1. Oxidative Mizoroki-Heck type coupling reaction of arenes with acrylates

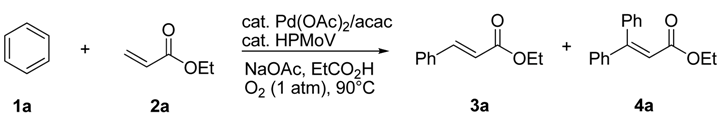

The reaction of benzene (1a) with ethyl acrylate was chosen as a model reaction and carried out under various reaction conditions (Equation 1). The results are shown in

Table 1. Oxidative coupling of benzene (1a) with ethyl acrylate (2a) catalyzed by Pd(II)/HPMoV. ^a

Entry	HPMoV	Base	Yield/% b
			3a	4a	5
1	H4PMo11VO40·30H2O	NaOAc	74	13	4
2c	H4PMo11VO40·30H2O	NaOAc	6	81	ndd
3	H4PMo11VO40·30H2O	None	6	ndd	4
4 e	H4PMo11VO40·30H2O	NaOAc	53	2	8
5 e,f	H4PMo11VO40·30H2O	NaOAc	75	16	1
6g	H4PMo11VO40·30H2O	NaOAc	51	5	16
7h	H4PMo11VO40·30H2O	NaOAc	20	nd d	nd d
8	None	NaOAc	9	nd d	1
9	H5PMo10V2O40·28H2O	NaOAc	73	14	5
10	H6PMo9V3O40·30H2O	NaOAc	70	13	5
11	H7PMo8V4O40·28H2O	NaOAc	62	4	5
12	H3PMo12O40·30H2O	NaOAc	43	1	4
13	H4PMo11VO40·30H2O	LiOAc	66	5	7
14	H4PMo11VO40·30H2O	CsOAc	13	nd d	1
15	H4PMo11VO40·30H2O	KOAc	11	nd d	nd d
16	H4PMo11VO40·30H2O	NH4OAc	12	nd d	nd d
17 i	H4PMo11VO40·30H2O	NaOAc	74	8	6
18 j	H4PMo11VO40·30H2O	NaOAc	10	Nd d	3

^a A mixture of 1a (30 mmol) and 2a (1.5 mmol) was reacted in the presence of Pd-catalyst (0.1 mmol, 6.7 mol %), HPMoV (0.02 mmol, 1.3 mol %), base (0.08 mmol, 5.3 mol %) and acetylacetone (0.1 mmol, 6.7 mol %) in EtCOOH (5 mL) at 90 °C for 2.5 h. ^b GC yield based on 2a used. ^c Reaction time was 5 h. ^d Not detected by GC. ^e The reaction was performed in the absence of acetylacetone. ^f Pd(acac)₂ was used as catalyst. ^g 1a (6 mmol) was used. ^h AcOH was used instead of EtCOOH. ⁱ The reaction was performed under air (1 atm) for 5 h. ^j The reaction was performed under argon (1 atm).

.

(1)

The coupling reaction of 1a (30 mmol) and 2a (1.5 mmol) catalyzed by Pd(OAc)₂ (0.1 mmol, 6.7 mol %) combined with H₄PMo₁₁VO₄₀·30H₂O (HPMo₁₁V₁, 0.02 mmol, 1.3 mol %) proceeded smoothly in the presence of small amounts of acetylacetone (0.1 mmol, 6.7 mol %) and NaOAc (0.08 mmol, 5.3 mol %) under 1 atm of O₂ in propionic acid at 90 °C for 2.5 h to give ethyl cinnamate (3a) and ethyl β-phenylcinnamate (4a) in 74% and 13% yields, respectively. In this reaction, ethyl 3-propionyloxyacrylate (5) derived from 2a and propionic acid was obtained in 4% as by-products (entry 1). The product distribution of 3a and 4a was controlled by the reaction time. When the reaction time was prolonged to 5 h, 4a was formed in good yield (81%) as a major adduct (entry 2). Removing of NaOAc or acetylacetone from the present catalytic system resulted in the decrease of the coupling products, 3a and 4a (entries 3 to 4). It is considered that acetylacetone would be functioned as a ligand in the catalyst system, and the addition of acetylacetone is not necessary when Pd(acac)₂ was employed in place of Pd(OAc)₂ (entry 5). The use of excess amount of 1a is favorable and when the amount of 1a was reduced from 30 mmol to 6 mmol, the yield of 3a decreased to 51% and the yield of 5 was increased from 4% to 16% (entry 6). As for a choice of a solvent in this reaction, the use of acetic acid instead of propionic acid resulted in considerable decrease of the yields of 3a and 4a (entry 7). The yield of coupling products, 3a and 4a, was markedly influenced by the combination of Pd(OAc)₂ with molybdovanadophosphoric acids (HPMoV) which serve as reoxidation catalysts of the reduced Pd(0) to Pd(II) during the reaction course. Thus, the reaction was sluggish in the absence of HPMoV (entry 8). The performance of various heteropoly acid including HPMoV as reoxidation catalysts was affected by the vanadium content in the heteropolyacid (entries 9 to 12). The reaction by the use of 12-molybdophosphoric acid (HPMo₁₂) not involving V ion brought about 3a in low yield (52%) (entry 12). In addition, the effect of several alkali metal acetates as a base, was examined. As a result, NaOAc was found to be the best base in the present catalytic system (entry 1 vs. entries 13–16). One of the most important feature of this method is that the reaction smoothly proceeded under 1 atm of O₂. Moreover, it is useful from the practical synthetic viewpoint that the reaction tolerated under air in place of pure O₂, and 3a was obtained in 74% yield for 5 h (entry 17). However, the reaction in the absence of dixoygen, namely under Ar (1 atm), was difficult to take place (entry 18).

Various arenes (1) were allowed to react with acrylates 2 under the optimized reaction conditions. These results are summarized in

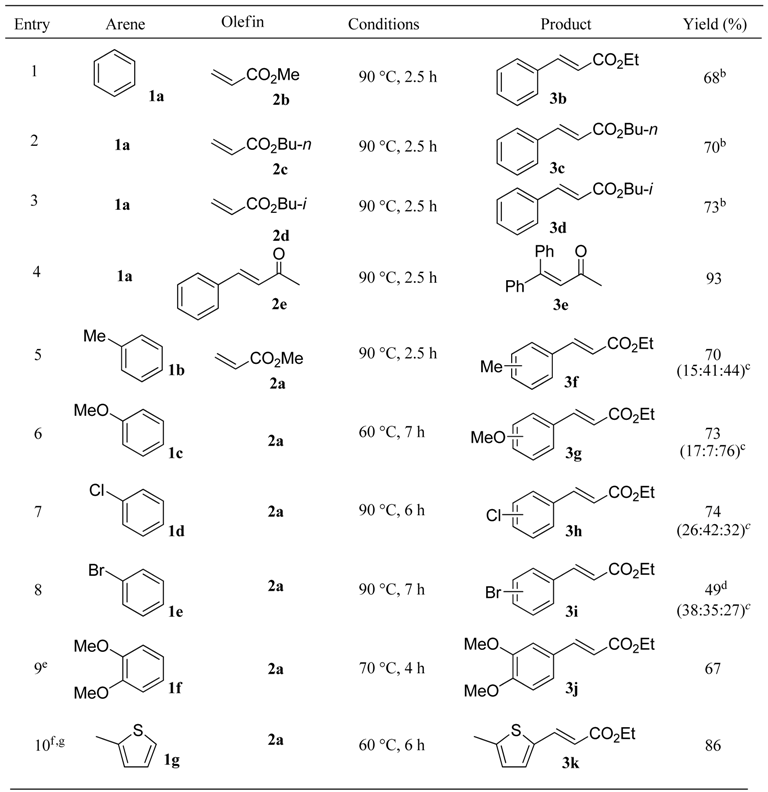

Table 2. Oxidative coupling of various arenes 1 and acrylates 2 catalyzed by Pd(II)/HPMoV. ^a

^a A mixture of arene 1 (30 mmol) and olefins 2 (1.5 mmol) was reacted in the presence of Pd-catalyst (0.1 mmol, 6.7 mol %), H₄PMo₁₁VO₄₀·30H₂O (0.02 mmol, 1.3 mol %), NaOAc (0.08 mmol, 5.3 mol %) and acetylacetone (0.1 mmol, 6.7 mol %) in EtCOOH (5 mL). ^b β-methylcinnamates are formed in 11–16% yields as by-products. ^c Ratio of o:m:p. ^d Ethyl cinnamate was obtained in 5%. ^e Arene (5 mmol) was used. ^g Arene (3 mmol) was used. ^h 5 wt % Pd(OAc)₂/C was used instead of Pd(OAc)₂.

. Benzene (1a) reacted smoothly with several acrylates 2b-2e to give the corresponding cinnamates 3b-3d in 68–73% yields with concomitant formation of β-phenylcinnamate in 11–16% yields (entries 1 to 3). The arylation of 4-phenyl-2-butenone (2e) under these reaction conditions gave 1,1-diphenyl-3-butenone (3e) in 93% yield (entry 4). Reaction of various arenes with ethyl acrylate (2a) was also carried out under optimized reaction conditions (entries 4-10). The reaction of toluene (1b) with 2a afforded the coupling products 3f in 70% total yield as a isomeric mixture consisting of o-3f : m-3f : p-3f = 15:41:44 (entry 5).

Anisole (1c) was subjected to react with 2a at 60 °C to give a mixture of coupling products 3g in 73% total yield (entry 6). The reaction of chlorobenzene (1d) and bromobenzene (1e) with 2a gave the corresponding oxidative coupling products, 3h and 3i exclusively, in 74% and 49% yields, respectively. It is noteworthy that the reaction of 1d and 1e gave oxidative coupling products exclusively, in preference to the products based on the Mizoroki-Heck reaction (entries 7 and 8). The reaction of 1,2-dimethoxybenzene (1f) with 2a afforded ethyl 3,4-dimethoxycinnamate (3j) in 67% yield (entry 9). Unfortunately, the reaction of 2-methyl-thiophene (1g) with 2a under the above-mentioned reaction conditions did not take place at all. Alternatively, Pd(OAc)₂ supported on active carbon, Pd(OAc)₂/C, was efficient for the coupling of 1g with 2a to give the corresponding coupling product, 3k, in 86% yield (entry 10).

In this reaction, reoxidation step is important to determine the turn-over number (TON) of the present reaction, which was markedly affected by the choice of HPMoV catalysts. Therefore, the reaction of 1a (45 mmol) and 2a (3 mmol) was carried out in the presence of Pd(OAc)₂ (0.03 mmol), HPMoV (0.02 mmol), NaOAc (0.08 mmol), acetylacetone (0.03 mmol), and EtCOOH (5 mL) under O₂ (1 atm) at 90 °C for 12 h. The results of TONs for the formation of 3a and 4a by using various HPMoV under these conditions were as follows: 19 for H₃PMo₁₂O₄₀·30H₂O, 76 for H₄PMo₁₁VO₄₀·30H₂O, 10 for H₅PMo₁₀V₂O₄₀·28H₂O, 8 for H₆PMo₉V₃O₄₀·30H₂O, and 6 for H₇PMo₈V₄O₄₀·28H₂O.

We previously reported that combined catalysts of Pd(OAc)₂ with HPMo₁₁V₁ and HPMo₁₂ as the reoxidation catalyst was the most active for the Pd-catalyzed oxidative coupling of benzene to biphenyl under O₂ (1 atm) [23]. In the present reaction, the best TON (121) was observed by the reaction in the presence of Pd(OAc)₂ combined with a 1:1 mixture of HPMo₁₁V₁ and HPMo₁₂ under these reaction conditions.

To obtain mechanistic information on the present reaction, the initial rate of the reaction of benzene 1a with 2a was compared with that of benzene-d₆ (1a_-d) with 2a under the same conditions as entry 1 in Table 1. It was found that a kinetic isotope effect for the coupling reaction was evident and the rate of the reaction of 1a with 2a was four times faster than that of benzene-d₆ (1a_-d) with 2a, i.e., k_H/k_D ≈ 4. The same results (k_H/k_D ≈ 4) were obtained by the reaction of a 1:1 mixture of 1a and 1a_-d with 2a under these conditions. These facts indicate that the cleavage of the C-H bond of the 1a is the rate-determining step in a sequence of reactions.

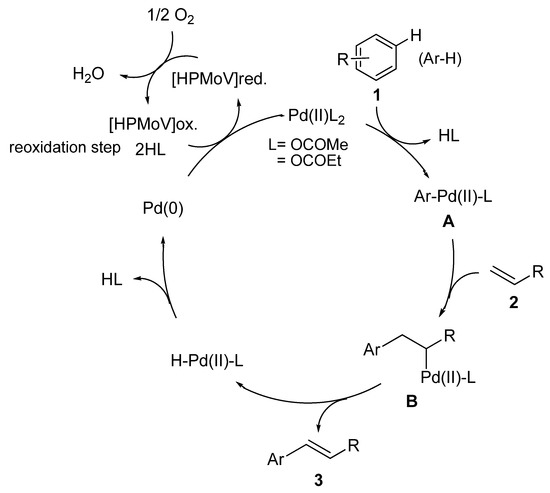

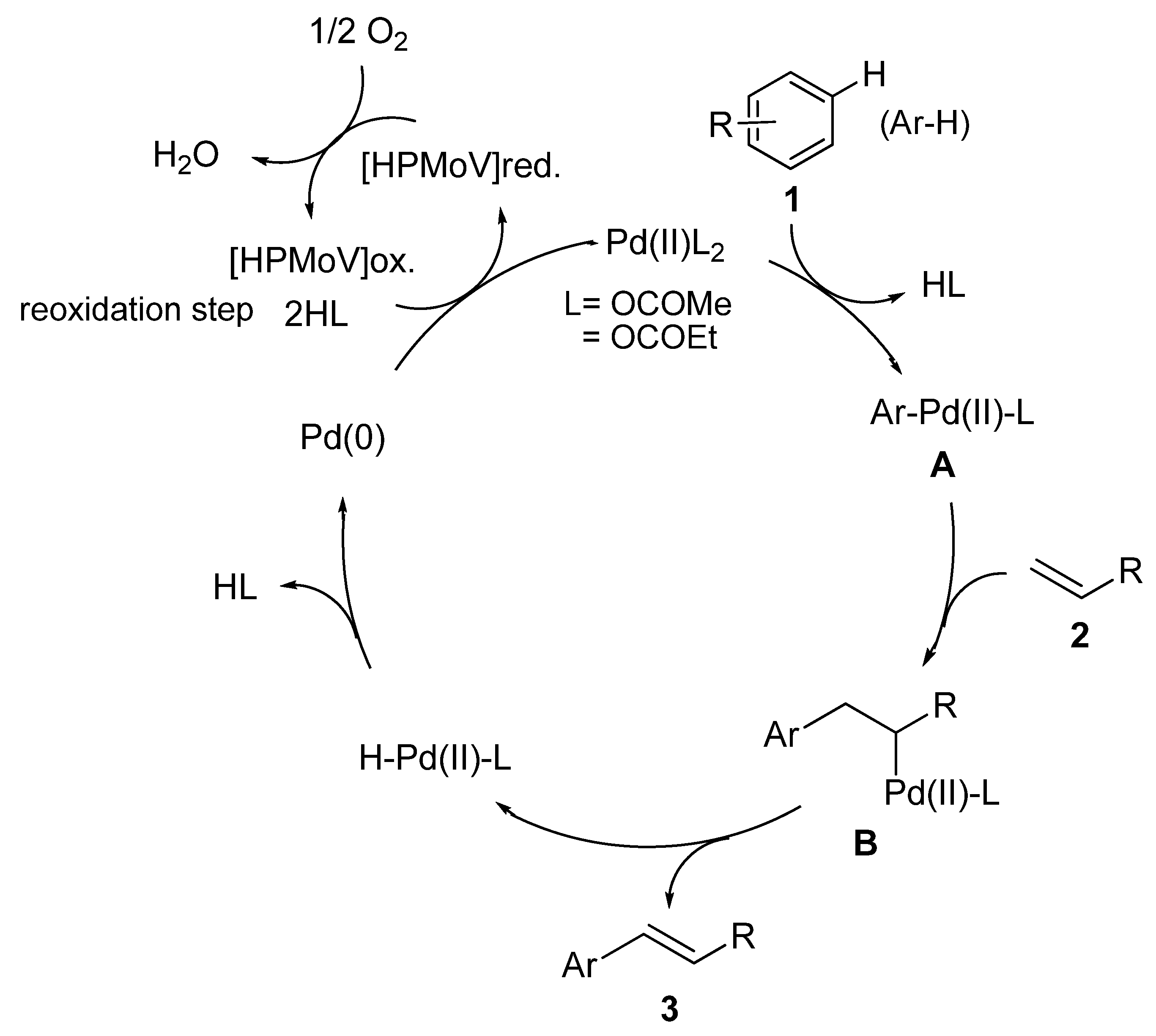

Although a detailed reaction mechanism remains to be further elucidated, it is possible to explain the reaction rationally by a pathway similar to that proposed by Kitamura and Fujiwara [13]. A plausible reaction path is shown in Scheme 1. First, electrophilic attack of a Pd(II) to arene 1 would initiate the reaction, leading to a σ-aryl-palladium (II) intermediate (A), which is considered to be the rate-determining step by judging from the labeled experiment (vide supra). The insertion of olefins like acrylate 2 to σ-aryl-palladium (II) intermediate (A) takes place to give σ-alkyl-palladium (II) intermediate B. Subsequently, β -hydride elimination of the B gives the desired coupling products 3 along with Pd-H intermediate. The Pd-H intermediate is reduced to Pd(0), and the resulting Pd(0) species is reoxidized by [HPMoV]ox. to generate initial Pd(II) catalyst. The [HPMoV]red. is easily oxidized to [HPMoV]ox. with atomospheric dioxygen.

2.2. Oxidative Mizoroki-Heck type coupling of benzenes with α,β-unsaturated aldehydes

The oxidative coupling reaction of benzene (1a) with α,β-unsaturated aldehydes such as acrolein (6a) was also achieved by slight modifications of the reaction conditions as reported in section 2.1, which leads to cinnamaldehyde (7a) and β-phenyl cinnamaldehyde (8) as products (Equation 2).

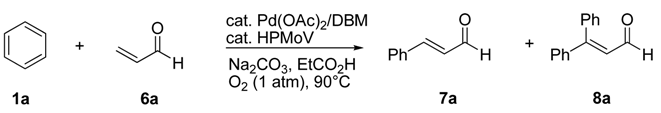

(2)

The results of the reaction of 1a with 6a under various conditions are summarized in

Table 3. Oxidative coupling of benzene (1a) with acrolein (6a) catalyzed by Pd(II)/HPMoV. ^a

Entry	HPMoV	Ligand	Time/h	Yield/% b
				7a	8a
1	H4PMo11VO40·26H2O	DBM	1.5	59	5
2	H4PMo11VO40·26H2O	DBM	1	26	nd d
3	H4PMo11VO40·26H2O	DBM	2	45	18
4	H4PMo11VO40·26H2O	DBM	3	17	40
5c	H4PMo11VO40·26H2O	DBM	1.5	53	6
6	H4PMo11VO40·26H2O	None	1.5	33	nd d
7	H4PMo11VO40·26H2O	benzoylacetone	1.5	52	6
8	H4PMo11VO40·26H2O	acacH	1.5	48	1
9	H4PMo11VO40·26H2O	acacH	2	54	8
10e	H4PMo11VO40·26H2O	acacH	2	3	nd d
11f	H4PMo11VO40·26H2O	acacH	2	44	2
12	H5PMo10V2O40·28H2O	DBM	1.5	54	6
13	H6PMo10V3O40·30H2O	DBM	1.5	47	6
14	H7PMo8V4O40·28H2O	DBM	1.5	35	1
15	H5PW10V2O40·27H2O	DBM	1.5	ndd	nd d
16	H3PMo12O40·30H2O	DBM	1.5	24	nd d

^a A mixture of 1a (30 mmol) and 6a (1.5 mmol) was reacted in the presence of Pd(OAc)₂ (0.1 mmol, 6.7 mol %), HPMoV (0.02 mmol, 1.3 mol %), Na₂CO₃ (0.05 mmol, 3 mol %) and ligand (0.1 mmol, 6.7 mol %) under O₂ (1 atm) in EtCOOH (5 mL). ^b GC yield based on 6a used. ^c 1a (20 mmol) was used. ^d Not detected by GC. ^e The reaction was performed in the absence of Na₂CO₃. ^f NaOAc (0.08 mmol) was used instead of Na₂CO₃.

. The best result for the formation of cinnamaldehyde (7a) was attained by the reaction conditions as shown in Table 3, entry 1. Namely, a mixture of 1 (30 mmol) and 6a (1.5 mmol) was allowed to react under the influence of Pd(OAc)₂ (0.1 mmol, 6.7 mol %), H₄PMo₁₁VO₄₀·26H₂O (HPMo₁₁V₁, 0.02 mmol, 1.3 mol %), Na₂CO₃ (0.05 mmol, 3.4 mol %), and dibenzoylmethane (DBM) (0.1 mmol, 6.7 mol %) under O₂ (1 atm) in propionic acid (5 mL) at 90 °C for 1.5 h, giving 7a in 59% yield along with 8 (5%). In the present reaction, a trace amount of cinnamic acid was detected by GC. Similar to the reaction of 1a and acrylate 2a (see Section 2.1), prolonged reaction time resulted in dicoupling product 8a as a major product rather than 3 (entries 1–4). The maximum yield of 7a was attained in 1.5 h (entries 1). The best yield of 7a was obtained when the reaction was carried out by using the excess amount of 1a (30 mmol) to 6a (1.5 mmol). However, the yield of 7a was still good to high when the amount of 1 was reduced to 20 mmol (entry 5). The addition of DBM as a ligand was effective in the present reaction and the yield of 7a in the absence of a DBM ligand resulted in a decrease of the yield of 7a to 33% (entry 6). As for a ligand, the use of benzoylacetone led to a similar result as that of DBM (entry 7). When acetylacetone (acacH) which is an effective ligand in the reaction of 1a and 2a (section 2.1) was employed instead of DBM, longer reaction time is needed to obtain the same catalytic activity (entries 8 and 9). The addition of the base is indispensible in the reaction and the reaction in the absence of Na₂CO₃ resulted in a considerable decrease of the yield of 7a and 8a, and several unidentified products (probably oligomers of 6a) were formed (entry 10). A slight decrease of the yield of 7a was observed when NaOAc was added as a base (entry 11).

Furthermore, the effect of the HPMoV was examined under the reaction conditions as entry 1, Table 3 (entries 12–16). The best result was obtained by using H₄PMo₁₀VO₄₀·26H₂O to afford 7a in 59% yield as shown in entry 1. Increase of the V content in the HPMoV was found to bring about a decrease of the yields of 7a (entries 12–14). Moreover, vanadotungstphosphoric acid (H₅PW₁₀V₂O₄₀·27H₂O) did not catalyze the present coupling reaction at all (entry 15). H₃PMo₁₂O₄₀·30H₂O not containing a vanadium atom was less efficient catalyst than HPMoV (entry 16).

In this reaction, acrolein (6a) was rapidly consumed when the reaction started, and the coupling product 7a was reached maximum after 1.5 h, and gradually decreased because of further coupling with 1a leading to dicoupling product 8a. To confirm this sequential pathway for the formation of 8a, an independent reaction of 7a with 1 under these conditions gave 8a in 61% yield.

Several substituted benzenes were reacted with 2 under varying conditions and the results are summarized in

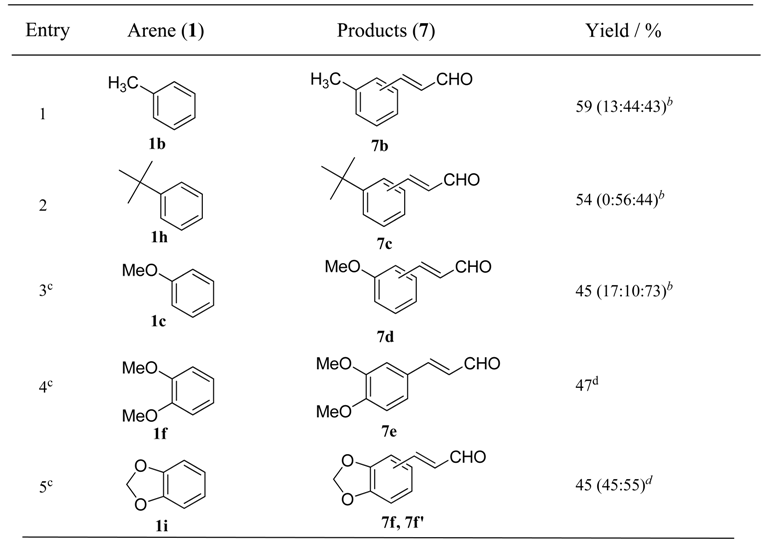

Table 4. Oxidative coupling of arenes 1 with acrolein (6a) catalyzed by Pd(II)/HPMoV. ^a

^a A mixture of 1 (30 mmol) and 6a (1.5 mmol) was reacted in the presence of Pd(OAc)₂ (0.1 mmol, 6.7 mol %), H₄PMo₁₁VO₄₀·26H₂O (0.02 mmol, 1.3 mol %), Na₂CO₃ (0.05 mmol, 3 mol %) and DBM (0.1 mmol, 6.7 mol %) under O₂ (1 atm) in EtCOOH (5 mL) at 90 °C, 1.5 h. ^b Ratio of o-:m-:p-isomer. ^c 1 (10 mmol) was reacted with 6a (1.5 mmol) by Pd(OAc)₂ (0.1 mmol, 6.7 mol %), H₄PMo₁₁VO₄₀·26H₂O (0.02 mmol, 1.3 mol %), Na₂CO₃ (0.05 mmol, 3 mol %) and acacH (0.1 mmol, 6.7 mol %) under O₂ (1 atm) in EtCOOH (5 mL) at 90 °C, 1 h. ^d 2,3-Dimethoxycinnamaldehyde was obtained 2% yield as by-product. ^e Ratio of 2,3-methylenedioxy cinnamaldehyde (7f) to 3,4-methylenedioxy cinnamaldehyde (7f’).

.

The reaction of toluene (1b) with 6a afforded a mixture of structural isomers 7b (o:m:p = 13:44:43) in 59% yield along with small amounts of dicoupling products (entry 1). In the reaction with t-butylbenzene (1h) having bulky alkyl group, m- and p-products were obtained and o-product was not detected at all (entry 2). Anisole (1c) was subjected to react with 6a to give a mixture of the corresponding coupling products 7d (o:m:p = 17:10:73) in 45% total yield (entry 3). The reaction of 1,2-dimethoxybenzene (1f) with 6a proceeded in high regioselectivity to produce 3,4-dimethoxycinnamaldehyde (7e) (45%), and the yield of the isomer, 2,3-dimethoxycinnamaldehyde, was found to be less than 2% (entry 4). In contrast, the reaction of 1,2-methylenedioxybenzene (1i) with 6a led to a 45:55 mixture of 2,3- and 3,4-methylenedioxycinnnamaldehydes (7f and 7f’) in 45% yield (entry 5).

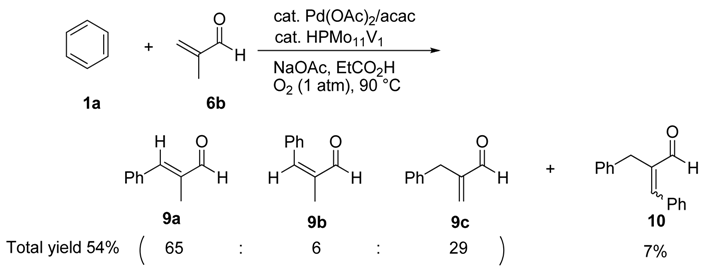

The oxidative coupling of methacrolein (6b) with 1a was carried out under the conditions as entry 1, Table 3 (Equation 3).

(3)

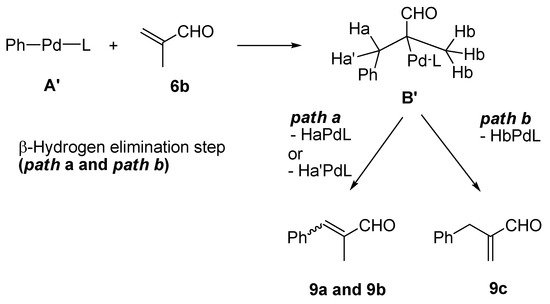

In this reaction, a mixture of three isomeric coupling products consisting of 9a, 9b and 9c were obtained in 54% yield (9a:9b:9c = 65:6:29) along with the dicoupling product 10 (7%). Based on the reaction mechanism as illustrated in Scheme 1, the reaction would proceed through a phenyl-palladium intermediate (B’) formed by the insertion of phenyl-palladium σ-complex (A’) to 6b. Therefore, 9a, 9b and 9c can be formed by the following β-Hydrogen elimination step via path a (9a and 9b: elimination of Ha or Ha’) and path b (9c: elimination of Hb) (Scheme 2) [12].

2.3. Oxidative Mizoroki-Heck type coupling of benzenes with ethylene

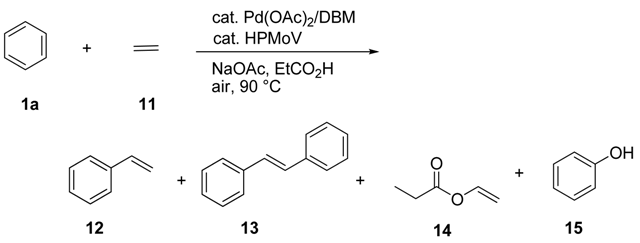

Synthesis of styrene by the oxidative arylation of ethylene with benzene under mild reaction conditions is also an attractive in organic synthesis, because the styrene is produced by the Friedel-Crafts reaction of benzene with ethylene followed by dehydrogenation of the resulting ethylbenzene. We performed the aerobic oxidative coupling reaction of benzene (1a) with ethylene (11) catalysed by the Pd(OAc)₂/H₄PMo₁₁VO₄₀·15H₂O system, and styrene (12) was obtained as a major adduct. The results under various reaction conditions are summarized in

Table 5. Oxidative coupling of benzene (1a) with ethylene (11) catalyzed by Pd(II)/HPMoV. ^a

entry	HPMoV	Base	TONb (μmol)
			12	13	14	15
1	H4PMo11VO40·15H2O	NaOAc	20 (202)	5.2 (25)	5.0 (50)	3.0 (30)
2c	H4PMo11VO40·15H2O	NaOAc	4.6 (46)	ndd	8.3 (82)	4.5 (45)
3e	H4PMo11VO40·15H2O	NaOAc	7.5(75)	0.9 (4)	6.0 (59)	3.9 (39)
4f	H4PMo11VO40·15H2O	NaOAc	14 (138)	4.8 (24)	3.8 (38)	4.9 (49)
5	H4PMo11VO40·15H2O	None	1.6 (16)	ndd	2.0 (20)	ndd
6	H4PMo11VO40·15H2O	LiOAc	9.1 (90)	2.6 (13)	2.9 (29)	2.9 (29)
7	H4PMo11VO40·15H2O	KOAc	5.9 (59)	0.8 (4)	1.7 (17)	1.4 (14)
8g	H4PMo11VO40·15H2O	Na2CO3	19 (188)	9.7 (48)	5.2 (52)	7.1 (71)
9h	H4PMo11VO40·15H2O	NaOAc	14 (142)	4.0 (20)	3.4 (33)	-i
10j	H4PMo11VO40·15H2O	NaOAc	12 (119)	ndd	19 (190)	-i
11k	H4PMo11VO40·15H2O	NaOAc	5.3 (53)	ndd	24 (243)	-i
12l	H4PMo11VO40·15H2O	NaOAc	14 (137)	4.9 (24)	5.2 (52)	-i
13	H5PMo10V2O40·28H2O	NaOAc	16 (154)	4.2 (21)	4.4 (44)	3.8 (38)
14	H6PMo9V3O40·30H2O	NaOAc	17 (166)	7.7 (38)	2.9 (29)	4.0 (40)
15	H7PMo8V4O40·28H2O	NaOAc	19 (192)	4.9 (2.4)	6.4 (64)	3.6 (36)
16	H3PMo12O40·30H2O	NaOAc	22 (223)	11 (53)	2.9 (29)	0.3 (3)
17m	H3PMo12O40·30H2O	NaOAc	42 (420)	4.4 (22)	3.5 (35)	ndd
18m,n	H3PMo12O40·30H2O	NaOAc	100 (1003)	67 (335)	3.9 (39)	ndd
19	H3PMo11WO40·27H2O	NaOAc	24 (239)	12 860)	3.0 (30)	ndd
20	H3PMo10W2O40·29H2O	NaOAc	23 (228)	7.8 (39)	2.8 (28)	ndd
21	H4SiMo12O40·27H2O	NaOAc	22 (218)	7.8 (39)	2.9 (29)	ndd
22	H5PW10V2O40·27H2O	NaOAc	1.5 (15)	trace	ndd	ndd

^a A mixture of benzene (1a), Pd(OAc)₂ (10 μmol), H₄PMo₁₁VO₄₀·15H₂O (10.3 mg, ca. 5 μmol), NaOAc (25 μmol), dibenzoylmethane (DBM) (30 μmol) was allowed to react under 0.9 atm of etyhylene (11) and 1.6 atm of air in EtCOOH (2 mL) at 90 °C for 8 h. ^b Turnover number (TON) based on Pd(OAc)₂ used. ^c The reaction was performed in the absence of dbm. ^d Not detected by GC. ^e Dbm (10 μmol) was used. ^f Acetylacetone was used instead of dbm. ^g Na₂CO₃ (13 μmol) was used. ^h The reaction was performed under ethylene/air = 0.5 atm/1 atm. ⁱ Not determined. ^j The reaction was performed under ethylene/air = 3.6 atm/6.4 atm. ^k The reaction was performed under ethylene/air = 5.4 tm/9.6 atm. ^l The reaction was performed under ethylene/air = 0.9 atm/29.1 atm. ^m 1a (120 μmol) was reacted with 0.9 atm of 11 in the presence of Pd(OAc)₂ (10 μmol), HPMo₁₁V₁ (6.8 μmol), NaOAc (32 μmol), and dbm (120 μmol) in EtCOOH (8 mL) under 1.6 atm of air using a 120 mL autoclave. ⁿ The reaction was performed at 120 °C.

.

(4)

The reaction of benzene (1a) (30 mmol) was performed with a mixed gas of ethylene (11) (0.9 atm, ca. 2.0 mmol) and air (1.6 atm) in the presence of Pd(OAc)₂ (10 μmol, ca. 0.5 mol % based on 11), H₄PMo₁₁VO₄₀·15H₂O (10.3 mg, ca. 5 μmol), NaOAc (25 μmol), dibenzoylmethane (DBM) (30 μmol) and propionic acid (2 mL) at 90 °C for 8 h. As a result, styrene (12) was obtained in 202 μmol corresponding to 20 turnover numbers of Pd (TON = 20) with concomitant formation of trans-stilbene (13) in 25 μmol (TON = 5.2), and vinyl propionate (14) in 50 μmol (TON = 5.0), and phenol (15) in 30 μmol (TON = 3.0) (entry 1). Similar to the result reported in the reaction of benzene with acrylates and acrolein, the addition of ligand such as DBM brought about the improvement of the catalytic activity. The amount of DBM was reduced from 30 μmol to 10 μmol, the yield of 12 was decreased to 75 μmol (TON = 7.5) (entry 3). The reaction in the absence of DBM gave 12 in low yield and the catalyst was deactivated by forming the Pd black during the reaction course. As a ligand, acetylacetone (acacH) showed the similar catalytic activity for the formation of 12 (entry 4). The addition of the base is necessary to achieve the reaction and the reaction was sluggish in the absence of NaOAc (entry 5). The use of other base such as LiOAc or KOAc instead of NaOAc resulted in the lower TON of Pd for the formation of 12 (entries 6 and 7). Alternatively, Na₂CO₃ can also be used as an efficient base in the present reaction (entry 8).

The reaction was markedly influenced by the concentrations of ethylene and air, and the coupling reaction of 1a with 11 was conducted under several varying ethylene/air pressures (entriy 1 vs. entries 9–12). Under the reaction of ethylene/air = 0.9 atm/1.6 atm, TON of Pd for 12 attained maximum (TON = 20) (entry 1). Thus, when the reaction of was performed under lower pressure of ethylene (ethylene/air = 0.5 atm/1 atm), the yield of 12 was decreased to 142 μmol (TON = 14) (entry 9). Furthermore, the amount of vinyl propionate 14 was increased with increasing of ethylene pressure. The yields of 14 was 190 μmol (TON = 19) and 243 μmol (TON = 24) when the reaction was carried out under ethylene/air = 3.6 atm/6.6 atm and 5.4/9.6 atm, respectively (entries 10–11). The reaction under high pressure of air (29.1 atm) with 0.9 atm of ethylene resulted in slightly lower catalytic activity (TON = 14) (entry 12).

As mentioned in the previous section, the role of HPMoV is important as the reoxidation system of the reduced Pd(0) catalyst Therefore, the reaction was performed by the use of HPAs under these conditions. In this reaction, HPAs having various V contents such as H₅PMo₁₀V₂O₄₀·28H₂O, H₆PMo₉V₃O₄₀·30H₂O and H₇PMo₈V₄O₄₀·28H₂O can be used as reoxidation catalysts and afforded 12 in comparable yields with that of H₄PMo₁₁VO₄₀·15H₂O (entries 13 to 15). It was found that H₃PMo₁₂O₄₀·30H₂O not including V ion was found to serve a good reoxidation catalyst (entries 16–18) and the highest total TON of Pd for the formation of 12 and 13 was reached to 167, under the optimum reaction conditions (entry 18). In addition, various heteropoly acids such as H₄PMo₁₁WO₄₀·27H₂O, H₃PMo₁₀W₂O₄₀·29H₂O, and H₄SiMo₁₂O₄₀·27H₂O showed similar catalytic activities (entries 19–21). However, the heteropoly acid without molybdenum ion such as H₅PW₁₀V₂O₄₀·27H₂O was found to be inactive for the present reaction (entry 22). It is noteworthy that phenol (15) was not produced in the reaction using heteropoly acids not including V ion. By judging of these results, it is considered that molybdenum ion in the heteropoly acids is an essential component to promote the reoxidation of the reduced Pd(0) to Pd(II) for the present reaction.

3. Experimental

3.1. General procedure for oxidative coupling of benzene (1a) with ethyl acrylate (2a) (entry 1, Table 1)

A solution of Pd(OAc)₂ (0.1 mmol), H₄PMo₁₁V₁O₄₀·30H₂O (HPMo₁₁V₁) (46.7 mg, ca. 0.02 mmol), NaOAc (0.08 mmol), acetylacetone (0.1 mmol), benzene (1a) (30 mmol) and ethyl acrylate (2a) (1.5 mmol) in propionic acid (5 mL) was placed in a round bottom flask (30 mL) equipped with a balloon filled with O₂, and the mixture was allowed to react under stirring at 90 °C for 2.5 h. The reaction gave ethyl cinnamate (3a), β-phenylcinnamate (4a) and 3-propionylacrylate (5) in 74%, 14% and 5% yields, respectively. All yields were determined by GLC analysis using nonane as internal standard. The products were characterized by ¹H- and ¹³C-NMR and GC-MS, respectively.

3.2. General procedure for oxidative coupling of benzene (1) with ethylene (11) (entry 1 in Table 5)

Caution: In order to avoid an explosion of a mixture of ethylene and air, the reaction was carried out at the ethylene concentration deviated from explosion limits ranging in 3.1 to 32%. To a 50 mL stainless steel autoclave equipped with a magnetic stir bar were placed Pd(OAc)₂ (10 μmol), H₄PMo₁₁VO₄₀·15H₂O (10.4 mg, ca. 5 μmol), NaOAc (25 μmol), dibenzoylmethane (DBM) (30 μmol), and benzene (1a) (30 mmol) and propionic acid (2 mL). To the autoclave was introduced with 0.9 atm of ethylene gas (11) and 1.6 atm of air, and the mixture was stirred at 90 °C for 8 h. All yields were detected by GLC analysis using dodecane as internal standard. The products were identified through a comparison of these analytical data with those of authentic samples.

4. Conclusions

In conclusion, we have shown the first direct oxidative coupling of benzenes with acrylates, α,β-unsaturated aldehydes, and ethylene under atmospheric dioxygen and air by using Pd(OAc)₂ combined with HPMoV. In this catalytic system, addition of ligand such as acetylacetone (acacH) and dibenzoylmethane (DBM) was effective to suppress the Pd(0) black precipitation. All the presented oxidative coupling reactions in this review uses molecular oxygen as terminal oxidant. Therefore, these reactions provide very useful organic transformations from environmental and economical points of view.
