Synthesis of 4-Aryl Substituted 3,4-Dihydropyrimidinones Using Silica-chloride Under Solvent Free Conditions

Discovery Center, Process Technology Development Division, Defence R and D Establishment, Jhansi Road, Gwalior 474002 (MP) India
*
Author to whom correspondence should be addressed.
Molecules 2007, 12(7), 1341-1351; https://doi.org/10.3390/12071341
Submission received: 21 May 2007 / Revised: 20 June 2007 / Accepted: 2 July 2007 / Published: 9 July 2007

Abstract

:
This paper describes an improved procedure for the efficient and facile synthesis of 4-aryl substituted 3, 4-dihydropyrimidinones under mild reaction conditions with excellent yields using inexpensive silica chloride under solvent free conditions.

Introduction

The Biginelli reaction is one of the most important multi-component reactions for the synthesis of dihydropyrimidinones. Dihydropyrimidinone are known to exhibit a wide range of biological activities such as antiviral, antitumour, antibacterial, and anti-inflammatory properties [1]. In addition, these compounds have emerged [2] as potential calcium channel blockers, antihypertensive, α1a–adrenergic antagonists and neuropeptide antagonists. Furthermore the 2-oxodihydropyrimidine-5-carboxylate core unit is also found in many marine natural products [3], including the batzelladine alkaloids, which have been found to be potent HIV gp-120-CD4 inhibitors. The classical Biginelli reaction requires long reaction times (20 hrs) and often suffers from low yields of products in case of substituted aromatic and aliphatic aldehydes [4]. Multi-step synthesis [5] produces somewhat higher yields but lacks the simplicity of original one-pot Biginelli protocol, hence the Biginelli reaction continues to attract the attention of organic chemists interested in finding milder and more efficient procedures for the synthesis of dihydropyrimidinones. A plethora of reagents/methods have been reported for this purpose such as Amberlyst-15, Nafion-H, KSF clay with dry acetic acid under microwave irradiation [6], ionic liquids [7], cerric ammonium nitrate under ultrasonication [8], Lewis acids (such as BF3·OEt2) in combination with transition metals and a suitable proton source [9], lanthanide triflates [10], lanthanide chloride [11], and indium chloride [12]. Although these methods each have their own merits, they also suffer from the drawbacks with respect to reaction time, cost of reagent and reaction work-ups. Consequently the Biginelli reaction still requires an efficient protocol for the synthesis of pyrimidinone compounds. In recent years, the use of reagents and catalysts supported on solid supports has received much attention. Such reagents not only simplify purification processes but also help in preventing the release of reaction residues into the environment. Silica gel is one of the more extensively used surface material supports for different chemical transformations in organic synthesis [13]. One such modified silica is silica-chloride (SiO2-Cl), which has been reported to be an efficient catalyst for a variety of chemical transformations [14]. As a part of our research program directed towards the development of new and rapid synthetic methods for the construction of biologically active structural motifs, we intend to develop rapid, efficient and an inexpensive procedure for the synthesis of 4-aryl substituted 3,4-dihydropyrimidinones using silica-chloride as heterogeneous catalyst. As compared to expensive Lewis acid catalysts, such as lanthanide chlorides and lanthanide triflates; silica chloride is very inexpensive and can be prepared very easily (details given in Experimental section). This method allows us to obtain excellent yields of required product in shorter reaction times as compared to those of classical methods.

Results and Discussion

Silica chloride is one of the most versatile and utilized catalyst for the selective construction of heterocyclic ring systems, in particular for the synthesis of 3, 4- dihydropyrimidinones (Scheme 1).

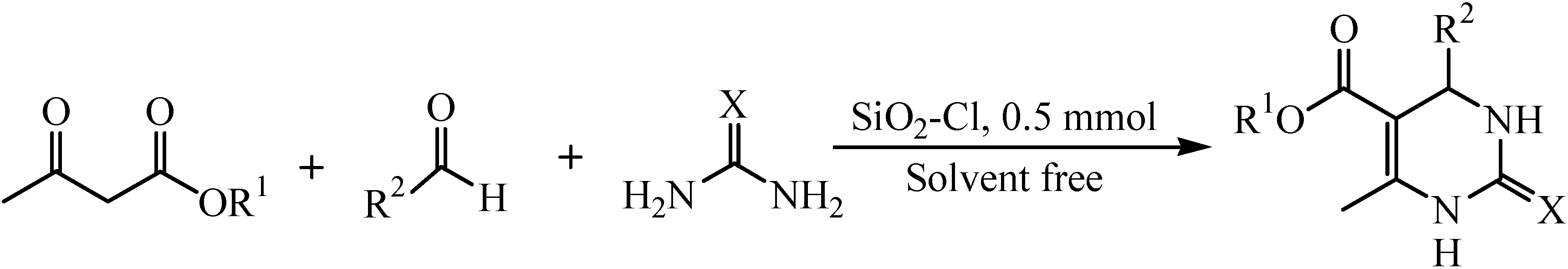

Scheme 1.
Scheme 1.
Molecules 12 01341 g002
This new synthetic strategy resulted in a remarkable improvement in synthetic efficiency, and more importantly, it enhanced the utilization efficiency of the modified silica chloride, decreases the production of chemical waste without using highly toxic reagent for the synthesis of 3,4-dihydro-pyrimidinones. The Si-Cl bond is labile and can give rise to Lewis acid centers on silica (Scheme 2). The Cl is easily displaced selectively by acetyl oxygen of ketone by a nucleophilic substitution reaction generating a cationic centre on the carbonyl carbon which is easily attacked by the nucleophile i.e. urea to form acyl imine 2 intermediate formed by the reaction of aldehyde and urea which is the key rate-limiting step. Interception of this imine intermediate by ethyl acetoacetate produces an open chain 3 ureide [15], which subsequently cyclizes to the corresponding 4a-4t (Table 1) dihydropyrimidinone. The completion of reaction was monitored by TLC (Hexane/AcOEt 8:2).

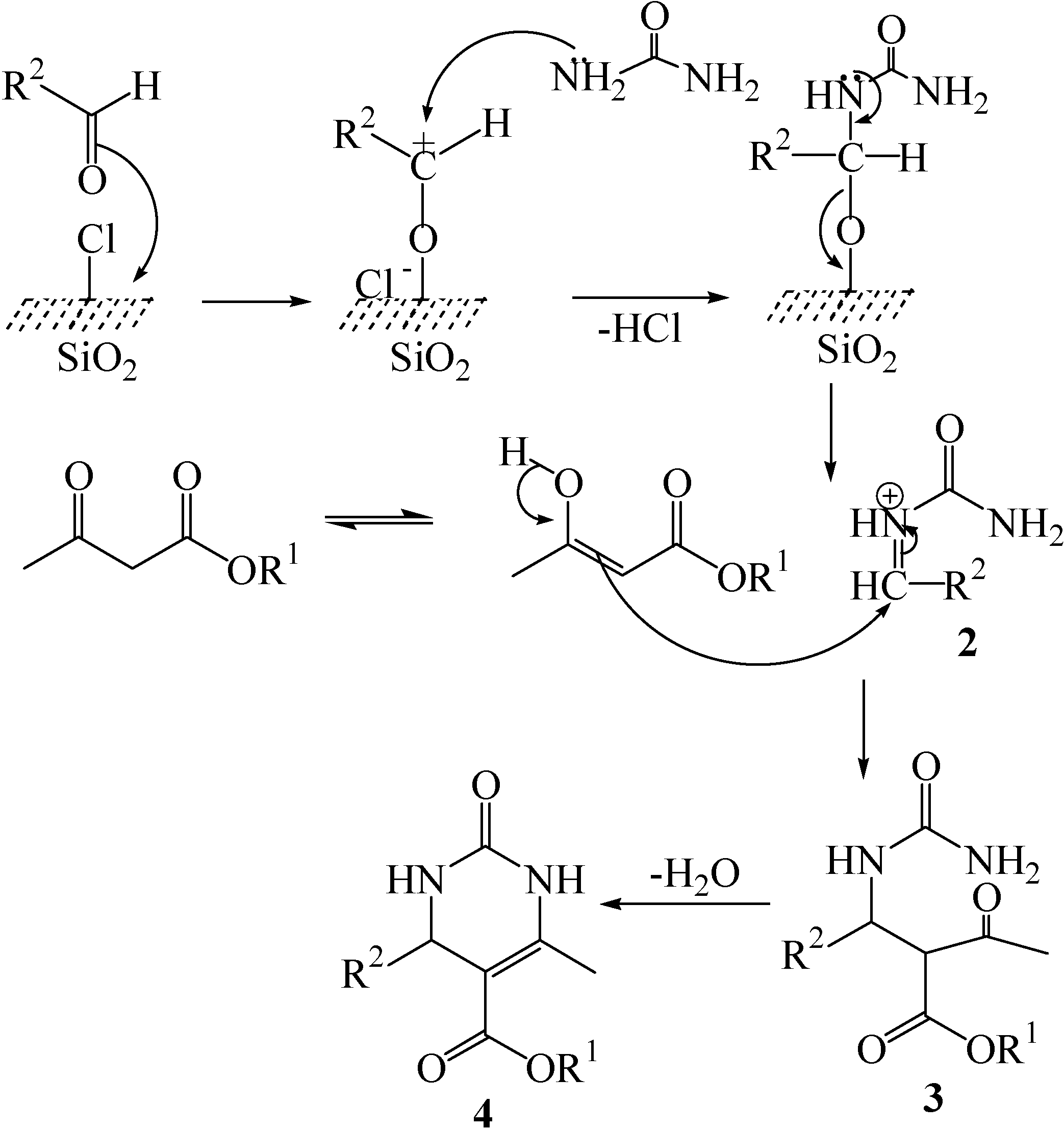

Scheme 2.
Scheme 2.
Molecules 12 01341 g003
Table 1. Synthesis of 3, 4-dihydropyrimidinone using silica chloride under solvent free conditions.
Table 1. Synthesis of 3, 4-dihydropyrimidinone using silica chloride under solvent free conditions.
EntryR1R2XProductYield a (%)Mp (°C)
1.EtC6H5O4a88206-208
2.Et4-(CH3O)-C6H4O4b90201-202
3.Et4-(NMe2)-C6H4O4c80255-257
4.Et4-NO2-C6H4O4d94211-213
5.Et4-(Cl)-C6H4O4e90215-216
6.Et3-(Cl)-C6H4O4f88192-193
7.Et3-(Br)-C6H4O4g81185-186
8.Et2,4-(Cl)2-C6H3O4h92249-250
9.Me4-Cl-C6H4O4i89204-205
10.Me4-(NO2)C6H4O4j95236-238
11.Me4-(CH3O)-C6H4O4k85192-194
12.MeC6H5O4l86209-211
13.Et4-F-C6H4O4m92182-184
14.Et3-O2N-C6H4O4n91227-229
15.Et2-NO2-C6H4O4o96208-210
16.EtC6H5-CH=CHO4p90230-232
17.Me2-4-(Cl)2-C6H3O4q93252-253
18.EtC6H5S4r89208-210
19.Et3-O2N-C6H4S4s92205-207
20.Et4-(CH3O)-C6H4S4t89153-155
a Yield of isolated product
Several aromatic aldehydes (Table 1) carrying either electron releasing or electron withdrawing sustituents in the ortho, meta and para positions afforded high yields of the products. An important feature of this procedure is the survival of variety of functional groups such as ether, nitro groups, and halides under the reaction conditions. Thiourea also reacts under similar conditions to give the corresponding 3, 4-dihydropyrimido-2(1H)-thiones 4r-4t. Studies on the application of silica chloride [16,17] have shown that it is an excellent source for the generation of HCl.
The extent of chlorination of the silica surfaces was determined by suspending 1 gram of silica chloride in 25 mL of boiled distilled water and titrating with 0.1N NaOH (9.3 mL). The amount of immobilized Cl has thus been found to be 0.93 miliquivalents per gram of SiO2. Our studies have shown that thionyl chloride is a satisfactory chlorinating agent for silica, if used undiluted. When diluted with dry benzene, a lesser numbers of silanol groups were replaced by chlorine. The extent of reaction with thionyl chloride gives values for active silanols per unit area of silica surface, comparable to other method, for determining available activities. In our studies we consistently have been able to replace a higher percentage of silanol groups with chlorine. The structures of the products were established from their spectral data and found to have excellent match with the reported data [18].

Conclusions

In summary, we have described an improved procedure for the Biginelli reaction. The use of silica-chloride as heterogeneous catalyst has made this method very cost effective. Another advantage of this method is excellent yields in shorter reaction time with high purity of the products.

Experimental

General

1H-NMR and 13C-NMR spectra were recorded in DMSO-d6 solutions on a Bruker AVANCE 400 NMR spectrometer operating at 400 (1H) and 100 (13C) MHz. LCMS analysis (EI, 70V) were performed on a Hewlett-Packard HP 5971 instrument.

Preparation of silica chloride

To a well–stirred silica gel (20 g) in CH2Cl2 (50 mL) was added drop wise SOCl2 (20 g) at room temperature. Evolution of copious amounts of HCl and SO2 occurred instantaneously. After stirring for another 1h, the solvent was removed to dryness under reduced pressure (1 torr). The silica chloride thus prepared was used in the following experiments and could be stored in sealed vessels for 6 months without any critical decline of activity.

Structure of silica chloride

The interaction of silica silanol groups with thionyl chloride is very often used as a simple and efficient method for surface modification. However, the mechanisms of these surface reactions have not yet been studied in detail. It was stated by Strelko and co-workers that the process of SOCl2 chemisorptions on the silica surface proceeds by the following mechanisms [19] (Figure 1).
Figure 1. Chemisorption of thionyl chloride on silica surface.
Figure 1. Chemisorption of thionyl chloride on silica surface.
Molecules 12 01341 g001

General procedure for the synthesis 4-aryl substituted 3, 4 dihydropyrimidinones

Ethyl acetoacetate (1 mmol), aldehyde (1 mmol) and urea or thiourea (1.5 mmol) were mixed with silica chloride (2.5 mol%) and heated at 80oC under solvent free conditions for three hours. After completion of the reaction as indicated by TLC (hexane/ethyl acetate 8:2), the reaction mixture was brought to room temperature. Reaction mixture was washed by cold water to remove excess urea or thiourea and then filtered. The remaining solid material was washed with hot ethyl acetate. The filtrate was concentrated and the solid product was recrystallized from ethanol to give the pure product.
5–(Ethoxycarbonyl)–6–methyl–4–phenyl–3,4–dihydropyrimidin–2(1H)–one (4a): Mp 206–208 °C; 1H- NMR (DMSO-d6) δ: 1.09 (t, 3H, J = 7.1 Hz, OCH2CH3), 2.25 (s, 3H, CH3), 3.97 (q, 2H, J = 7.1 Hz, OCH2), 5.05 (d, 1H, J = 2.15 -CH), 7.28 (m, 5H, Ar-H), 7.75 (s, 1H, NH), 9.20 (s, 1H, NH); 13C-NMR (DMSO-d6) δ: 14.11, 17.94, 54.91, 60.05, 100.95, 112.85, 113.05, 125.15, 125.81, 129.05, 131.20, 150.16, 155.47, 163.81; IR (νmax.; KBr, cm–1): 3240, 1722, 1638; ESI-MS 261 (M+H); HRMS calcd. for C14H16N2O3 260.1161 found 260.1163.
5–(Ethoxycarbonyl)–4–(4–methoxyphenyl)–6–methyl–3,4–dihydropyrimidin–2(1H)–one (4b): Mp 201–202 °C; 1H-NMR (DMSO-d6) δ: 1.15 (t, 3H, J = 7.12 Hz, OCH2CH3), 2.33 (s, 3H, CH3), 3.78 (s, 3H, -OCH3), 4.06 (q, 2H, J = 7.12 Hz, OCH2CH3), 5.34 (d, 1H, J = 2.28 -CH), 6.82 (d, 2H, J = 8.60, Ar-H), 7.22 (d, 2H, J = 8.60, Ar-H), 7.76 (s, 1H, NH), 9.26 (s, 1H, NH); 13C-NMR (DMSO-d6) δ: 14.32, 18.80, 55.23, 55.40, 60.17, 101.68, 114.06, 127.97, 136.22, 146.16, 153.59, 159.30, 165.87; IR (νmax.; KBr, cm–1): 3232, 1720, 1638; ESI-MS 291 (M+H); HRMS calcd. for C15H18N2O4 290.1267 found 290.1265.
5–(Ethoxycarbonyl)–4–(4-dimethylamino-phenyl)–6–methyl–3,4–dihydropyrimidin–2(1H)–one (4c): Mp 255–257 °C; 1H-NMR (DMSO-d6) δ: 0.99 (t, 3H, J = 7.12 Hz, OCH2CH3), 2.11 (s, 3H, CH3), 2.84 (s, 6H, N(CH3)2), 4.09(q, 2H, J = 7.12 Hz, OCH2CH3), 5.05 (d, 1H, J = 2.21, -CH), 6.42 (d, 2H, J = 8.55, Ar-H), 7.12 (d, 2H, J = 8.56, Ar-H), 7.15 (s, 1H, NH), 9.05 (s, 1H, NH); 13C-NMR (DMSO-d6) δ: 14.28, 18.78, 44.47, 55.23, 60.15, 101.60, 112.05, 125.65, 134.25, 141.16, 153.46, 159.02, 165.24; IR (νmax.; KBr, cm–1): 3242, 1721, 1637; ESI-MS 304 (M+H); HRMS calcd. for C16H21N3O3 303.1583 found 303.1585.
5–(Ethoxycarbonyl)–4–(4-nitrophenyl)–6–methyl–3,4–dihydropyrimidin–2(1H)–one (4d): Mp 211–213 °C; 1H-NMR (DMSO-d6) δ: 1.11 (t, 3H, J = 7.04 Hz, OCH2CH3), 2.32 (s, 3H, CH3), 4.03 (q, 2H, J = 7.12 Hz, OCH2CH3), 5.78 (d, 1H, J = 2.28, -CH), 7.51 (d, 2H, J = 9.18, Ar-H), 7.69 (s, 1H, NH), 8.16 (d, 2H, J = 9.16, Ar-H), 9.05 (s, 1H, NH); 13C-NMR (DMSO-d6) δ: 14.22, 18.71, 55.81, 60.15, 101.60, 118.15, 130.37, 138.34, 152.26, 153.41, 159.15, 165.85; IR (νmax.; KBr, cm–1): 3235, 1740, 1631; ESI-MS 306 (M+H); HRMS calcd. for C14H15N3O5 305.1012 found 305.1010.
5–(Ethoxycarbonyl)–4–(4-chlorophenyl)–6–methyl–3,4–dihydropyrimidin–2(1H)–one (4e): Mp 215–216 °C; 1H-NMR (DMSO-d6) δ: 1.12 (t, 3H, J = 7.14 Hz, OCH2CH3), 2.30 (s, 3H, CH3), 3.91 (q, 2H, J = 7.16 Hz, OCH2CH3), 5.70 (d, 1H, J = 2.28, -CH), 7.21 (d, 2H, J = 9.18, Ar-H), 7.69 (s, 1H, NH), 7.94 (d, 2H, J = 9.18, Ar-H), 9.16 (s, 1H, NH); 13C-NMR (DMSO-d6) δ: 14.18, 18.62, 55.72, 60.21, 101.55, 118.17, 130.32, 142.29, 152.31, 153.39, 159.17, 165.83; IR (νmax.; KBr, cm–1): 3225, 1720, 1615; ESI-MS 295 (M+H); HRMS calcd. for C14H15ClN2O3 294.0771 found 294.0773.
5–(Ethoxycarbonyl)–4–(3-chlorophenyl)–6–methyl–3,4–dihydropyrimidin–2(1H)–one (4f): Mp 192–193 °C; 1H-NMR (DMSO-d6) δ: 1.10 (t, 3H, J = 7.14 Hz, OCH2CH3), 2.28 (s, 3H, CH3), 3.88 (q, 2H, J = 7.16 Hz, OCH2CH3), 5.65 (d, 1H, J = 2.28, -CH), 7.25­7.41 (m, 4H, Ar-H), 7.61 (s, 1H, NH), 9.11 (s, 1H, NH); 13C-NMR (DMSO-d6) δ: 14.17, 18.60, 55.70, 60.20, 101.52, 126.312, 127.92, 128.42, 130.29, 135.51, 142.21, 153.23, 159.32, 165.75; IR (νmax.; KBr, cm–1): 3234, 1724, 1631; ESI-MS 295 (M+H); HRMS calcd. for C14H15ClN2O3 294.0771 found 294.0772.
5–(Ethoxycarbonyl)–4–(3-bromophenyl)–6–methyl–3,4–dihydropyrimidin–2(1H)–one (4g): Mp 185–186 °C; 1H-NMR (DMSO-d6) δ: 1.02 (t, 3H, J = 7.05 Hz, OCH2CH3), 2.30 (s, 3H, CH3), 3.75 (q, 2H, J = 7.05 Hz, OCH2CH3), 5.41 (d, 1H, J = 2.25, -CH), 7.05­7.34 (m, 4H, Ar-H), 7.51 (s, 1H, NH), 9.05 (s, 1H, NH); 13C-NMR (DMSO-d6) δ: 14.16, 18.59, 55.74, 60.18, 101.57, 126.35, 127.82, 128.48, 130.32, 135.59, 143.94, 153.21, 159.30, 165.74; IR (νmax.; KBr, cm–1): 3212, 1731, 1620; ESI-MS 339 (M+H); HRMS calcd. for C14H15BrN2O3 338.0266 found 338.0268.
5–(Ethoxycarbonyl)–4–(2,4-dichlorophenyl)–6–methyl–3,4–dihydropyrimidin–2(1H)–one (4h): Mp 249–250 °C; 1HNMR (DMSO-d6) δ: 1.18 (t, 3H, J = 7.23 Hz, OCH2CH3), 2.64 (s, 3H, CH3), 4.07 (q, 2H, J = 7.24 Hz, OCH2CH3), 5.92 (d, 1H, J = 2.30, -CH), 7.21­7.51 (m, 3H, Ar-H), 7.69 (s, 1H, NH), 9.16 (s, 1H, NH); 13C-NMR (DMSO-d6) δ: 14.20, 18.60, 55.75, 60.24, 101.56, 127.82, 128.91, 129.52, 131.29, 142.52, 143.25, 153.23, 159.32, 165.75; IR (νmax.; KBr, cm–1): 3255, 1731, 1651; ESI-MS 329 (M+H); HRMS calcd. for C14H14Cl2N2O3 328.0381 found 328.0379.
5–(Methoxycarbonyl)–4–(4-chlorophenyl)–6–methyl–3,4–dihydropyrimidin–2(1H)–one (4i): Mp 204–205 °C; 1H-NMR (DMSO-d6) δ: 2.30 (s, 3H, CH3), 3.92 (s, 3H, COOCH3), 5.44 (d, 1H, J = 2.15, -CH), 7.14 (d, 2H, J = 9.05, Ar-H), 7.51 (s, 1H, NH), 7.87 (d, 2H, J = 9.06, Ar-H), 9.02 (s, 1H, NH); 13C-NMR (DMSO-d6) δ: 18.65, 52.05, 54.36, 109.59, 113.19, 128.23, 136.25, 148.25, 153.39, 159.17, 167.75; IR (νmax.; KBr, cm–1): 3240, 1711, 1647; ESI-MS 281 (M+H); HRMS calcd. for C13H13ClN2O3 280.0615 found 280.0617.
5–(Methoxycarbonyl)–4–(4-nitrophenyl)–6–methyl–3,4–dihydropyrimidin–2(1H)–one (4j): Mp 236–238 °C; 1H-NMR (DMSO-d6) δ: 2.21 (s, 3H, CH3), 3.90 (s, 3H, -COOCH3), 5.51 (d, 1H, J = 2.15, -CH), 7.42 (d, 2H, J = 9.11, Ar-H), 7.44 (s, 1H, NH), 8.05 (d, 2H, J = 9.10, Ar-H), 9.05 (s, 1H, NH); 13C-NMR (DMSO-d6) δ: 18.64, 52.40, 55.40, 109.60, 113.23, 128.31, 137.20, 149.65, 155.45, 160.36, 166.20; IR (νmax.; KBr, cm–1): 3232, 1724, 1631; ESI-MS 292 (M+H); HRMS calcd. for C13H13N3O5 291.0855 found 291.0853.
5–(Methoxycarbonyl)–4–(4-methoxyphenyl)–6–methyl–3,4–dihydropyrimidin–2(1H)–one (4k): Mp 192–194 °C; 1H-NMR (DMSO-d6) δ: 2.24 (s, 3H, CH3), 3.92 (s, 3H, ­COOCH3), 3.75 (s, 3H, -OCH3), 5.22 (d, 1H, J = 2.21 -CH), 6.76 (d, 2H, J = 8.58, Ar-H), 7.18 (d, 2H, J = 8.58, Ar-H), 7.62 (s, 1H, NH), 9.15 (s, 1H, NH); 13C-NMR (DMSO-d6) δ: 18.61, 53.36, 55.05, 55.87, 108.54, 113.21, 128.47, 137.64, 148.54, 154.16, 160.81, 165.94; IR (νmax.; KBr, cm–1): 3242, 1721, 1637; ESI-MS 277 (M+H); HRMS calcd. for C14H16N2O4 276.1110 found 276.1108.
5–(Methoxycarbonyl)–6–methyl–4–phenyl–3,4–dihydropyrimidin–2(1H)–one (4l): Mp 209–211 °C; 1H-NMR (DMSO-d6) δ: 2.19 (s, 3H, CH3), 3.87 (s, 3H, ­COOCH3), 5.02 (d, 1H, J = 2.07 -CH), 7.25 (m, 5H, Ar-H), 7.64 (s, 1H, NH), 9.15 (s, 1H, NH); 13C-NMR (DMSO-d6) δ: 18.65, 52.32, 54.70, 108.47, 113.36, 122.41, 131.17, 130.51, 154.11, 160.20, 164.42; IR (νmax.; KBr, cm–1): 3246, 1732, 1664; ESI-MS 247 (M+H); HRMS calcd. for C13H14N2O3 246.1004 found 246.1004.
5–(Ethoxycarbonyl)–4–(4-flurophenyl)–6–methyl–3,4–dihydropyrimidin–2(1H)–one (4m): Mp 182–184 °C; 1H-NMR (DMSO-d6) δ: 1.15 (t, 3H, J = 7.16 Hz, OCH2CH3), 2.41 (s, 3H, CH3), 4.12 (q, 2H, J = 7.17 Hz, OCH2CH3), 5.88 (d, 1H, J = 2.25, -CH), 7.69 (s, 1H, NH), 7.81 (d, 2H, J = 8.5, Ar-H), 7.94 (d, 2H, J = 9.18, Ar-H), 9.16 (s, 1H, NH); 13C-NMR (DMSO-d6) δ: 14.18, 18.62, 55.72, 60.21, 101.55, 121.19, 132.42, 144.20, 153.39, 157.25, 159.17, 165.83; IR (νmax.; KBr, cm–1): 3250, 1741, 1654; ESI-MS 279 (M+H); HRMS calcd. for C14H15FN2O3 278.1067 found 278.1069.
5–(Ethoxycarbonyl)–4–(3-nitrophenyl)–6–methyl–3,4–dihydropyrimidin–2(1H)–one (4n): Mp 227–229 °C; 1H-NMR (DMSO-d6) δ: 1.12 (t, 3H, J = 7.10 Hz, OCH2CH3), 2.25 (s, 3H, CH3), 3.65 (q, 2H, J = 7.14 Hz, OCH2CH3), 5.71 (d, 1H, J = 2.20, -CH), 7.21­7.54 (m, 4H, Ar-H), 7.74 (s, 1H, NH), 9.26 (s, 1H, NH); 13C-NMR (DMSO-d6) δ: 14.16, 18.59, 55.74, 60.18, 101.57, 126.25, 127.45, 128.74, 130.56, 135.46, 144.81, 153.64, 159.45, 165.30; IR (νmax.; KBr, cm–1): 3229, 1724, 1630; ESI-MS 306 (M+H); HRMS calcd. for C14H15N3O5 305.1012 found 305.1013.
5–(Ethoxycarbonyl)–4–(2-nitrophenyl)–6–methyl–3,4–dihydropyrimidin–2(1H)–one (4o): Mp 208–210 °C;1H-NMR (DMSO-d6) δ: 1.14 (t, 3H, J = 7.15 Hz, OCH2CH3), 2.27 (s, 3H, CH3), 3.72 (q, 2H, J = 7.17 Hz, OCH2CH3), 5.81 (d, 1H, J = 2.05, -CH), 7.31­7.64 (m, 4H, Ar-H), 7.81 (s, 1H, NH), 9.24 (s, 1H, NH); 13C-NMR (DMSO-d6) δ: 14.16, 18.59, 55.74, 60.18, 101.57, 127.32, 128.46, 129.64, 131.43, 134.31, 145.01, 153.62, 159.32, 165.16; IR (νmax.; KBr, cm–1): 3242, 1722, 1627; ESI-MS 306 (M+H); HRMS calcd. For C14H15N3O5 305.1012 found 305.1011.
5–(Ethoxycarbonyl)–6–methyl­4­styryl–3,4–dihydropyrimidin–2(1H)–one (4p): Mp 230–232 °C; 1H- NMR (DMSO-d6) δ: 1.20 (t, 3H, J = 7.0 Hz, OCH2CH3), 2.21 (s, 3H, CH3), 4.09 (q, 2H, J = 7.05 Hz, OCH2CH3), 4.74 (d, 1H, J = 4.80, -CH), 6.20 (dd, J = 15.8, 6.0 Hz, 1H, CH=C–H), 6.37 (d, J = 15.9 Hz, 1H, H–C=CH) 7.21­7.46 (m, 5H, Ar-H), 7.53 (s, 1H, NH), 9.14 (s, 1H, NH); 13C-NMR (DMSO-d6) δ: 14.21, 17.31, 51.84, 59.45, 98.54, 127.34, 128.54, 129.54, 130.59, 131.24, 135.24, 145.34, 153.62, 165.23; IR (νmax.; KBr, cm–1): 3242, 1704, 1652; ESI-MS 287 (M+H); HRMS calcd. for C16H18N2O3 286.1317 found 286.1316.
5–(Methoxycarbonyl)–4–(2,4-dichlorophenyl)–6–methyl–3,4–dihydropyrimidin–2(1H)–one (4q): Mp 252–253 °C; 1H-NMR (DMSO-d6) δ: 2.61 (s, 3H, CH3), 3.84 (s, 3H, ­COOCH3), 5.79 (d, 1H, J = 2.05, -CH), 7.05­7.31 (m, 3H, Ar-H), 7.69 (s, 1H, NH), 9.16 (s, 1H, NH); 13C-NMR (DMSO-d6) δ: 18.60, 52.45, 55.25, 102.32, 113.21, 128.47, 137.64, 139.24, 142.65, 148.54, 154.16, 160.81, 164.94; IR (νmax.; KBr, cm–1): 3242, 1721, 1637; ESI-MS 315 (M+H); HRMS calcd. for C13H12Cl2N2O3 314.0225 found 314.0227.
5–(Ethoxycarbonyl)–6–methyl–4–phenyl–3,4–dihydropyrimidin–2(1H)–thione (4r): Mp 208–210 °C; 1H-NMR (DMSO-d6) δ: 1.11 (t, 3H, J = 7.21 Hz, OCH2CH3), 2.29 (s, 3H, CH3), 4.12 (q, 2H, J = 7.24 Hz, OCH2), 5.16 (d, 1H, J = 2.05 -CH), 7.51 (m, 5H, Ar-H), 7.81 (s, 1H, NH), 9.41 (s, 1H, NH); 13C- NMR (DMSO-d6) δ: 14.23, 17.91, 54.85, 60.15, 100.90, 112.84, 115.12, 125.15, 126.85, 129.64, 131.45, 150.27, 162.63, 180.25; IR (νmax.; KBr, cm–1): 3240, 1720, 1640, 1595, 1530; ESI-MS 277 (M+H); HRMS calcd. for C14H16N2O2S 276.0932 found 276.0932.
5–(Ethoxycarbonyl)–4–(3-nitrophenyl)–6–methyl–3,4–dihydropyrimidin–2(1H)–thione (4s): Mp 205–207 °C; 1H-NMR (DMSO-d6) δ: 1.15 (t, 3H, J = 7.14 Hz, OCH2CH3), 2.27 (s, 3H, CH3), 4.02 (q, 2H, J = 7.11 Hz, OCH2CH3), 5.81 (d, 1H, J = 2.06, -CH), 7.23­7.37 (m, 4H, Ar-H), 7.78 (s, 1H, NH), 9.34 (s, 1H, NH); 13C-NMR (DMSO-d6) δ: 14.14, 18.60, 55.64, 60.21, 101.34, 126.25, 128.02, 129.32, 130.75, 135.65, 144.34, 160.40, 165.64, 182.65; IR (νmax.; KBr, cm–1): 3245, 1725, 1632, 1575, 1545; ESI-MS 322 (M+H); HRMS calcd. for C14H15N3O4S 321.0783 found 321.0781.
5–(Ethoxycarbonyl)–4–(4–methoxyphenyl)–6–methyl–3,4–dihydropyrimidin–2(1H)–thione (4t): Mp 153–155 °C; 1H-NMR (DMSO-d6) δ: 1.17 (t, 3H, J = 7.11 Hz, OCH2CH3), 2.37 (s, 3H, CH3), 4.12 (s, 3H, -OCH3), 4.15 (q, 2H, J = 7.10 Hz, OCH2CH3), 5.44 (d, 1H, J = 2.15 -CH), 7.11 (d, 2H, J = 8.15, Ar-H), 7.37 (d, 2H, J = 8.11, Ar-H), 7.84 (s, 1H, NH), 9.43 (s, 1H, NH); 13C-NMR (DMSO-d6) δ: 14.32, 18.05, 55.24, 55.49, 60.45, 101.84, 114.32, 127.74, 137.25, 147.15, 159.45, 165.62, 182.48; IR (νmax.; KBr, cm–1): 3240, 1725, 1635, 1574, 1540; ESI-MS 307 (M+H); HRMS calcd. for C15H18N2O3S 306.1038 found 306.1040.

References and Notes

  1. Kappe, C.O. 100 years of the Biginelli dihydropyrimidine synthesis. Tetrahedron 1993, 49, 6937–6963, and references cited therein. [Google Scholar]
  2. Atwal, K.S.; Swanson, B.N.; Unger, S.E.; Floyed, D.M.; Moreland, S.; Hedberg, A.; O’Reilly, B.C. Dihydropyrimidine calcium channel blockers. 3-Carbamoyl-4-aryl-1,2,3,4-tetrahydro-6-methyl-5-pyrimidinecarboxylic acid ester as orally effective antihypertensive agents. J. Med. Chem. 1991, 34, 806, and references therein. [Google Scholar] Kappe, C.O.; Fabian, W.M.F.; Semones, M.A. Conformational analysis of 4-aryl-dihydropyrimidine calcium channel modulators.A comparison of ab initio, semiempirical and X-ray crystallographic studies. Tetrahedron 1997, 53, 2803–2816. [Google Scholar] Atwal, K.S.; Roonyak, G.C.; O’Reilly, B.C.; Schwartz, A. Substituted 1,4-dihydropyrimidines. Synthesis of selectively functionalized 2-hetero-1,4-dihydropyrimidines. J. Org. Chem. 1989, 54, 5898–5907. [Google Scholar]
  3. Patil, A.D.; Kumar, N.V.; Kokke, W.C.; Bean, M.F.; Freyer, A.J.; Brosse, C.De; Mai, S.; Truneh, A.; Faulkner, D.J.; Carte, B.; Breen, A.L.; Hertzberg, R.P.; Johnson, R.K.; Westley, J.W.; Potts, B.C.M. Novel alkaloids from the sponge Batzella sp.: Inhibitors of HIV gp120-Human CD4 binding. J. Org. Chem. 1995, 60, 1182–1188. [Google Scholar] Snider, B.B.; Chen, J.; Patil, A.D.; Freyer, A. Synthesis of the tricyclic portions of batzelladines A, B and D. Revision of the stereochemistry of batzelladines A and D. Tetrahedon Lett. 1996, 37, 6977–6980. [Google Scholar]
  4. Folkers, K.; Johnson, T.B. Hydrogenation of cyclic ureides under elevated temperatures and pressures. 2­keto­1,2,3,4-­tetrahydropyrimidines. J. Am. Chem. Soc. 1934, 56, 1180–1185. [Google Scholar] Folkers, K.; Harwood, H.J.; Johnson, T.B. Researches on pyrimidines. Synthesis of 2­keto­1, 2,3,4­tetrahydropyrimidines. J. Am. Chem. Soc. 1932, 54, 3751–3758. [Google Scholar] Wipf, P.; Cunningham, A. A solid phase protocol of the Biginelli dihydropyrimidine synthesis suitable for combinatorial chemistry. Tetrahedron Lett. 1995, 36, 7819–7822. [Google Scholar]
  5. Shutalev, A.D.; Kishko, E.A.; Sivova, N.; Kuznetsov, A.Y. A new convenient synthesis of 5­acyl­1,2,3,4­tetrahydropyrimidine­2­thiones/ones. Molecules 1998, 3, 100–106. [Google Scholar]
  6. Bigi, F.; Carloni, S.; Frullanti, B.; Maggi, R.; Sartori, G. A Revision of the Bigineili reaction under solid acid catalysis. Solvent-free synthesis of dihydropyrimidines over Montmorilionite KSF. Tetrahedron Lett. 1999, 6, 3465–3468. [Google Scholar]
  7. Peng, J.; Deng, Y. Ionic liquid catalyzed Biginelli reaction under solvent free conditions. Tetrahedron Lett. 2001, 42, 5917–5919. [Google Scholar]
  8. Yadav, J.S.; Reddy, B.V.S.; Reddy, K.B.; Raj, K.S.; Prasad, A.R. Ultrasound­accelerated synthesis of 3,4­dihydropyrimidine­2(1H) ­ones with ceric ammonium nitrate. J. Chem. Soc. Perkin Trans. 1. 2001, 1939–1941. [Google Scholar]
  9. Hu, E.H.; Sidler, D.R.; Dolling, U.H. Unprecedented catalytic three component one­pot condensation reaction: An efficient synthesis of 5­alkoxycarbonyl­4­aryl­3,4­dihydropyrimidine­ 2­(1H)­ones. J. Org. Chem. 1998, 63, 3454–3457. [Google Scholar] Liu, C.; Wang, J.; Li, Y. One­pot synthesis of 3,4­dihydropyrimidine­2(1H)­(thio)ones using strontium (II) nitrate as a catalyst. J. Molecular Catalysis A: Chemical 2006, 258, 367–370, and references cited therein.. [Google Scholar]
  10. Ma, Y.; Qian, C.; Wang, L.; Yang, M. Lanthanide triflate catalyzed Biginelli reaction. One­pot synthesis of dihydropyrimidinones under solvent­free conditions. J. Org. Chem. 2000, 65, 3864–3868, and references cited therein. [Google Scholar]
  11. Lu, J.; Bai, Y.; Wang, Z.; Yang, B.; Ma, H. One-pot synthesis of 3,4-dihydropyrimidin-2(1H)-ones using lanthanum chloride as a catalyst. Tetrahedron Lett. 2000, 41, 9075–9078. [Google Scholar]
  12. Rannu, B.C.; Hajra, A.; Jana, U. Indium (III) chloride-catalyzed one-pot synthesis of dihydropyrimidinones by a three-component coupling of 1,3-dicarbonyl compounds, aldehyde and urea: An improved procedure for Biginelli reaction. J. Org. Chem. 2000, 65, 6270–6272. [Google Scholar] [CrossRef] [PubMed]
  13. Cornelis, A.; Laszlo, P. Clay­supported copper (II) and iron (III) nitrates: Novel multi­purpose reagents for organic syntyhesis. Synthesis 1985, 909–918. [Google Scholar] Hashmat, M.Ali; McDermott, M. Oxidation of thiols to disulfides with molecular bromine on hydrated silica gel support. Tetrahedron Lett. 2002, 43, 6271–6273. [Google Scholar] Chari, M.A.; Syamasundar, K. Silicagel supported sodium hydrogensulfate as a heterogeneous catalyst for high yield synthesis of 3,4-dihydropyrimidine-2(1H)-ones. J. Mol. Catal. A: Chem. 2004, 221, 137–139. [Google Scholar] Salehi, P.; Zolfigol, M.A.; Shirini, F.; Baghbanzadeh, M. Silica sulfuric acid and silica chloride as efficient reagent for organic reactions. Curr. Org. Chem. 2006, 10, 2171–2189. [Google Scholar]
  14. Tal, D.M.; Keinan, E.; Mazur, Y. Reactions in dry media: reactions of cholesterol and cholestanes on silica bound ferric chloride Cholestane—diacholestene rearrangement. Tetrahedron 1981, 37, 4327–4330. [Google Scholar] Onofrio, F.D.; Scettri, A. p­toluenrsulfonic acid adsorbed on silica gel: An efficient dehydrating agent of alcohols. Synthesis 1985, 1159–1161. [Google Scholar] Kamitori, Y.; Hojo, M.; Masuda, R.; Kimura, T.; Yoshida, T. Selective protection of carbonyl compounds. Silica gel treated with thionyl chloride as an effective catalyst for thioacetalization. J. Org. Chem. 1986, 51, 1427–1431. [Google Scholar] Firouzabadi, H.; Iranpoor, N.; Hazarkhani, H.; Karimi, B. Reaction of silica chloride (SiO2Cl)/DMSO, a heterogeneous system for the facile regeneration of carbonyl compounds from thioacetals and ring expansion annelation of cyclic thioacetals. J. Org. Chem. 2002, 67, 2572–2576. [Google Scholar] Sathe, M.; Gupta, A.K.; Kaushik, M.P. An efficient method for the esterification of phosphonic and phosphoric acids using silica chloride. Tetrahedron Lett. 2006, 47, 3107–3109. [Google Scholar] Sathe, M.; Kaushik, M.P. An efficient method for the esterification of amino acids using silica chloride. Catal. Commun. 2006, 7, 644–646. [Google Scholar] Sathe, M.; Karade, H.N.; Kaushik, M.P. An efficient synthesis of 2-amino thiazoles using silica chloride as a heterogeneous catalyst. Catal. Commun. 2007, 8, 741–746. [Google Scholar] Sathe, M.; Ghorpade, R.; Kaushik, M.P. Highly efficient methanolysis of bicyclic β-amino ester using silica chloride. Chem. Lett. 2006, 35, 1004–1005. [Google Scholar] Sathe, M.; Ghorpade, R.; Kaushik, M.P. Oxidation of thiols to disulfides using silica chloride as heterogeneous catalyst. Chem. Lett. 2006, 35, 1048–1049. [Google Scholar] Srinivas, K.V.N.S.; Mahender, I.; Das, B. Silica­chloride: A versatile heterogeneous catalyst for esterification and transesterification. Synthesis 2003, 2479–2482. [Google Scholar]
  15. Kappe, C.O. A reexamination of the mechanism of the Biginelli dihydropyrimidine synthesis. Support for an N-acyliminium ion intermidiate. J. Org. Chem. 1997, 62, 7201–7204. [Google Scholar]
  16. Mohanazadeh, F.; Momeni, A.R.; Rangbar, Y. Deoxygenation of sulfoxides with silica chloride. Tetrahedron Lett. 1994, 35, 6127–6128. [Google Scholar] [CrossRef]
  17. Firouzabadi, H.; Iranpoor, N.; Karimi, B.; Hazarkhani, H. Highly efficient transdithioacetalization of acetals catalyzed by silica chloride. Synlett 2000, 263–265. [Google Scholar] [CrossRef]
  18. Lu, J.; Bai, Y. Catalysis of the Biginelli reaction by ferric and nickel chloride hexahydrates. One-pot synthesis of 3,4-dihydropyrimidine-2(1H)-ones. Synthesis 2002, 466–470, and references cited therein. [Google Scholar]
  19. Gorlov, Y.I.; Nesterenko, A.M.; Chuiko, A.A. The chemisorption of acid chlorides on the silica surface. Colloid. Surf. A: Physiochem. Eng. Asp. 1996, 106, 83–88, and references cited therein. [Google Scholar]
  • Sample Availability: Contact the authors.
