Open AccessArticle
Entropy 2017, 19(7), 324; https://doi.org/10.3390/e19070324

Entropy Analysis of the Interaction between the Corner Separation and Wakes in a Compressor Cascade

Key Laboratory for Thermal Science and Power Engineering of Ministry of Education, Tsinghua University, Beijing 100084, China
*
Author to whom correspondence should be addressed.
Received: 27 May 2017 / Revised: 27 June 2017 / Accepted: 27 June 2017 / Published: 30 June 2017
(This article belongs to the Special Issue Entropy in Computational Fluid Dynamics)
View Full-Text   |   Download PDF [34674 KB, uploaded 30 June 2017]   |

Abstract

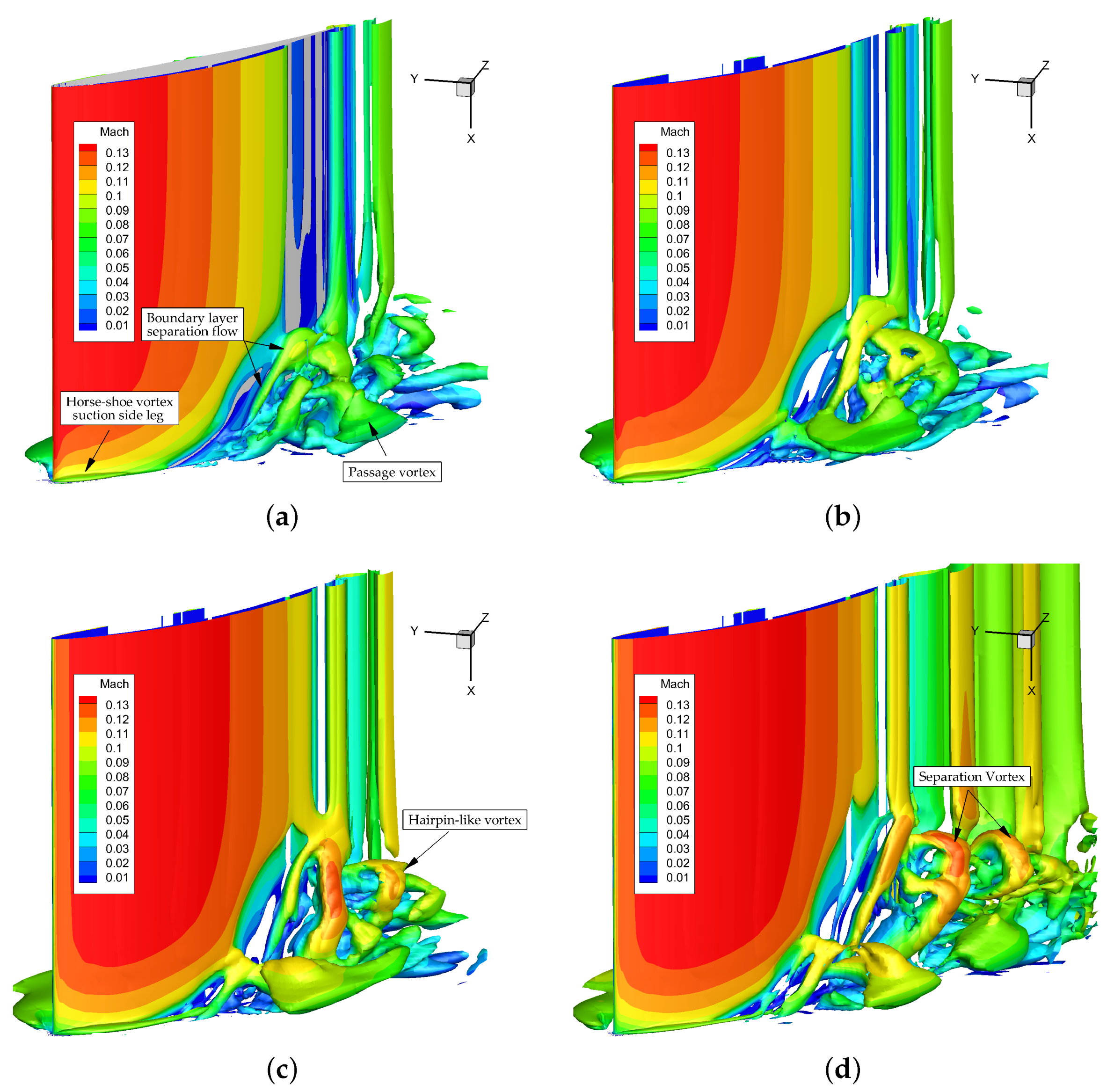

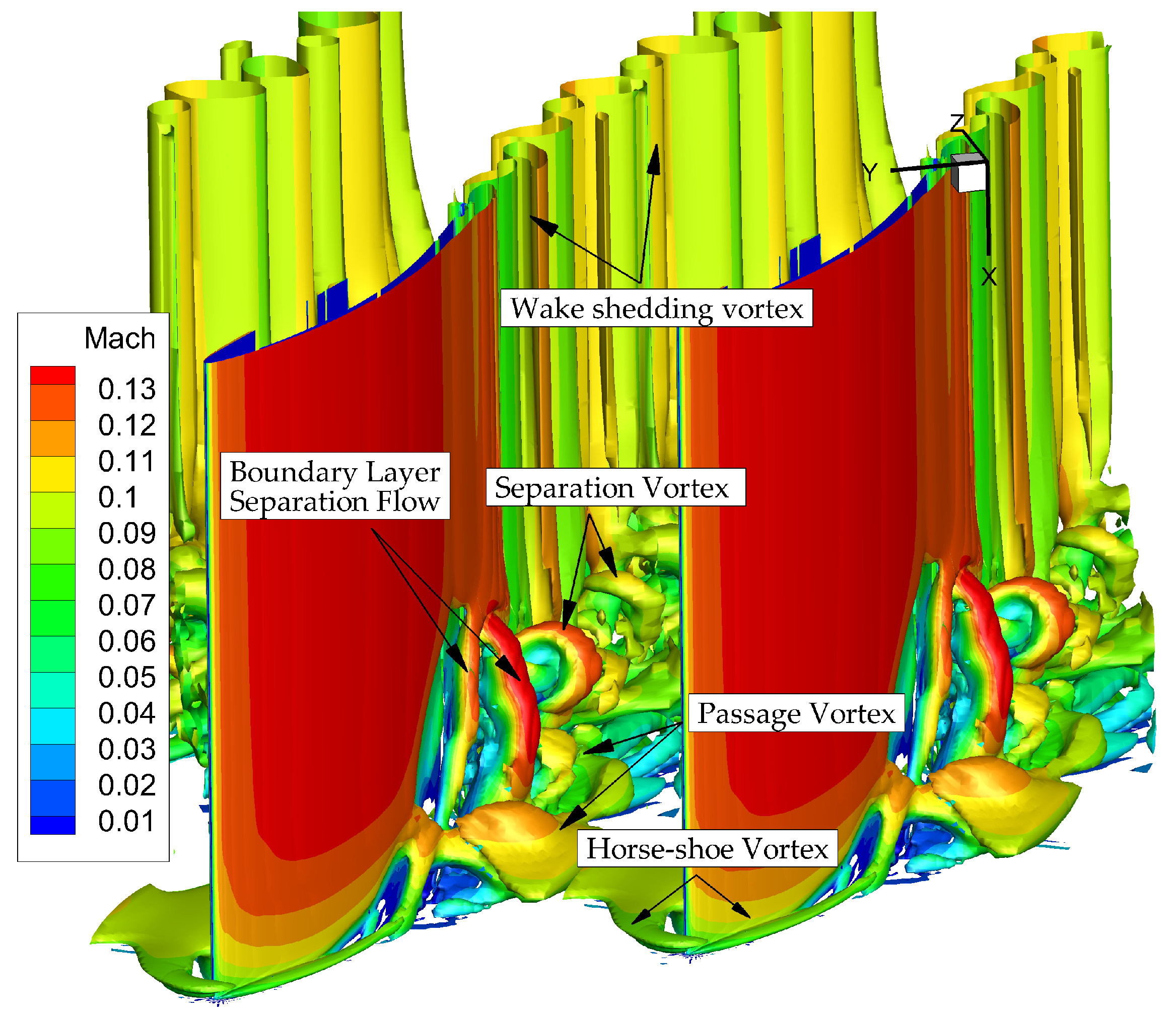

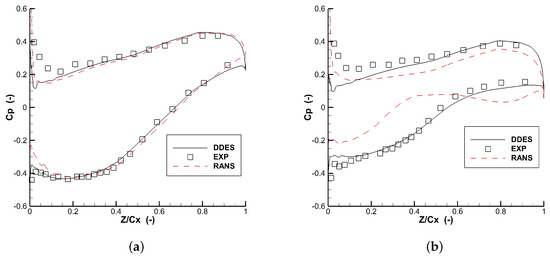

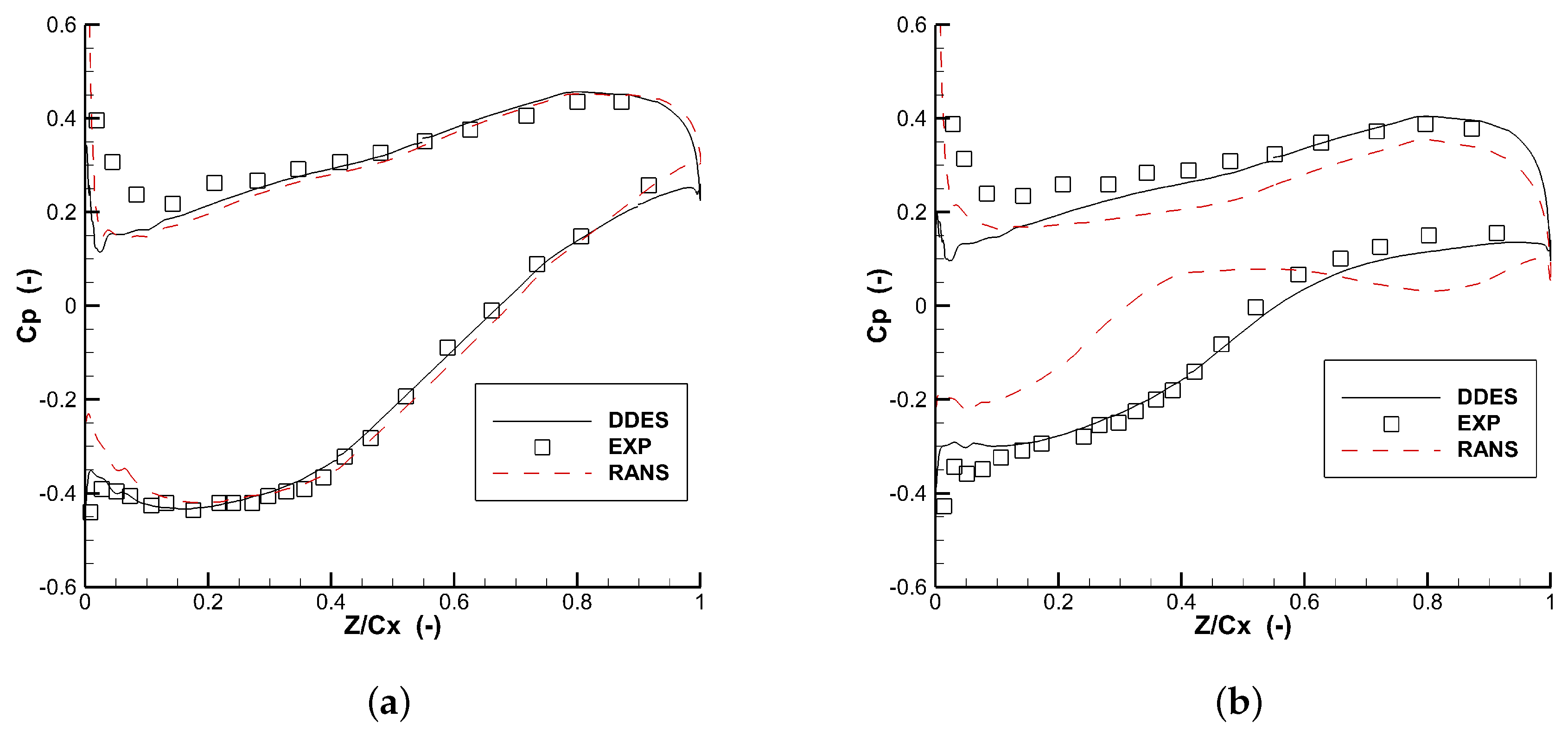

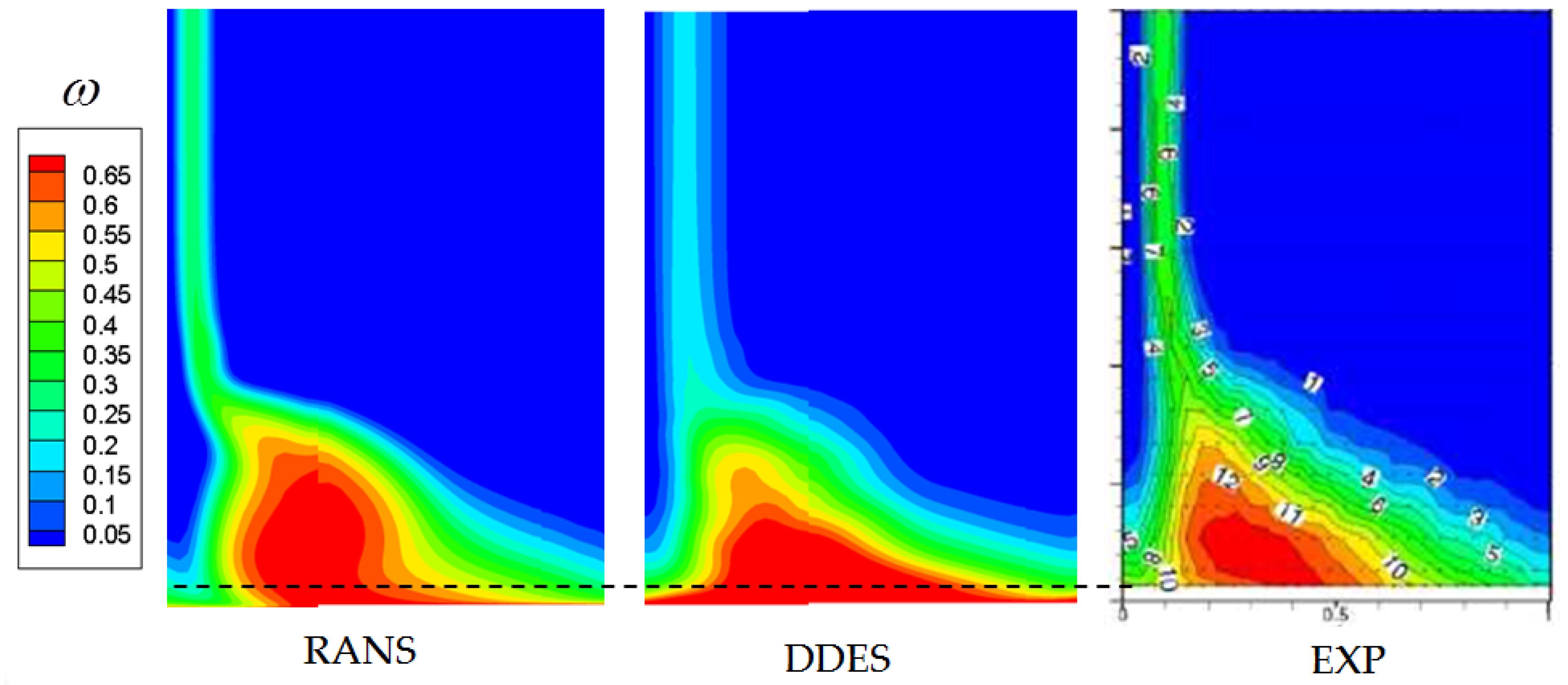

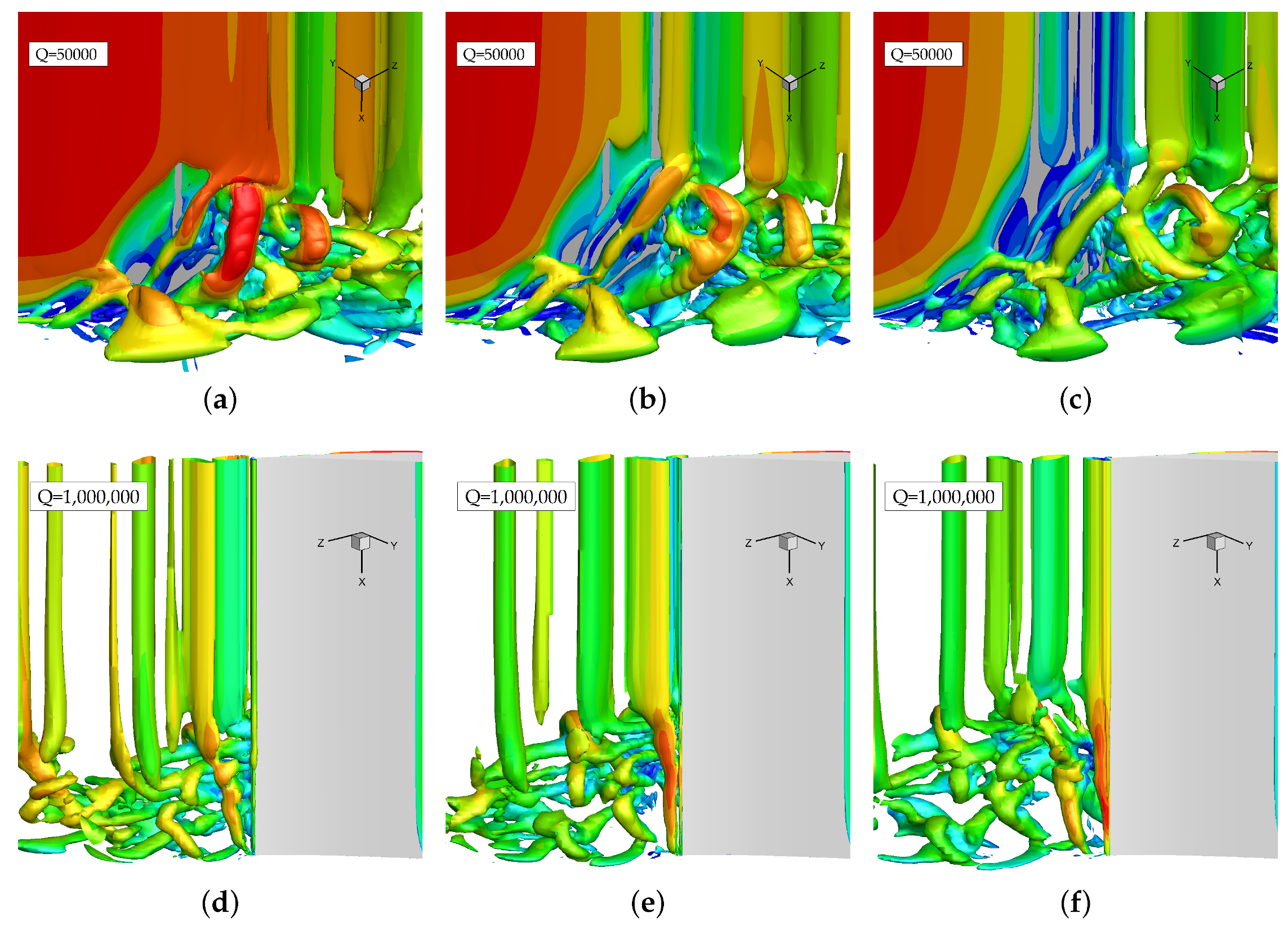

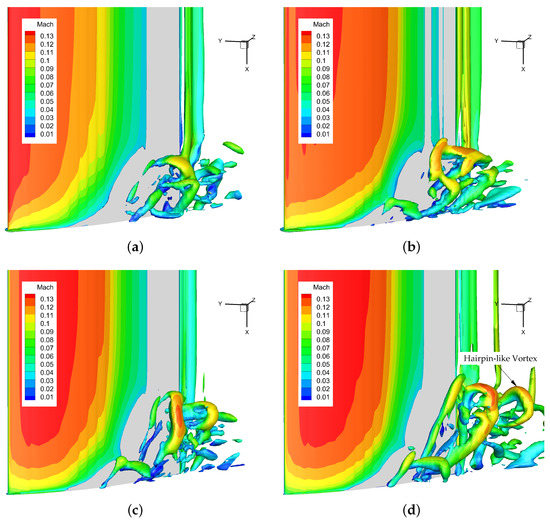

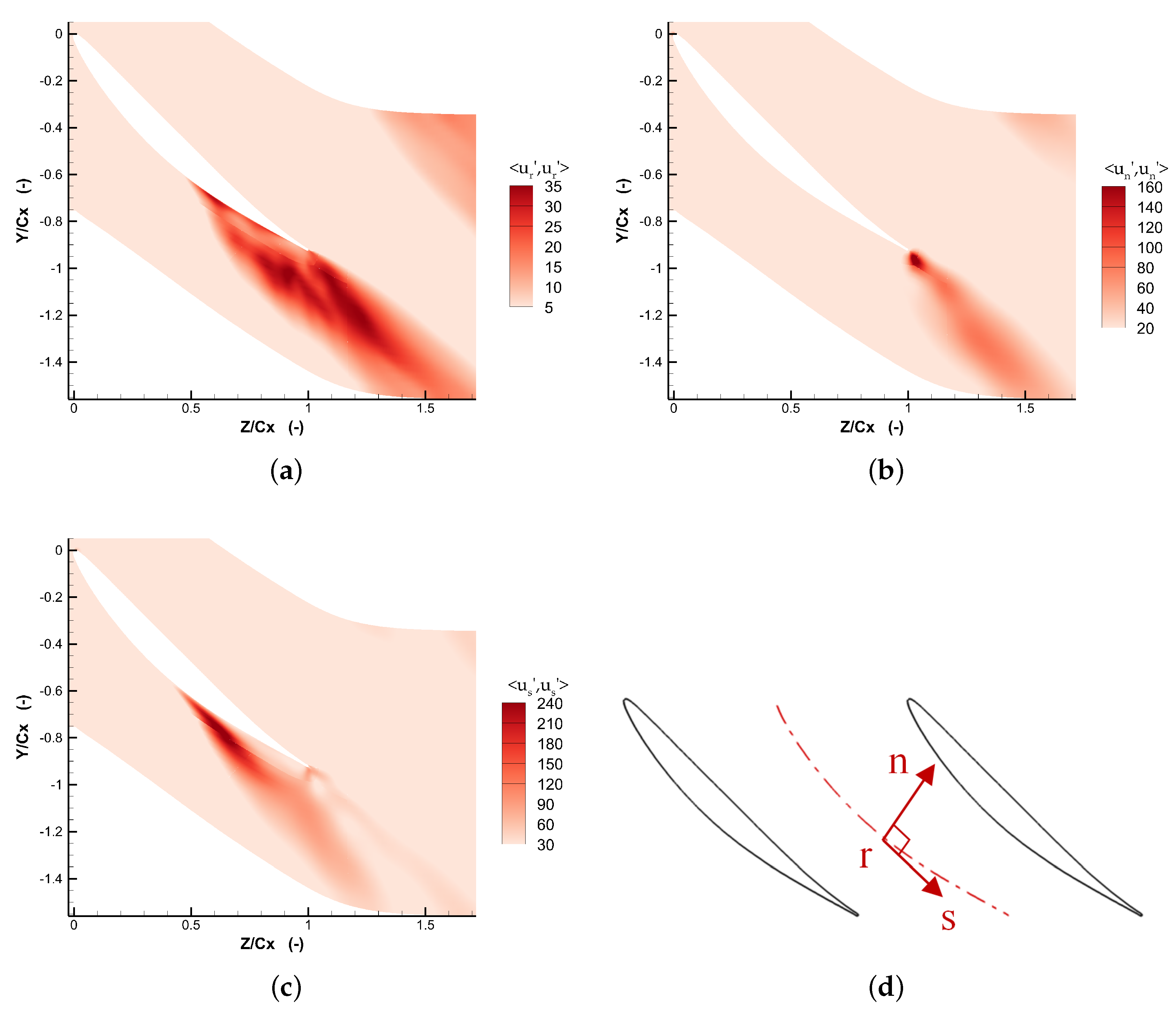

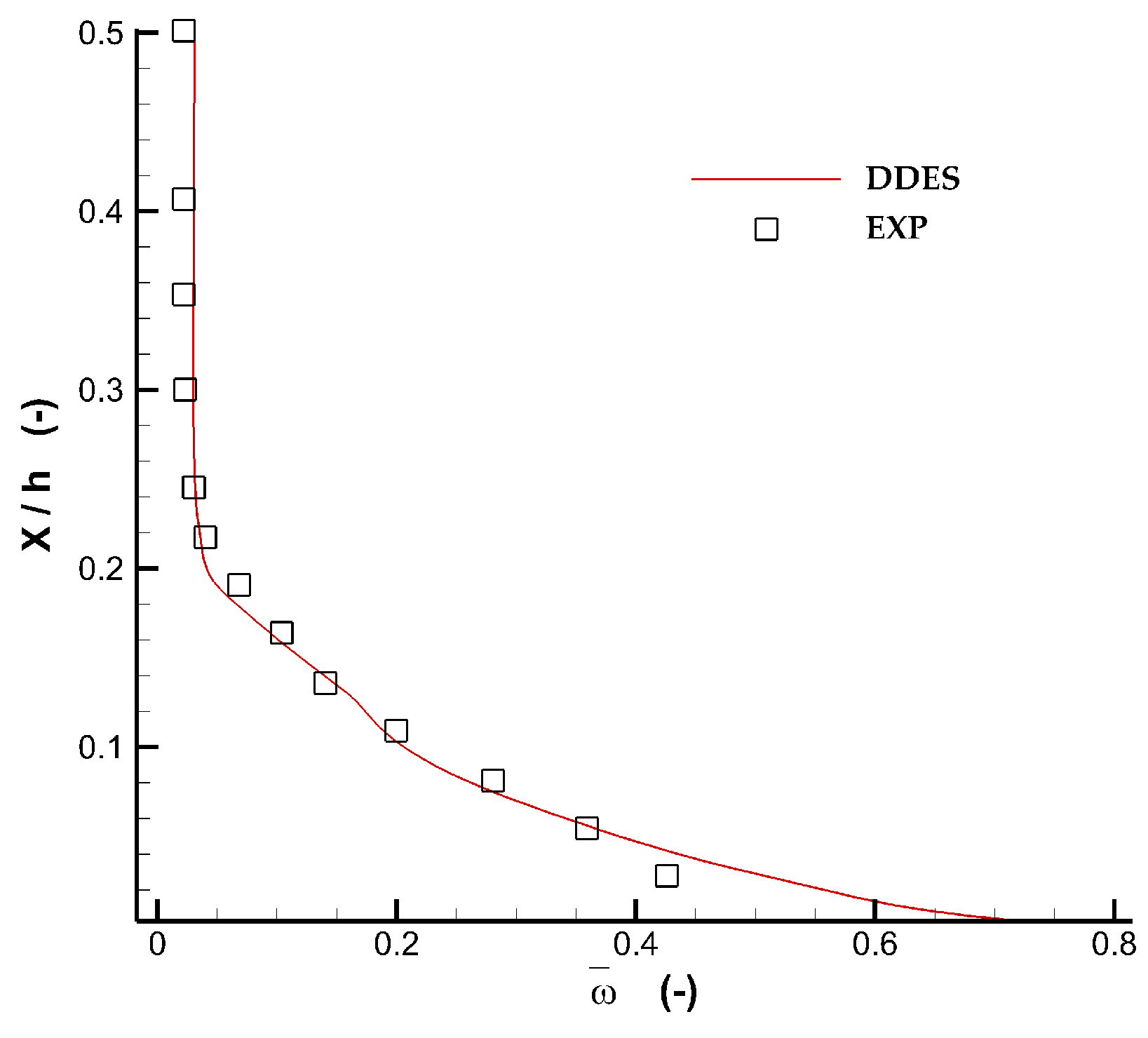

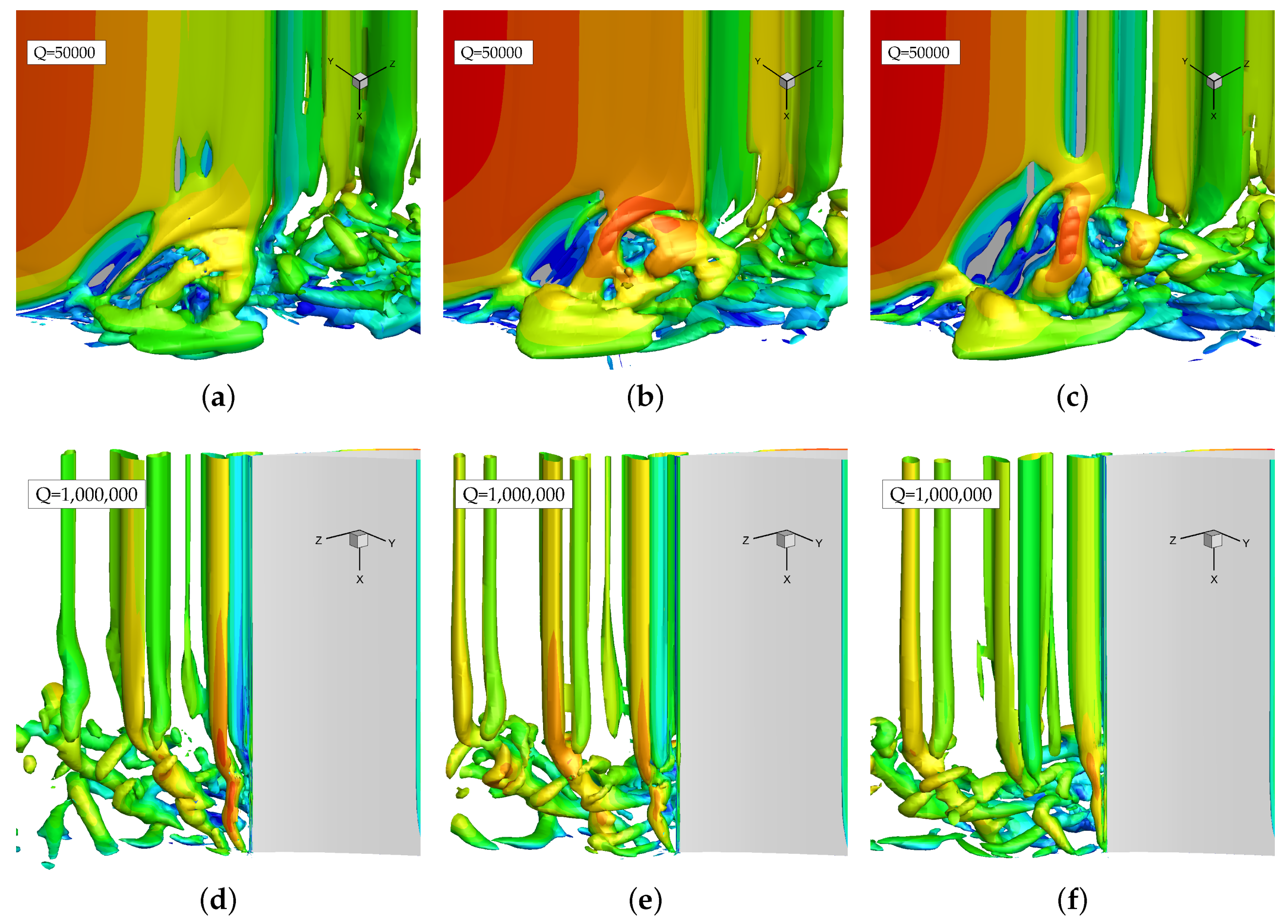

The corner separation in the high-loaded compressors deteriorates the aerodynamics and reduces the stable operating range. The flow pattern is further complicated with the interaction between the aperiodic corner separation and the periodically wake-shedding vortices. Accurate prediction of the corner separation is a challenge for the Reynolds-Averaged Navier–Stokes (RANS) method, which is based on the linear eddy-viscosity formulation. In the current work, the corner separation is investigated with the Delayed Detached Eddy Simulation (DDES) approach. DDES results agree well with the experiment and are systematically better than the RANS results, especially in the corner region where massive separation occurs. The accurate results from DDES provide a solid foundation for mechanism study. The flow structures and the distribution of Reynolds stress help reveal the process of corner separation and its interaction with the wake vortices. Before massive corner separation occurs, the hairpin-like vortex develops. The appearance of the hairpin-like vortex could be a signal of large-scale corner separation. The strong interaction between corner separation and wake vortices significantly enhances the turbulence intensity. Based on these analyses, entropy analysis is conducted from two aspects to study the losses. One aspect is the time-averaged entropy analysis, and the other is the instantaneous entropy analysis. It is found that the interaction between the passage vortex and wake vortex yields remarkable viscous losses over the 0–12% span when the corner separation has not yet been triggered; however, when the corner separation occurs, an enlarged region covering the 0–30% span is affected, and it is due to the interaction between the corner separation and wake vortices. The detailed coherent structures, local losses information and turbulence characteristics presented can provide guidance for the corner separation control and better design. View Full-Text
Keywords: corner separation; loss analysis; vortical structures; turbulence characteristics; DDES corner separation; loss analysis; vortical structures; turbulence characteristics; DDES
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
