Open AccessArticle
Entropy 2016, 18(4), 134; doi:10.3390/e18040134

Heat Transfer Enhancement and Entropy Generation of Nanofluids Laminar Convection in Microchannels with Flow Control Devices

1
Key Laboratory of Thermal Fluid Science and Engineering of Ministry of Education, Xi’an Jiaotong University, Xi’an 710049, China
2
School of Energy and Power Engineering, Xi’an Jiaotong University, Xi’an 710049, China
3
Department of Mechanical and Power Engineering, School of Marine Science and Technology, Northwestern Polytechnical University, Xi’an 710072, China
*
Author to whom correspondence should be addressed.
Academic Editors: Giulio Lorenzini and Omid Mahian
Received: 15 February 2016 / Revised: 31 March 2016 / Accepted: 7 April 2016 / Published: 21 April 2016
(This article belongs to the Special Issue Entropy in Nanofluids)
View Full-Text   |   Download PDF [4193 KB, uploaded 21 April 2016]   |

Abstract

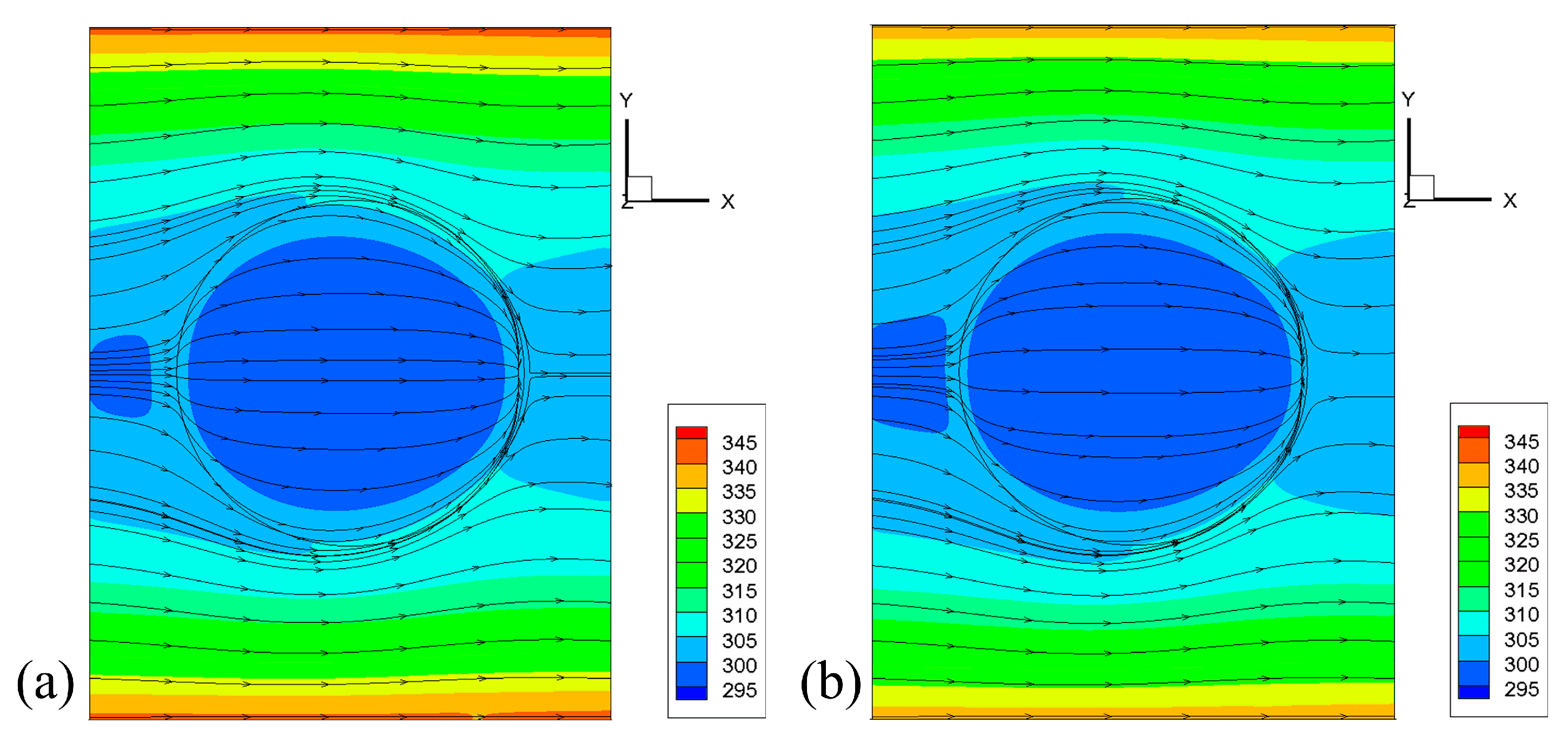

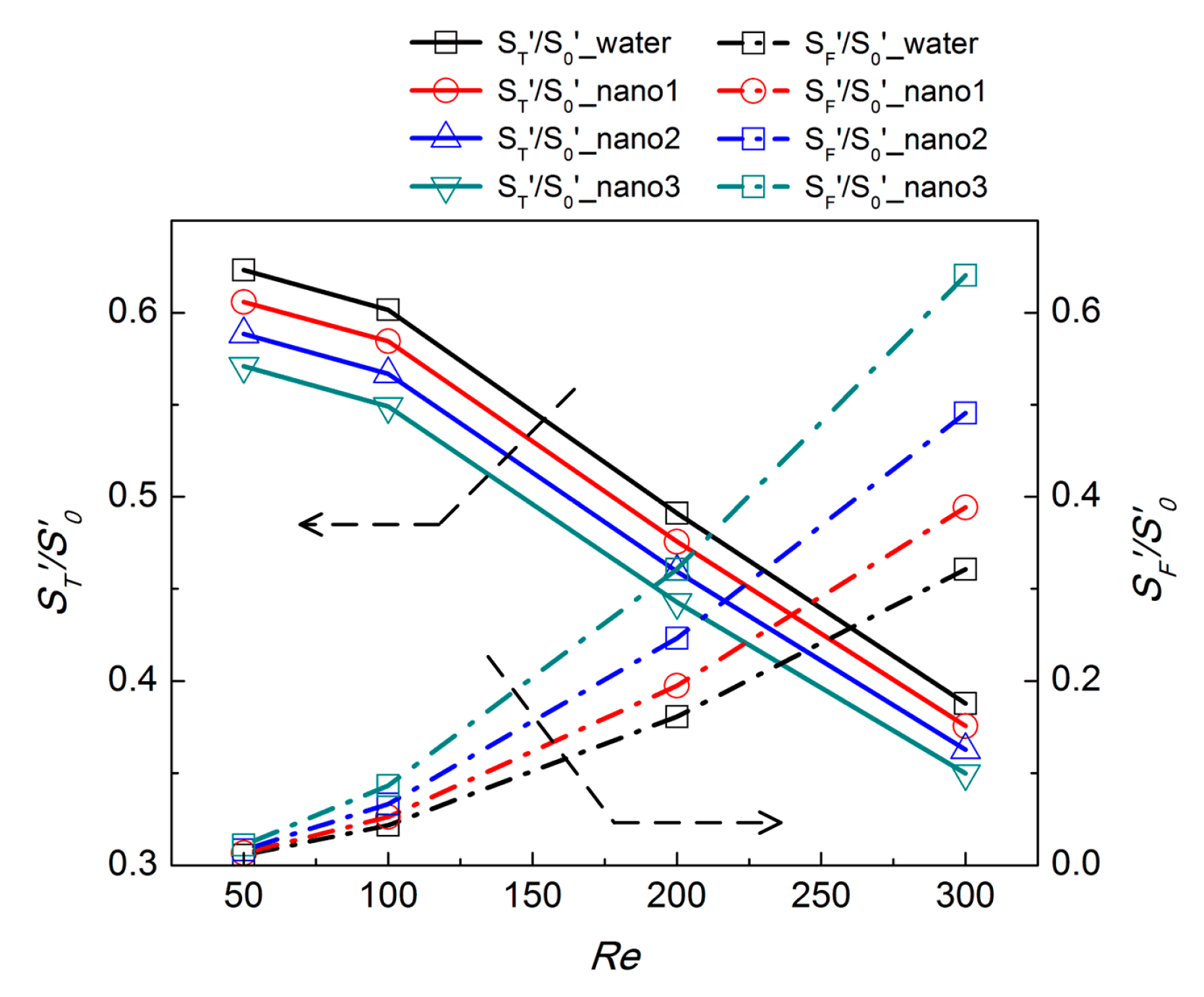

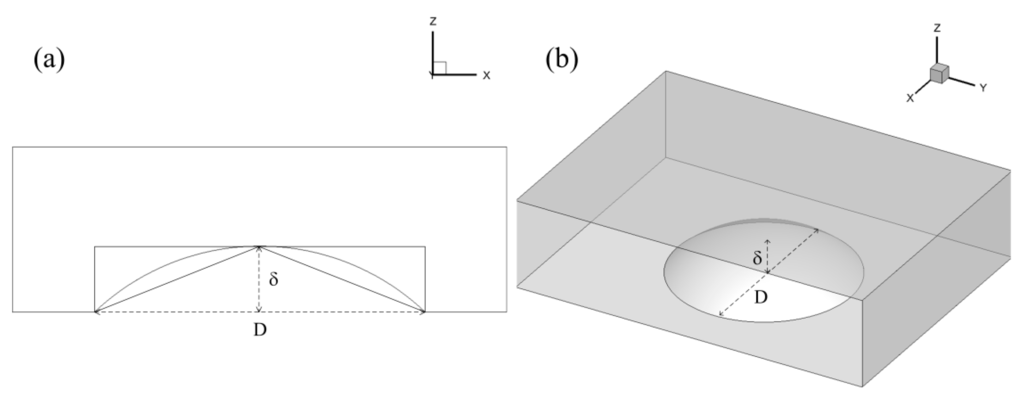

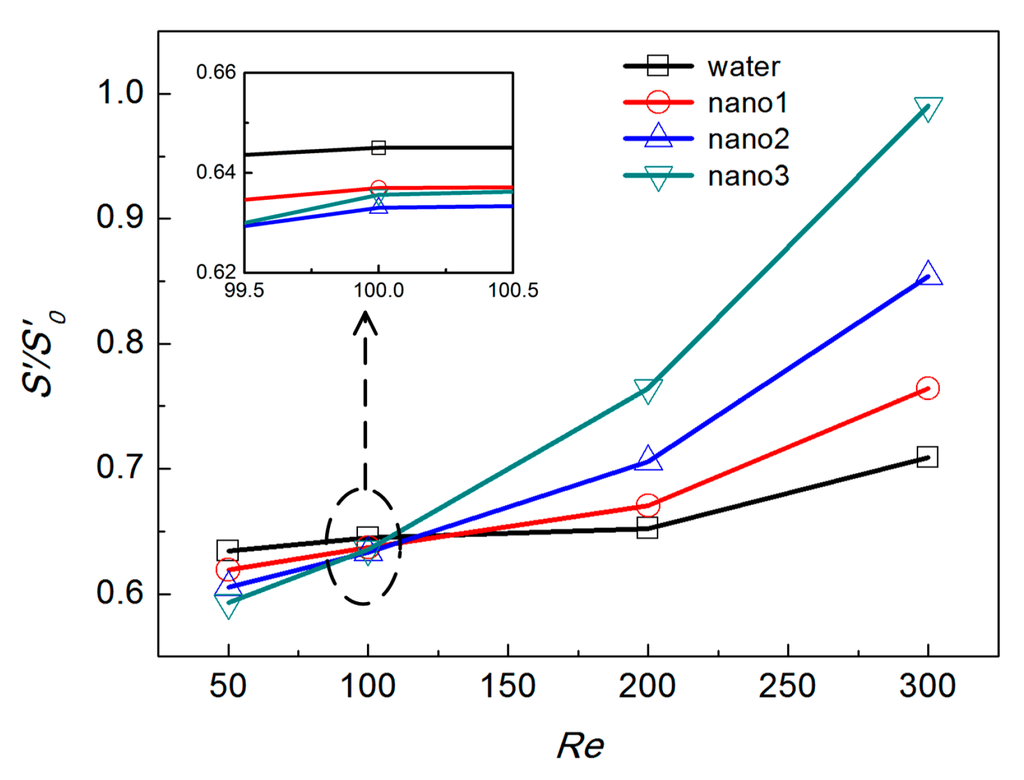

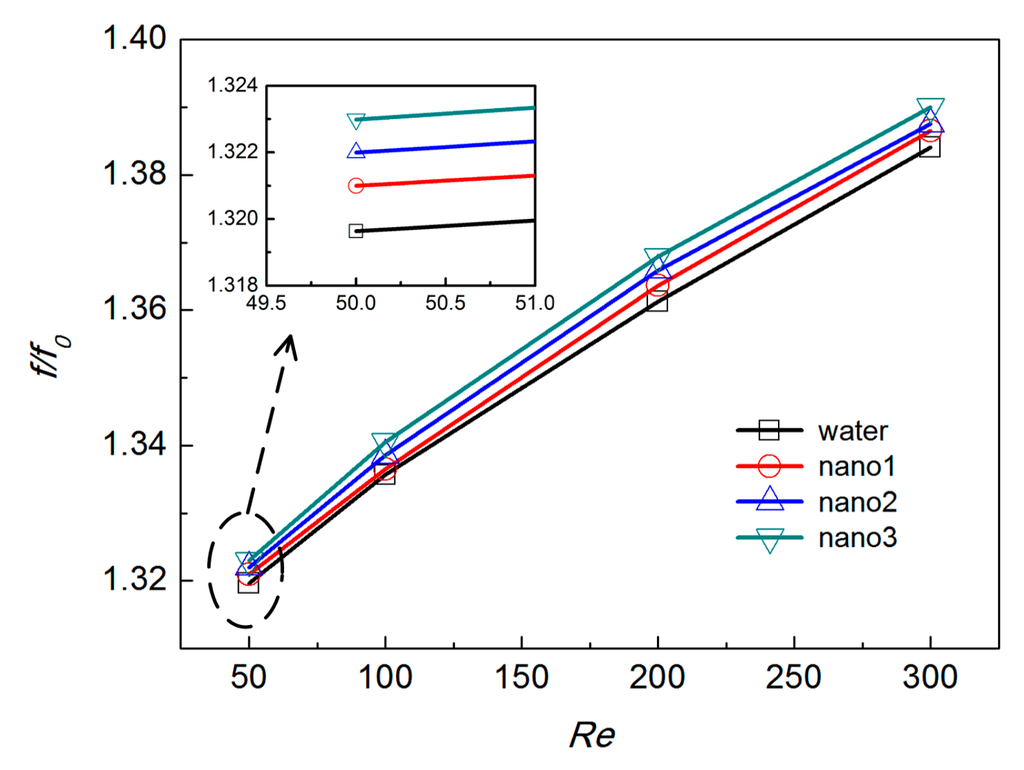

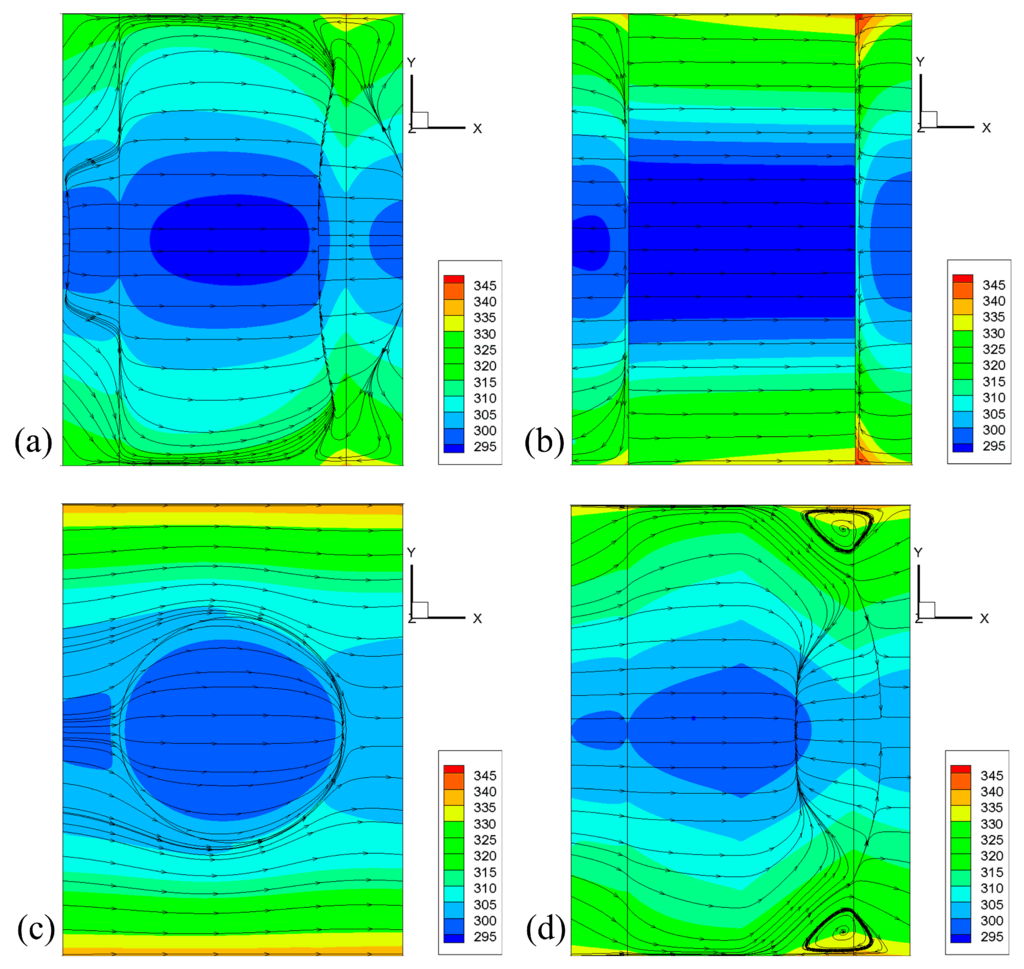

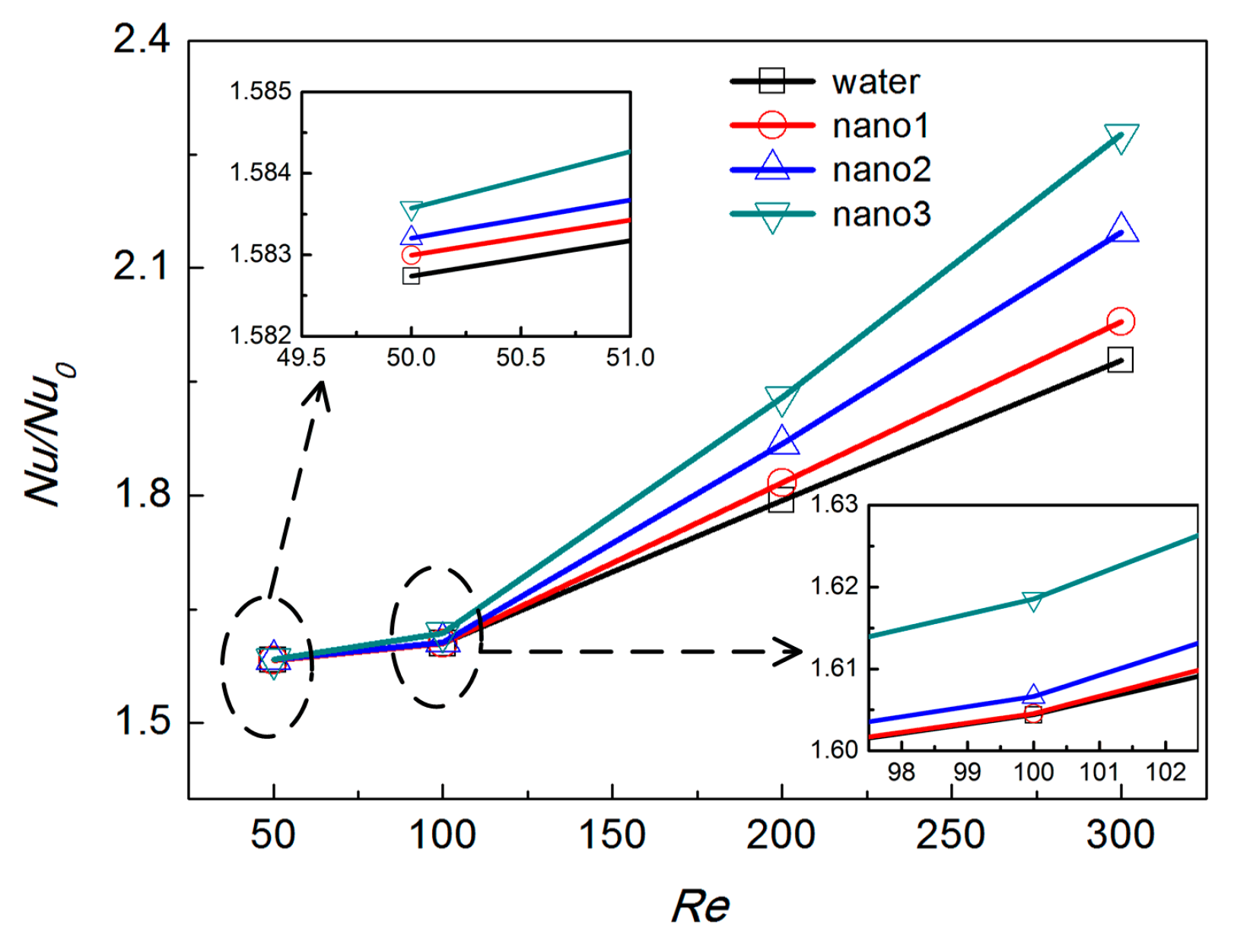

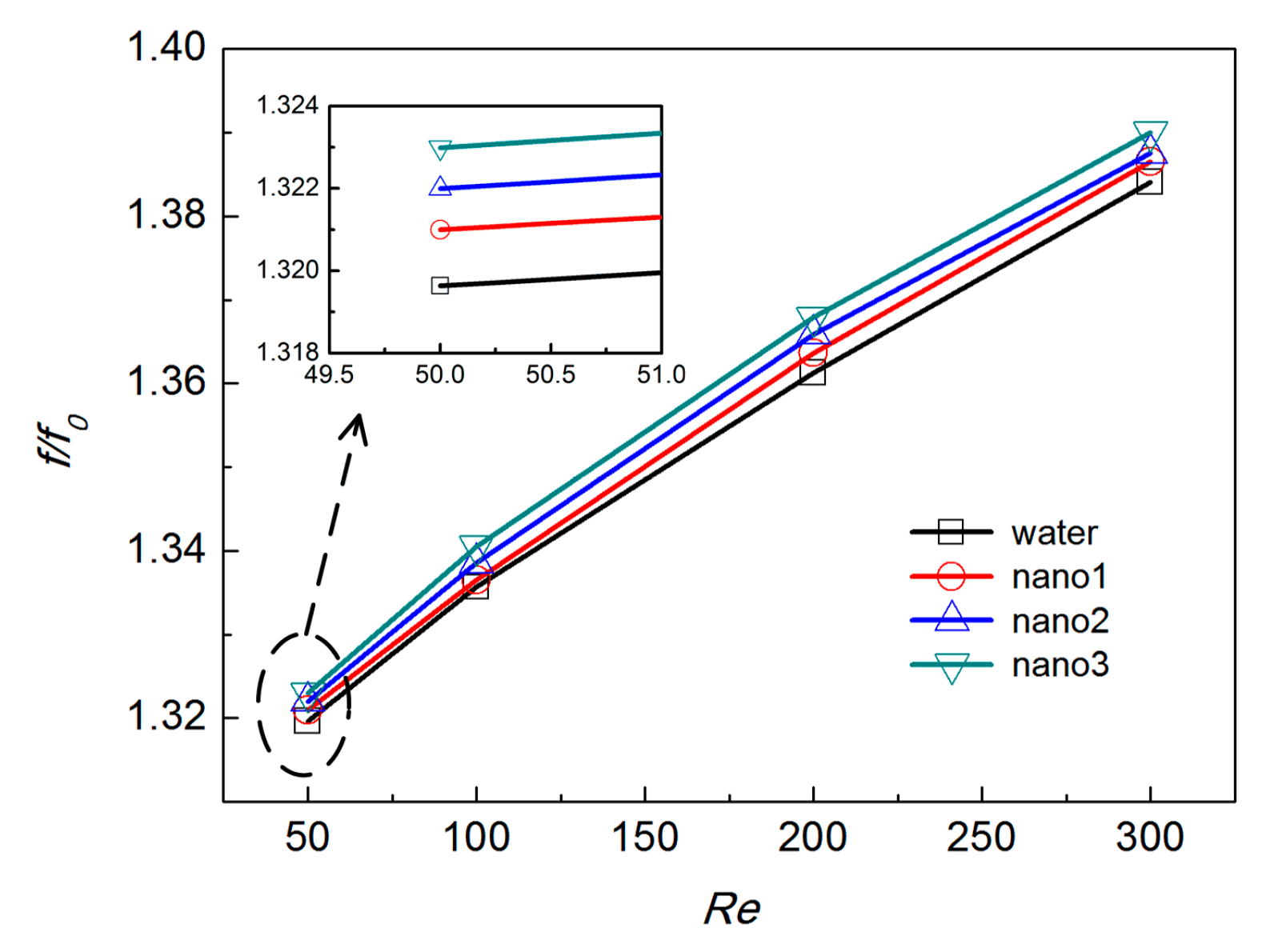

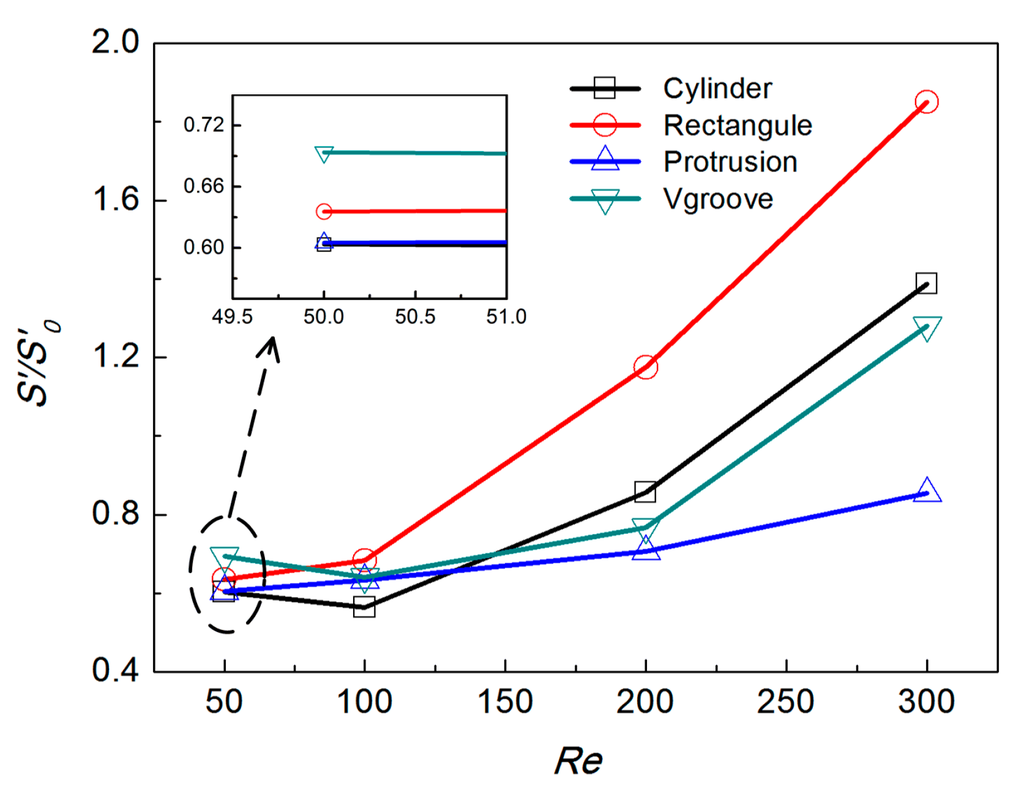

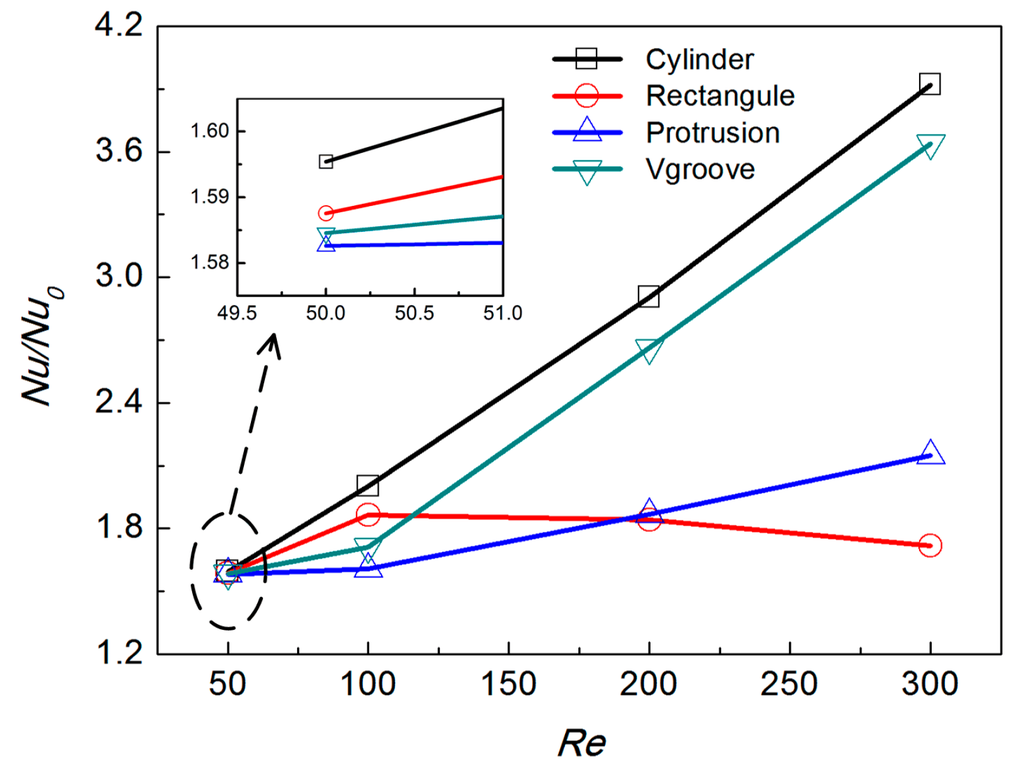

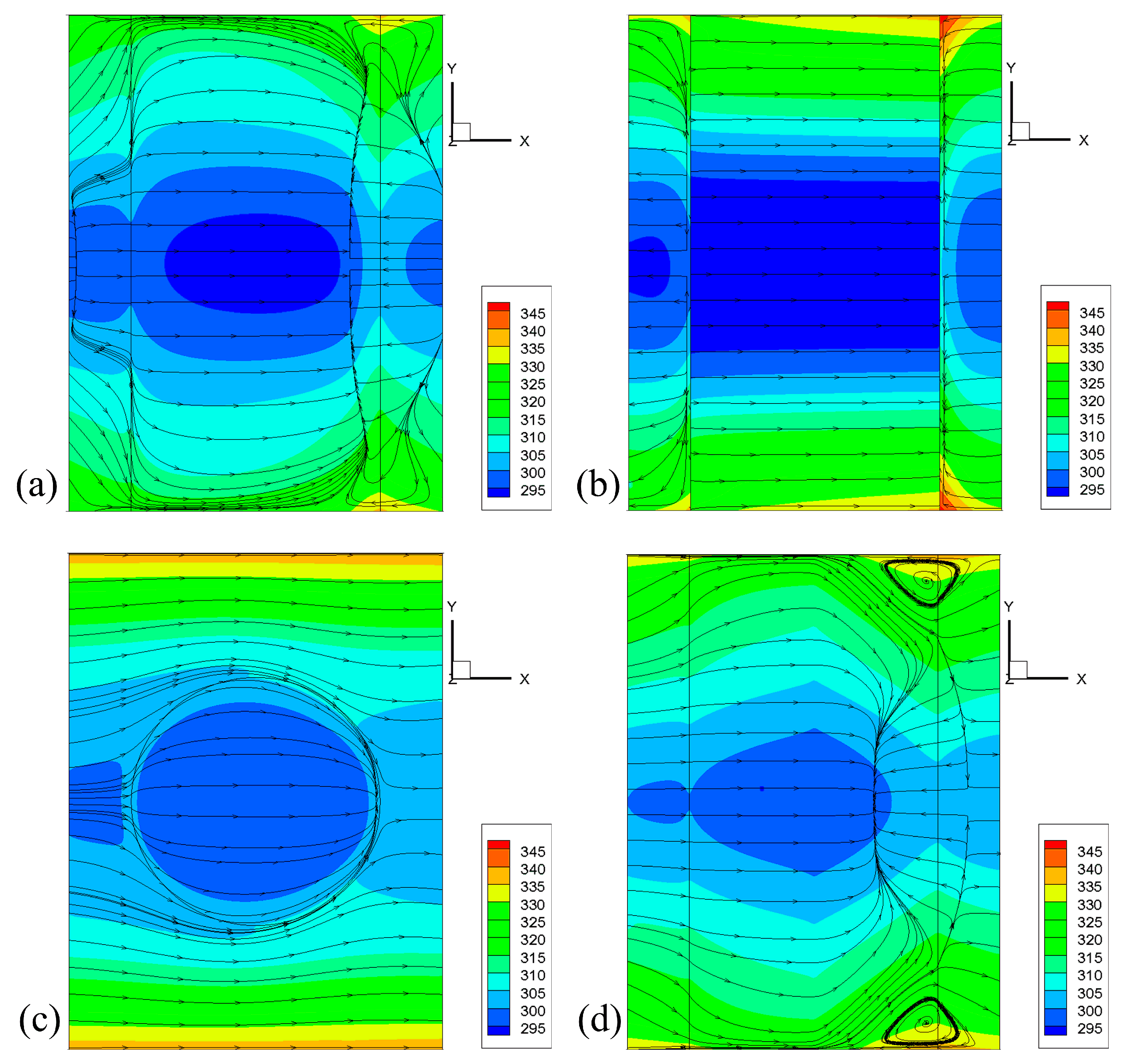

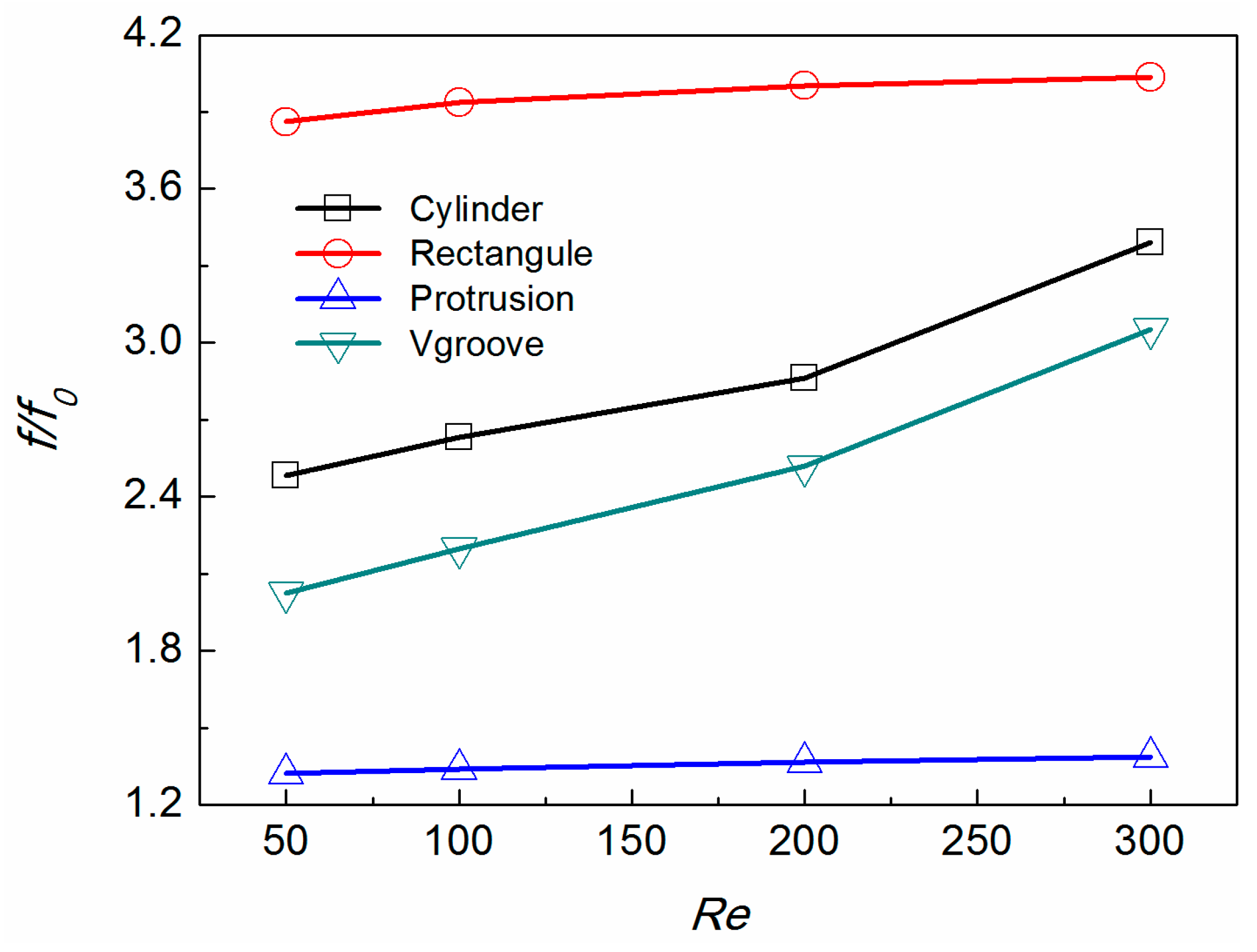

The heat transfer enhancement and entropy generation of Al2O3-water nanofluids laminar convective flow in the microchannels with flow control devices (cylinder, rectangle, protrusion, and v-groove) were investigated in this research. The effects of the geometrical structure of the microchannel, nanofluids concentration φ(0%–3%), and Reynolds number Re (50–300) were comparatively studied by means of performance parameters, as well as the limiting streamlines and temperature contours on the modified heated surfaces. The results reveal that the relative Fanning frictional factor f/f0 of the microchannel with rectangle and protrusion devices are much larger and smaller than others, respectively. As the nanofluids concentration increases, f/f0 increases accordingly. For the microchannel with rectangle ribs, there is a transition Re for obtaining the largest heat transfer. The relative Nusselt number Nu/Nu0 of the cases with larger nanofluids concentration are greater. The microchannels with cylinder and v-groove profiles have better heat transfer performance, especially at larger Re cases, while, the microchannel with the protrusion devices is better from an entropy generation minimization perspective. Furthermore, the variation of the relative entropy generation S′/S′0 are influenced by not only the change of Nu/Nu0 and f/f0, but also the physical parameters of working substances. View Full-Text
Keywords: nanofluids; microchannels; heat transfer enhancement; entropy generation; flow control devices nanofluids; microchannels; heat transfer enhancement; entropy generation; flow control devices
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Li, P.; Xie, Y.; Zhang, D.; Xie, G. Heat Transfer Enhancement and Entropy Generation of Nanofluids Laminar Convection in Microchannels with Flow Control Devices. Entropy 2016, 18, 134.
