Entropy 2015, 17(9), 6412-6432; doi:10.3390/e17096412

Energy and Exergy Analyses of a Combined Power Cycle Using the Organic Rankine Cycle and the Cold Energy of Liquefied Natural Gas

1
Department of Mechanical Engineering, Dongguk University, 30 Pil Dong-Ro 1-Gil, Jung-Gu, Seoul 100-715, Korea
2
Department of Mechanical Engineering, Kumoh National Institute of Technology, 61 Daehak-ro, Gumi, Gyeongbuk 730-701, Korea
*
Author to whom correspondence should be addressed.
Academic Editor: Kevin H. Knuth
Received: 6 July 2015 / Revised: 16 September 2015 / Accepted: 17 September 2015 / Published: 18 September 2015
(This article belongs to the Section Thermodynamics)
View Full-Text   |   Download PDF [856 KB, uploaded 18 September 2015]   |

Abstract

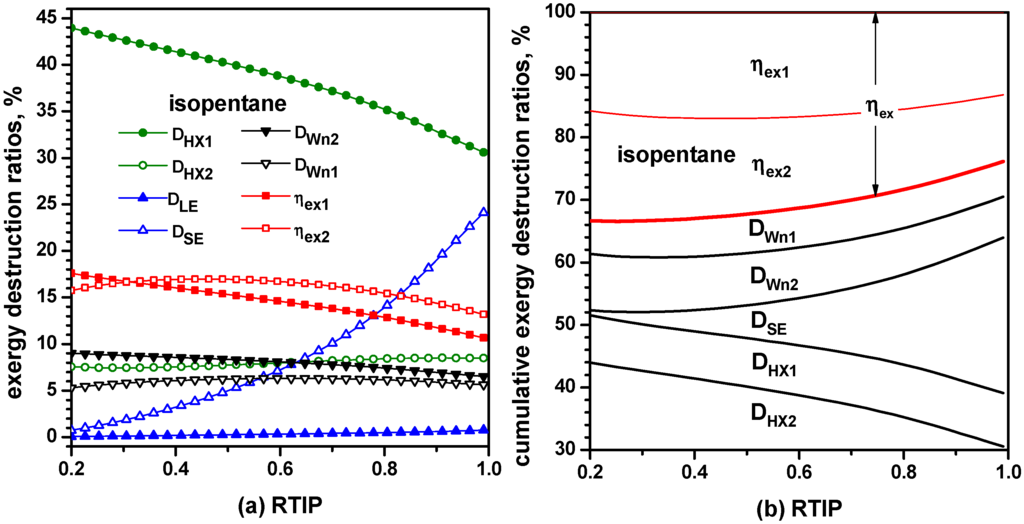

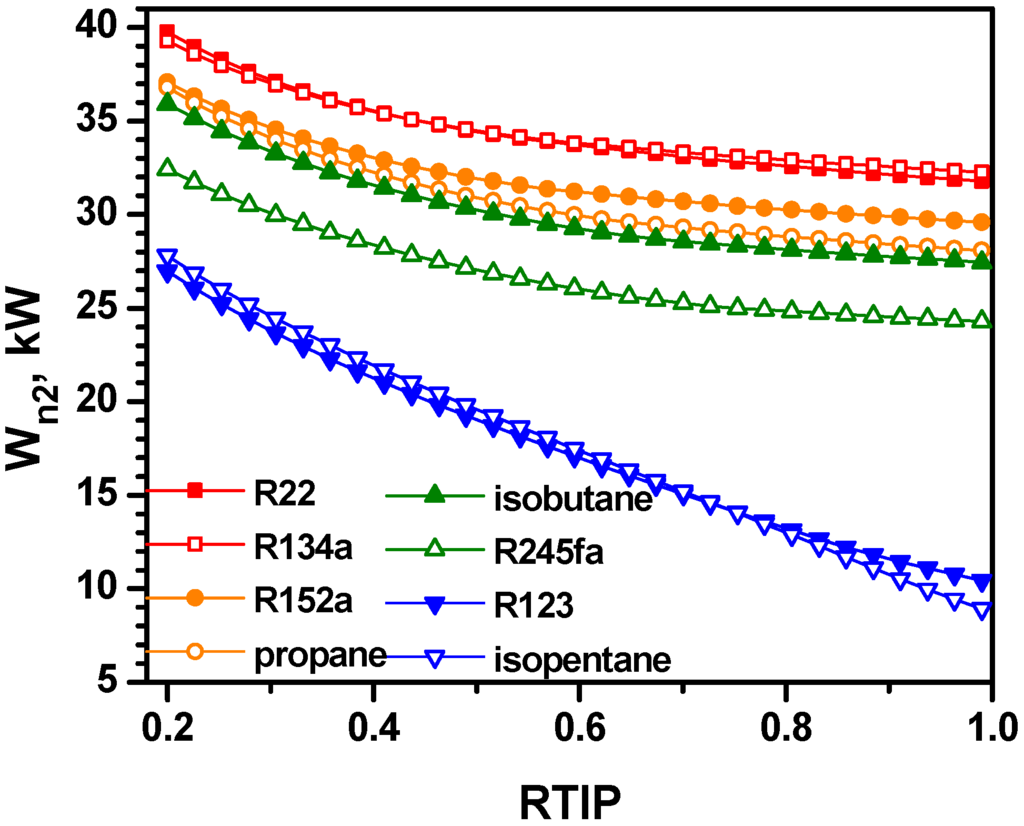

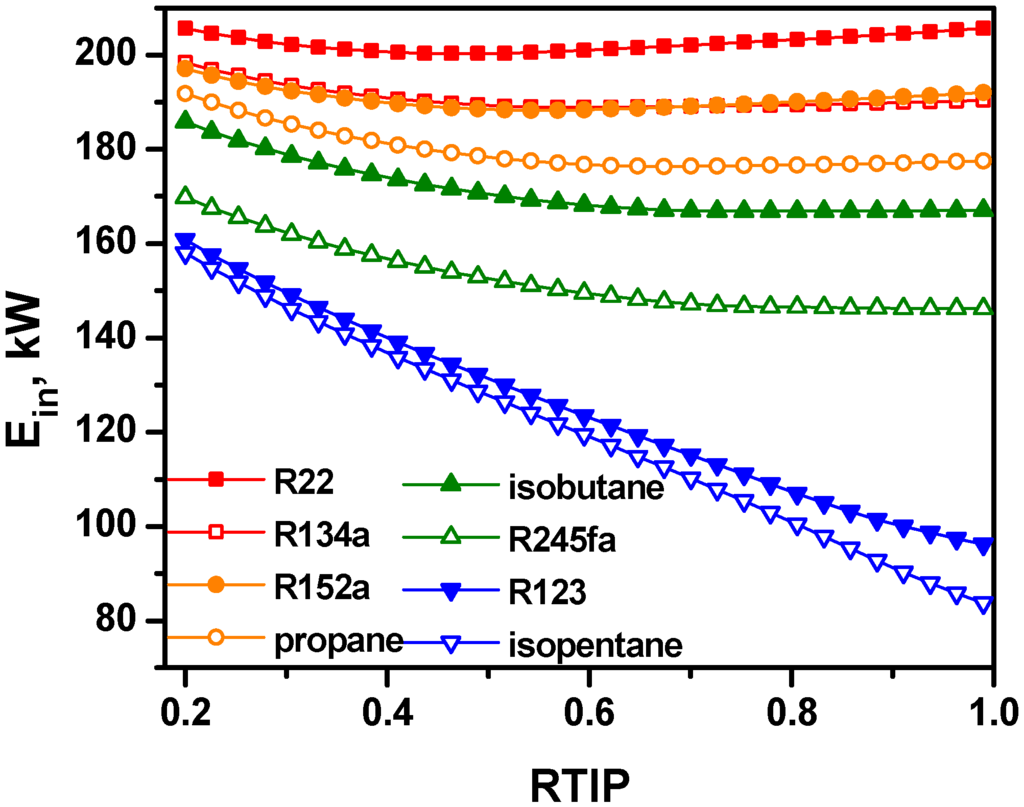

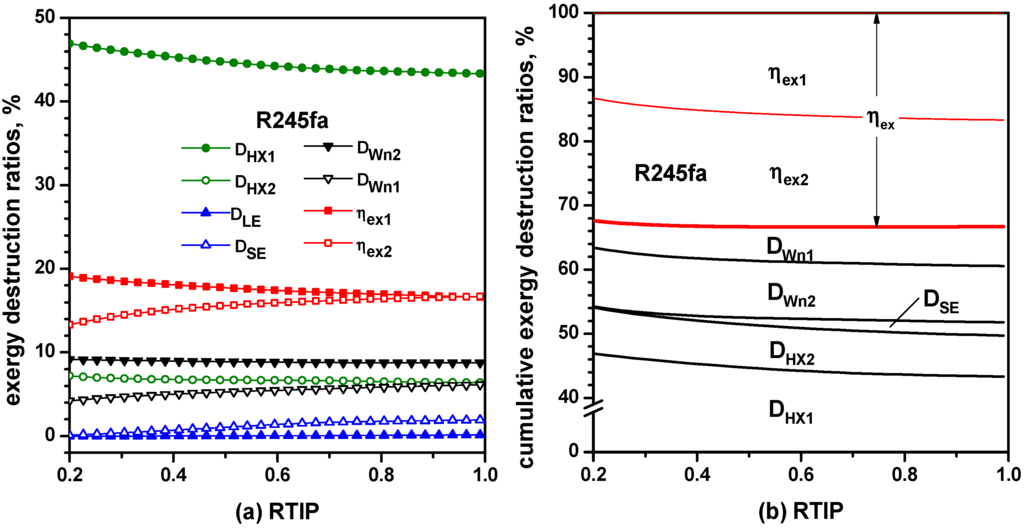

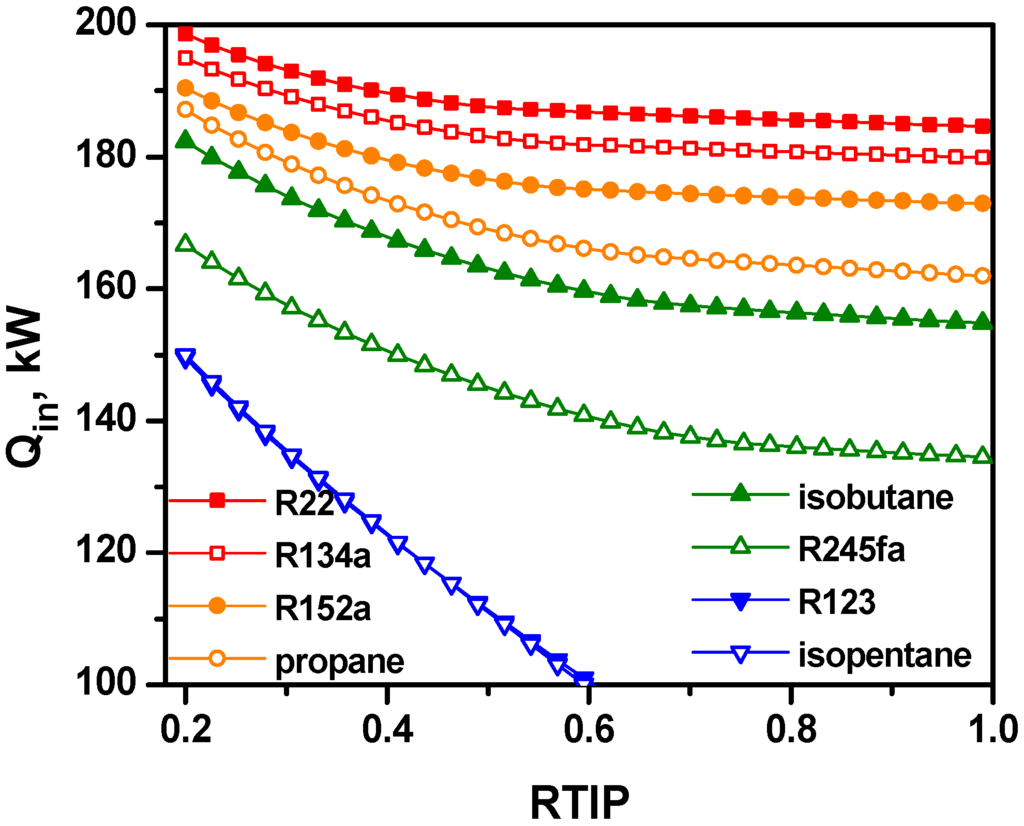

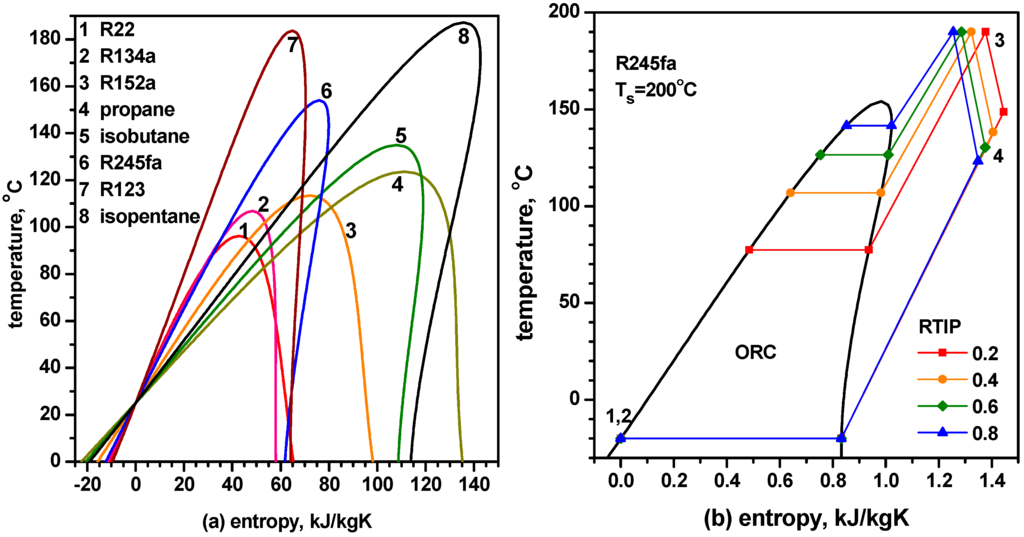

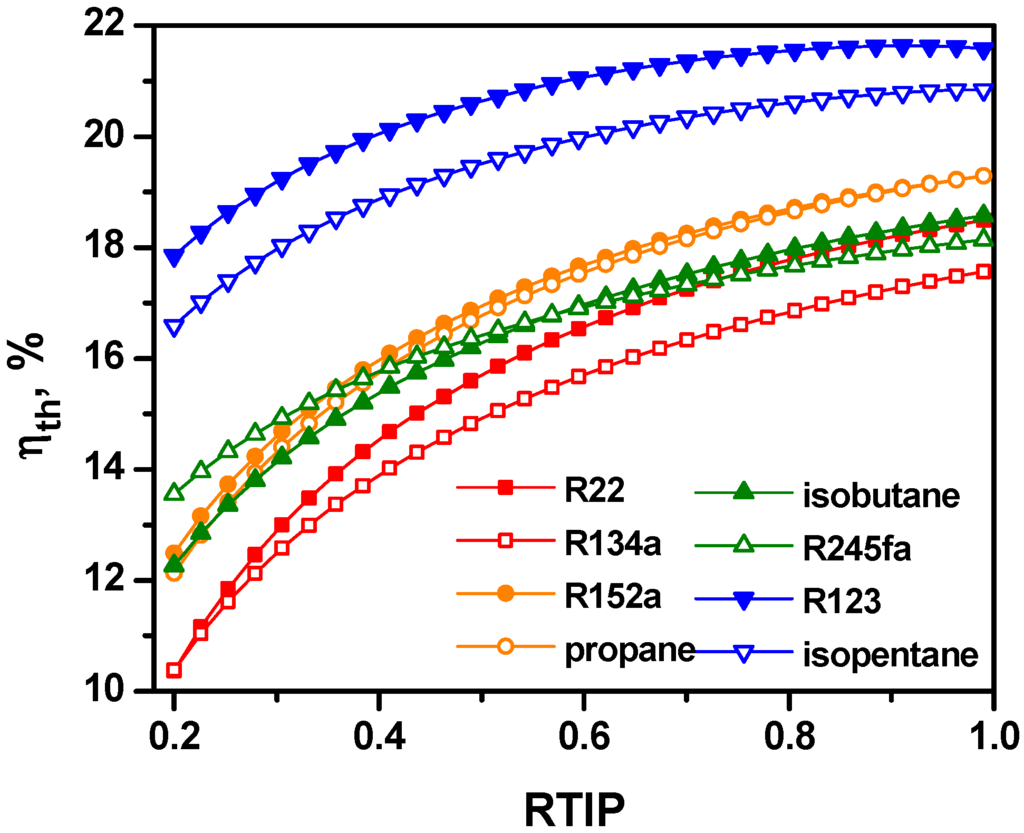

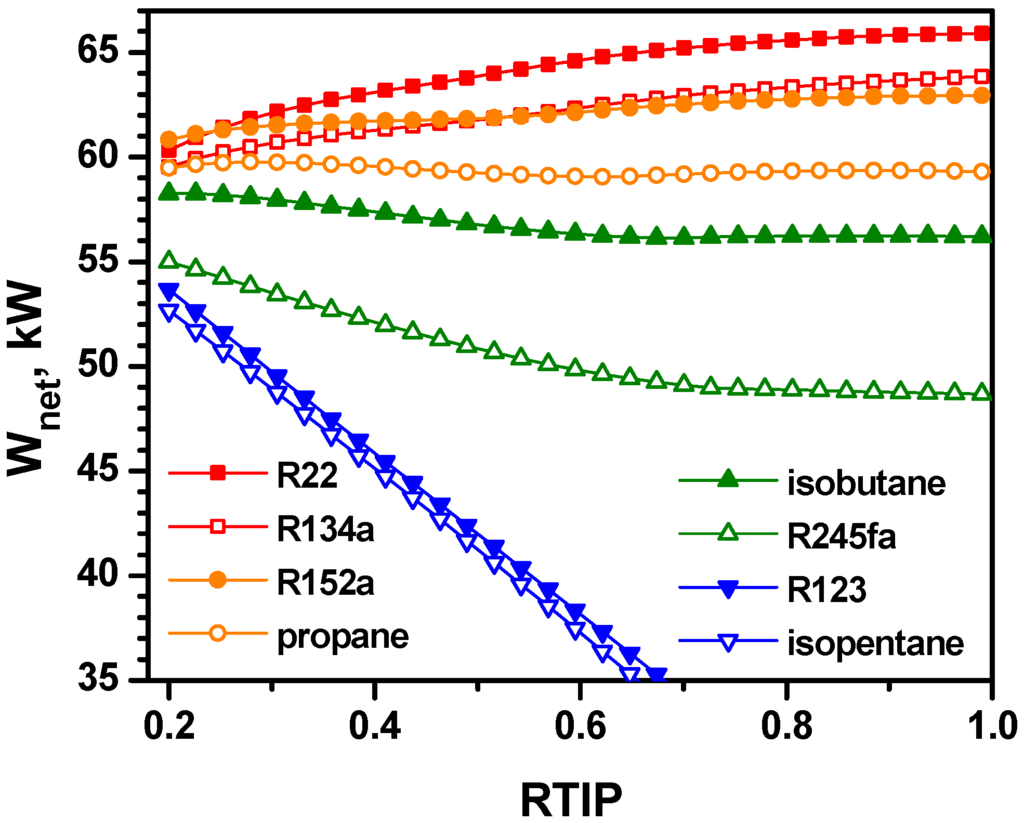

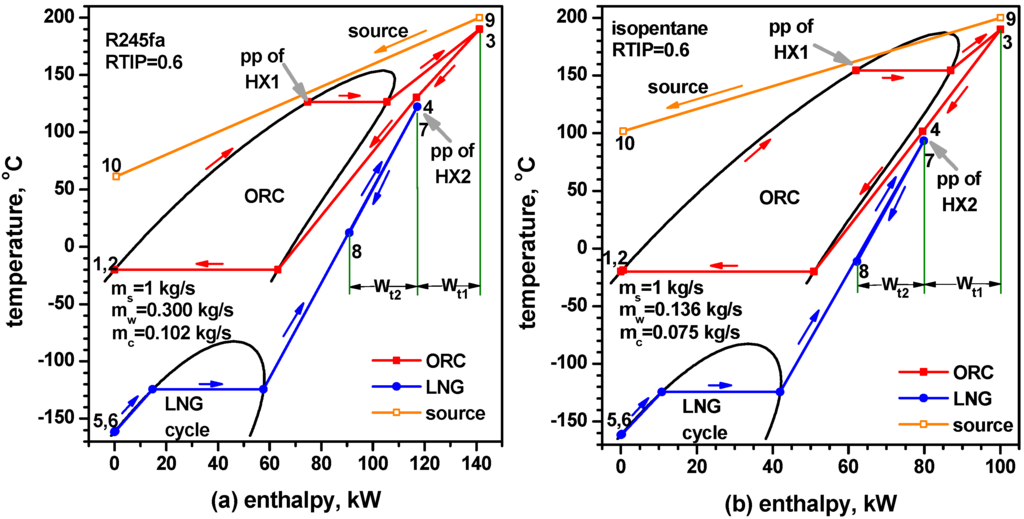

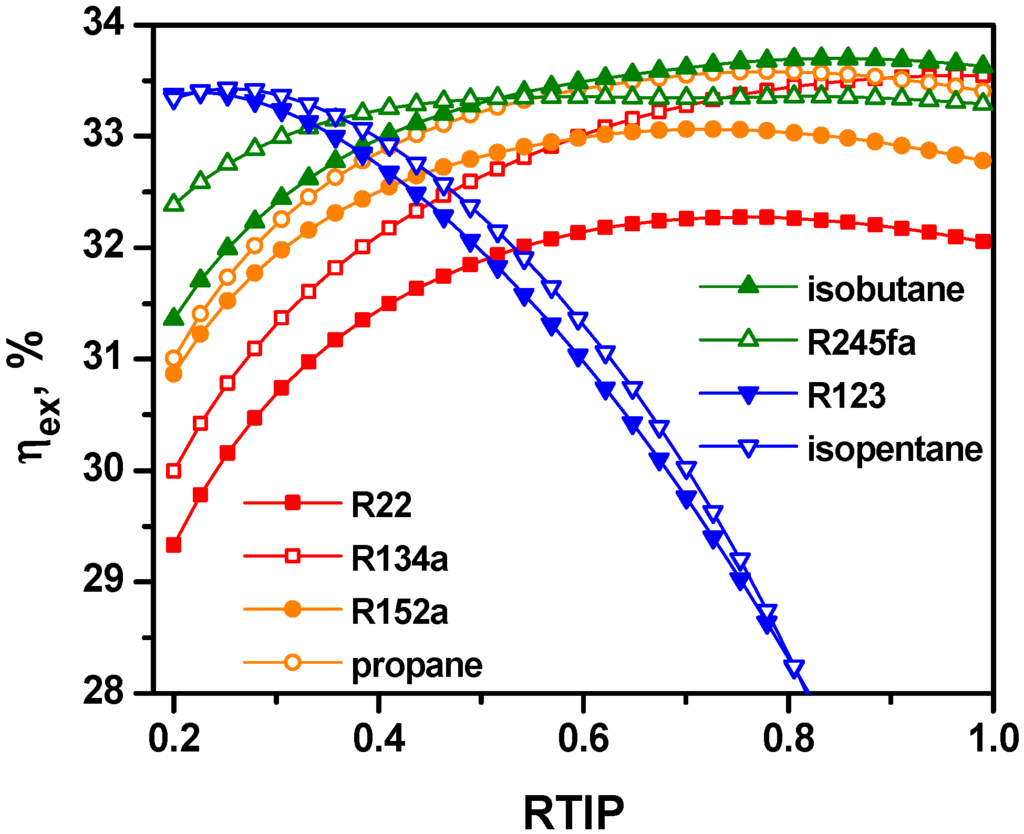

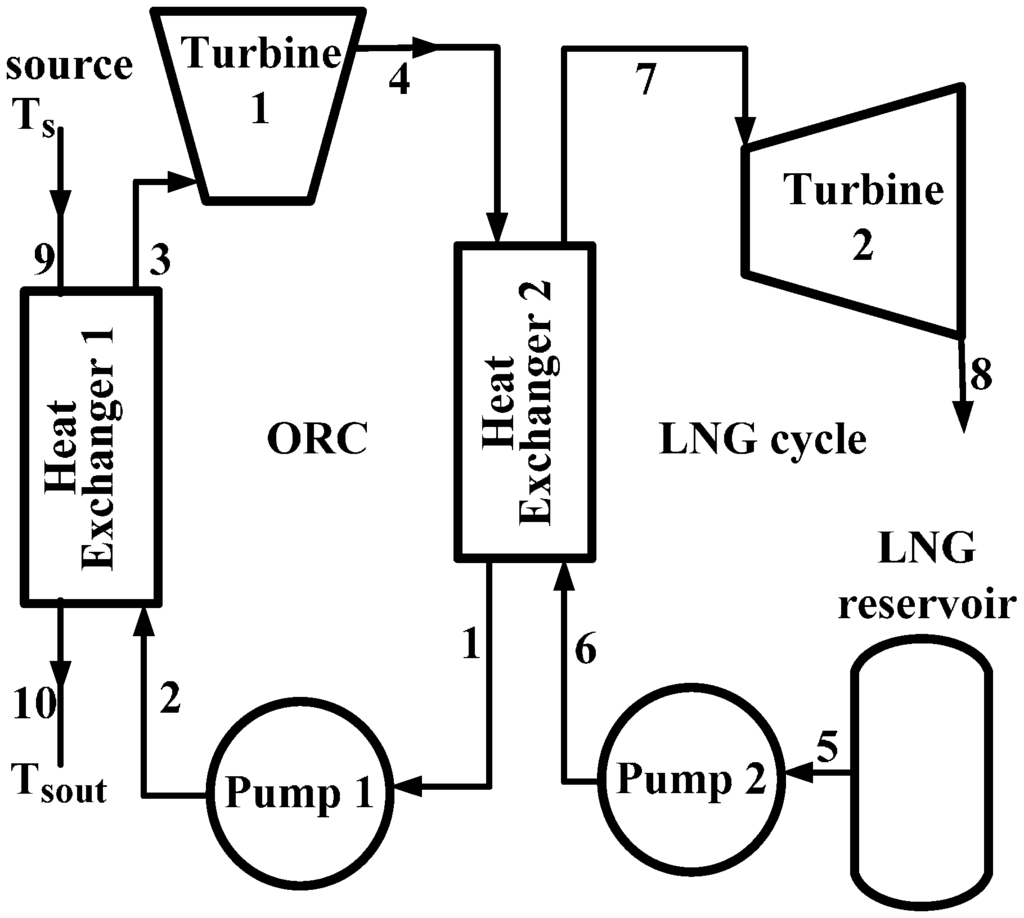

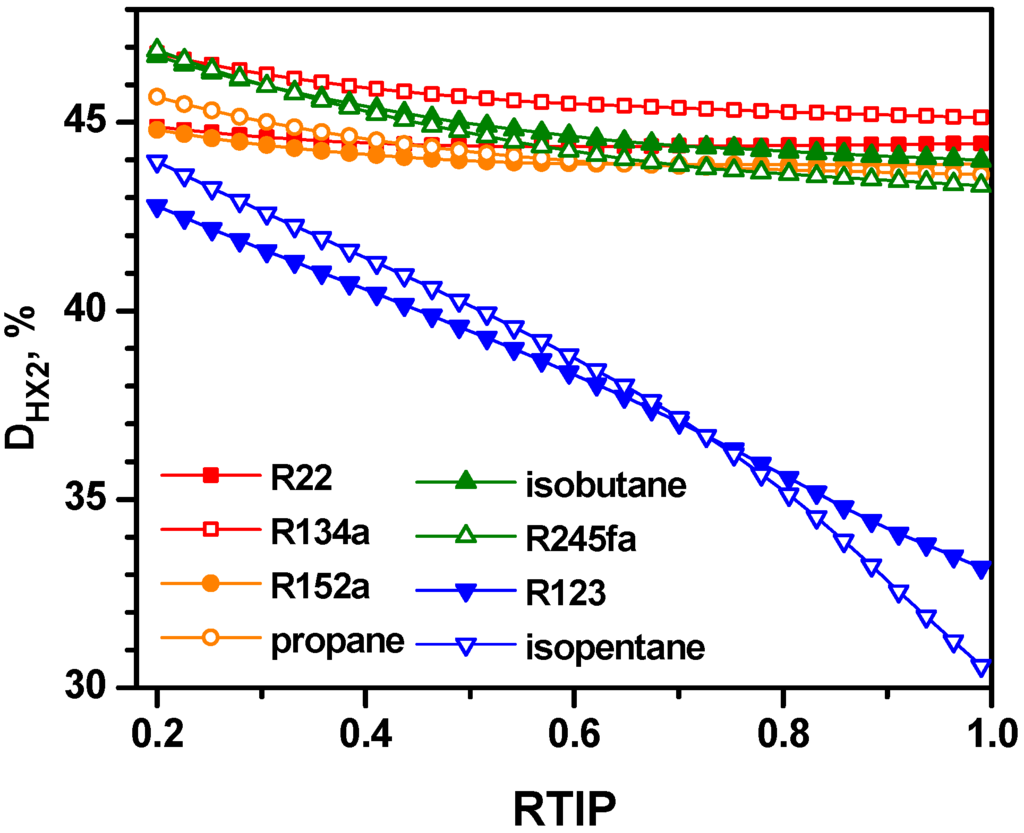

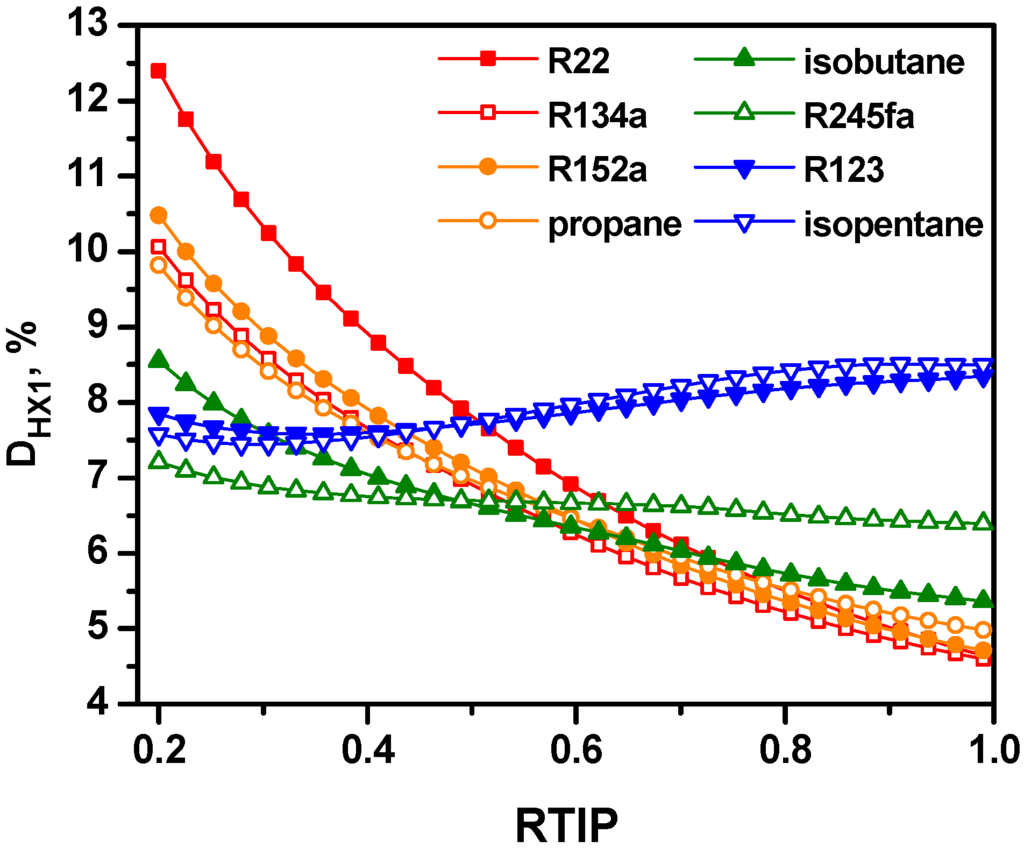

In this work, energy and exergy analyses are carried out for a combined cycle consisting of an organic Rankine cycle (ORC) and a liquefied natural gas (LNG) Rankine cycle for the recovery of low-grade heat sources and LNG cold energy. The effects of the turbine inlet pressure and the working fluid on the system performance are theoretically investigated. A modified temperature-enthalpy diagram is proposed, which can be useful to see the characteristics of the combined cycle, as well as the temperature distributions in the heat exchangers. Results show that the thermal efficiency increases with an increasing turbine inlet pressure and critical temperature of the working fluid. However, the exergy efficiency has a peak value with respect to the turbine inlet pressure, and the maximum exergy efficiency and the corresponding optimum turbine inlet pressure are significantly influenced by the selection of the working fluid. The exergy destruction at the condenser is generally the greatest among the exergy destruction components of the system. View Full-Text
Keywords: organic Rankine cycle (ORC); liquefied natural gas (LNG); low-grade heat source; power generation; exergy organic Rankine cycle (ORC); liquefied natural gas (LNG); low-grade heat source; power generation; exergy
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
